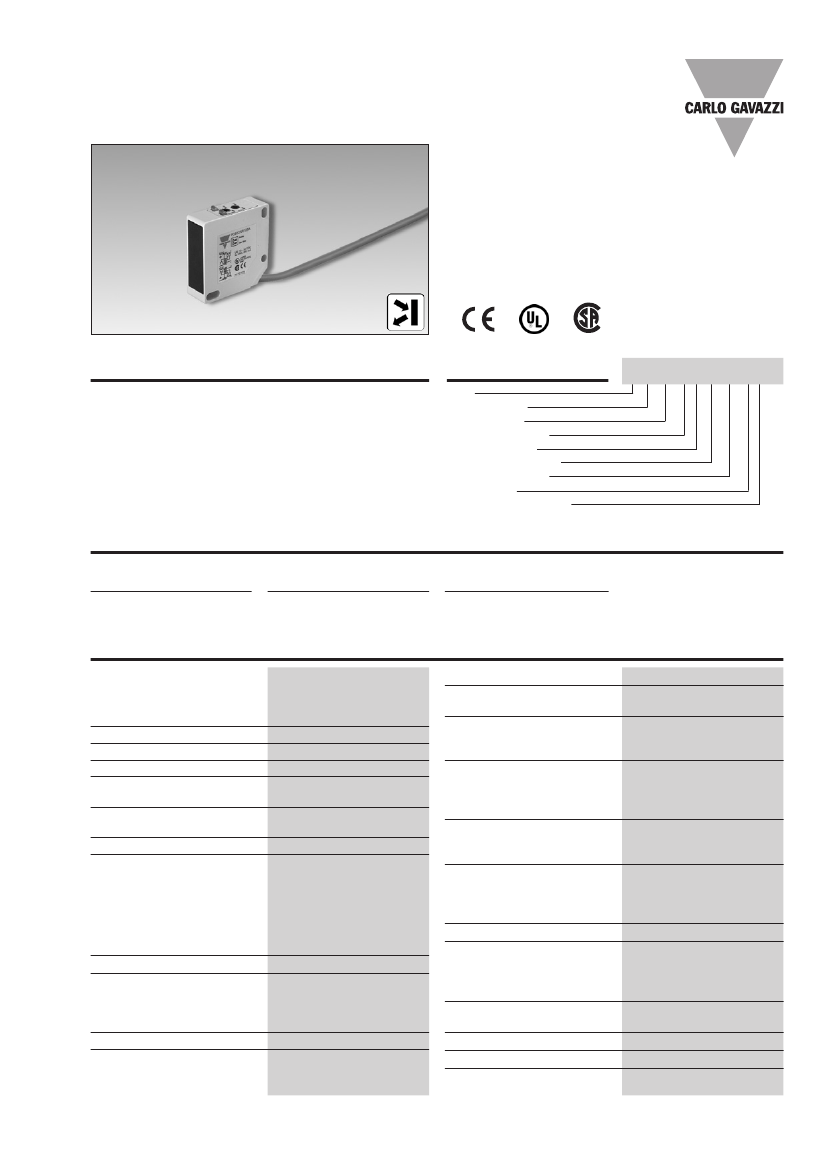

Photoelectrics
Type PC50CND10RP
•
•
•
•
•
•
•
•
•
Range: 1 m
Adjustable sensitivity
Modulated, infrared light
Supply voltage:
12 to 240 VDC and 24 to 240 VAC, 50/60 Hz
Output: Relay 3 A, 30 VDC, 240 VAC
Make and break switching function
LED-indication for output ON, signal stability
and supply ON
Protection: reverse polarity, transients
High degree of EMC
Product Description
The PC50CND. is a general
purpose diffuse-reflective sen-
sor in a compact squared
17 x 50 x 50 mm reinforced
PC/ABS-housing. It is useful
in applications where basic
sensors provide adequate
sensing performance. The
long sensing range in addition
to sensitivity adjustment gives
a very flexible sensor. Light
and dark operation is switch
selectable.
Ordering Key
Type
Housing style
Housing size
Housing material
Housing length
Detection principle
Sensing distance
Output type
Output configuration
PC50CND10RP
Type Selection
Housing
WxHxD
17 x 50 x 50 mm
Range
(S
n
)
1m
Ordering no.
Make and break switching
PC 50 CND 10 RP
Specifications
Rated operating distance
(S
n
) Up to 1 m,
reference target Kodak
test card R 27, white, 90%
reflectivity, 200 x 200 mm
Blind zone
Max. 10 cm
Sensitivity
Adj. by single-turn pot. meter
Temperature drift
≤
0.5%/°C
Hysteresis
(H)
Differential travel
3-20%
12 to 240 VDC
Rated operational volt.
(U
B
)
24 to 240 VAC, 50 to 60 Hz
Rated operational power
≤
2.0 VA (relay ON)
Output
Contact ratings
Resistive loads
AC 1
3 A/250 VAC
DC 1
3 A/30 VDC (> 10 mA/5 VDC)
Mechanical life (typical)
≥
15 x 10
6
operations
Electrical life (typical)
≥
1 x 10
5
operations
at 3 A/240 VAC
Protection
Reverse polarity, transients
Light source
GaAlAs, LED, 880 nm
Light type
Infrared, modulated
Sensing angle
± 2° at 1/2 range
Ambient light
Max. 5’000 lux
Operating frequency
20 Hz
Response time
OFF-ON (t
ON
)
≤
25 ms
ON-OFF (t
OFF
)
≤
25 ms
Specifications are subject to change without notice (28.02.2006)
Power ON delay
(t
v
)
Output function
Indication function
Output ON
Supply ON, signal stability
Environment
Overvoltage category
Pollution degree
Degree of protection
Temperature
Operating
Storage
Vibration
Shock
Rated insulation voltage
Housing material
Body
Front glass
Mounting bracket
Connection
Cable
Weight
Approvals
CE-marking
≤
300 ms
Light and dark operation is
switch selectable
LED, yellow
LED, green
II (IEC 60664/60664A; 60947-1)
3 (IEC 60664/60664A; 60947-1)
IP 67 (IEC 60529; 60947-1)
-20° to +60°C (-4° to +140°F)
-25° to +80°C (-13° to +176°F)
10 to 150 Hz, 0.5 mm/7.5 g
(IEC 68-2-6)
2 x 1 m & 100 x 0.5 m
(IEC 68-2-32)
250 VAC (rms)
PC/ABS, grey, reinforced
PC black
Steel, galvanized
PVC, grey, 2 m, 5 x 0.34 mm
2
130 g
UL, CSA
Yes
1

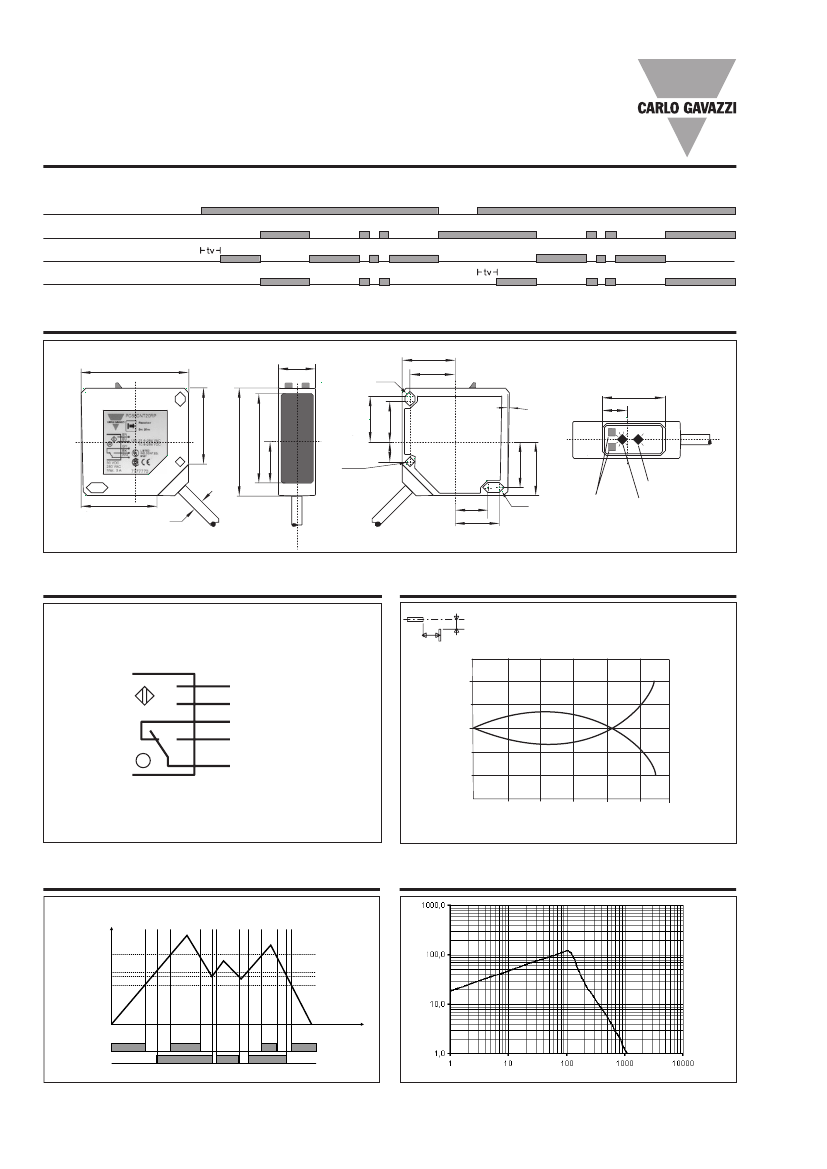

PC50CND10RP

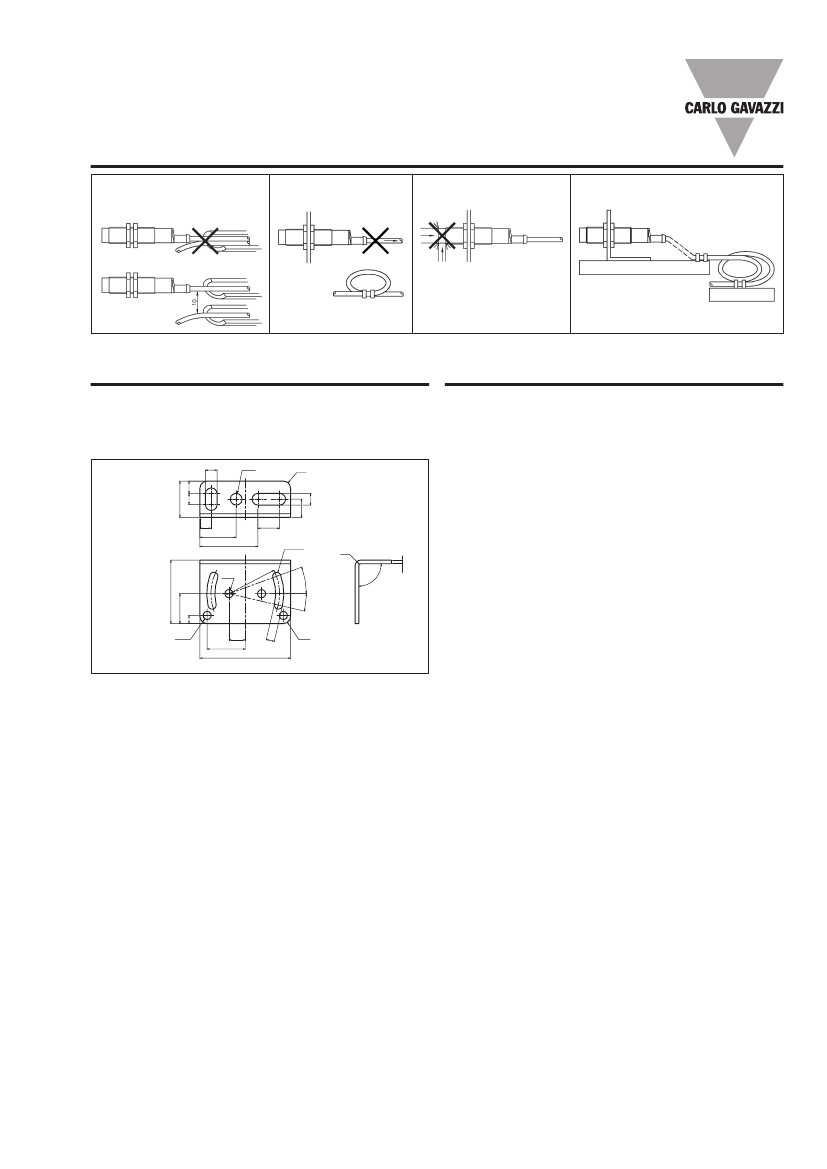

Installation Hints
To avoid interference from inductive voltage/
current peaks, separate the prox. switch pow-
er cables from any other power cables, e.g.
motor, contactor or solenoid cables
Relief of cable strain
Protection of the sensing face
Switch mounted on mobile carrier
Incorrect
Correct
The cable should not be pulled
A proximity switch should not serve as
mechanical stop
Any repetitive flexing of the
cable should be avoided
Delivery Contents
•
•
•
•
Photoelectric switch: PC50CND..
Installation instruction
Mounting bracket APC50-1
Packaging:
Cardboard box
6.5
20
6 7
ø6.5
R4
Accessories
•
Screwdriver for adjustment: 77-001
For further information refer to “Accessories”
6.25
12
20
32
R2.25
R4
2
35
16.5
4.5
ø4.5
21
9
4.5
Mounting bracket
APC50-1
50
13
°
R4
90
ø4.5
R2
8
10
ø6.5
°
Specifications are subject to change without notice (23.01.03)
20
°
3
