Woodhead ArcArrest 30.0A
Switch-Rated Connector System
Incorporating many options and components into a
smooth, contoured design, the Woodhead ArcArrest 30.0A
Switch-Rated Connector System delivers the simplest
and fastest way to de-energize industrial machines and
equipment and perform Lockout/Tagout operations

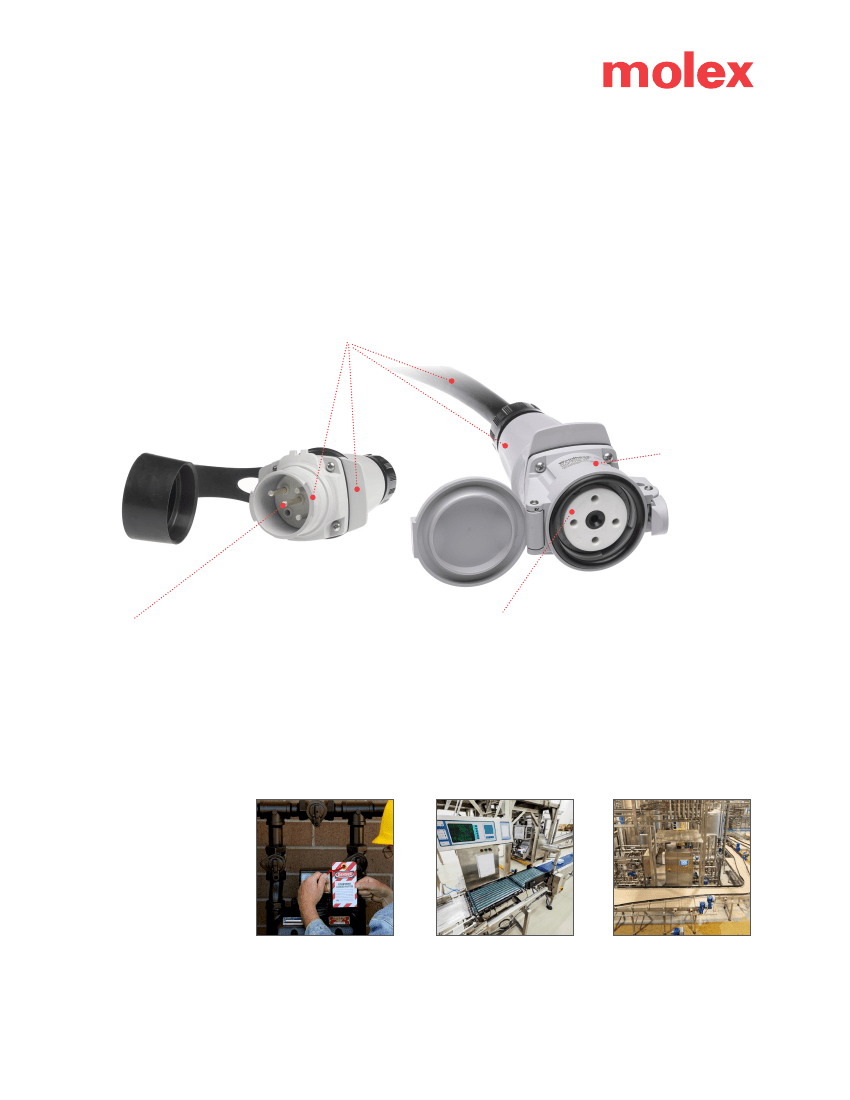

Features and Advantages
Inclusion of options such as MAX-LOC cord-grip technology, finger drawplates, lock-out
holes and plug caps in a smooth, contoured design
Reduces user costs and simplifies ordering. Enhances cleanability in food-processing and other
harsh environments. Delivers enhanced durability for use in the toughest industrial applications
All critical components are
heavily glass-reinforced with
100% Valox materials
Delivers unmatched strength and
complete UL material compliance.
Eliminates nylon components,
commonly used by competitors, which
are prone to moisture absorption and
dimensional instability
Laser labelling
Provides a clean and
permanent record
of certifications and
specifications. Greatly
reduces the harboring of
bacteria and dirt in the label
Furnace-brazed contact tips
Produces tips with superior flatness and
positioning accuracy compared to the flame
brazing process used by competitors
NEMA 4X and IP69k rated
Eliminates ingress of dust and water in a
variety of harsh industrial environments.
Sealing is automatic when connected.
Achieves sealing while disengaged with
closed receptacle lid and plug
Applications
Food Processing
Conveyors
Process Equipment
Pumps
Packaging Machines
General Industrial
Conveyors
Process Equipment
Welding Receptacles
Power Distribution
Construction Sites
Shipyards
Server Rack Power Supply
Lockout Tagout Apparatus
Conveyor Belts
Food Processing Plant
Woodhead ArcArrest 30.0A
Switch-Rated Connector System
Specifications
REFERENCE INFORMATION
Packaging: Corrugated boxes
UL File No.: TBD
cULus File No.:
Designed In: Millimeters
RoHS: Yes
Halogen Free: Yes
ELECTRICAL – UL 2682 SWITCH RATINGS
Voltage (max.): 600V AC
Current (max.): 30.0A
Temperature Rise: <30°C
Dielectric Voltage Withstand (min): 2200V AC
Branch Circuit Switch Testing:
6,000 Cycles at rated current,
p.f. = 0.75-0.80. Per UL 2682
Motor Circuit Switch Testing:
50 Cycles at 600% of full load motor current
p.f. = 0.40-0.50. Per UL 2682
Short Circuit Testing:
10kA when protected by 60A Class J fuse
PHYSICAL
Housings, pawl, and angle: Valox
Handles and lid: Valox
Insulators: Valox
Gaskets: Silicone
Screws and Springs: 300 Series Stainless Steel
Electrical Contacts: Silver alloy
Operating Temperature: -25°C to +60°C
Mechanical Endurance: 10,000 Cycles min
Flammability: V-O per UL 94
Environmental Sealing: Type 4X, IP69K
UV Resistance: UV Stabilized

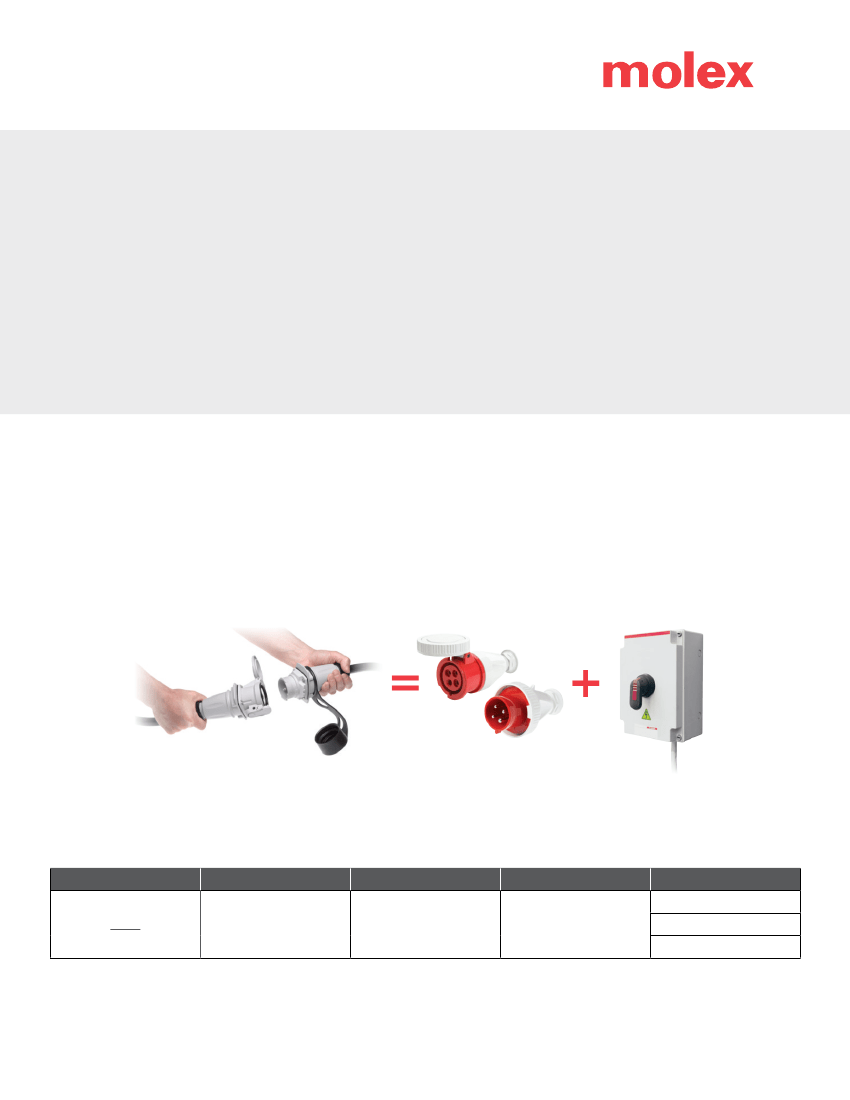

What is a Switch-Rated Connector and UL 2682?
Unlike standard connectors, switch-rated devices listed under UL 2682 can operate as switches and be used to disconnect loads while energized
When operated under load, arcing will occur between the male and female contacts, which they can withstand without damage.
The user is completely shielded from this energy because the plug maintains a connection with the receptacle during operation.
A twisting motion must be applied by the user to remove the plug after the circuit has been interrupted.
The UL test requires this live switching to occur 6,000 cycles.
This proves the connector’s ability to last for many years in a typical industrial application.
Woodhead ArcArrest 30.0A Switch-Rated Connector
Non-Fused Disconnect Switch
Ordering Information
Series No.
Description
Connector Orientation
VAC
Available pin combinations
1P+N+G;
112219
ArcArrest 30.0A Switch-Rated
Connector System
Angled; In-line; Mounted
125 to 600
2P+G; 2P+N+G
3P+G; 3P+N+G
www.molex.com/link/arcarrest.html
Order No. 987651-4741
USA/0k/GF/2018.05
©2018 Molex
