3099-18-1-0500-007-1-TS datasheet, PDF

Datasheet> All Categories > Wire/cable> 3099-18-1-0500-007-1-TS

3099-18-1-0500-007-1-TS: DescriptionHOOK-UP STRND 18AWG GREEN 500'; CategoryWire/cable; File Size200KB，1 Pages; ManufacturerCNC Tech; Environmental Compliance

Download Datasheet Parametric Compare View All

3099-18-1-0500-007-1-TS Overview

HOOK-UP STRND 18AWG GREEN 500'

3099-18-1-0500-007-1-TS Parametric

Parameter Name	Attribute value
Cable type	electronic wire
Wire gauge	18 AWG
Number of wire strands	34/0.0071"
conductor material	Copper, tin plated
Sheath (insulation) material	silicone rubber
Sheath (insulation) diameter	0.112"（2.84mm）
Sheath (insulation) thickness	0.031"（0.80mm）
length	500.0'（152.4m）
Voltage	300V
Operating temperature	-30°C ~ 150°C
Casing color	green
grade	UL type 3099
characteristic	High Temperature, Oil Resistant

Preview

Download Datasheet

View All

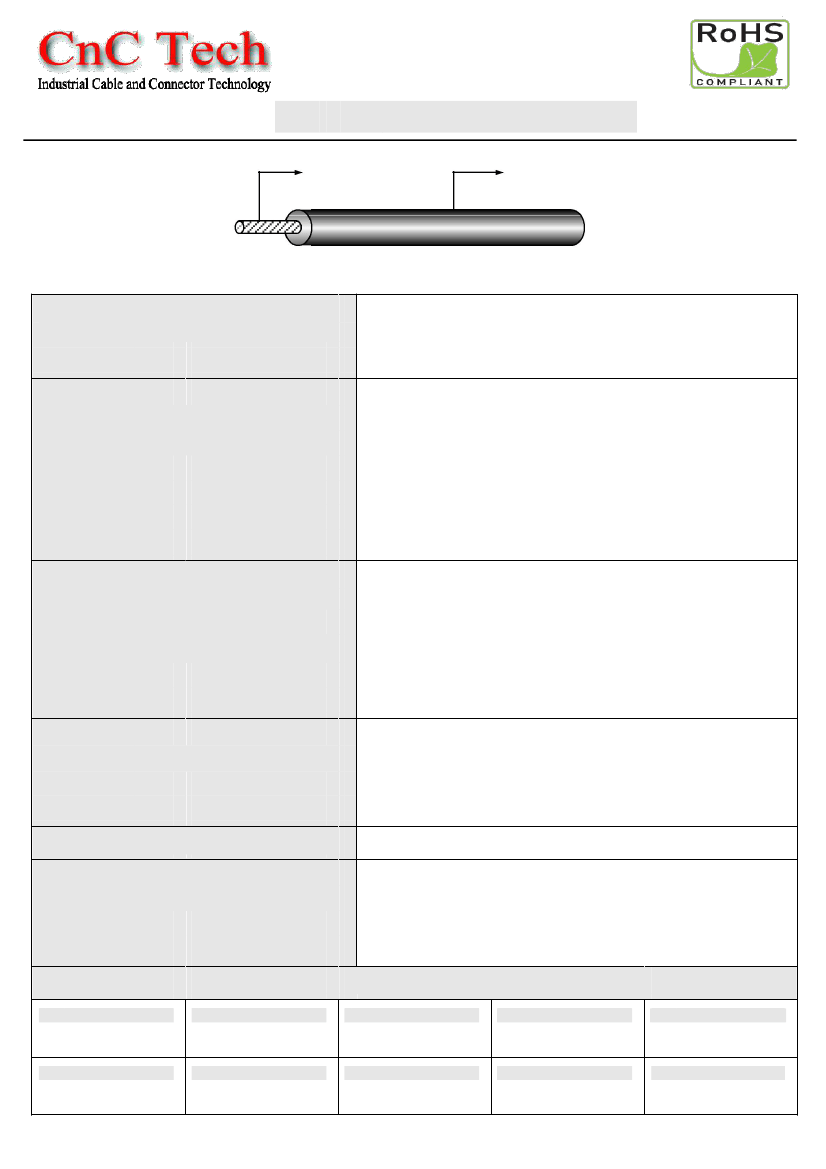

P/N 3099-18-1-0500-0XX-1-TS

(Conductor: Tinned strands)

(Insulation: Silicone Rubber)

UL3099 -

Silicone Rubber Wire 150°C 300V

(18 AWG)

CONSTRUCTION:

Tinned Strands, copper conductor, 34/0.18mm strands.

Overall Diameter = 2.85mm ± 0.10mm

Insulation Thickness: 0.79mm

DUAL-RATED AWM: Can be used in USA and Canada

UL Subject 758 UL FILE NO:E108485

CSA Standard CSA FILE NO:LL84687

Printed Markings:

“

AWM 3099 150℃ 300V E108485-S 18AWG REIHSING CSA

I A 150℃ 300V LL84687 18AWG FT2 LF

”

CERTIFICATION & APPROVALS:

Passes CSA FT2 Vertical Flame Test.

PHYSICAL

ELECTRICAL PROPERTIES:

Rated Temperature: 150℃ ~ -30℃

Rated Voltage: 300V

Insulation Potential Strength: 2000 VAC/min

High flexibility: Soft silicone rubber material.

Maximum Conductor Resistance: 24.4Ω/km

Resistant to: Oil, extremes of hot & cold, flexing.

Silicone rubber wire, has high temperature resistance and

APPLICATIONS:

high flexibility in confined spaces. Suitable for use in whole

sealed cooking appliances, lighting equipment, internal

combustion engine and mercury switches.

500ft per reel.

Conforms to all current RoHS directives as laid out in EU

Directive 2011/65/EC

Current SGS reports for this wire are available upon

request.

P/N's & COLORS

3099-18-1-0500-001-1-TS

3099-18-1-0500-002-1-TS

3099-18-1-0500-003-1-TS

3099-18-1-0500-004-1-TS

3099-18-1-0500-005-1-TS

PACKAGING:

ENVIRONMENTAL APPROVALS:

BLACK

3099-18-1-0500-006-1-TS

WHITE

3099-18-1-0500-007-1-TS

YELLOW

3099-18-1-0500-008-1-TS

RED

3099-18-1-0500-010-1-TS

BLUE

3099-18-1-0500-011-1-TS

BROWN

GREEN

ORANGE

VIOLET

GREEN + YELLOW

3099-18-1-0500-007-1-TS Related Products

	3099-18-1-0500-007-1-TS	3099-18-1-0500-001-1-TS	3099-18-1-0500-002-1-TS	3099-18-1-0500-003-1-TS	3099-18-1-0500-004-1-TS	3099-18-1-0500-005-1-TS	3099-18-1-0500-006-1-TS	3099-18-1-0500-008-1-TS	3099-18-1-0500-010-1-TS	3099-18-1-0500-011-1-TS
Description	HOOK-UP STRND 18AWG GREEN 500'	HOOK-UP STRND 18AWG BLACK 500'	HOOK-UP STRND 18AWG WHITE 500'	HOOK-UP STRND 18AWG YELLOW 500'	HOOK-UP STRND 18AWG RED 500'	HOOK-UP STRND 18AWG BLUE 500'	HOOK-UP STRND 18AWG BROWN 500'	HOOK-UP STRND 18AWG ORANGE 500'	HOOK-UP STRND 18AWG VIOLET 500'	HOOK-UP STRND 18AWG GRN/YEL 500'
Cable type	electronic wire	electronic wire	electronic wire	electronic wire	electronic wire	electronic wire	electronic wire	electronic wire	electronic wire	electronic wire
Wire gauge	18 AWG	18 AWG	18 AWG	18 AWG	18 AWG	18 AWG	18 AWG	18 AWG	18 AWG	18 AWG
Number of wire strands	34/0.0071"	34/0.0071"	34/0.0071"	34/0.0071"	34/0.0071"	34/0.0071"	34/0.0071"	34/0.0071"	34/0.0071"	34/0.0071"
conductor material	Copper, tin plated	Copper, tin plated	Copper, tin plated	Copper, tin plated	Copper, tin plated	Copper, tin plated	Copper, tin plated	Copper, tin plated	Copper, tin plated	Copper, tin plated
Sheath (insulation) material	silicone rubber	silicone rubber	silicone rubber	silicone rubber	silicone rubber	silicone rubber	silicone rubber	silicone rubber	silicone rubber	silicone rubber
Sheath (insulation) diameter	0.112"（2.84mm）	0.112"（2.84mm）	0.112"（2.84mm）	0.112"（2.84mm）	0.112"（2.84mm）	0.112"（2.84mm）	0.112"（2.84mm）	0.112"（2.84mm）	0.112"（2.84mm）	0.112"（2.84mm）
Sheath (insulation) thickness	0.031"（0.80mm）	0.031"（0.80mm）	0.031"（0.80mm）	0.031"（0.80mm）	0.031"（0.80mm）	0.031"（0.80mm）	0.031"（0.80mm）	0.031"（0.80mm）	0.031"（0.80mm）	0.031"（0.80mm）
length	500.0'（152.4m）	500.0'（152.4m）	500.0'（152.4m）	500.0'（152.4m）	500.0'（152.4m）	500.0'（152.4m）	500.0'（152.4m）	500.0'（152.4m）	500.0'（152.4m）	500.0'（152.4m）
Voltage	300V	300V	300V	300V	300V	300V	300V	300V	300V	300V
Operating temperature	-30°C ~ 150°C	-30°C ~ 150°C	-30°C ~ 150°C	-30°C ~ 150°C	-30°C ~ 150°C	-30°C ~ 150°C	-30°C ~ 150°C	-30°C ~ 150°C	-30°C ~ 150°C	-30°C ~ 150°C
Casing color	green	black	White	yellow	red	blue	brown	orange color	Purple	green,yellow
grade	UL type 3099	UL type 3099	UL type 3099	UL type 3099	UL type 3099	UL type 3099	UL type 3099	UL type 3099	UL type 3099	UL type 3099
characteristic	High Temperature, Oil Resistant	High Temperature, Oil Resistant	High Temperature, Oil Resistant	High Temperature, Oil Resistant	High Temperature, Oil Resistant	High Temperature, Oil Resistant	High Temperature, Oil Resistant	High Temperature, Oil Resistant	High Temperature, Oil Resistant	High Temperature, Oil Resistant
