3239-16-1-0500-007-1-TS datasheet, PDF

Datasheet> All Categories > Wire/cable> 3239-16-1-0500-007-1-TS

3239-16-1-0500-007-1-TS: DescriptionHOOK-UP STRND 16AWG GREEN 500'; CategoryWire/cable; File Size151KB，1 Pages; ManufacturerCNC Tech; Environmental Compliance

Download Datasheet Parametric Compare View All

3239-16-1-0500-007-1-TS Overview

HOOK-UP STRND 16AWG GREEN 500'

3239-16-1-0500-007-1-TS Parametric

Parameter Name	Attribute value
Cable type	electronic wire
Wire gauge	16 AWG
Number of wire strands	26/0.0100"
conductor material	Copper, tin plated
Sheath (insulation) material	silicone rubber
Sheath (insulation) diameter	0.094"（2.38mm）
Sheath (insulation) thickness	0.022"（0.55mm）
length	500.0'（152.4m）
Voltage	3000V
Operating temperature	-50°C ~ 150°C
Casing color	green
grade	UL type 3239
characteristic	High Temperature, Oil Resistant

Preview

Download Datasheet

View All

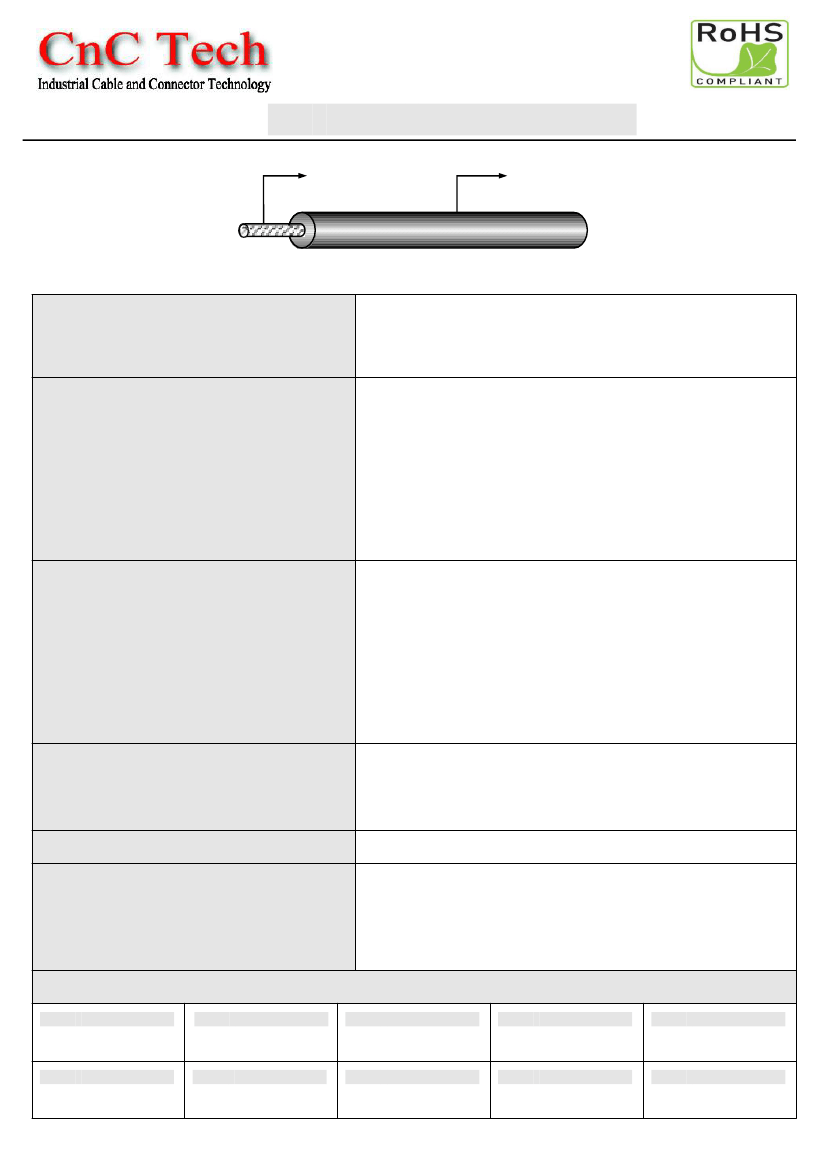

P/N 3239-16-1-0500-0XX-1-TS

(Conductor: Tinned strands)

(Insulation: Silicone Rubber)

UL3239 -

Silicone Rubber Wire 150°C 3KV

(16 AWG)

CONSTRUCTION:

Tinned Strands, copper conductor, 26/0.254mm strands.

Overall Diameter = 2.40mm

+/-0.15mm

Insulation Thickness: 0.55mm

DUAL-RATED AWM: Can be used in USA and Canada

UL Subject 758 UL FILE NO:E108485

CSA Standard CSA FILE NO:LL84687

Printed Markings:

“

AWM 3239 150℃ 3KV E108485-S 18AWG REIHSING CSA I

A 150℃ 3KV LL84687 18AWG FT1

”

CERTIFICATION & APPROVALS:

Passes UL VW-1 & CSA FT1 Vertical Flame Test.

Rated Temperature: 150

℃

~ -50

℃

Rated Voltage: 3KV

Insulation Potential Strength: 6000 VAC/min

High flexibility: Soft silicone rubber material.

Maximum Conductor Resistance: 15.6Ω/km

Resistant to: Oil, extremes of hot & cold, flexing, high

Voltage spikes.

APPLICATIONS:

PACKAGING:

ENVIRONMENTAL APPROVALS:

Silicone rubber wire, has high temperature resistance and

high flexibility in confined spaces. Suitable for use in LED

TVs, Laptops, Microwaves, Photocopiers, Scanners.

500ft per reel.

Conforms to all current RoHS directives as laid out in EU

Directive 2011/65/EC

Current SGS reports for this wire are available upon

request.

P/N's & COLORS

3239-16-1-0500-001-1-TS

3239-16-1-0500-002-1-TS

3239-16-1-0500-003-1-TS

3239-16-1-0500-004-1-TS

3239-16-1-0500-005-1-TS

PHYSICAL

ELECTRICAL PROPERTIES:

BLACK

3239-16-1-0500-006-1-TS

WHITE

3239-16-1-0500-007-1-TS

YELLOW

3239-16-1-0500-008-1-TS

RED

3239-16-1-0500-010-1-TS

BLUE

3239-16-1-0500-011-1-TS

BROWN

GREEN

ORANGE

VIOLET

GREEN + YELLOW

3239-16-1-0500-007-1-TS Related Products

	3239-16-1-0500-007-1-TS	3239-16-1-0500-001-1-TS	3239-16-1-0500-002-1-TS	3239-16-1-0500-003-1-TS	3239-16-1-0500-004-1-TS	3239-16-1-0500-005-1-TS	3239-16-1-0500-006-1-TS	3239-16-1-0500-008-1-TS	3239-16-1-0500-010-1-TS	3239-16-1-0500-011-1-TS
Description	HOOK-UP STRND 16AWG GREEN 500'	HOOK-UP STRND 16AWG BLACK 500'	HOOK-UP STRND 16AWG WHITE 500'	HOOK-UP STRND 16AWG YELLOW 500'	HOOK-UP STRND 16AWG RED 500'	HOOK-UP STRND 16AWG BLUE 500'	HOOK-UP STRND 16AWG BROWN 500'	HOOK-UP STRND 16AWG ORANGE 500'	HOOK-UP STRND 16AWG VIOLET 500'	HOOK-UP STRND 16AWG GRN/YEL 500'
Cable type	electronic wire	electronic wire	electronic wire	electronic wire	electronic wire	electronic wire	electronic wire	electronic wire	electronic wire	electronic wire
Wire gauge	16 AWG	16 AWG	16 AWG	16 AWG	16 AWG	16 AWG	16 AWG	16 AWG	16 AWG	16 AWG
Number of wire strands	26/0.0100"	26/0.0100"	26/0.0100"	26/0.0100"	26/0.0100"	26/0.0100"	26/0.0100"	26/0.0100"	26/0.0100"	26/0.0100"
conductor material	Copper, tin plated	Copper, tin plated	Copper, tin plated	Copper, tin plated	Copper, tin plated	Copper, tin plated	Copper, tin plated	Copper, tin plated	Copper, tin plated	Copper, tin plated
Sheath (insulation) material	silicone rubber	silicone rubber	silicone rubber	silicone rubber	silicone rubber	silicone rubber	silicone rubber	silicone rubber	silicone rubber	silicone rubber
Sheath (insulation) diameter	0.094"（2.38mm）	0.094"（2.38mm）	0.094"（2.38mm）	0.094"（2.38mm）	0.094"（2.38mm）	0.094"（2.38mm）	0.094"（2.38mm）	0.094"（2.38mm）	0.094"（2.38mm）	0.094"（2.38mm）
Sheath (insulation) thickness	0.022"（0.55mm）	0.022"（0.55mm）	0.022"（0.55mm）	0.022"（0.55mm）	0.022"（0.55mm）	0.022"（0.55mm）	0.022"（0.55mm）	0.022"（0.55mm）	0.022"（0.55mm）	0.022"（0.55mm）
length	500.0'（152.4m）	500.0'（152.4m）	500.0'（152.4m）	500.0'（152.4m）	500.0'（152.4m）	500.0'（152.4m）	500.0'（152.4m）	500.0'（152.4m）	500.0'（152.4m）	500.0'（152.4m）
Voltage	3000V	3000V	3000V	3000V	3000V	3000V	3000V	3000V	3000V	3000V
Operating temperature	-50°C ~ 150°C	-50°C ~ 150°C	-50°C ~ 150°C	-50°C ~ 150°C	-50°C ~ 150°C	-50°C ~ 150°C	-50°C ~ 150°C	-50°C ~ 150°C	-50°C ~ 150°C	-50°C ~ 150°C
Casing color	green	black	White	yellow	red	blue	brown	orange color	Purple	green,yellow
grade	UL type 3239	UL type 3239	UL type 3239	UL type 3239	UL type 3239	UL type 3239	UL type 3239	UL type 3239	UL type 3239	UL type 3239
characteristic	High Temperature, Oil Resistant	High Temperature, Oil Resistant	High Temperature, Oil Resistant	High Temperature, Oil Resistant	High Temperature, Oil Resistant	High Temperature, Oil Resistant	High Temperature, Oil Resistant	High Temperature, Oil Resistant	High Temperature, Oil Resistant	High Temperature, Oil Resistant
