4231-T110-K0F2H-3A datasheet, PDF

Datasheet> All Categories > Circuit protection> 4231-T110-K0F2H-3A

4231-T110-K0F2H-3A: DescriptionCIR BRKR MAG-HYDR 120VAC 3A; CategoryCircuit protection; File Size717KB，2 Pages; ManufacturerE-Switch; Websitehttp://www.e-switch.com; Environmental Compliance

Download Datasheet Parametric Compare View All

4231-T110-K0F2H-3A Overview

CIR BRKR MAG-HYDR 120VAC 3A

4231-T110-K0F2H-3A Parametric

Parameter Name	Attribute value
Circuit breaker type	Magnetic (hydraulic delay)
Rated current	3A
Rated voltage - AC	120V
Rated voltage - DC	50V
Number of poles	1
Actuator type	press slice
illumination	none
Lighting voltage (nominal)	-
Installation type	DIN rail

Preview

Download Datasheet

View All

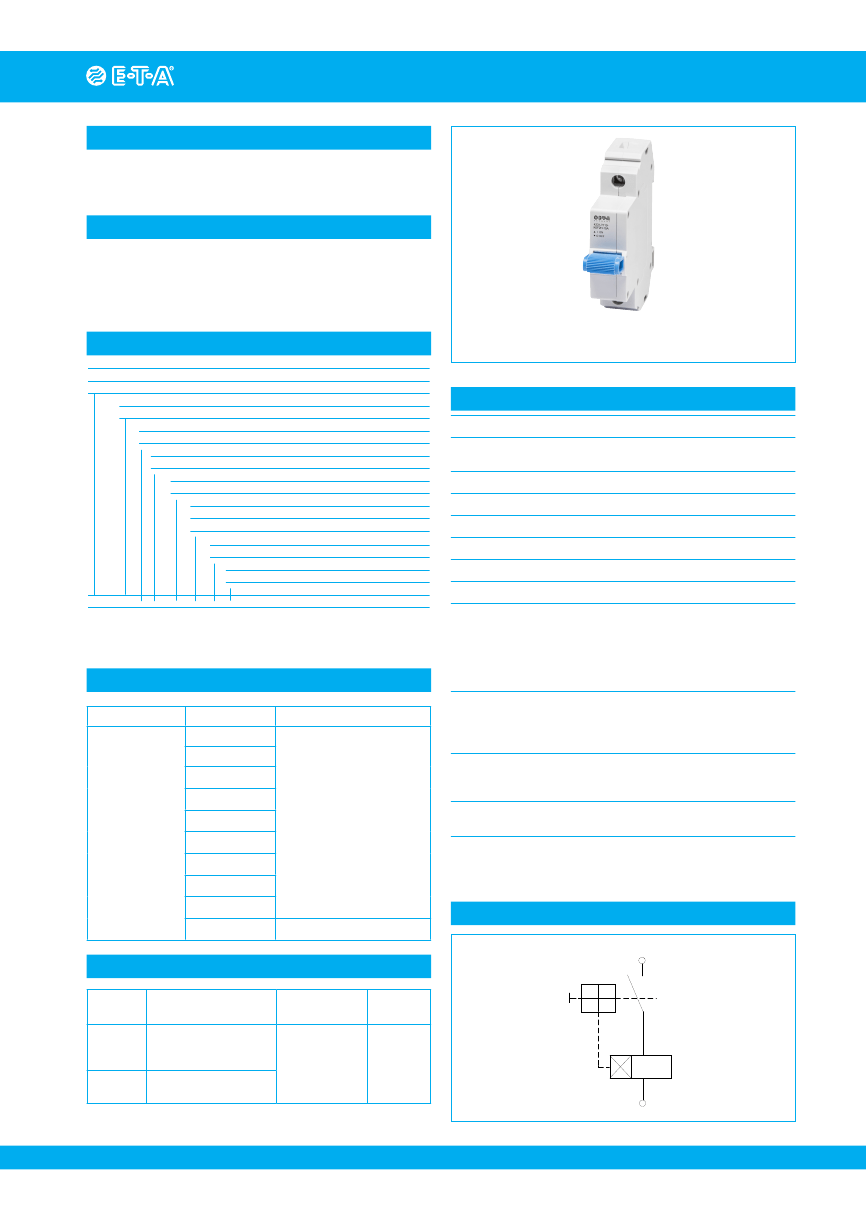

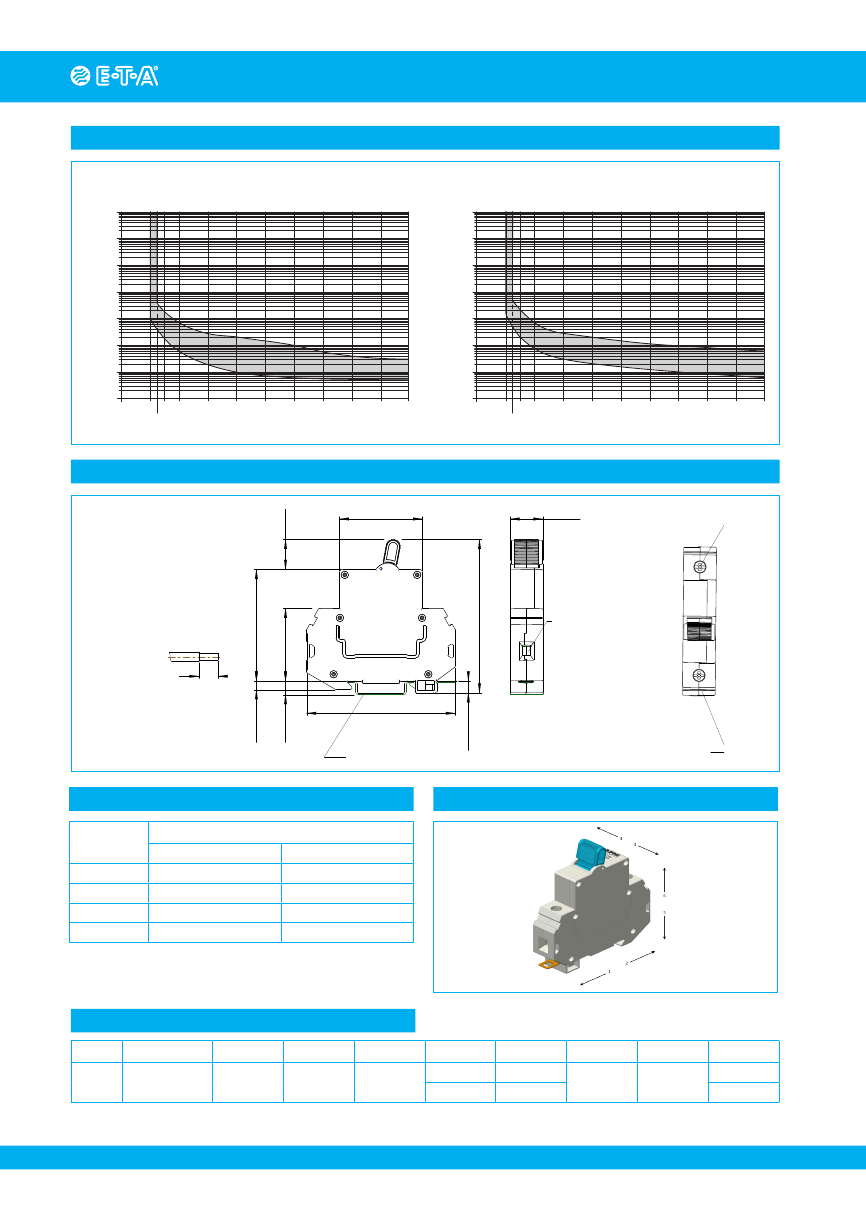

Class I Division 2 Hydraulic-Magnetic MCB 4231-T

Description

Single pole, DIN rail mount, hydraulic-magnetic miniature circuit breaker

(MCB) in accordance with UL1077, CSA22.2, and UL Class I Division 2,

Groups A, B, C, D.

Typical Applications

Hazardous locations where flammable liquids, gases, vapors, or

combustible dust exists in sufficient quantities to produce an explosion

or fire. Typical applications include; Oil & Gas drilling and production,

Agricultural processing and storage, and Saw Mill / Pulp & Paper

production.

Ordering Information

Type No.

4231

Hydraulic-magnetic high performance circuit breaker

Mounting

Rail mounting

Number of poles

Single pole protected

Accessories

Without

Terminals

Screw terminals

Characteristic curve

DC short time delay*

AC short time delay

Approvals

UL1077, CSA22.2, UL Class I Division 2

Current ratings

1, 2, 3, 5, 7, 8, 10, 12, 15, (20A)**

4231 - T1 1 0 - K0 F2 H - 10A

ordering example

* Visit www.e-t-a.com/us_esx10-t/ to see ESX10 Electronic Breakers for

24VDC Class I Division II applications

** for 50VDC only

4231-T...

Technical Data

Voltage rating

Current rating range

Interrupting capacity

Temperature

Ambient typical life

Insulation Resistance

Dielectric Strength

Degree of Protection

Vibration

Directions 1, 2, 3, 4:

Directors 5, 6:

120VAC, 50VDC

1... 15A (AC)

1... 20A (DC)

1000 A (AC and DC)

-40º - 65ºC

1... 20A 6000 operations @ 1 x I

>100 mega ohms (100VDC)

1250 V RMS, 60 Hz

IP20

5 g at 1.0 x I

10 g at 1.0 x I

(57-2000 Hz) +/- 0.76 mm (10-57 Hz)

to IEC 60068-2-6, test Fc

10 frequency cycles/axis

40 g/11 ms/half sine at 1.0 x I

30 g/11 ms/half sine at 1.0 x I

to IEC 60068-2-27, test Ea

240 hrs in 95% RH, temperature 40

Deg C test to IEC60068-2-78, test

Cab

96 hrs in 5% salt mist test to

IEC60068-2-11, test Ka

(between terminals)

Available product configurations

Part number

Current rating

4231-T110-K0F1H-

4231-T110-K0F2H-

10A

12A

15A

20A

UL1077, CID2, 1P, 50VDC

UL1077, CID2, 1P, 120VAC,

50VDC

Description

Shock

Directions 2, 3, 4, 5, 6:

Direction 1:

Humidity

Corrosion

Schematic Diagram

Approvals

Authority

line

Rated voltage

Current

ratings

1, 2, 3, 5,

7, 8, 10, 12,

15, 20A*

Standard

Class I Div 2 GP A, B, C, D

ISA 12.12.01-2015

CSA C22.2 No. 213

UL 1077

CSA C22.2 No. 235-04

120VAC 50/60 Hz

50VDC

load

* for 50VDC only

www.e-t-a.com

4231-T110-K0F2H-3A Related Products

	4231-T110-K0F2H-3A	4231-T110-K0F2H-1A	4231-T110-K0F2H-2A	4231-T110-K0F2H-5A	4231-T110-K0F2H-7A	4231-T110-K0F2H-8A	4231-T110-K0F2H-10A	4231-T110-K0F2H-12A	4231-T110-K0F2H-15A
Description	CIR BRKR MAG-HYDR 120VAC 3A	CIR BRKR MAG-HYDR 120VAC 1A	CIR BRKR MAG-HYDR 120VAC 2A	CIR BRKR MAG-HYDR 120VAC 5A	CIR BRKR MAG-HYDR 120VAC 7A	CIR BRKR MAG-HYDR 120VAC 8A	CIR BRKR MAG-HYDR 120VAC 10A	CIR BRKR MAG-HYDR 120VAC 12A	CIR BRKR MAG-HYDR 120VAC 15A
Circuit breaker type	Magnetic (hydraulic delay)	Magnetic (hydraulic delay)	Magnetic (hydraulic delay)	Magnetic (hydraulic delay)	Magnetic (hydraulic delay)	Magnetic (hydraulic delay)	Magnetic (hydraulic delay)	Magnetic (hydraulic delay)	Magnetic (hydraulic delay)
Rated current	3A	1A	2A	5A	7A	8A	10A	12A	15A
Rated voltage - AC	120V	120V	120V	120V	120V	120V	120V	120V	120V
Rated voltage - DC	50V	50V	50V	50V	50V	50V	50V	50V	50V
Number of poles	1	1	1	1	1	1	1	1	1
Actuator type	press slice	press slice	press slice	press slice	press slice	press slice	press slice	press slice	press slice
illumination	none	none	none	none	none	none	none	none	none
Installation type	DIN rail	DIN rail	DIN rail	DIN rail	DIN rail	DIN rail	DIN rail	DIN rail	DIN rail
