FHSXO-12-10P datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> FHSXO-12-10P

Preview

FHSXO-12-10P: DescriptionHD FLEX LC SPLICE CASSETTE PRELO; CategoryThe connector; File Size410KB，2 Pages; ManufacturerPanduit; Websitehttp://www.panduit.com

Download Datasheet Parametric Compare View All

FHSXO-12-10P Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	FHSXO-12-10P	-	-	View	Buy Now

FHSXO-12-10P Overview

HD FLEX LC SPLICE CASSETTE PRELO

FHSXO-12-10P Parametric

Parameter Name	Attribute value
type	adapter
Convert from (adapter side)	LC socket
Convert to (adapter side)	MPO socket
Simplex/Duplex	12 sockets
model	multimode
Installation type	Panel mount, snap-in
Shell material	plastic
Buckle material	Zirconia, ceramic
characteristic	-
color	-
Material flammability rating	-
Intrusion protection	-
Operating temperature	0°C ~ 70°C

Preview

Download Datasheet

View All

2

1

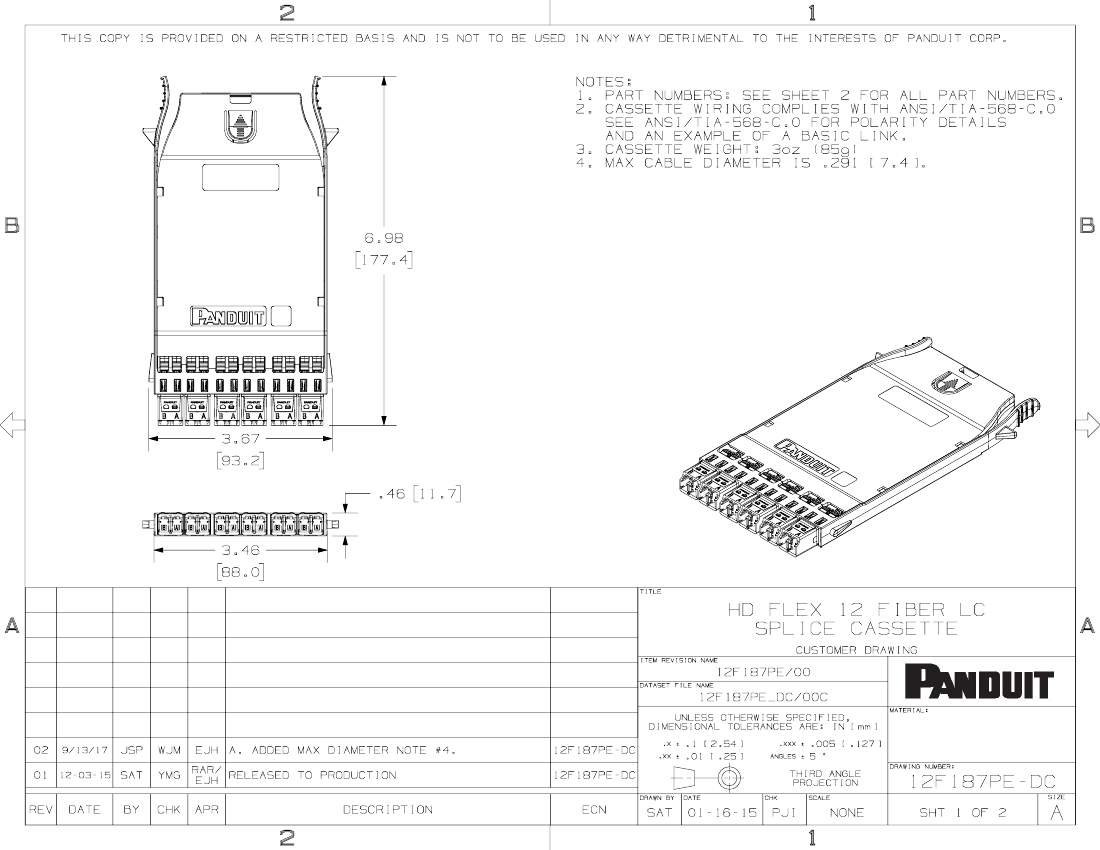

THIS COPY IS PROVIDED ON A RESTRICTED BASIS AND IS NOT TO BE USED IN ANY WAY DETRIMENTAL TO THE INTERESTS OF PANDUIT CORP.

NOTES:

1. PART NUMBERS: SEE SHEET 2 FOR ALL PART NUMBERS.

2. CASSETTE WIRING COMPLIES WITH ANSI/TIA-568-C.0

SEE ANSI/TIA-568-C.0 FOR POLARITY DETAILS

AND AN EXAMPLE OF A BASIC LINK.

3. CASSETTE WEIGHT: 3oz (85g)

4. MAX CABLE DIAMETER IS .291 [7.4].

B

6.98

177.4

B

3.67

93.2

.46 11.7

3.46

88.0

TITLE

A

ITEM REVISION NAME

DATASET FILE NAME

HD FLEX 12 FIBER LC

SPLICE CASSETTE

CUSTOMER DRAWING

A

12F187PE/00

12F187PE_DC/00C

MATERIAL:

UNLESS OTHERWISE SPECIFIED,

DIMENSIONAL TOLERANCES ARE: IN [mm]

02

9/13/17

JSP

WJM

YMG

EJH

A. ADDED MAX DIAMETER NOTE #4.

12F187PE-DC

.X

.XX

.1 [2.54]

.01 [.25]

.XXX

ANGLES

.005 [.127]

5

DRAWING NUMBER:

01

12-03-15

SAT

RAR/

RELEASED TO PRODUCTION

EJH

THIRD ANGLE

PROJECTION

DRAWN

BY

12F187PE-DC

SIZE

DATE

CHK

SCALE

REV

DATE

BY

CHK

APR

DESCRIPTION

ECN

SAT

01-16-15

PJI

NONE

SHT 1 OF 2

A

2

1

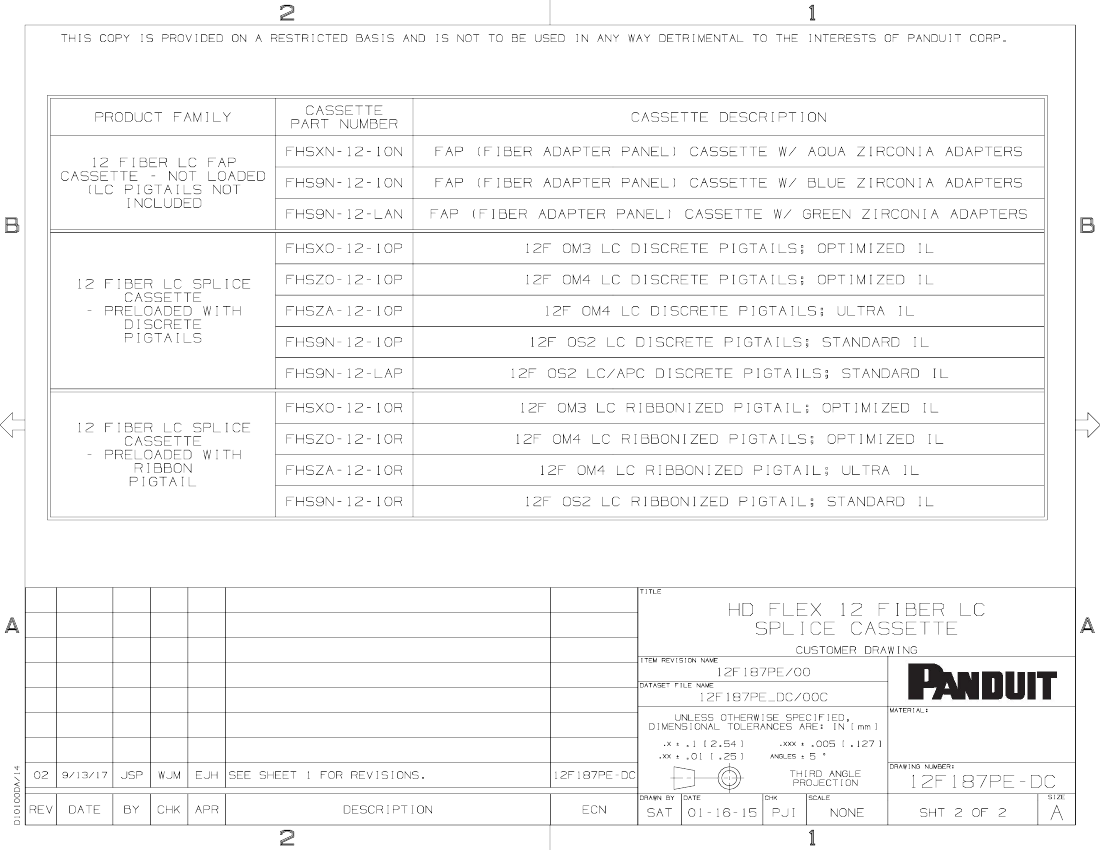

FHSXO-12-10P Related Products

	FHSXO-12-10P	FHS9N-12-10N	FHS9N-12-10P
Description	HD FLEX LC SPLICE CASSETTE PRELO	Fiber Optic Connectors HDFLEX LC SPLICE/FAP CASS 6 PORT DUPLEX	HD FLEX LC SPLICE CASSETTE PRELO
type	adapter	-	adapter
Convert from (adapter side)	LC socket	-	LC socket
Convert to (adapter side)	MPO socket	-	MPO socket
Simplex/Duplex	12 sockets	-	12 sockets
model	multimode	-	single mode
Installation type	Panel mount, snap-in	-	Panel mount, snap-in
Shell material	plastic	-	plastic
Buckle material	Zirconia, ceramic	-	Zirconia, ceramic
Operating temperature	0°C ~ 70°C	-	0°C ~ 70°C
