COPPER TUBES AND FIN HEAT EXCHANGERS
Heat Exchangers
TUBE TO FIN, LIQUID-TO-AIR HEAT EXCHANGERS

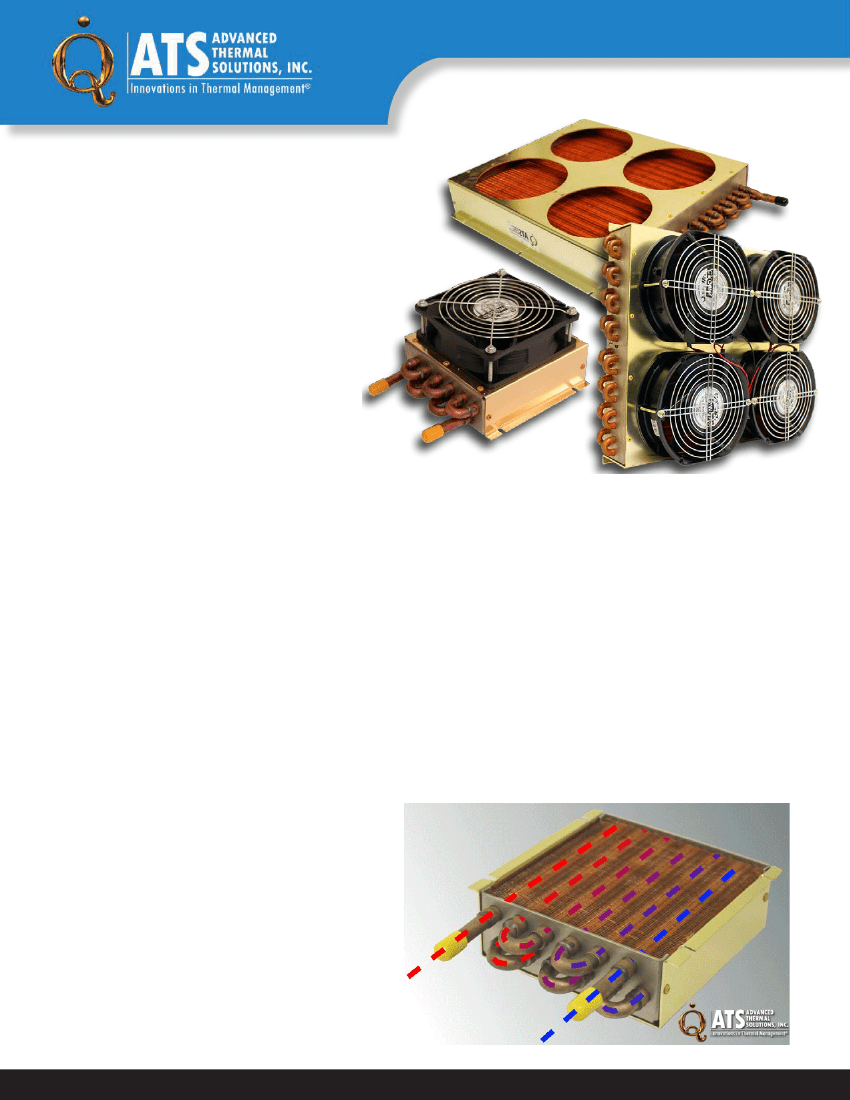

ATS tube-to-fin, liquid-to-air heat exchangers
are made with the industry’s highest density
fins to maximize heat transfer from liquid
to air, allowing the liquid to be cooled to
lower temperatures than other heat exchangers
on the market. The heat exchanger fins
and tubes are made of copper and stainless
steel to be suitable for a variety of fluids,
including water, dielectric fluids and custom
designed heat transfer fluids.
Each of the seven heat exchanger sizes is available with or without a fan. ATS heat exchangers can be used in
laser cooling, medical equipment and imaging devices, compressor cooling, semiconductor processing, HVAC,
food and beverage processing, and other liquid cooling applications.
GENERAL FEATURES
»
Length: 5.8 to 21.9"
»
Width: 5.8 to 14"
»
Height: 1.8 to 2.6"
»
Tube diameter: 0.375 and 0.5"
»
Copper and tubes
»
Copper fins
»
High-efficiency and high density fin design
»
Silver-solder brazed joints
»
Internally cleaned and corrosion protected
»
Externally coated for corrosion protection
»
Can be customized for different fans
»
100% pressure tested
APPLICATIONS
»
Automotive
»
Aerospace
»
Medical
»
Laser cooling
»
Electronics Cooling
»
Compressor Cooling
»
Semiconductor Processing
»
HVAC
For further information, please contact
Advanced Thermal Solutions, Inc. at
1-781-769-2800
or
www.qats.com
89-27 ACCESS ROAD, NORWOOD, MA 02062 USA | T: 781.769. 2800 F: 781.769.9979 | WWW.QATS.COM
R6_1017
COPPER TUBES AND FIN HEAT EXCHANGERS

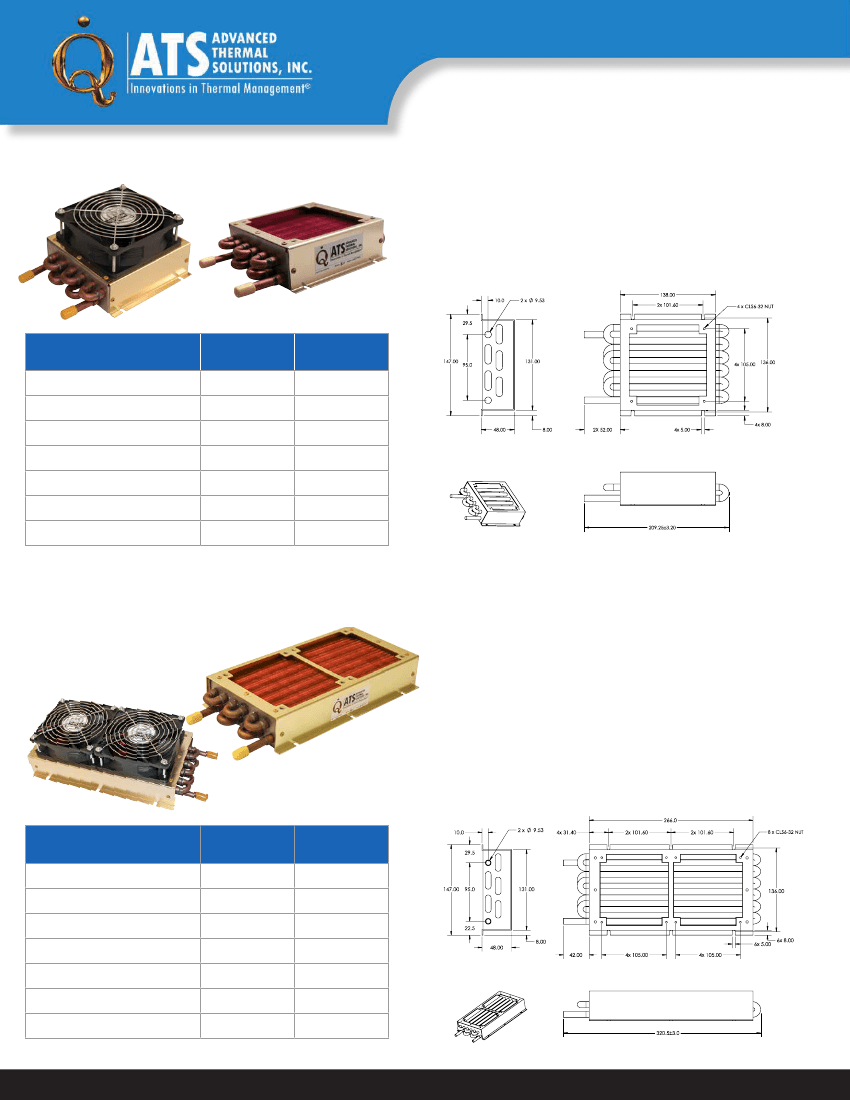

ATS-HE20 SERIES
»
Heat transfer capacity up to 22W per ∆T =1°C
»
5.8 x 5.8 x 1.8" core size
»
∆T = inlet liquid temperature - inlet air temperature
»
Weight: 1077g (2.4 lbs), Weight w/fan: 1411g (3.1 lbs)
MPN
ATS-HE20-C1-R0
ATS-HE20-C2-R0
ATS-HE20-C3-R0
ATS-HE20-C4-R0
ATS-HE20-C5-R0
ATS-HE20-C6-R0
ATS-HE20-C7-R0
FAN TYPE
NO FAN
12V
12V PWM
24V
24V PWM
48V
48V PWM
# OF FANS
0
1
1
1
1
1
1
ATS-HE21 SERIES
»
Heat transfer capacity up to 46W per ∆T =1°C
»
10.5 x 5.8 x 1.8" core size
»
∆T = inlet liquid temperature - inlet air temperature
»
Weight: 1759g (3.9 lbs)
»
Weight w/fan: 2405g (5.3 lbs)
MPN
ATS-HE21-C1-R0
ATS-HE21-C2-R0
ATS-HE21-C3-R0
ATS-HE21-C4-R0
ATS-HE21-C5-R0
ATS-HE21-C6-R0
ATS-HE21-C7-R0
FAN TYPE
NO FAN
12V
12V PWM
24V
24V PWM
48V
48V PWM
# OF FANS
0
2
2
2
2
2
2
89-27 ACCESS ROAD, NORWOOD, MA 02062 USA | T: 781.769. 2800 F: 781.769.9979 | WWW.QATS.COM
R6_1017
COPPER TUBES AND FIN HEAT EXCHANGERS

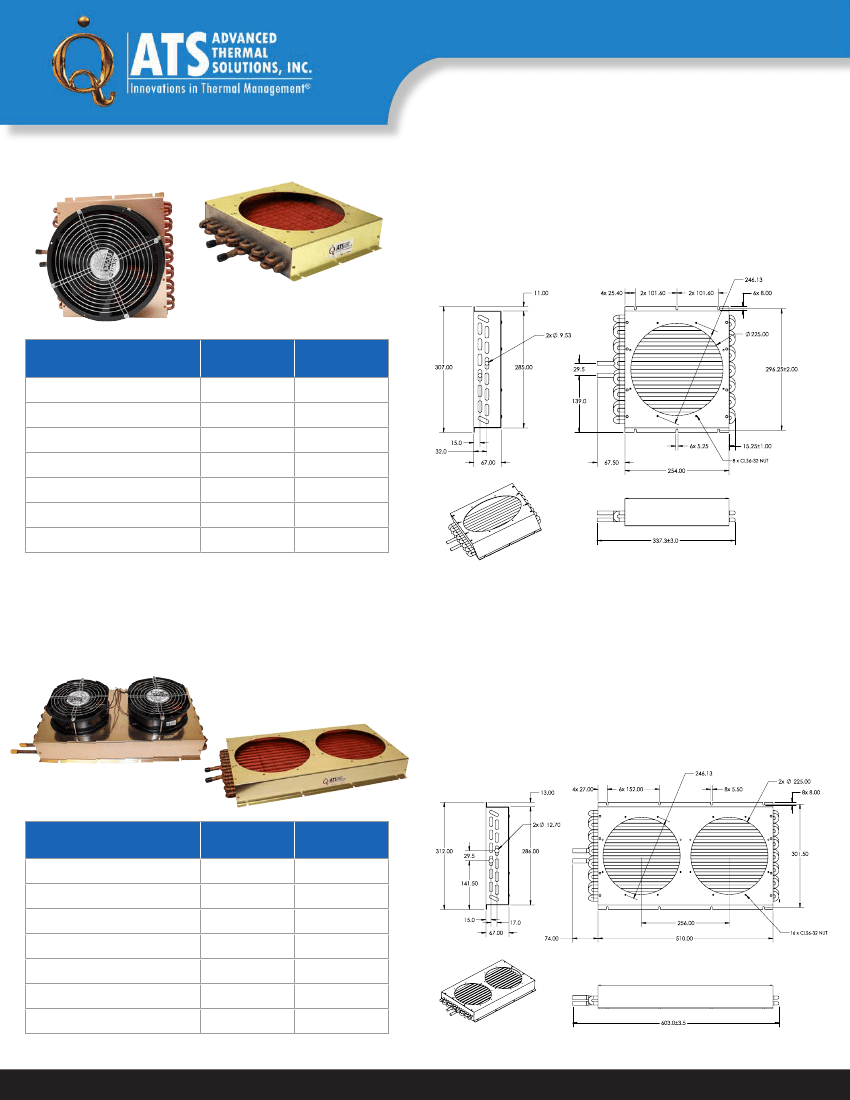

ATS-HE22 SERIES
»
Heat transfer capacity up to 64W per ∆T =1°C
»
9.5 x 9.0 x 2.5" core size
»
∆T = inlet liquid temperature - inlet air temperature
»
Weight: 2211g (4.9 lbs)
»
Weight w/fan: 2854g (6.23 lbs)
MPN
ATS-HE22-C1-R0
ATS-HE22-C2-R0
ATS-HE22-C3-R0
ATS-HE22-C4-R0
ATS-HE22-C5-R0
ATS-HE22-C6-R0
ATS-HE22-C7-R0
FAN TYPE
NO FAN
12V
12V PWM
24V
24V PWM
48V
48V PWM
# OF FANS
0
1
1
1
1
1
1
ATS-HE23 SERIES
»
Heat transfer capacity up to 117W per ∆T =1°C
»
17.5 x 9.0 x 2.5" core size
»
∆T = inlet liquid temperature - inlet air temperature
»
Weight: 7000g (15.4 lbs)
»
Weight w/fan: 7600g (16.8 lbs)
MPN
ATS-HE23-C1-R0
ATS-HE23-C2-R0
ATS-HE23-C3-R0
ATS-HE23-C4-R0
ATS-HE23-C5-R0
ATS-HE23-C6-R0
ATS-HE23-C7-R0
FAN TYPE
NO FAN
12V
12V PWM
24V
24V PWM
48V
48V PWM
# OF FANS
0
2
2
2
2
2
2
89-27 ACCESS ROAD, NORWOOD, MA 02062 USA | T: 781.769. 2800 F: 781.769.9979 | WWW.QATS.COM
R6_1017
COPPER TUBES AND FIN HEAT EXCHANGERS

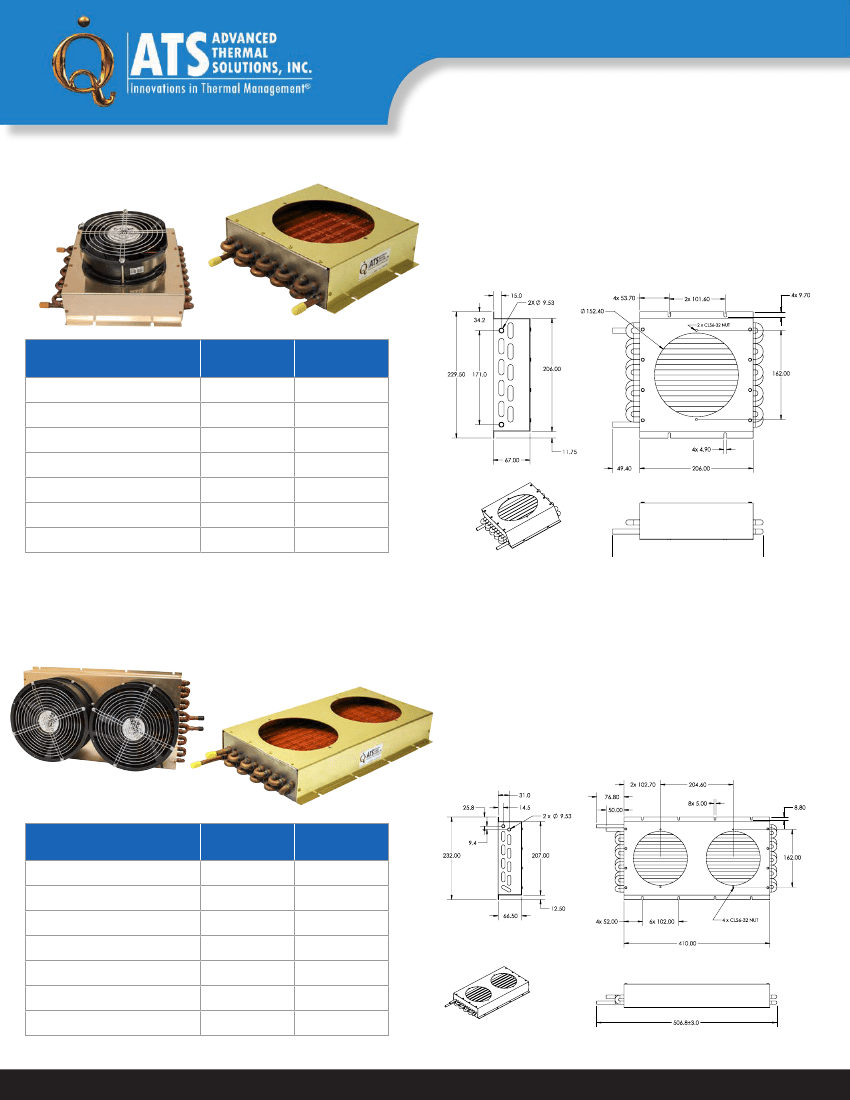

ATS-HE24 SERIES
»
Heat transfer capacity up to 97W per ∆T =1°C
»
11.5 x 12.0 x 2.1" core size
»
∆T = inlet liquid temperature - inlet air temperature
»
Weight: 4018g (8.9 lbs)
»
Weight w/fan: 5791g (12.8 lbs)
MPN
ATS-HE24-C1-R0
ATS-HE24-C2-R0
ATS-HE24-C3-R0
ATS-HE24-C4-R0
ATS-HE24-C5-R0
ATS-HE24-C6-R0
ATS-HE24-C7-R0
FAN TYPE
NO FAN
12V
12V PWM
24V
24V PWM
48V
48V PWM
# OF FANS
0
1
1
1
1
1
1
ATS-HE25 SERIES
»
Heat transfer capacity up to 177W per ∆T =1°C
»
21.58 x 12.0 x 2.1" core size
»
∆T = inlet liquid temperature - inlet air temperature
»
Weight: 7422g (16.4 lbs)
»
Weight w/fan: 11012g (24.23 lbs)
MPN
ATS-HE25-C1-R0
ATS-HE25-C2-R0
ATS-HE25-C3-R0
ATS-HE25-C4-R0
ATS-HE25-C5-R0
ATS-HE25-C6-R0
ATS-HE25-C7-R0
FAN TYPE
NO FAN
12V
12V PWM
24V
24V PWM
48V
48V PWM
# OF FANS
0
2
2
2
2
2
2
89-27 ACCESS ROAD, NORWOOD, MA 02062 USA | T: 781.769. 2800 F: 781.769.9979 | WWW.QATS.COM
R6_1017
COPPER TUBES AND FIN HEAT EXCHANGERS

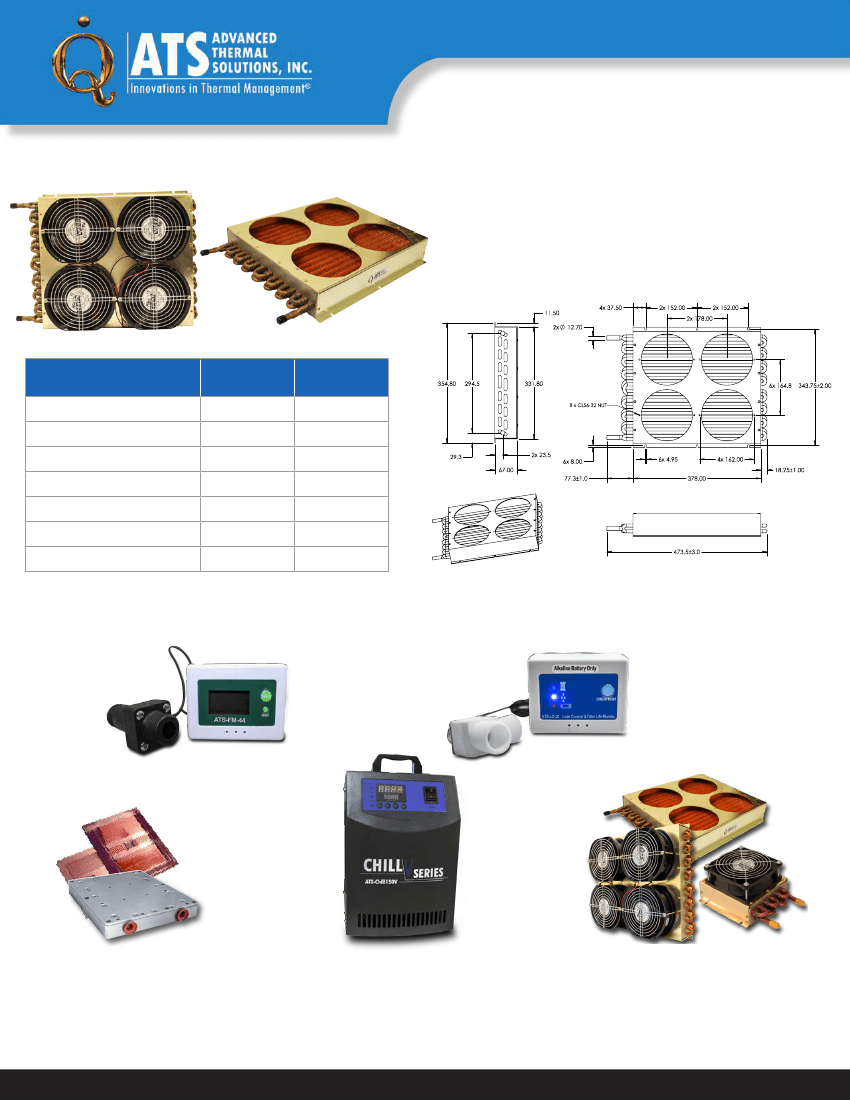

ATS-HE26 SERIES
»
Heat transfer capacity up to 97W per ∆T =1°C
»
11.5 x 12.0 x 2.1" core size
»
∆T = inlet liquid temperature - inlet air temperature
»
Weight: 4018g (8.9 lbs)
»
Weight w/fan: 5791g (12.8 lbs)
MPN
ATS-HE26-C1-R0
ATS-HE26-C2-R0
ATS-HE26-C3-R0
ATS-HE26-C4-R0
ATS-HE26-C5-R0
ATS-HE26-C6-R0
ATS-HE26-C7-R0
FAN TYPE
NO FAN
12V
12V PWM
24V
24V PWM
48V
48V PWM
# OF FANS
0
4
4
4
4
4
4
ADDITIONAL COMPONENTS DEPLOYED IN LIQUID COOLING LOOPS
Flow Meter
Leak Detector
Cold Plates
Chillers
Heat Exchangers
ATS has the products needed to design a complete liquid cooling loop:
Cold Plates
to
transfer and remove the heat
from the source,
Heat Exchangers
to transfer heat from the liquid to the air with or without a fan, and
Chillers
to circulate
and condition the fluid in the system. In addition, ATS offers
Flow Meters
to instantaneously measure the volumetric flow
rate of the fluid in the system and
Leak Detectors
to notify users of any leaks in the system.
89-27 ACCESS ROAD, NORWOOD, MA 02062 USA | T: 781.769. 2800 F: 781.769.9979 | WWW.QATS.COM
R6_1017
