NOTES:
1. VISIT OUR ON-LINE CATALOG AT WWW.PANDUIT.COM
FOR A LIST OF CURRENT PARTS APPLICABLE FOR
USE WITH THIS PRODUCT AND INSTRUCTION
SHEET IA-CD-0004.
2. DIMENSIONS IN PARENTHESES ARE METRIC [mm].
3. CAN BE USED WITH ANY 19" CEA STANDARD PANEL.
4. PARTS SUPPLIED:
- 12RU DUAL HINGE NEMA 4/12 ENCLOSURE
- KEYLOCKING WING KNOBS ARE INCLUDED PROVIDING
ACCESS CONTROL TO THE ENCLOSURE.
- (2) KEYS ARE INCLUDED WITH EACH ENCLOSURE.
- ACCOMODATIONS FOR AN OPTIONAL AIR CONDITIONER.
- INSTALLED FRONT AND REAR CAGE NUT RAILS
IN OPTIMIZED POSITIONS FOR EQUIPMENT MOUNTING.
- INSTALLED FIBER ENCLOSURE (72 FIBER CAPACITY)
- INSTALLED (2)48-PORT PATCH PANELS
- INSTALLED CABLE MANAGEMENT
- INSTALLED DOOR GROUND WHIPS, EQUIPMENT GROUND
WHIPS (ONE END)
- INSTALLED GROUND BAR
- INFRASTRUCTURE GROUND CABLE
- 10" LONG DIN RAIL MOUNTING PROVISION
- CABLE/FIBER/POWER PENETRATION
RECOMMENDATION TEMPLATE
- INSTRUCTIONS FOR CABLE ROUTING AND MANAGEMENT
5. CENTER HINGED SECTION
MAXIMUM LOAD RATING: 250 LBS [113.4 kg].
6. MAXIMUM EQUIPMENT DEPTH: 22.69" (576mm).
IF NO THIRD CABLE TRUNK IS UTILIZED,
24.9" (632mm) IS AVAILABLE.
1
THIS COPY IS PROVIDED ON A RESTRICTED BASIS AND IS NOT TO BE USED IN ANY WAY DETRIMENTAL TO THE INTERESTS OF PANDUIT CORP.
CENTER SECTION HINGES
KEYLOCKING WING KNOBS
B
B
WALL SECTION
DOOR
CENTER SECTION

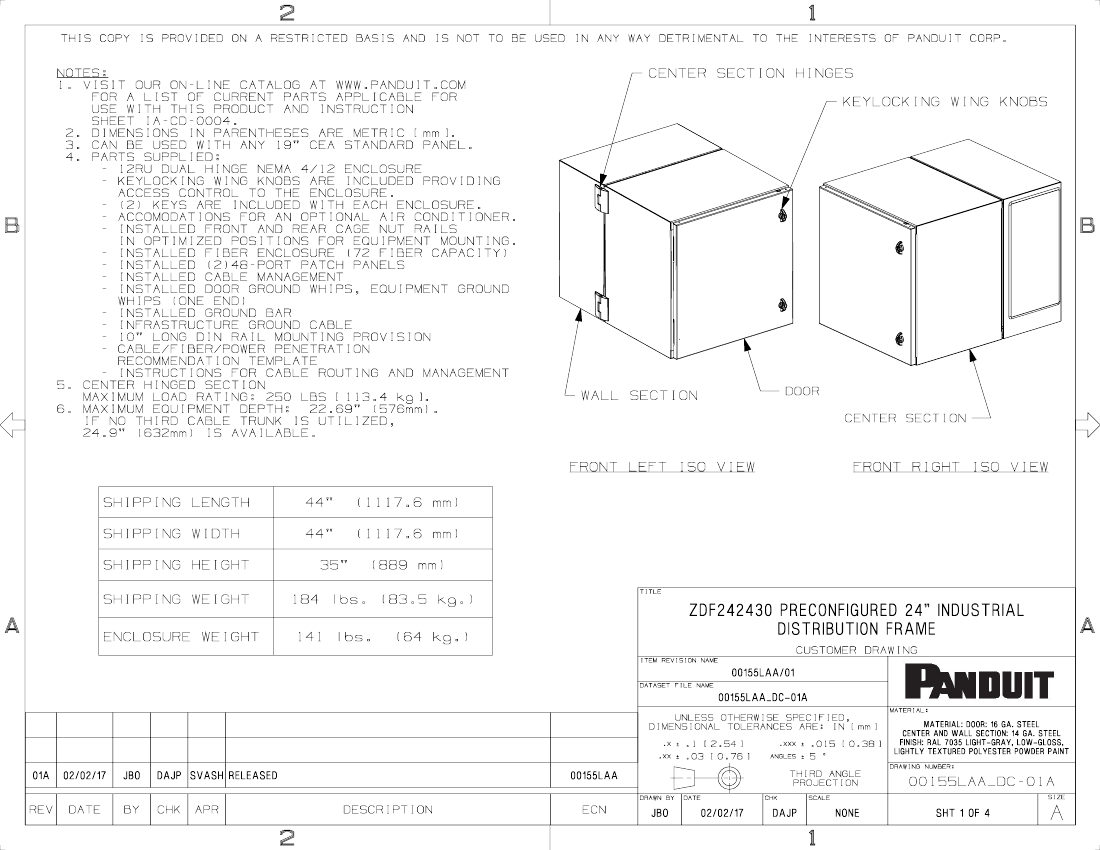

FRONT LEFT ISO VIEW
SHIPPING LENGTH
SHIPPING WIDTH
SHIPPING HEIGHT
SHIPPING WEIGHT
44"
44"
35"
(1117.6 mm)
(1117.6 mm)
(889 mm)
TITLE
FRONT RIGHT ISO VIEW
184 lbs. (83.5 kg.)
141 lbs.
(64 kg.)
A
ENCLOSURE WEIGHT
ZDF242430
PRECONFIGURED
24"
INDUSTRIAL
DISTRIBUTION
FRAME
CUSTOMER DRAWING
ITEM REVISION NAME
A
00155LAA/01
DATASET FILE NAME
00155LAA_DC-01A
MATERIAL:
UNLESS OTHERWISE SPECIFIED,
DIMENSIONAL TOLERANCES ARE: IN [mm]
.X
.XX
.1 [2.54]
.03 [0.76]
.XXX
ANGLES
.015 [0.38]
5
MATERIAL:
DOOR:
16
GA.
STEEL
CENTER
AND
WALL
SECTION:
14
GA.
STEEL
FINISH:
RAL
7035
LIGHT-GRAY,
LOW-GLOSS,
LIGHTLY
TEXTURED
POLYESTER
POWDER
PAINT
DRAWING NUMBER:
01A
02/02/17
DATE
JBO
DAJP
SVASH
RELEASED
00155LAA
DRAWN
BY
THIRD ANGLE
PROJECTION
DATE
CHK
SCALE
00155LAA_DC-01A
SIZE
REV
BY
CHK
APR
DESCRIPTION
ECN
JBO
02/02/17
DAJP
NONE
SHT
1
OF
4
A
2
1
2

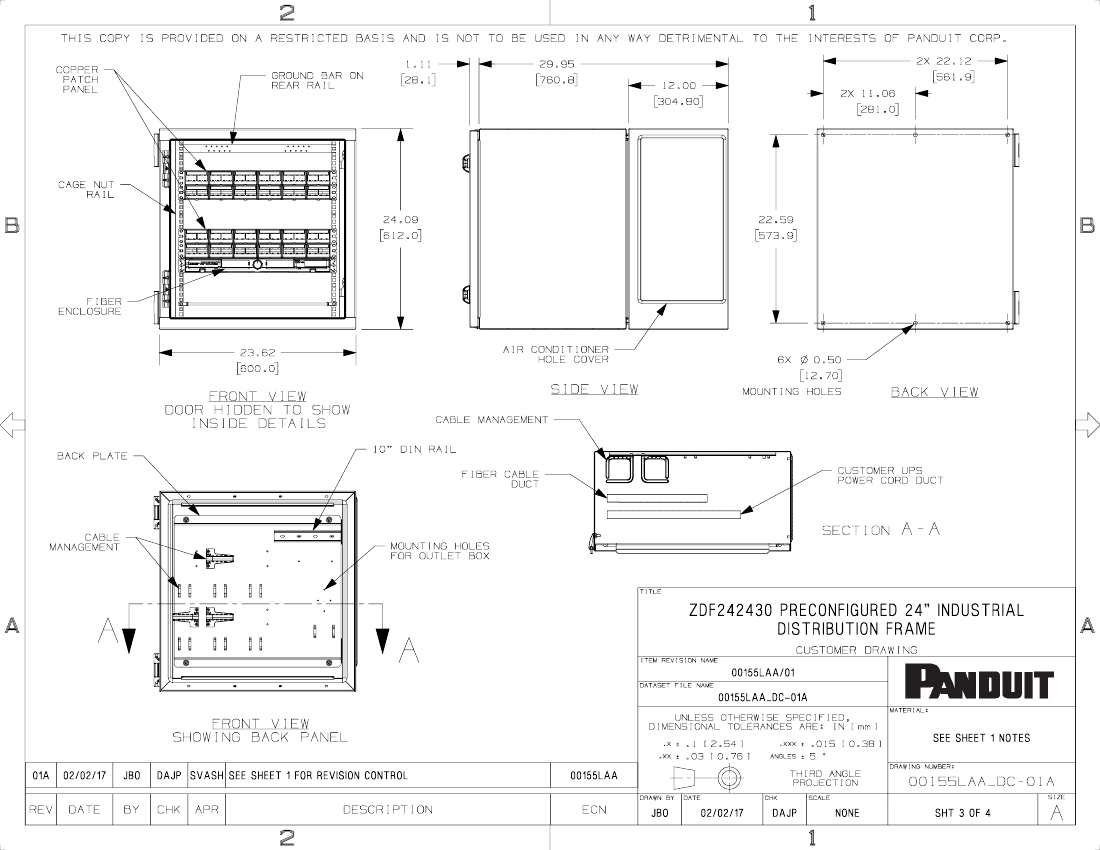

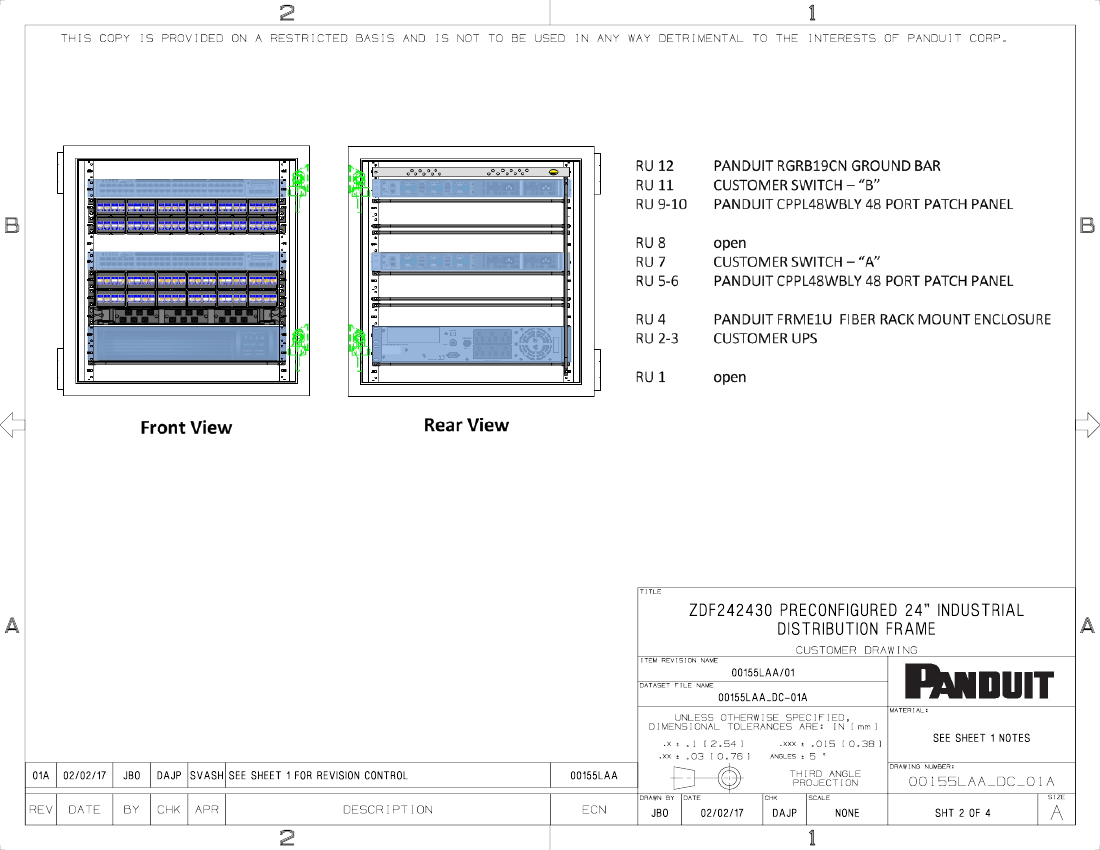

42.39
1076.6
23.62
600.0
9.90
251.5
1
THIS COPY IS PROVIDED ON A RESTRICTED BASIS AND IS NOT TO BE USED IN ANY WAY DETRIMENTAL TO THE INTERESTS OF PANDUIT CORP.
19.62
498.3
12.00
304.8
OPTIONAL HOFFMAN
T20 MODEL AIR CONDITIONER
B
10049-01
A
B
23.50
R 30.11
764.7
597.0
10049-01
A

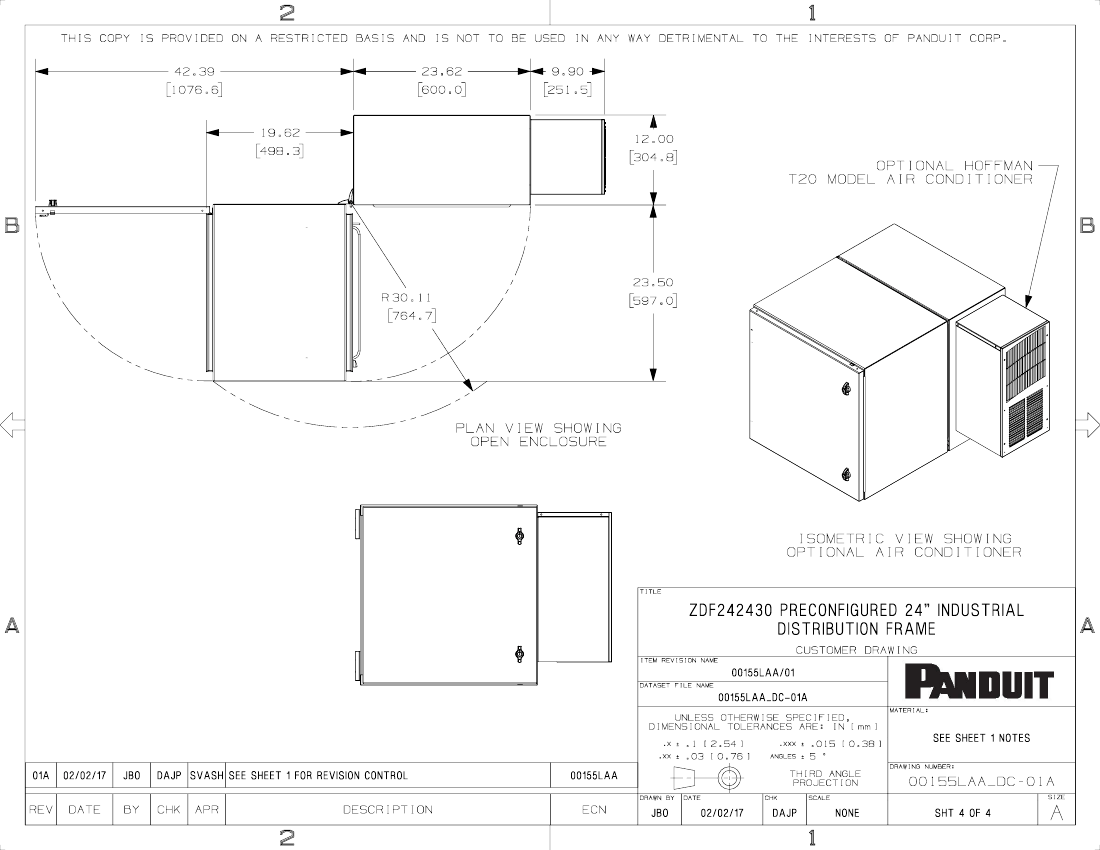

PLAN VIEW SHOWING
OPEN ENCLOSURE
ISOMETRIC VIEW SHOWING
OPTIONAL AIR CONDITIONER
TITLE
A
ZDF242430
PRECONFIGURED
24"
INDUSTRIAL
DISTRIBUTION
FRAME
CUSTOMER DRAWING
ITEM REVISION NAME
A
00155LAA/01
DATASET FILE NAME
00155LAA_DC-01A
MATERIAL:
UNLESS OTHERWISE SPECIFIED,
DIMENSIONAL TOLERANCES ARE: IN [mm]
.X
.XX
.1 [2.54]
.03 [0.76]
.XXX
ANGLES
.015 [0.38]
5
SEE
SHEET
1
NOTES
DRAWING NUMBER:
01A
02/02/17
DATE
JBO
DAJP
SVASH
SEE
SHEET
1
FOR
REVISION
CONTROL
00155LAA
DRAWN
BY
THIRD ANGLE
PROJECTION
DATE
CHK
SCALE
00155LAA_DC-01A
SIZE
REV
BY
CHK
APR
DESCRIPTION
ECN
JBO
02/02/17
DAJP
NONE
SHT
4
OF
4
A
2
1
