BB7603R datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Topical application> Wireless rf/communication> BB7603R

BB7603R: DescriptionMOBILE COIL 760-870MHZ BK GP; CategoryTopical application Wireless rf/communication; File Size812KB，1 Pages; ManufacturerLaird Technologies; Environmental Compliance

Download Datasheet Parametric Compare View All

BB7603R Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	BB7603R	-	-	View	Buy Now

BB7603R Overview

MOBILE COIL 760-870MHZ BK GP

BB7603R Parametric

Parameter Name	Attribute value
frequency group	UHF（300 MHz ~ 1 GHz）
Frequency (center/band)	815MHz
Frequency Range	760MHz ~ 870MHz
Antenna type	Whip-shaped, straight
Number of frequency bands	1
VSWR	2.2
Return loss	-
Gain	3dBi
Power - Max	200W
characteristic	-
Termination	Connector, NMO
Intrusion protection	IP67
Installation type	base
Height (maximum value)	6.500"（165.10mm）
application	-

Preview

Download Datasheet

View All

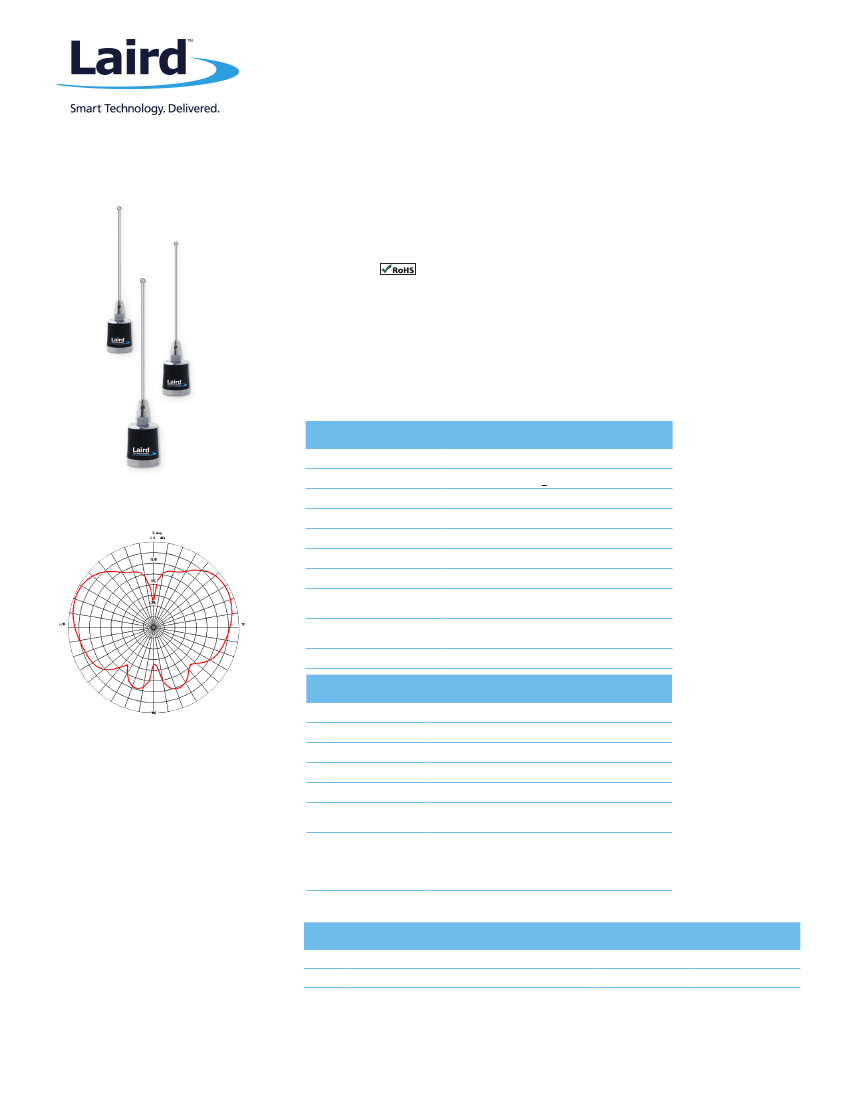

Mobile Load Coil Antenna

PREMIUM MOBILE LOAD COIL ANTENNAS ARE INDUSTRY STANDARD

Laird's ongoing commitment to refinement in mechanical and electrical design has

resulted in the most technically advanced mobile load coil antennas on the market.

Exclusive features such as stainless steel whips, housings constructed with ABS material

injected molded around a solid brass insert, and gold plated push pin contacts make Laird

the obvious choice for quality and long lasting value for demanding mobile radio

communications.

Standard B7603

FEATURES

•

⅝” wave design for true 4 dBi performance

•

High performance mobile antenna operates on a 6”

diameter (min.) ground plane

•

Straight stainless steel

•

Easy installation with optional NMO Mounts

•

100% tested on a network

MARKETS

•

Public safety

•

Transportation

•

Utility

•

Military mobile

SPECIFICATIONS

ELECTRICAL

Frequency Range

VSWR

Nominal Gain

760-870 MHz

< 2.2:1

4 dBi

200 W

50 Ω

Vertical

Omnidirectional

70° x 360°

None

NMO style

ANTENNA PATTERNS

Maximum Power

Nominal Impedance

Polarization

Pattern

Half-PowerBeamwidth

(Elevation° x Azimuth°)

Coaxial Cable Length & Type

(For Vertical Polarization)

Terminations

MECHANICAL

Elevation Polar Radiation Pattern 764 MHz

Color

Height

Diameter

Weight

Material

Mounting

Information (Sold

Separately)

Noise Suppressor

Black chrome or chrome

6.5 in (16.5 cm)

1.43 in (3.63 mm)

0.38 lbs (172.37 g)

ABS

Optional p/n: NMO Mountable MB8, MAB8

BlackHawk NS1535

1-35 Volts, 15 amps

Noise suppessor

(Sold Separately)

Americas: +1.847 839.6925

IAS-AmericasEastSales@lairdtech.com

Europe: +44.1628.858941

IAS-EUSales@lairdtech.com

Asia:

IAS-AsiaSales@lairdtech.com

Middle East and Africa:

+44.1628.858941

IAS-MEASales@lairdtech.com

MODEL AND ORDERING INFORMATION

MODEL

B7603

BB7603

DESCRIPTION

760-870 MHz, Base Loaded 5/8 Wave, Chrome Finish

760-870 MHz, Base Loaded 5/8 Wave, Black Finish

OVERALL HEIGHT

6.5 in

TUNING

Fixed tune @817 MHz

ANT-DS-B7603 0516

Any information furnished by Laird Technologies, Inc. and its agents is believed to be accurate and reliable. All specifications are subject to change without notice. Responsibility for

the use and application of Laird Technologies materials rests with the end user, since Laird Technologies and its agents cannot be aware of all potential uses. Laird Technologies

makes no warranties as to the fitness, merchantability or suitability of any Laird Technologies materials or products for any specific or general uses. Laird Technologies shall not be

liable for incidental or consequential damages of any kind. All Laird Technologies products are sold pursuant to the Laird Technologies’ Terms and Conditions of sale in effect from

and other marks are trade marks or registered trade marks of Laird Technologies, Inc. or an affiliate company thereof. Other product or service names may be the property of third

parties. Nothing herein provides a license under any Laird Technologies or any third party intellectual property rights.

www.lairdtech.com
