* Indication requires minimum 90Vac/dc and closed circuit to
illuminate.
UL Listed E348242 - IZMR
CSA Component Acceptance 47235-6225-01
CE
RoHS Compliant
Conflict mineral free
REACH declaration available upon request
Materials:
•
•
•
•
Base — Thermoplastic
Terminals — Tin-plated bimetallic copper
Covers — Thermoplastic
Screws and pressure plates — Zinc-plated steel
Use Bussmann part number TM26CB
Marker labels:
•
Covers:
•
•
•
•
Covers are included in the overall UL Listing and CSA Acceptance
IP20 finger-safe
RoHS Compliant
REACH declaration available upon request
Recommended Bussmann fuses
10x38mm PV fuses
•
•
Fast-acting 600Vdc PVM fuses, data sheet No. 2153
Class gPV 1000Vdc PV fuses, data sheet No. 2153
Part No. BRKT-ND
Part No. BRKT-NDSCREW2
Poles:
•
•
Recommended Bussmann DIN-Rail end stops:
•
•
1-, 2-pole units factory assembled
Single-pole units snap together to create desired number of poles
Flammability ratings:
•
•
Blocks — UL 94V0, self-extinguishing
Covers — UL 94HB, self-extinguishing
Table 1. Terminal specifications
Torque
Terminal type
Box lug (“CR” Option)
Screw (S)
75/90°C AWG type/range
CU 2-14, AL 2-8
CU 10-18
AWG
CU 2-3
CU 4-6
CU 8-14
AL 2-6
AL 8
10-18
lb-in (N•m)
50
45
35
50
40
(5.6)
(5.1)
(4.0)
(5.6)
(4.5)
20 (2.3)
Table 2. Catalog numbers
Terminal type
#10-32 Phil-slot screw
BPVM-1S
BPVM-2S
Box lug
BPVM-1C
BPVM-2C
Poles
1
2
Fuse class
10x38 (13/32# x 1-1/2”) gPV and PV
10x38 (13/32# x 1-1/2”) gPV and PV
Table 3. Recommended covers*
Cover part numbers
Indicating
CVRI-CCM
* For use with 4AWG max conductors.
Non indicating
CVR-CCM
2
eaton www.eaton.com

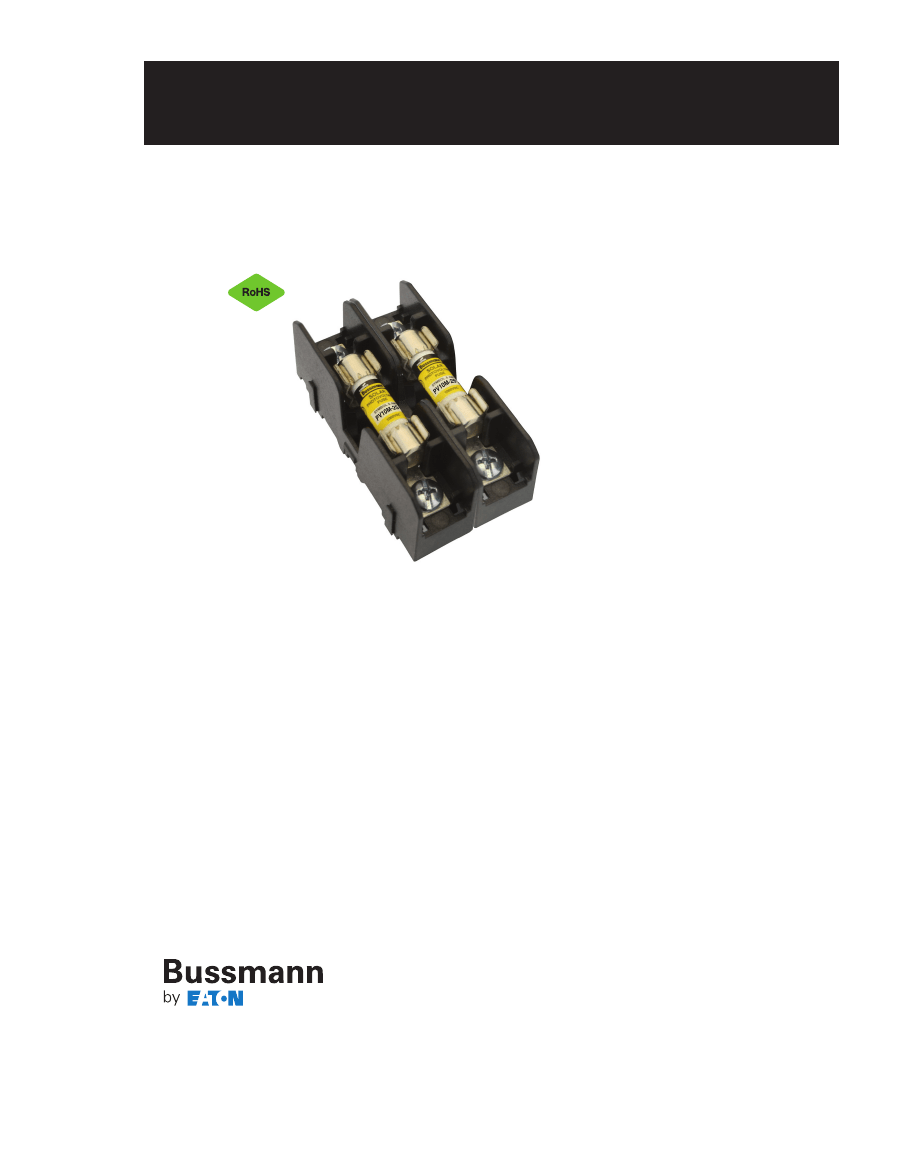

BPVM 1000Vdc
Modular photovoltaic ferrule fuse blocks
Dimensions - mm (in)
Technical Data 10265
Effective August 2014
33
1.3
21
.8
40
1.6
95
3.7
77 10
3.0 .4
4
.2
39
1.5
20
.8
20
.8
41
1.6
With cover.
See Table 3 for available covers.
16
.6
33
1.3
BPVM-1S
BPVM-2S
BPVM-2C with
CVRI-CCM covers and
TM26CB marker labels
The only controlled copy of this Data Sheet is the electronic read-only version located on the Bussmann Network Drive. All other copies of this document
are by definition uncontrolled. This bulletin is intended to clearly present comprehensive product data and provide technical information that will help the
end user with design applications. Bussmann reserves the right, without notice, to change design or construction of any products and to discontinue
or limit distribution of any products. Bussmann also reserves the right to change or update, without notice, any technical information contained in this
bulletin. Once a product has been selected, it should be tested by the user in all possible applications.
