5-1579018-4

Description
EXTRACTION TOOL
CategoryTools and equipment
File Size118KB,1 Pages
ManufacturerTE Connectivity
Websitehttp://www.te.com
Download Datasheet Parametric View All

5-1579018-4 Online Shopping

Suppliers Part Number Price MOQ In stock
5-1579018-4 - - View Buy Now

5-1579018-4 Overview

EXTRACTION TOOL

5-1579018-4 Parametric

Parameter NameAttribute value
Insertion and extraction tool typesTerminal extractor
Insertion and extraction tool applicationsTerminal to case

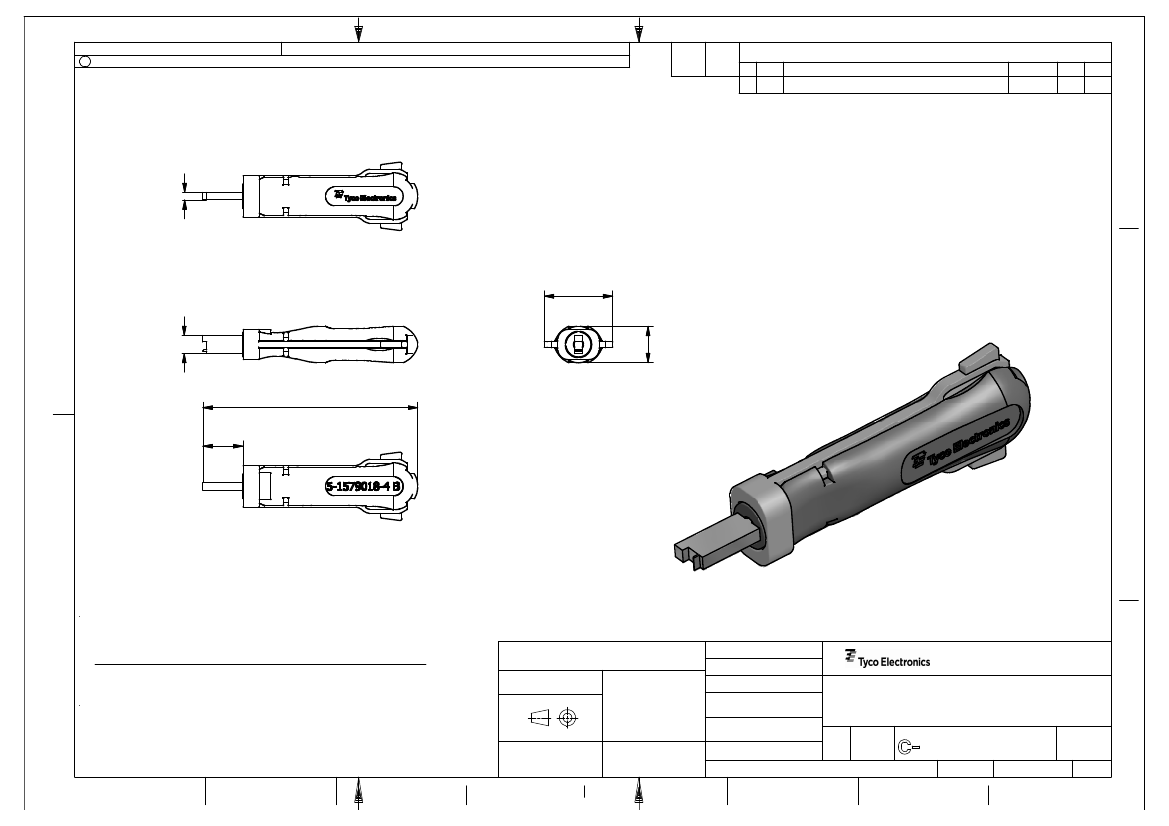

THIS DRAWING IS UNPUBLISHED.
C
COPYRIGHT
-
BY TYC O ELECTRONICS CORPORATION.
RELEASED FOR PUBLICATION
ALL INTERNATIONAL RIGHTS RESERVED.
LOC
DIST
REVISIONS
P
LT R
AI
00
DESCRI PTION
DATE
DWN
APVD
B
INITIAL REVISION
06JUL09 LS SA
D
2. 8
25. 6
( 2:1 )
13.6
6. 7
C
81
15
B
DWN
APPLICATION RANGE / Anwendungsbereich:
FOR MPQ-CONTACT : 968679-2, 968136-2,
968137-2
FOR TAB HOUSING : 1379913
TE 3306-7 REV 28APR2009
THIS DRAWING IS A CONTROLLED DOCUMENT.
DIMENSIONS:
mm
0
1
2
3
4
PLC
PLC
PLC
PLC
PLC
TOLERANCES UNLESS
OTHERWISE SPECIFIED:
`
`
`
`
`
`
L. Sandhu
CHK
06JUL09
Tyco Electronics AMP GmbH
S. Samstag
APVD
22OCT09
22OCT09
NAME
64625 Bensheim (Germany)
S. Samstag
PRODUCT SPEC
EXTRACTION TOOL
A
Entriegelungswerkzeug
APPLICATION SPE C
SIZE
Gewicht / Weight in Kg
ANGLES
MATERIAL
FINISH
CAGE CODE
DRAWING NO
RESTRICTED TO
A3
00779
0,013
CUSTOMER DRAWING
3
5-1579018-4
SCALE
SHEET
REV
1:1
2
1
OF
1
1
B
8
7
6
5
4
