DV74ALS164D datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> Shift register> DV74ALS164D

DV74ALS164D: DescriptionSerial In Parallel Out, ALS Series, 8-Bit, Right Direction, True Output, TTL, PDSO14, PLASTIC, SOP-14; Categorylogic Shift register; File Size117KB，2 Pages; ManufacturerAVG [AVG Semiconductors(HITEK)]

Download Datasheet Parametric Compare View All

DV74ALS164D Overview

Serial In Parallel Out, ALS Series, 8-Bit, Right Direction, True Output, TTL, PDSO14, PLASTIC, SOP-14

DV74ALS164D Parametric

Parameter Name	Attribute value
Maker	AVG [AVG Semiconductors(HITEK)]
Parts packaging code	SOIC
package instruction	PLASTIC, SOP-14
Contacts	14
Reach Compliance Code	unknown
Is Samacsys	N
Counting direction	RIGHT
series	ALS
JESD-30 code	R-PDSO-G14
length	8.65 mm
Load capacitance (CL)	50 pF
Logic integrated circuit type	SERIAL IN PARALLEL OUT
Number of digits	8
Number of functions	1
Number of terminals	14
Maximum operating temperature	70 °C
Minimum operating temperature	-10 °C
Output polarity	TRUE
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Maximum supply current (ICC)	10 mA
propagation delay (tpd)	11 ns
Certification status	Not Qualified
Maximum seat height	1.75 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	TTL
Temperature level	COMMERCIAL
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Trigger type	POSITIVE EDGE
width	3.9 mm
minfmax	30 MHz
Base Number Matches	1

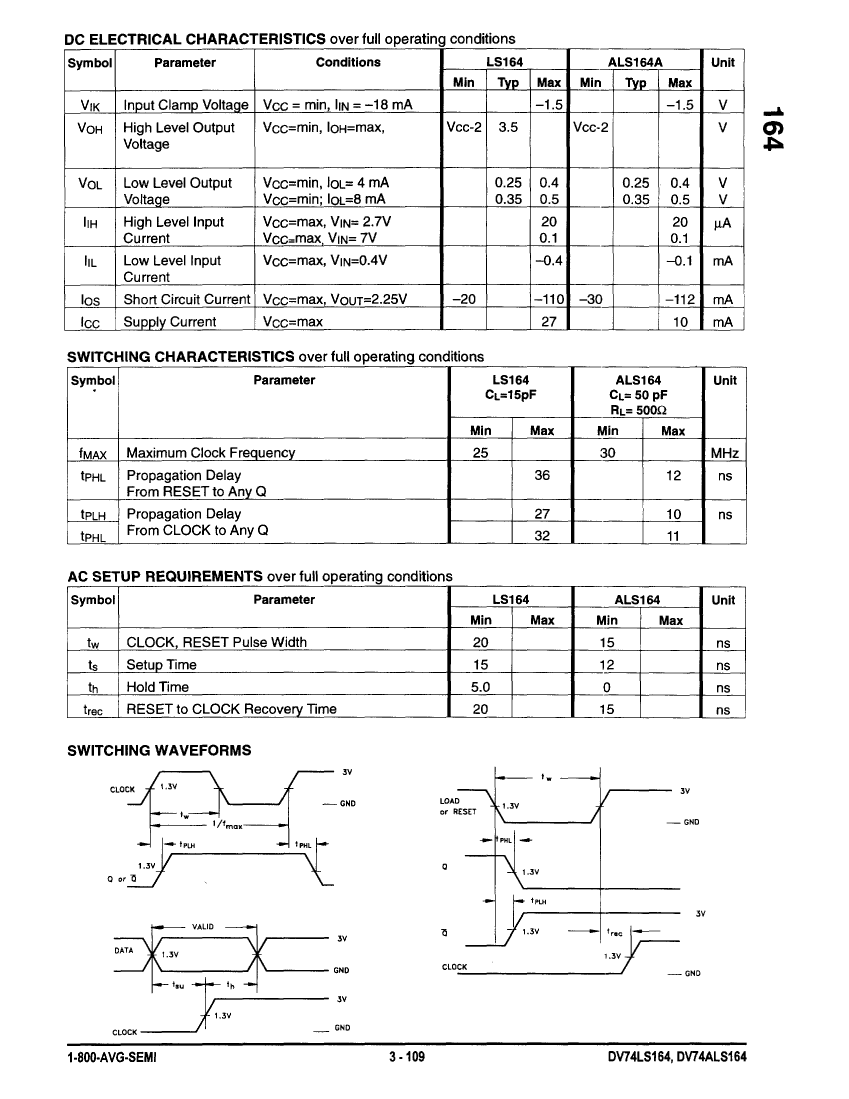

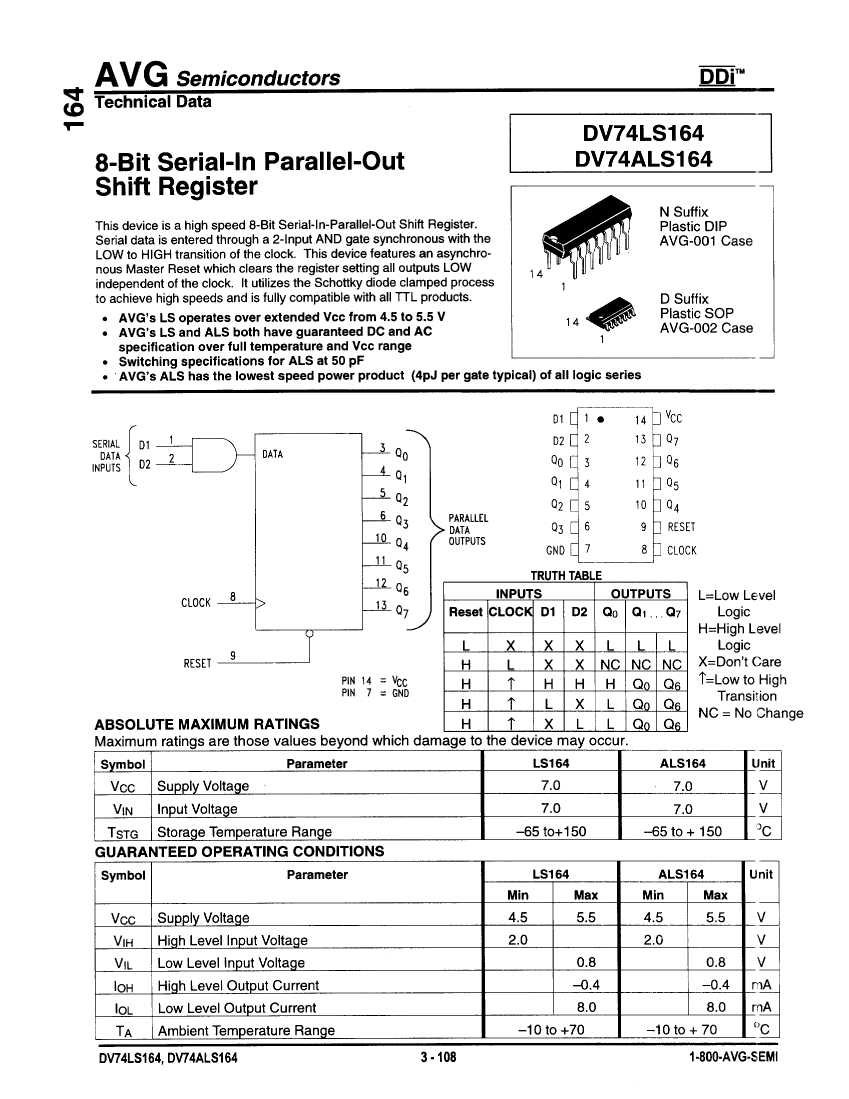

Preview

Download Datasheet

View All

DV74ALS164D Related Products

	DV74ALS164D	DV74LS164D	DV74LS164N	DV74ALS164N
Description	Serial In Parallel Out, ALS Series, 8-Bit, Right Direction, True Output, TTL, PDSO14, PLASTIC, SOP-14	Serial In Parallel Out, LS Series, 8-Bit, Right Direction, True Output, TTL, PDSO14, PLASTIC, SOP-14	Serial In Parallel Out, LS Series, 8-Bit, Right Direction, True Output, TTL, PDIP14, PLASTIC, DIP-14	Serial In Parallel Out, ALS Series, 8-Bit, Right Direction, True Output, TTL, PDIP14, PLASTIC, DIP-14
Maker	AVG [AVG Semiconductors(HITEK)]	AVG [AVG Semiconductors(HITEK)]	AVG [AVG Semiconductors(HITEK)]	AVG [AVG Semiconductors(HITEK)]
Parts packaging code	SOIC	SOIC	DIP	DIP
package instruction	PLASTIC, SOP-14	PLASTIC, SOP-14	PLASTIC, DIP-14	PLASTIC, DIP-14
Contacts	14	14	14	14
Reach Compliance Code	unknown	unknown	unknown	unknown
Counting direction	RIGHT	RIGHT	RIGHT	RIGHT
series	ALS	LS	LS	ALS
JESD-30 code	R-PDSO-G14	R-PDSO-G14	R-PDIP-T14	R-PDIP-T14
length	8.65 mm	8.65 mm	18.86 mm	18.86 mm
Load capacitance (CL)	50 pF	15 pF	15 pF	50 pF
Logic integrated circuit type	SERIAL IN PARALLEL OUT	SERIAL IN PARALLEL OUT	SERIAL IN PARALLEL OUT	SERIAL IN PARALLEL OUT
Number of digits	8	8	8	8
Number of functions	1	1	1	1
Number of terminals	14	14	14	14
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C
Minimum operating temperature	-10 °C	-10 °C	-10 °C	-10 °C
Output polarity	TRUE	TRUE	TRUE	TRUE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	SOP	DIP	DIP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	IN-LINE	IN-LINE
Maximum supply current (ICC)	10 mA	27 mA	27 mA	10 mA
propagation delay (tpd)	11 ns	32 ns	32 ns	11 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	1.75 mm	1.75 mm	4.69 mm	4.69 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V
surface mount	YES	YES	NO	NO
technology	TTL	TTL	TTL	TTL
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	GULL WING	GULL WING	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	1.27 mm	1.27 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL
Trigger type	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE
width	3.9 mm	3.9 mm	7.62 mm	7.62 mm
minfmax	30 MHz	25 MHz	25 MHz	30 MHz
Base Number Matches	1	1	1	-
