PLT20/14/2/S-3F36 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> PLT20/14/2/S-3F36

Preview

PLT20/14/2/S-3F36: DescriptionEQ CORES; CategoryPassive components; File Size78KB，2 Pages; ManufacturerFerroxcube; Websitehttp://www.ferroxcube.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

PLT20/14/2/S-3F36 Overview

EQ CORES

PLT20/14/2/S-3F36 Parametric

Parameter Name	Attribute value
Kernel type	PLT
Tolerance	-
gap	-
Material	3F36
surface	Uncoated
Supplier device packaging	PLT 20 x 14 x 2
high	14.00mm
length	20.00mm
width	2.30mm
diameter	-

Preview

Download Datasheet

View All

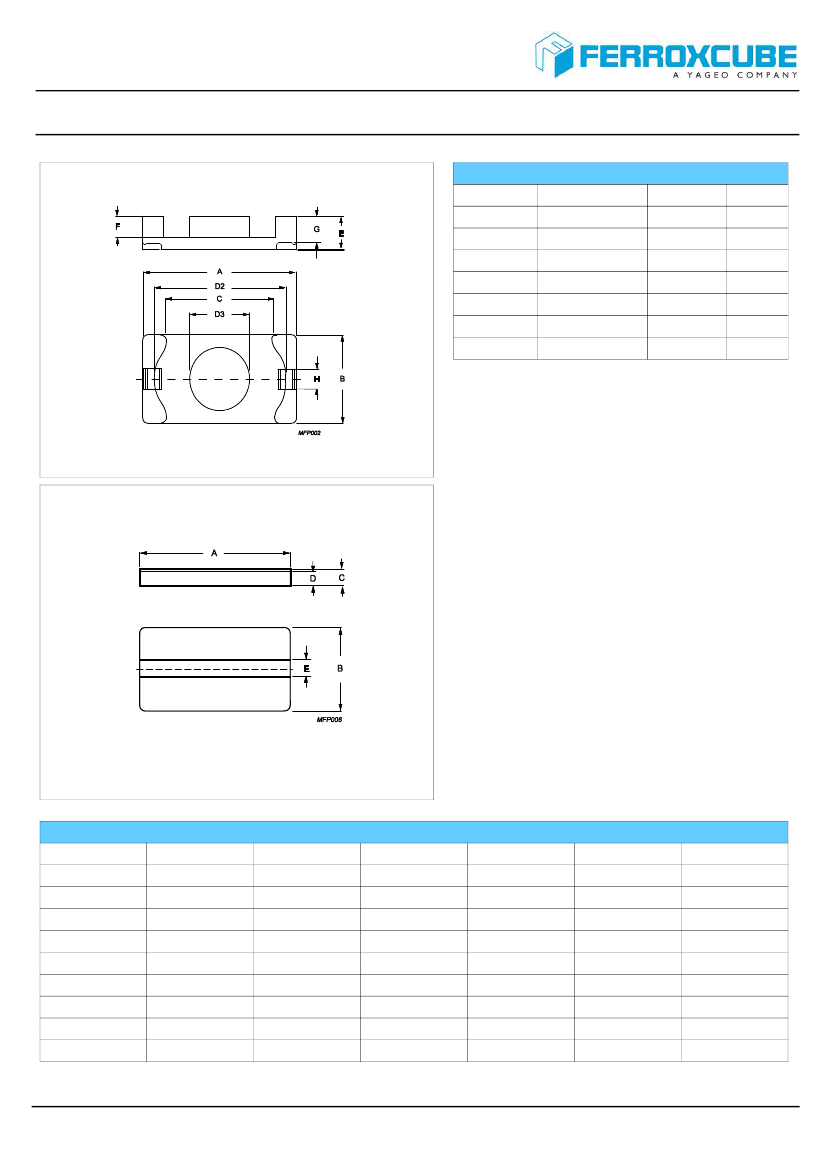

Product specifications

Core

EQ20/R + PLT20/14/2/S

Effective parameters

Symbol

∑(I/A)

Ve

Le

Ae

Amin

m

Parameter

core factor (C1)

effective volume

effective length

effective area

minimum area

EQ20/R

PLT20/14/2/S

Value

0.42

1500

25.1

59.8

55

≈ 5.1

≈3

Unit

mm⁻¹

mm³

mm

mm²

g/pcs

Dimensions for product: EQ20/R

Symbol

A

B

C

D2

D3

E

F

G

H

Nom

20.00

14.00

12.86

18.00

8.80

6.30

4.10

5.30

2.90

Tol +

0.35

0.30

0.35

0.15

0.10

0.15

0.10

Tol -

0.35

0.30

0.35

0.15

0.10

0.15

0.10

Max

20.35

14.30

13.21

18.35

8.95

6.40

4.25

5.45

3.00

Min

19.65

13.70

12.51

17.65

8.65

6.20

3.95

5.15

2.80

Unit

mm

2016

PLT20/14/2/S-3F36 Related Products

	PLT20/14/2/S-3F36	EQ20/R-3C95	PLT20/14/2/S-3C95	PLT20/14/2/S-3C96	CLM-EQ20/PLT20	EQ20/R-3F36	EQ20/R-3F46	PLT20/14/2/S-3F46	EQ20/R-3C96
Description	EQ CORES	FERRITE EQ20/R-3C95	FERRITE PLT20/14/2/S-3C95	EQ CORES	U SHAPED CLIP	EQ CORES	EQ CORES	EQ CORES	EQ CORES
Kernel type	PLT	-	-	PLT	-	EQ	EQ	PLT	EQ
Material	3F36	-	-	3C96	-	3F36	3F46	3F46	3C96
surface	Uncoated	-	-	Uncoated	-	Uncoated	Uncoated	Uncoated	Uncoated
Supplier device packaging	PLT 20 x 14 x 2	-	-	PLT 20 x 14 x 2	EQ 20	EQ 20	EQ 20	PLT 20 x 14 x 2	EQ 20
high	14.00mm	-	-	14.00mm	-	14.00mm	14.00mm	14.00mm	14.00mm
length	20.00mm	-	-	20.00mm	-	20.00mm	20.00mm	20.00mm	20.00mm
width	2.30mm	-	-	2.30mm	-	6.30mm	6.30mm	2.30mm	6.30mm
