5mm Pitch Miniature Potting Connectors for Secondary Power Supply
DF5 Series
Single row type
Sep.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
Fig.1-1
■Features

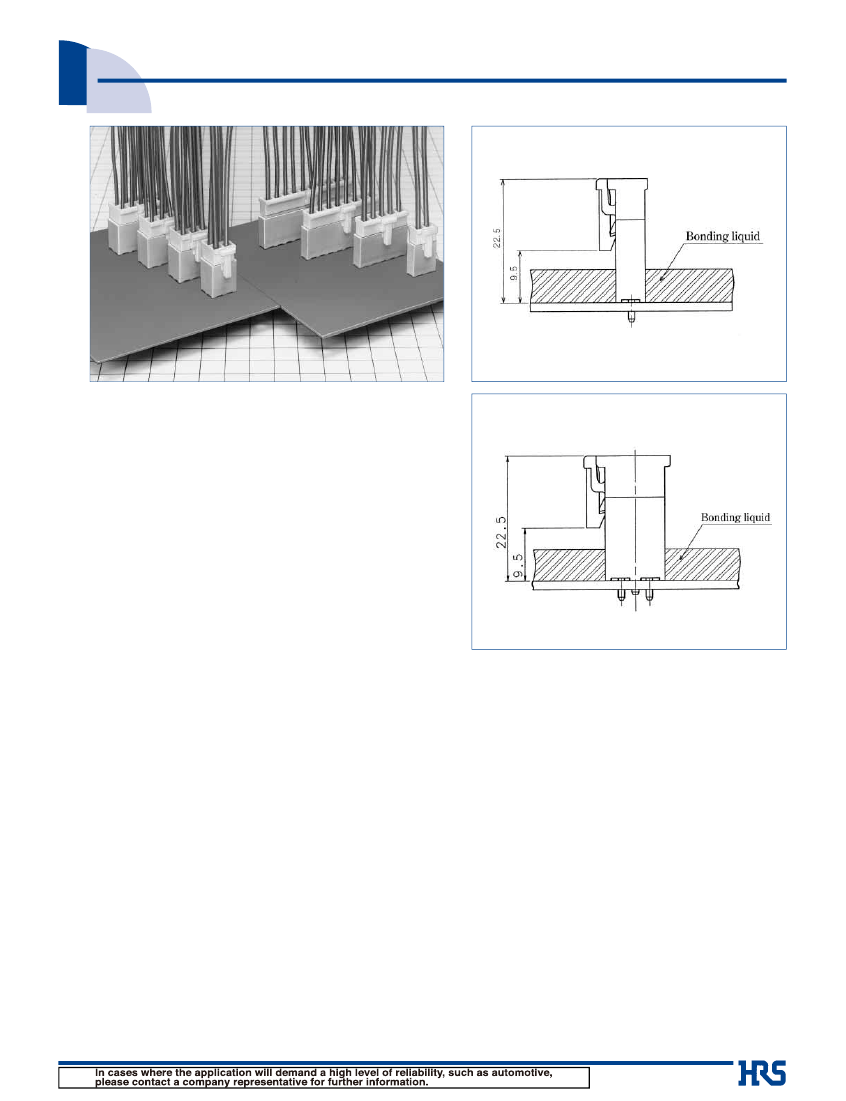

1. Potting Product
This connector is capable of potting 9mm maximum, and
22.5mm mounting height is a low profile. (Fig.1)
Double row type
2. Prevent Mis-insertion
When the socket and pin header are mated, this connector
is equipped with a mechanism to prevent reverse insertion
or dissimilar contact insertion.
3. Means to Prevent Solder Cracks
The pin header employs glass enforced resin, and takes
countermeasures to prevent solder cracks due to heat
shrinkage.
Fig.1-2
4. Prevent Reverse Insertion in Printed Board
Boss is added to the pin header, and prevents reverse
insertion in the printed board.
5. Full Lock Mechanism
The outer lock system employs full lock mechanism.
6. Current Capacity of 8A
Power can be supplied at 8A maximum. Specification will
change according to applicable cable, number of contacts,
number of rows. For further information, refer to product
specifications as listed on next page.
7. UL and C-UL Certified
8. Glow Wire Compliance (Compliant with IEC 60695-2-11)
B123
DF5 Series●5mm Pitch Miniature Potting Connectors for Secondary Power Supply
■Product
Specifications
No. of contacts
18 AWG 20 AWG 22 AWG
2 to 10
Operating Temperature Range
–35
to
+85ç(Note
1)
4
8A
Operating Moisture Range
40 to 80%
6
5A
6A
Current rating
8
Rating
Double row
10
12
7A
14
4A
Storage Temperature Range
–10
to
+60ç(Note
2)
5A
16
Storage Humidity Range
40 to 70%(Note 2)
Specification AC/DC 500V UL/C-UL File No. and Recognition No.
UL
: E52653
Voltage rating
UL/C-UL
AC/DC 500V
C-UL
: E52653
Item
Specification
Condition
500V DC
1. Insulation Resistance 1000MΩ
min.
1500V AC/1 minute
2. Withstanding voltage
No flashover or insulation breakdown.
3. Contact Resistance 30mΩ max.
100mA
4. Single Insertior/
0.3N (30gt) min., 4.5N (450gt) max.
Measured with 1.14±0.002mm steel pin
Extraction Force
5. Vibration
No electrical discontinuity of 10μs or more
Frequency : 10 to 55 Hz, single amplitude of 0.75mm, 2 hours in each of the 3 directions.
6.
Humidity (Steady state)
Contact resistance : 30mΩ max., Insulation resistance : 500M
Ω
min.
96 hours at temperature of 40ç and humidity of 90% to 95%
7. Temperature Cycle Contact resistance : 30mΩ max., Insulation resistance : 1000M
Ω
min. (–55ç : 30 minutes
➝
15 to 35ç : 10 minutes
➝
85ç : 30 minutes
➝
5 to 35ç : 10 minutes ) 5 cycles
8. Durability (Mating/un-mating) Contact resistance : 30mΩ max.
30 cycles
9.Resistance to
No deformation of
Flow : 260ç for 10 seconds
Soldering heat
components affecting performance.
Manual soldering : 350ç for 3 seconds
Note 1 : Includes temperature rise caused by current flow.
Note 2 : The term "storage" refers to products stored for long period of time prior to mounting and use. Operating Temperature
Range and Humidity range covers non conducting condition of installed connectors in storage, shipment or during
transportation.
No. of rows
Single row
Sep.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
■Materials
/ Finish
Product
Crimping Socket
Crimping Contact for Socket
Pin header
Part
Insulator
Contact
Insulator
Contact
Material
Polyamide
Phosphor bronze
Polyamide
Brass
Finish
White
Tin plated
Beige
Tin plated
Remarks
UL94V-0
--------------------
UL94V-0
--------------------
■Product
Number Structure
●Connector
DF5A
1
1
2
3
-
*
S - 5 C
2
4
5
3
4
5
Contact Pitch : 5mm
Contact type
C : Crimping Socket
DSA : Straight pin header
Series Name : DF5A
Number of contacts : Single row : 2 to 10
Double row : 4 to 16
Connector type
S
: Single row socket
DS
: Double row socket
P
: Single row header
DP
: Double row header
●Contact
DF5A - 1822 SCF
1
1
Applicable cable type
None : UL 1007 equivalent (jacket diameter 1.5 to 2.2mm)
A: UL 1015 equivalent (jacket diameter 2.2 to 2.9mm)
Applicable cable size
1822 : 18 to 22 AWG
2
3
3
packaging type
SCF : Socket contact / reel
SC : Socket contact / pack
2
B124
DF5 Series●5mm Pitch Miniature Potting Connectors for Secondary Power Supply

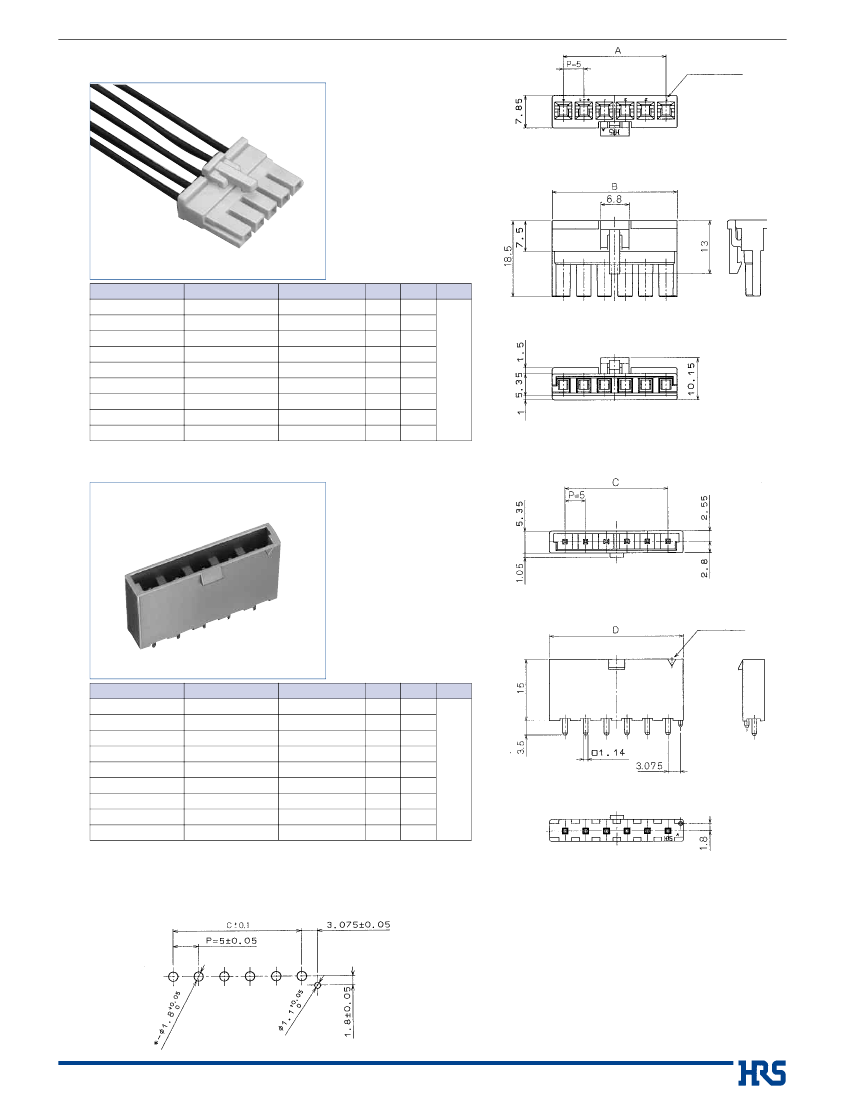

■Single
Row Socket
Contact
No. indicator
Sep.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
Contact Inserted
Part No.
DF5A- 2S-5C
DF5A- 3S-5C
DF5A- 4S-5C
DF5A- 5S-5C
DF5A- 6S-5C
DF5A- 7S-5C
DF5A- 8S-5C
DF5A- 9S-5C
DF5A-10S-5C
HRS No.
676-0007-8
676-0008-0
676-0009-3
676-0010-2
676-0011-5
676-0012-8
676-0013-0
676-0014-3
676-0015-6
No. of Contacts
2
3
4
5
6
7
8
9
10
A
5.0
10.0
15.0
20.0
25.0
30.0
35.0
40.0
45.0
B RoHS
10.5
15.5
20.5
25.5
30.5 YES
35.5
40.5
45.5
50.5
Note : A packaging quantity is delivered by
the bag unit (100 pcs.).
■Single
Row Pin Header
Polarity mark
Part No.
DF5A- 2P-5DSA(35)
DF5A- 3P-5DSA(35)
DF5A- 4P-5DSA(35)
DF5A- 5P-5DSA(35)
DF5A- 6P-5DSA(35)
DF5A- 7P-5DSA(35)
DF5A- 8P-5DSA(35)
DF5A- 9P-5DSA(35)
DF5A-10P-5DSA(35)
HRS No.
676-0016-9 35
676-0017-1 35
676-0018-4 35
676-0019-7 35
676-0020-6 35
676-0021-9 35
676-0022-1 35
676-0023-4 35
676-0024-7 35
No. of Contacts
2
3
4
5
6
7
8
9
10
C
5.0
10.0
15.0
20.0
25.0
30.0
35.0
40.0
45.0
D
RoHS
12.5
17.5
22.5
27.5
32.5
YES
37.5
42.5
47.5
52.5
Note : A packaging quantity is delivered by
the bag unit (100 pcs.).
BPCB
mounting pattern (Board thickness = 1.6±0.1)
B125
DF5 Series●5mm Pitch Miniature Potting Connectors for Secondary Power Supply

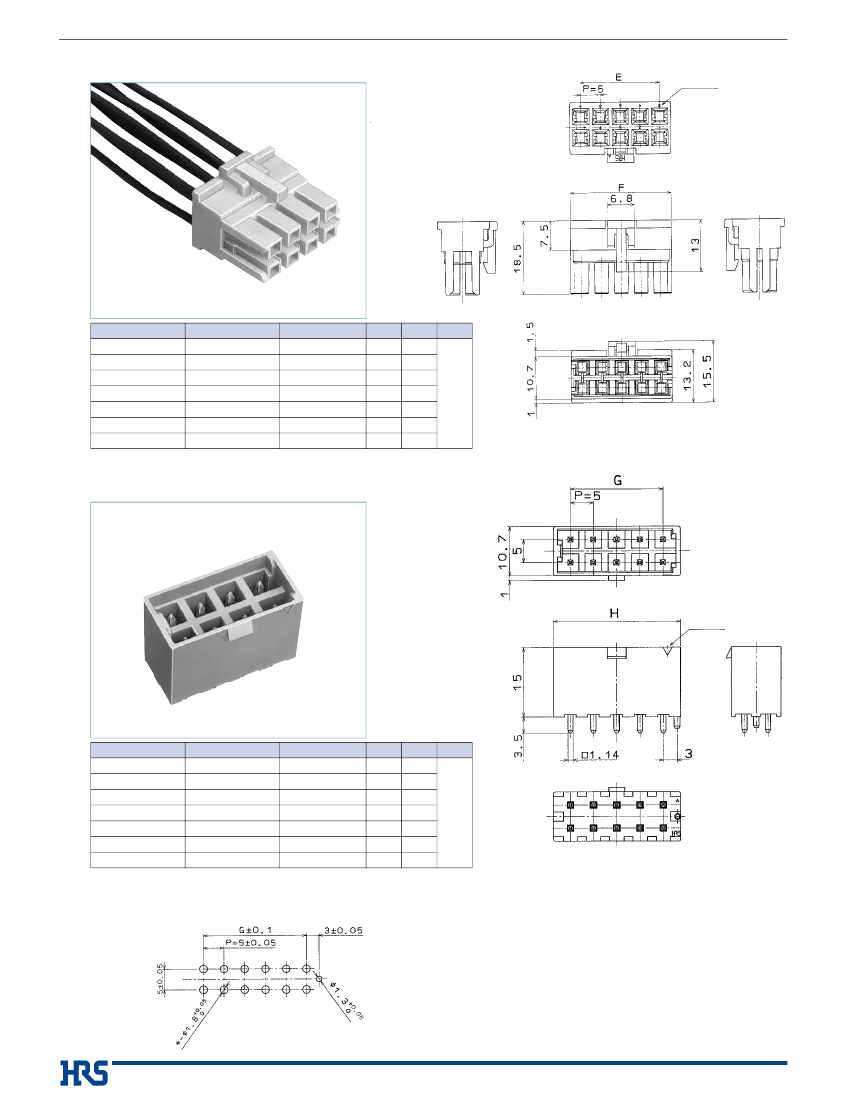

■Double
Row Socket
Contact
No. indicator
Sep.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
Contact Inserted
Part No.
DF5A- 4DS-5C
DF5A- 6DS-5C
DF5A- 8DS-5C
DF5A-10DS-5C
DF5A-12DS-5C
DF5A-14DS-5C
DF5A-16DS-5C
HRS No.
676-0025-0
676-0026-2
676-0027-5
676-0028-8
676-0036-6
676-0037-9
676-0038-1
No. of Contacts
4
6
8
10
12
14
16
E
5.0
10.0
15.0
20.0
25.0
30.0
35.0
F
RoHS
10.5
15.5
20.5
25.5
YES
30.5
35.5
40.5
Note : A packaging quantity is delivered by the
bag unit (100 pcs.).
■Double
Row Pin Header
Polarity mark
Part No.
DF5A- 4DP-5DSA(35)
DF5A- 6DP-5DSA(35)
DF5A- 8DP-5DSA(35)
DF5A-10DP-5DSA(35)
DF5A-12DP-5DSA(35)
DF5A-14DP-5DSA(35)
DF5A-16DP-5DSA(35)
HRS No.
676-0029-0 35
676-0030-0 35
676-0031-2 35
676-0032-5 35
676-0033-8 35
676-0034-0 35
676-0035-3 35
No. of Contacts
4
6
8
10
12
14
16
G
5.0
10.0
15.0
20.0
25.0
30.0
35.0
H
RoHS
12.5
17.5
22.5
27.5
YES
32.5
37.5
42.5
Note : A packaging quantity is delivered by the
bag unit (100 pcs.).
BPCB
mounting pattern (Board thickness = 1.6±0.1)
B126
DF5 Series●5mm Pitch Miniature Potting Connectors for Secondary Power Supply
BSocket
Crimping Contact
Sep.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
Part No.
DF5-1822SCF
DF5-1822SC
DF5A-1822SCF
DF5A-1822SC
HRS No.
676-0001-1
676-0002-4
676-0003-7
676-0004-0
Applicable Cable
Packaging
ULStyle Jacket Diameter Wire Size Stranded Wire Conductor
18 AWG
43/0.18mm
5,000 / reel
1007 Ø1.5 to 2.2mm
20 AWG
21/0.18mm
22 AWG
17/0.16mm
Ø2.1mm
18 AWG
43/0.18mm
100 / pack
Ø1.8mm
1007
20 AWG
21/0.18mm
Ø1.6mm
22 AWG
17/0.16mm
18 AWG
43/0.18mm
5,000 / reel
1015 Ø2.2 to 3.2mm
20 AWG
21/0.18mm
22 AWG
17/0.16mm
Ø2.9mm
18 AWG
43/0.18mm
100 / pack
Ø2.6mm
1015
20 AWG
21/0.18mm
Ø2.4mm
22 AWG
17/0.16mm
J
K
RoHS
2.8
3
Yes
3.8
4
Note 1 : Applicable wire with tin plated solid soft conductor.
Note 2 : When using other than the recommended wire, contact your nearest Hirose representative.
Note 3 : Strip length : 3.0 to 4.0mm
BApplicable
Crimping Tools
Type
Item
Press unit
Auto-
matic
Applicator
Part No.
CM-105C
AP105-DF5-1822S
AP105-DF5A-1822S
DF5-1822/CR-HT
DF5A-1822/CR-HT
RP13-PC-TP
HRS No.
901-0001-0
901-4542-5
901-4546-6
550-0264-0
550-0265-2
150-0021-5
Applicable Contact
------------------------------
DF5-1822SCF
DF5A-1822SCF
DF5-1822SC
DF5A-1822SC
DF5/DF5A-1822SCF
Manual
-----
Manual crimping tool
Extraction tool
Note 1 : If any trouble has been caused due to other tools, which are not designated by Hirose, Hirose won't guarantees any product.
Note 2 :
For the crimping process, refer to "crimping quality standards" and "crimping condition".
BApplication
Pattern
BPrecautions
1. Recommended soldering
condition
2. Cleaning condition
3. Connecting condition
4. Cautions
5. Precautions
Flow : 260ç for 10 seconds
Manual soldering : 350ç for 3 seconds
Refer to the "Wire-to-Board Connector Use Hand book"
Refer to the "Wire-to-Board Connector Use Hand book"
■The
color phase of this product may be slightly differ from that of the formed product according to the
manufacturing lot, and consequent storage condition, however, the difference affects no performance.
Refer to the "Wire-to-Board Connector Use Hand book"
B127
