BM05B-SRSS-G-TB(LF)(SN)

Description
CONN HEADER SH 5POS TOP 1MM GOLD
CategoryThe connector    The connector
File Size150KB,3 Pages
ManufacturerJST
Environmental Compliance
Download Datasheet Parametric View All

BM05B-SRSS-G-TB(LF)(SN) Overview

CONN HEADER SH 5POS TOP 1MM GOLD

BM05B-SRSS-G-TB(LF)(SN) Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerJST
Reach Compliance Codeunknown
ECCN codeEAR99
Connector typeBOARD CONNECTOR
Contact to complete cooperationTIN OVER COPPER
Contact completed and terminatedTin (Sn)
Contact point genderMALE
Contact materialCOPPER ALLOY
DIN complianceNO
Filter functionNO
IEC complianceNO
JESD-609 codee3
MIL complianceNO
Plug informationMULTIPLE MATING PARTS AVAILABLE
Mixed contactsNO
Installation methodSTRAIGHT
Installation typeBOARD
Number of rows loaded1
OptionsGENERAL PURPOSE
Terminal pitch1 mm
Termination typeSURFACE MOUNT
Total number of contacts5
UL Flammability Code94V-0
SR
/
SZ
CONNECTOR
JS
T
9
Emboss Tape

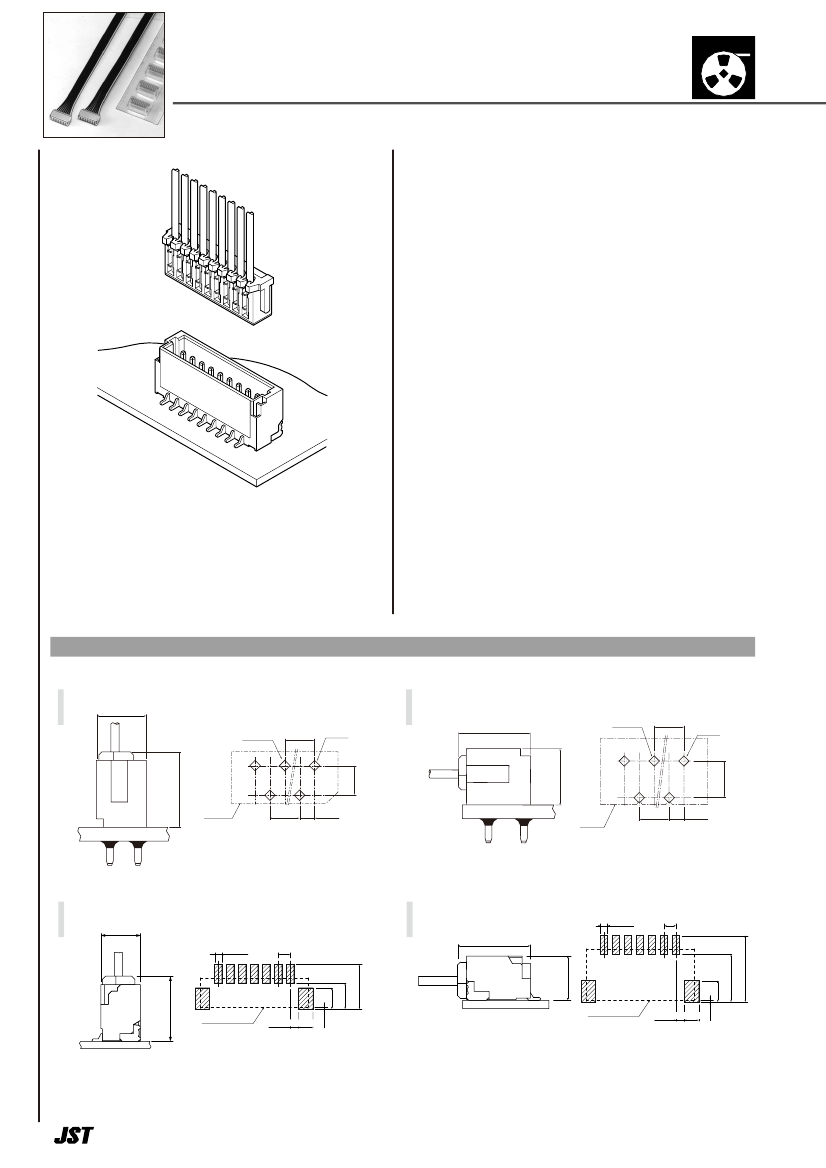

1.0mm pitch/Disconnectable Insulation displacement connectors
Specifications –––––––––––––––––––
• Current rating: 0.7A DC
• Voltage rating: 50V DC
• Temperature range: -25˚C to +85˚C
(including temperature rise in applying
electrical current)
• Contact resistance: Initial value/20m
max.
After environmental testing/40m
max.
• Insulation resistance:
100M
min.
• Withstanding voltage: 500V AC/minute
• Applicable wire: Conductor size/AWG #30
Conductor/7 strands,
tin-coated annealed copper
Insulation O.D./0.54 to 0.58mm
* Compliant with RoHS.
* Refer to "General Instruction and Notice when using
Terminals and Connectors" at the end of this catalog.
* Contact JST for details.
• Compact insulation displacement connector
• Header designed for vacuum pick and place
robotics
• Twin U-slot insulation displacement section
• 3-point grip construction
• Through-hole type (SZ)
Standards ––––––––––––––––––––––
1
Certified LR20812
0
Recognized E60389
PC board layout (viewed from component side) and Assembly layout
<Through-hole type>
Top entry type
3.5
φ0.7
±0.03
Side entry type
2
±0.05
Circuit
No.1
5.1
φ0.7
±0.03
2
±0.05
Circuit
No.1
5.4
Header
outline
2
±0.05
1
±0.05
Header
outline
2
±0.05
1
±0.05
<SMT type>
Top entry type
2.9
0.6
±0.05
1.0
±0.05
4.85
4.0
±0.1
5.55
±0.1
Side entry type
0.6
±0.05
1.0
±0.05
4.2
±0.1
2.95
2.65
±0.1
1.8
±0.1
0.2
±0.1
Header outline
Header outline
0.7
±0.1
1.2
±0.1
0.7
±0.1
1.2
±0.1
Note: 1. Tolerances are non-cumulative:
±
0.05mm for all centers.
2. Dimensions above should serve as a guideline. Contact JST for details.
3. Hole dimensions differ according to the kind of PC board and piercing method.
4. If using double-sided through-hole PC board, it is necessary to confirm the resistance to the soldering heat on the PC board to be used and the soldering
condition. Single sided paper based phenolic resin copper-clad PC board (t1.6) is recommended for a PCB used.
1
0.2
±0.1
4.9
1.8
±0.1
2.5
±0.05
2
±0.05
4
