Part Number

Search

1-446080-3

Description
168 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER
CategoryThe connector    The connector
File Size207KB,1 Pages
ManufacturerTE Connectivity
Websitehttp://www.te.com
Download Datasheet Parametric View All

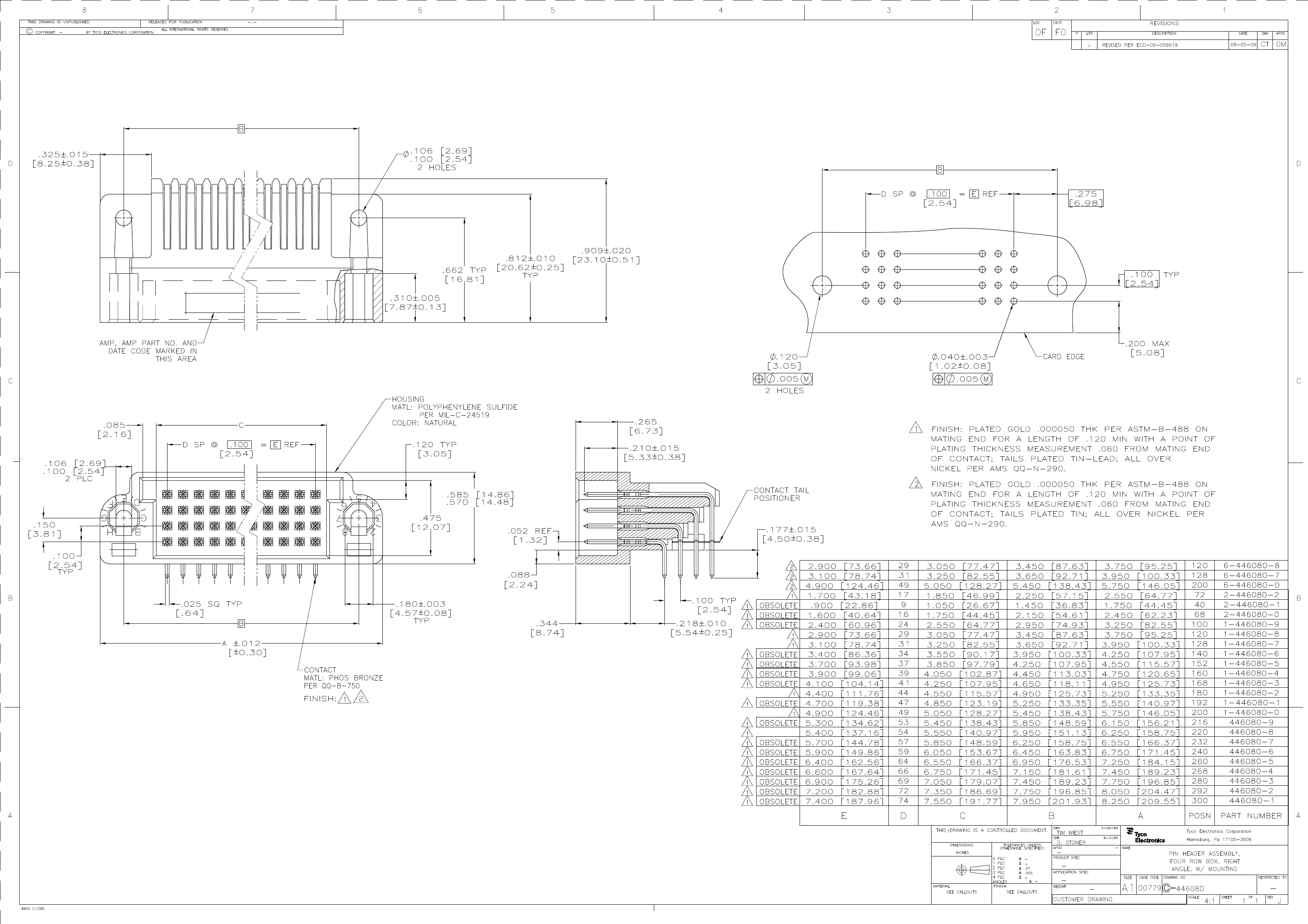

1-446080-3 Overview

168 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER

1-446080-3 Parametric

Parameter NameAttribute value
Objectid2027280042
Reach Compliance Codeunknown
ECCN codeEAR99
YTEOL0
Board mount optionsHOLE .099-.111
body width0.58 inch
subject depth0.909 inch
body length4.95 inch
Body/casing typeRECEPTACLE
Connector typeBOARD CONNECTOR
Contact to complete cooperationAU ON NI
Contact completed and terminatedGOLD
Contact point genderMALE
Contact materialPHOSPHOR BRONZE
contact modeRECTANGULAR
Contact styleSQ PIN-SKT
DIN complianceNO
Filter functionNO
IEC complianceNO
insulator materialPOLYPHENYLENE SULFIDE
MIL complianceNO
Plug contact pitch0.1 inch
Match contact row spacing0.1 inch
Mixed contactsNO
Installation option 1HOLE .099-.111
Installation methodRIGHT ANGLE
Installation typeBOARD
Number of connectorsONE
PCB row number4
Number of rows loaded4
OptionsGENERAL PURPOSE
PCB contact patternRECTANGULAR
PCB contact row spacing2.54 mm
Plating thickness50u inch
polarization keyENDS
Terminal length0.089 inch
Terminal pitch2.54 mm
Termination typeSOLDER
Total number of contacts168
