2-119254-9 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 2-119254-9

Preview

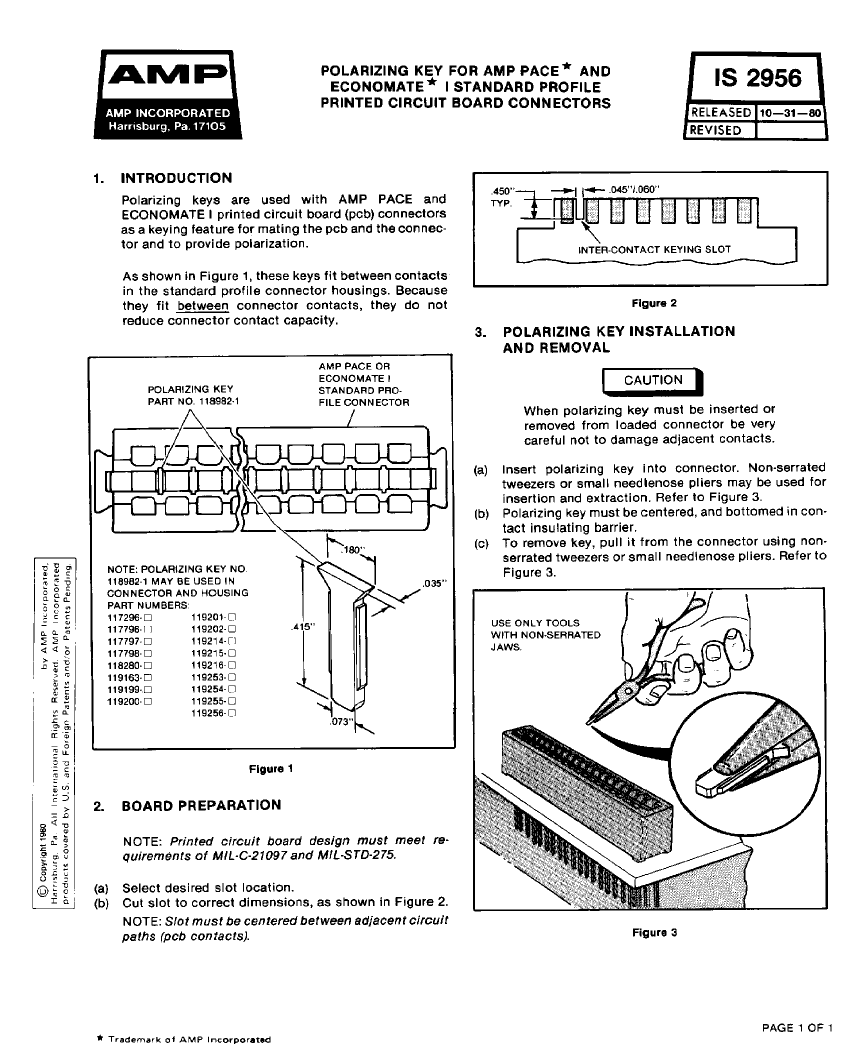

2-119254-9: Description43 CONTACT(S), FEMALE, STRAIGHT SINGLE PART CARD EDGE CONN, PRESS FIT; CategoryThe connector The connector; File Size57KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

2-119254-9 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	2-119254-9	-	-	View	Buy Now

2-119254-9 Overview

43 CONTACT(S), FEMALE, STRAIGHT SINGLE PART CARD EDGE CONN, PRESS FIT

2-119254-9 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Objectid	1416350257
Reach Compliance Code	unknown
ECCN code	EAR99
Samacsys Manufacturer	TE Connectivity
Samacsys Modified On	2020-06-19 17:46:54
YTEOL	0
Other features	POLARIZED
body width	0.36 inch
subject depth	0.55 inch
body length	6.994 inch
Body/casing type	RECEPTACLE
Connector type	CARD EDGE CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	5 mΩ
Contact style	BELLOWED TYPE
DIN compliance	NO
Dielectric withstand voltage	1500VAC V
Durability	100 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	2.224 N
Insulator color	BLACK
insulator material	GLASS FILLED POLYESTER
MIL compliance	NO
Plug contact pitch	0.156 inch
Match contact row spacing	0.2 inch
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	5.08 mm
Plating thickness	FLASH inch
Rated current (signal)	3 A
Guideline	UL, CSA
Terminal length	0.475 inch
Terminal pitch	3.96 mm
Termination type	PRESS FIT
Total number of contacts	43
UL Flammability Code	94V-0
Evacuation force-minimum value	.139 N

Preview

Download Datasheet

View All

2-119254-9 Related Products

	2-119254-9	3-119216-6
Description	43 CONTACT(S), FEMALE, STRAIGHT SINGLE PART CARD EDGE CONN, PRESS FIT	50 CONTACT(S), FEMALE, STRAIGHT SINGLE PART CARD EDGE CONN, PRESS FIT
Is it Rohs certified?	incompatible	incompatible
Reach Compliance Code	unknown	unknow
ECCN code	EAR99	EAR99
Other features	POLARIZED	AMP PACE
body width	0.36 inch	0.36 inch
subject depth	0.55 inch	0.55 inch
body length	6.994 inch	5.234 inch
Body/casing type	RECEPTACLE	RECEPTACLE
Connector type	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED
Contact point gender	FEMALE	FEMALE
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE
contact mode	RECTANGULAR	RECTANGULAR
Contact resistance	5 mΩ	5 mΩ
Contact style	BELLOWED TYPE	BELLOWED TYPE
DIN compliance	NO	NO
Dielectric withstand voltage	1500VAC V	1000VAC V
Durability	100 Cycles	100 Cycles
Filter function	NO	NO
IEC compliance	NO	NO
maximum insertion force	2.224 N	2.224 N
Insulator color	BLACK	BLACK
insulator material	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER
MIL compliance	NO	NO
Plug contact pitch	0.156 inch	0.1 inch
Match contact row spacing	0.2 inch	0.2 inch
Mixed contacts	NO	NO
Installation method	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD
Number of connectors	ONE	ONE
PCB row number	2	2
Number of rows loaded	2	2
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-55 °C	-55 °C
Options	GENERAL PURPOSE	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR	RECTANGULAR
PCB contact row spacing	5.08 mm	5.08 mm
Plating thickness	FLASH inch	FLASH inch
Rated current (signal)	3 A	3 A
Guideline	UL, CSA	UL, CSA
Terminal length	0.475 inch	0.475 inch
Terminal pitch	3.96 mm	2.54 mm
Termination type	PRESS FIT	PRESS FIT
Total number of contacts	43	50
UL Flammability Code	94V-0	94V-0
Evacuation force-minimum value	.139 N	.139 N
