5.0mm x 3.2mm SMD Crystal
•
Tolerances down to 20 PPM
•
Stabilities down to 20 PPM
(former FQ5032B)
C5BQ
DATASHEET
Page
1
of
3
• C5BQ STANDARD SPECIFICATIONS
PARAMETERS
Frequency Range
(Fo)
Frequency Tolerance @ 25ºC
Frequency Stability, ref @ 25ºC
Over Operating Temp Range
Temperature Range
(T
OPR
)
Operating
(T
STG
)
Storage
Shunt Capacitance
(Co)
Load Capacitance
(C
L
)
Drive Level
Aging per year
Termination Finish
Seam Method
Lead (Pb) Free
RoHS Compliant
MAX
(unless otherwise noted)
8.000 ~ 60.000 MHz
(See options on page 2)
(See options below)
(See options below)
-40ºC ~ +85ºC
5 pF
(See options on page 2)
0.5 mW
±5 PPM
Ag
Resin
Yes
Yes
Frequency Range
(MHz)
Operating Mode
Max ESR
Ω
8.000000 ~ 11.999999
12.000000 ~ 16.000
16.000001 ~ 48.000
48.000001 ~ 60.000
Fundamental
Fundamental
Fundamental
3rd OT
100
80
50
100

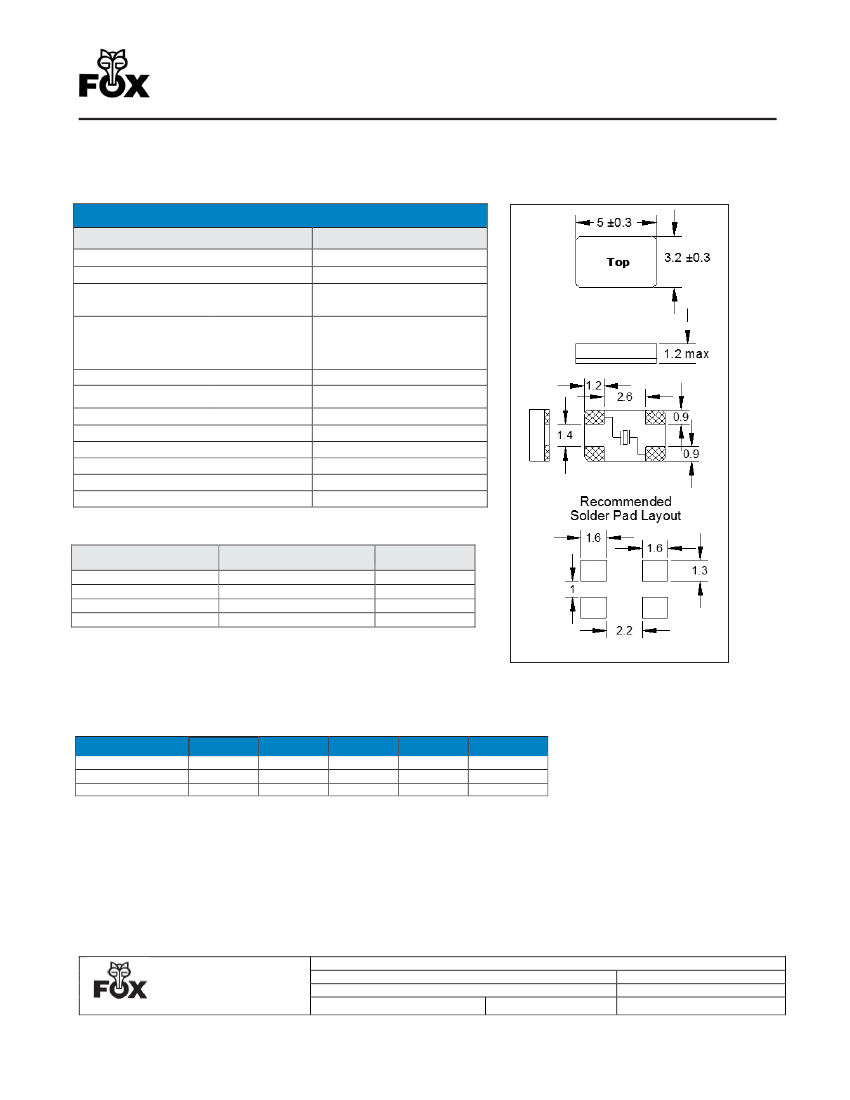

All dimensions are in millimeters.
Note: Dimensional drawing is for reference to critical specifications
defined by size measurements. Certain non-critical visual attributes,
such as side castellations, etc. may vary.
•
Available Operating Temperatures and Stabilities*
±20 PPM
±25 PPM
±30 PPM
±15 PPM
O
∆
O
O
0 ~+70ºC
O
-20 ~+70ºC
∆
O
O
O
-40 ~+85ºC
X
X
O
Key: O=Available, X=Not Available, ∆=Consult Fox Technical Support
*Does not imply a stocked part.
Stability Temperature
±50 PPM
O
O
O
© Copyright 2017 Fox Electronics, All rights reserved
Title / Description:
C5BQ SERIES STANDARD SPECIFICATIONS
Drawing Number:
101146
Size: A
Part Number:
Cage:
61429
Draftsperson:
CMR
Approved:
AR
Revision Date:
09/24/2018
5.0mm x 3.2mm SMD Crystal
(former FQ5032B)
C5BQ
DATASHEET
Page
2
of
3

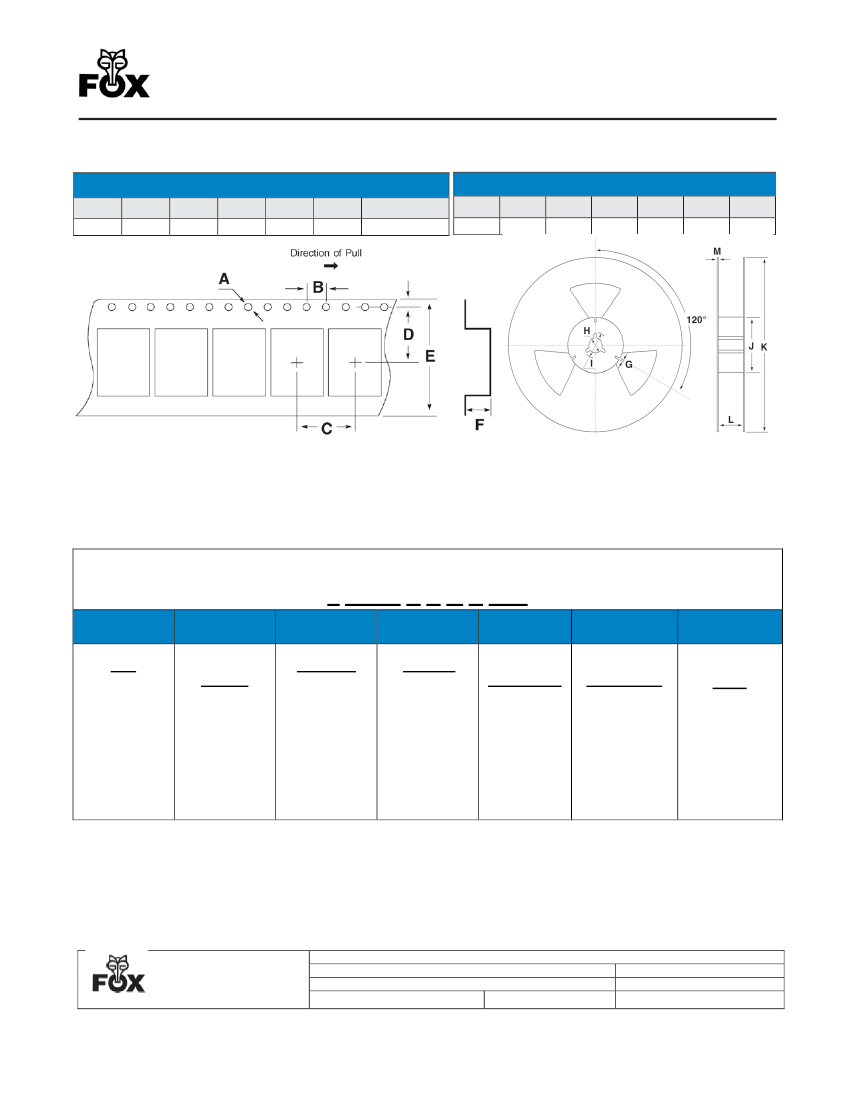

• TAPE SPECIFICATIONS
(millimeters)
A
∅1.5
B
4.0
C
8.0
D
5.5
E
12.0
F
1.5
STD Reel QTY
• REEL SPECIFICATIONS
(millimeters)
1,000
G
2.0
H
∅13
I
∅21
J
K
∅62 ∅180
L
13.5
M
2.0
Available Options & Part Identification for SMD Crystal C5BQ*
F C5BQ C C M C 25.0
F
FOX
C5BQ
Model
Number
C
Tolerance
B=50ppm
C=30ppm
D=25ppm
E=20ppm
C
Stability
B=50ppm
C=30ppm
D=25ppm
E=20ppm
M
Load
Capacitance
V=7pF
D=8pF
E=10pF
G=12pF
J=15pF
K=16pF
L=18pF
M=20pF
C
Operating
Temperature
C=0 to +70C
F=-20 to +70C
M=-40 to +85C
25.0
Frequency
(MHz)
*Not
all frequency, tolerance, stability, load, and operating temperature combinations may be available.
**Consult Fox Technical Support for 15ppm availability.
*Not
all frequency, tolerance, stability, load, and operating temperature combinations may be available.
© Copyright 2017 Fox Electronics, All rights reserved
Title / Description:
C5BQ SERIES STANDARD SPECIFICATIONS
Drawing Number:
101146
Size: A
Part Number:
Cage:
61429
Draftsperson:
CMR
Approved:
AR
Revision Date:
09/24/2018
5.0mm x 3.2mm SMD Crystal
(former FQ5032B)
C5BQ
DATASHEET
Page
3
of
3
• C5BQ (Former FQ5032B) Standard Crystals
Part Number
FQ5032B-10.000
FQ5032B-12.000
FQ5032B-16.000
FQ5032B-20.000
FQ5032B-24.000
FQ5032B-25.000
FQ5032BR-10.000
FQ5032BR-12.000
FQ5032BR-16.000
FQ5032BR-20.000
FQ5032BR-24.000
FQ5032BR-25.000
Frequency
10.000000
12.000000
16.000000
20.000000
24.000000
25.000000
10.000000
12.000000
16.000000
20.000000
24.000000
25.000000
Tolerance
+/- 30 ppm
+/- 30 ppm
+/- 30 ppm
+/- 30 ppm
+/- 30 ppm
+/- 30 ppm
+/- 30 ppm
+/- 30 ppm
+/- 30 ppm
+/- 30 ppm
+/- 30 ppm
+/- 30 ppm
Stability
+/- 30 ppm
+/- 30 ppm
+/- 30 ppm
+/- 30 ppm
+/- 30 ppm
+/- 30 ppm
+/- 50 ppm
+/- 50 ppm
+/- 50 ppm
+/- 50 ppm
+/- 50 ppm
+/- 50 ppm
Temp Range
0 to +70 C
0 to +70 C
0 to +70 C
0 to +70 C
0 to +70 C
0 to +70 C
-40 to +85 C
-40 to +85 C
-40 to +85 C
-40 to +85 C
-40 to +85 C
-40 to +85 C
CL
20pF
20pF
20pF
20pF
20pF
20pF
20pF
20pF
20pF
20pF
20pF
20pF
Corporate
Headquarters
Sales
5570 Enterprise Parkway
Fort Myers, FL 33905
http://www.FOXONLINE.com
1-888-GET-2-FOX (1-888-438-2369) or
1-239-693-0099
http://www.FOXONLINE.com/repdisty
http://www.FOXONLINE.com/email
Tech Support
PRODUCT USE: Fox Electronics reserves the right to modify the products and/or specifications described herein at any time and at Fox Electronics' sole discretion.
All information in this document, including descriptions of product features and performance, is subject to change without notice. Performance specifications and the
operating parameters of the described products are determined in the independent state and are not guaranteed to perform the same way when installed in customer
products. The information contained herein is provided without representation or warranty of any kind, whether express or implied, including, but not limited to, the
suitability of Fox Electronics' products for any particular purpose, an implied warranty of merchantability, or non-infringement of the intellectual property rights of
others. This document is presented only as a guide and does not convey any license under intellectual property rights of Fox Electronics or any third parties.
Fox Electronics' products are not intended for use in applications involving extreme environmental conditions or in life support systems or similar devices where the
failure or malfunction of a Fox Electronics product can be reasonably expected to significantly affect the health or safety of users. Anyone using a Fox Electronics
product in such a manner does so at their own risk, absent an express, written agreement by Fox Electronics.
Fox Electronics and the Fox logo are registered trademarks of Fox Electronics. Product specification is subject to change without notice. Other trademarks and
service marks used herein, including protected names, logos and designs, are the property of Fox Electronics or their respective third party owners.
For datasheet type definitions and a glossary of common terms, visit http://www.foxonline.com/tgcrystals.html .
© Copyright 2017 Fox Electronics, All rights reserved
