0397150003 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 0397150003

0397150003: DescriptionTERM BLOCK PLUG 3POS STR 5.08MM; CategoryThe connector; File Size151KB，1 Pages; ManufacturerMolex Premise Network

Download Datasheet Parametric Compare View All

0397150003 Overview

TERM BLOCK PLUG 3POS STR 5.08MM

0397150003 Parametric

Parameter Name	Attribute value
type	plug, female socket
Number of pins	3
Number of pins per level	3
Number of levels	1
spacing	0.200"（5.08mm）
Needle seat direction	-
Plug entrance	180°
Terminal type	screws
Installation type	free hanging
Current - IEC	-
Current - UL	12A
Voltage - UL	250V
Wire Gauge or Range - AWG	12-24 AWG
Wire gauge or range - mm²	-
color	green
Operating temperature	-40°C ~ 105°C
Contact mating surface treatment	tin
characteristic	-
Material flammability rating	UL94 V-0
Intrusion protection	-
Screw size	M3
Torque - Screws	0.5 Nm（4.4 Lb-In）
Wire stripping length	5mm
Contact material	brass
Shell material	Polyamide (PA66), Nylon 6/6
Contact tail length	-
Insulation height	0.591"（15.00mm）

Preview

Download Datasheet

View All

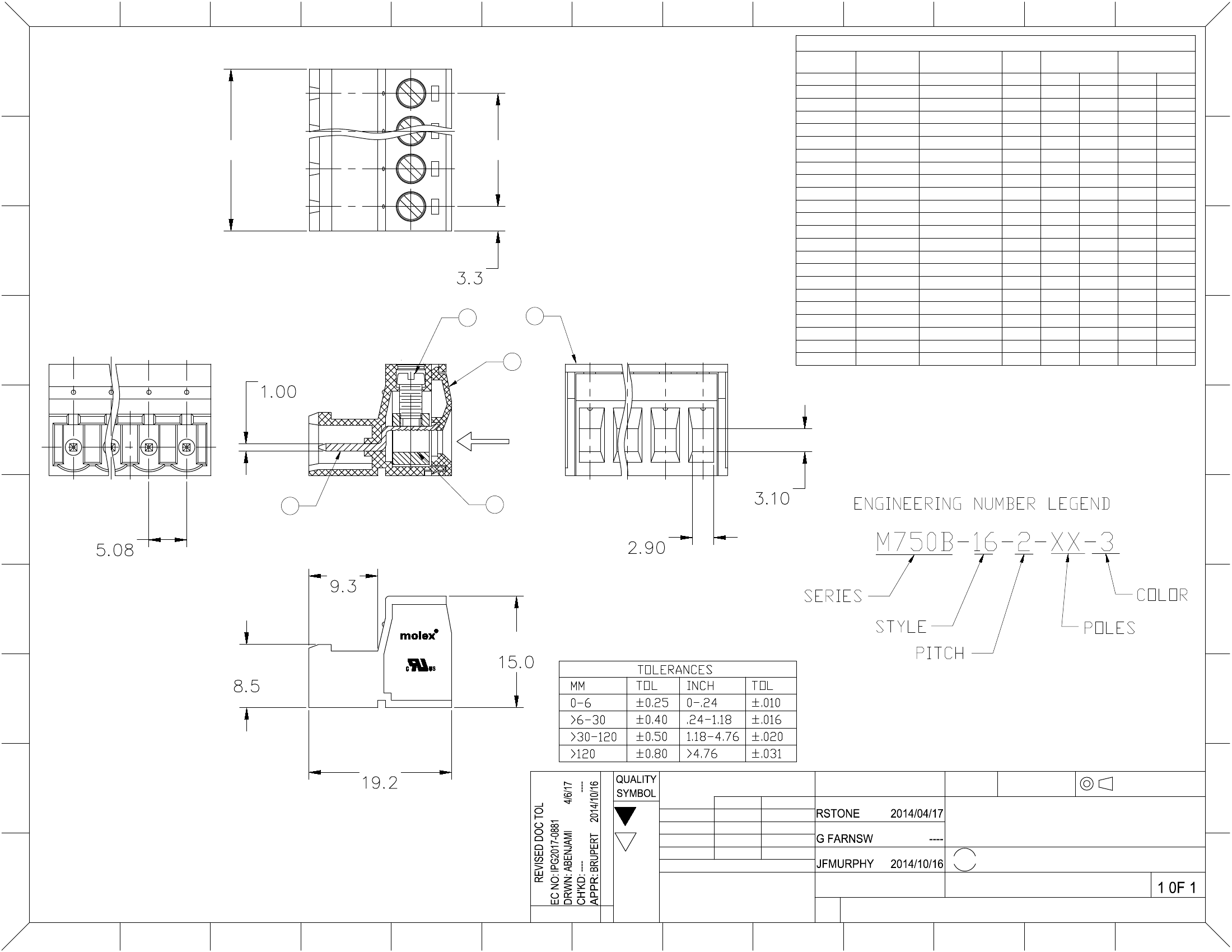

PART NUMBER DATA

CIRCUITS

.13

.039

PART

NUMBER

397150002

397150003

397150004

397150005

397150006

397150007

397150008

397150009

397150010

397150011

397150012

ENGINEERING

NUMBER

M750B-16-2-02-3

M750B-16-2-03-3

M750B-16-2-04-3

M750B-16-2-05-3

M750B-16-2-06-3

M750B-16-2-07-3

M750B-16-2-08-3

M750B-16-2-09-3

M750B-16-2-10-3

M750B-16-2-11-3

M750B-16-2-12-3

M750B-16-2-13-3

M750B-16-2-14-3

M750B-16-2-15-3

M750B-16-2-16-3

M750B-16-2-17-3

M750B-16-2-18-3

M750B-16-2-19-3

M750B-16-2-20-3

M750B-16-2-21-3

M750B-16-2-22-3

M750B-16-2-23-3

M750B-16-2-24-3

COLOR

GREEN

A IN mm

.46

.66

.86

1.06

1.26

1.46

1.66

1.86

2.06

2.26

2.46

2.66

2.86

3.06

3.26

3.46

3.66

3.86

4.06

4.26

4.46

4.66

4.86

11.7

16.7

21.8

26.9

32.0

37.1

42.1

47.2

52.3

57.4

62.5

67.5

72.6

77.7

82.8

87.9

92.9

98.0

103.1

108.2

113.3

118.3

123.4

B IN mm

.200

.400

.600

.800

1.000

1.200

1.400

1.600

1.800

2.000

2.200

2.400

2.600

2.800

3.000

3.200

3.400

3.600

3.800

4.000

4.200

4.400

4.600

5.08

10.16

15.24

20.32

25.40

30.48

35.56

40.64

45.72

50.80

55.88

60.96

66.04

71.12

76.20

81.28

86.36

91.44

96.52

101.59

106.67

111.75

116.83

REF. LAST 2 DIGITS OF PART NUMBER EQUALS CIRCUIT COUNT

WIRE ENTRY

.122

.200

.37

.114

M750B

.59

CONTACT FACTORY FOR OPTIONAL COLORS

.33

SPECIFICATIONS

1.MATERIAL:

A. BODY : PA66.UL94 V-0

B. SCREW: M3, STEEL.ZINC PLATED

C. COVER: PA66.UL94 V-0

D. CAGE: BRASS.NI PLATED

E. TERMINAL :BRASS.TIN PLATED

3.RATING: 250V,12A

4.MAX TORQUE : 4.4LBF.IN

5.WIRE STRIP LENGTH: .20in.(5.0mm)

.76

GENERAL TOLERANCES

(UNLESS SPECIFIED)

DESCRIPTION

DIMENSION STYLE

SCALE

DESIGN UNITS

IN/MM

DRAWN BY

DATE

TITLE

CHECKED BY

DATE

---

METRIC

THIRD ANGLE

PROJECTION

4 PLACES

3 PLACES

2 PLACES

1 PLACE

---

INCH

---

APPROVED BY

DATE

molex

PLUG, 5.08MM

MALE, HORIZONTAL

----

MOLEX INCORPORATED

SHEET NO.

7.DIMS. SHOWN ARE FOR REFERENCE ONLY

REV

DRAFT WHERE

APPLICABLE

MUST REMAIN

WITHIN DIMENSIONS

MATERIAL NO.

DOCUMENT NO.

SEE CHART

SIZE

SD-39715-001

THIS DRAWING CONTAINS INFORMATION THAT IS PROPRIETARY TO MOLEX

INCORPORATED AND SHOULD NOT BE USED WITHOUT WRITTEN PERMISSION

0397150003 Related Products

	0397150003	0397150009	0397150012	0397150004	0397150006	0397150007	0397150008	0397150010	0397150002	0397150011
Description	TERM BLOCK PLUG 3POS STR 5.08MM	TERM BLOCK PLUG 9POS STR 5.08MM	TERM BLOCK PLUG 12POS STR 5.08MM	TERM BLOCK PLUG 4POS STR 5.08MM	TERM BLOCK PLUG 6POS STR 5.08MM	TERM BLOCK PLUG 7POS STR 5.08MM	TERM BLOCK PLUG 8POS STR 5.08MM	TERM BLOCK PLUG 10POS STR 5.08MM	TERM BLOCK PLUG 2POS STR 5.08MM	TERM BLOCK PLUG 11POS STR 5.08MM
type	plug, female socket	plug, female socket	plug, female socket	plug, female socket	plug, female socket	plug, female socket	plug, female socket	plug, female socket	plug, female socket	plug, female socket
Number of pins	3	9	12	4	6	7	8	10	2	11
Number of pins per level	3	9	12	4	6	7	8	10	2	11
Number of levels	1	1	1	1	1	1	1	1	1	1
spacing	0.200"（5.08mm）	0.200"（5.08mm）	0.200"（5.08mm）	0.200"（5.08mm）	0.200"（5.08mm）	0.200"（5.08mm）	0.200"（5.08mm）	0.200"（5.08mm）	0.200"（5.08mm）	0.200"（5.08mm）
Plug entrance	180°	180°	180°	180°	180°	180°	180°	180°	180°	180°
Terminal type	screws	screws	screws	screws	screws	screws	screws	screws	screws	screws
Installation type	free hanging	free hanging	free hanging	free hanging	free hanging	free hanging	free hanging	free hanging	free hanging	free hanging
Current - UL	12A	12A	12A	12A	12A	12A	12A	12A	12A	12A
Voltage - UL	250V	250V	250V	250V	250V	250V	250V	250V	250V	250V
Wire Gauge or Range - AWG	12-24 AWG	12-24 AWG	12-24 AWG	12-24 AWG	12-24 AWG	12-24 AWG	12-24 AWG	12-24 AWG	12-24 AWG	12-24 AWG
color	green	green	green	green	green	green	green	green	green	green
Operating temperature	-40°C ~ 105°C	-40°C ~ 105°C	-40°C ~ 105°C	-40°C ~ 105°C	-40°C ~ 105°C	-40°C ~ 105°C	-40°C ~ 105°C	-40°C ~ 105°C	-40°C ~ 105°C	-40°C ~ 105°C
Contact mating surface treatment	tin	tin	tin	tin	tin	tin	tin	tin	tin	tin
Material flammability rating	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0
Screw size	M3	M3	M3	M3	M3	M3	M3	M3	M3	M3
Torque - Screws	0.5 Nm（4.4 Lb-In）	0.5 Nm（4.4 Lb-In）	0.5 Nm（4.4 Lb-In）	0.5 Nm（4.4 Lb-In）	0.5 Nm（4.4 Lb-In）	0.5 Nm（4.4 Lb-In）	0.5 Nm（4.4 Lb-In）	0.5 Nm（4.4 Lb-In）	0.5 Nm（4.4 Lb-In）	0.5 Nm（4.4 Lb-In）
Wire stripping length	5mm	5mm	5mm	5mm	5mm	5mm	5mm	5mm	5mm	5mm
Contact material	brass	brass	brass	brass	brass	brass	brass	brass	brass	brass
Shell material	Polyamide (PA66), Nylon 6/6	Polyamide (PA66), Nylon 6/6	Polyamide (PA66), Nylon 6/6	Polyamide (PA66), Nylon 6/6	Polyamide (PA66), Nylon 6/6	Polyamide (PA66), Nylon 6/6	Polyamide (PA66), Nylon 6/6	Polyamide (PA66), Nylon 6/6	Polyamide (PA66), Nylon 6/6	Polyamide (PA66), Nylon 6/6
Insulation height	0.591"（15.00mm）	0.591"（15.00mm）	0.591"（15.00mm）	0.591"（15.00mm）	0.591"（15.00mm）	0.591"（15.00mm）	0.591"（15.00mm）	0.591"（15.00mm）	0.591"（15.00mm）	0.591"（15.00mm）
