E 36/18/11
Core
■
Delivery mode: single units
B66389
Magnetic characteristics
(per set)
Σl/A
l
e
A
e
A
min
V
e
= 0.68 mm
–1
= 81 mm
= 120 mm
2
= 112 mm
2
= 9720 mm
3
Approx. weight
50 g/set
Ungapped
Material
N27
N87
value
nH
2900 +30/–20%
3100 +30/–20%
μ
e
1550
1680
P
V
W/set
< 1.85 (200 mT, 25 kHz, 100 °C)
< 5.00 (200 mT, 100 kHz, 100 °C)
Ordering code
B66389G0000X127
B66389G0000X187
Gapped
(A
L
values/air gaps examples)
Material
g
mm
N27
0.50
±0.05
1.00
±0.05
A
L
value
approx.
nH
300
183
μ
e
Ordering code
160
96
B66389G0500X127
B66389G1000X127
The A
L
value in the table applies to a core set comprising one ungapped core (dimension g = 0 mm)
and one gapped core (dimension g > 0 mm).
Other A
L
values/air gaps and materials available on request – see Processing remarks on page 4.
Calculation factors
(for formulas, see
“E cores: general information”
)
Material
Relationship between
air gap – A
L
value
K1 (25 °C)
N27
N87
Validity range:
182
182
K2 (25 °C)
–0.749
–0.749
Calculation of saturation current
K3 (25 °C)
302
295
K4 (25 °C)
–0.847
–0.796
K3 (100 °C) K4 (100 °C)
280
273
–0.865
–0.873
K1, K2: 0.10 mm < s < 2.50 mm
K3, K4: 100 nH < A
L
< 930 nH
Please read
Cautions and warnings
and
Important notes
at the end of this document.
2
5/17
E 36/18/11

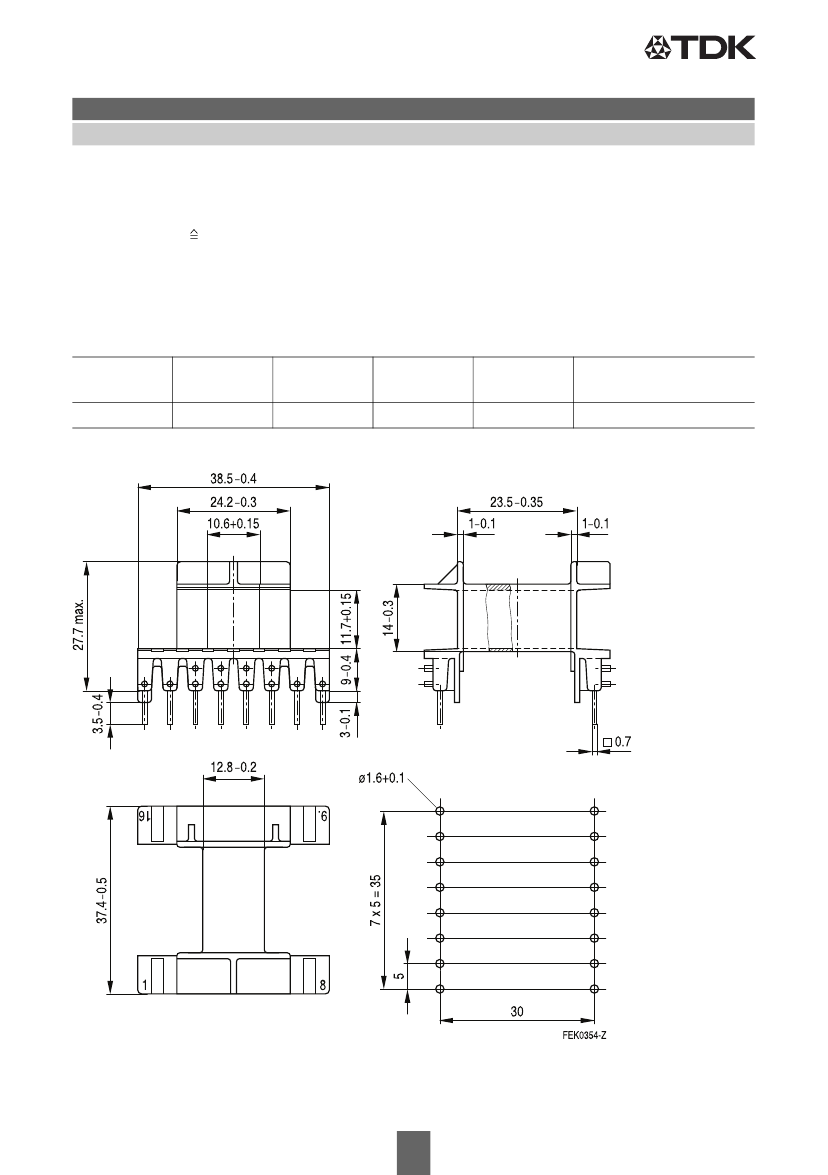

Accessories
Coil former
GFR polyterephthalate (UL 94 V-0, insulation class to IEC 60085:
F max. operating temperature 155 °C), color code black
Pocan B4235
®
[
E245249 (M)
]
, LANXESS AG
Solderability: to IEC 60068-2-20, test Ta, method 1 (aging 3): 235 °C, 2 s
Resistance to soldering heat: to IEC 60068-2-20, test Tb, method 1B: 350 °C, 3.5 s
Winding:
see Processing notes, 2.1
Pins:
Squared pins
Sections
1
A
N
mm
2
122.55
l
N
mm
76.4
A
R
value
μΩ
21.45
Pins
16
Ordering code
B66390A1016T001
Material:
B66390
Hole arrangement
View in
mounting direction
Please read
Cautions and warnings
and
Important notes
at the end of this document.
3
5/17
Ferrites and accessories
