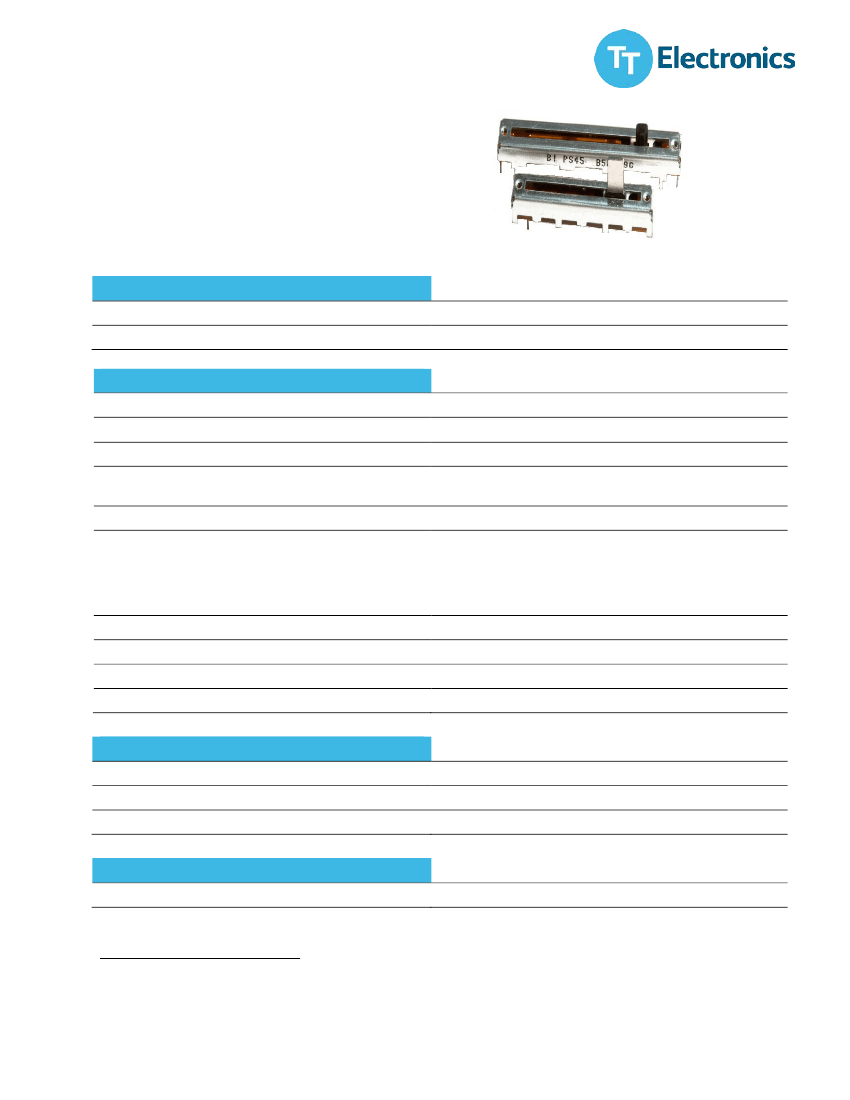

Model PSxx
Slide Potentiometer
100,000 Cycle Life
Metal/Plastic Lever
RoHS Compliant
MODEL STYLE
Single Gang
Dual Gang
PSxx-1
PSxx-2
ELECTRICAL
1
Resistance Range, Ohms
Standard Resistance Tolerance
Resistance Tapers
Residual Resistance
Input Voltage, Maximum
Power rating, Watts (Single Unit
/
Dual Unit)
500 -1M
±
20%
A,B,C
Terminals 1 to 2:Less than 10 ohms
Terminals 2 to 3:Less than 30 ohms
Linear B taper: 200 Vac
Other tapers: 150 Vac
Linear B taper:
20mm: 0.1W / 0.05W, 30mm: 0.2W / 0.1W
45mm: 0.25W / 0.125W, 60mm:0.2W / 0.2W
Other tapers:
20mm: 0.05W / 0.025W, 30mm: 0.1W / 0.05W
45mm: 0.125W / 0.06W, 60mm:0.1W / 0.1W
Dielectric Strength
Insulation Resistance, Minimum
Sliding Noise
Gang Error
300Vac, 1 minute
100M ohms at 250Vdc/ 1 minute
Less than 100mV
±3dB (-40dB to 0dB)
MECHANICAL
Static Stop Strength, Minimum
Operating Force
Detent Slip-out force
5.0 Kgf/cm
10gf to 100gf
30gf to 200gf
DURABILITY
Sliding Life
100,000 cycles
1
Specifications subject to change without notice.
BI Technologies Corporation
4200 Bonita Place, Fullerton, CA 92835 USA
T: +1 714 447 2345
www.ttelectronics.com
August 16, 2016
page1 of 4
General Note
TT Electronics reserves the right to make changes in product specification without notice or
liability. All information is subject to TT Electronics’ own data and is considered accurate
at time of going to print.
© TT electronics plc
Model PSxx
ORDERING INFORMATION
2
Model PSxx
PS30 – 1 0 P C 1 B R100K
Model Style
Travel in millimeters
15, 20, 30, 45, 60
Number of Gangs:
1 = Single
2 = Dual
Total Resistance
Tapers:
A = Audio
B = Linear
C = Reverse Audio
Detent
0 = Without
1 = Center
Lever Material:
P = Plastic
M = Metal
Lever Type:
See Below
Lever Length:
See “L” Code
Below
STANDARD RESISTANCE VALUES, OHMS
500
1K
2K
5K
10K
20K
50K
100K
200K
500K
1 MEG

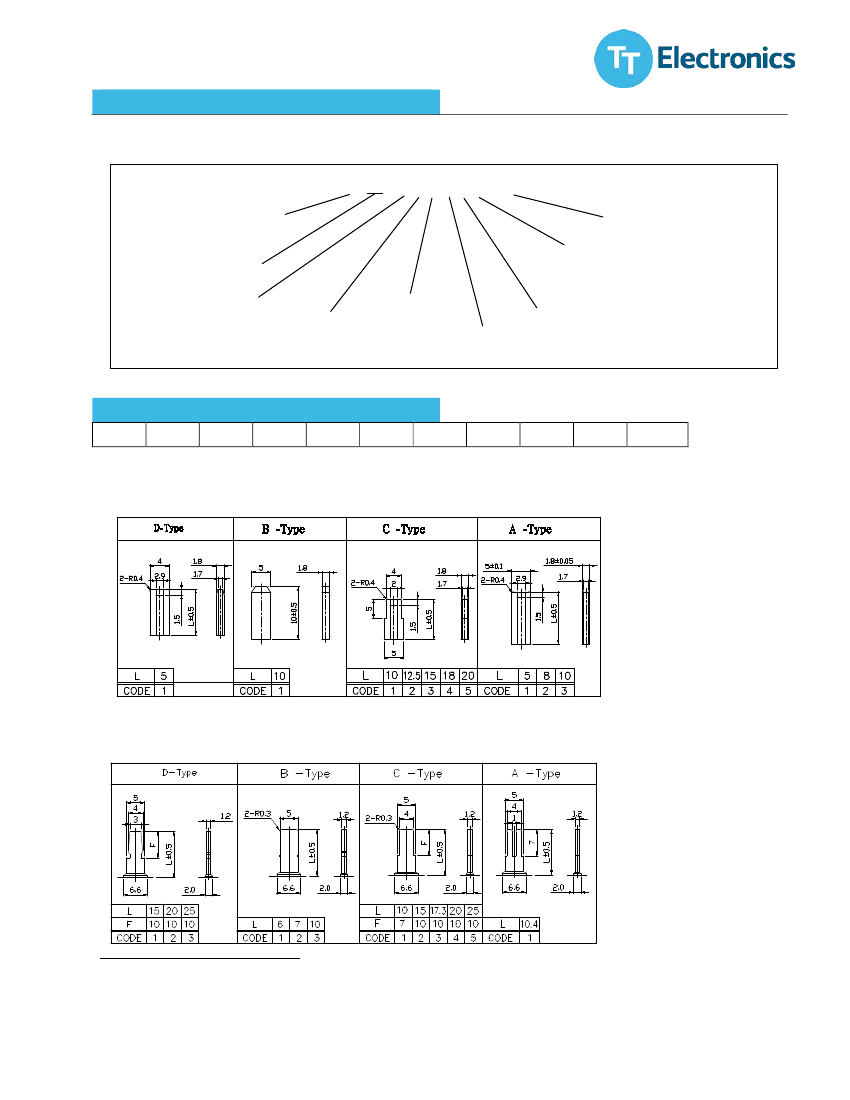

Plastic Lever Types
Metal Lever Types
2
Contact our customer service for custom designs and features.
BI Technologies Corporation
4200 Bonita Place, Fullerton, CA 92835 USA
T: +1 714 447 2345
www.ttelectronics.com
August 16, 2016
page2 of 4
General Note
TT Electronics reserves the right to make changes in product specification without notice or
liability. All information is subject to TT Electronics’ own data and is considered accurate
at time of going to print.
© TT electronics plc
Model PSxx

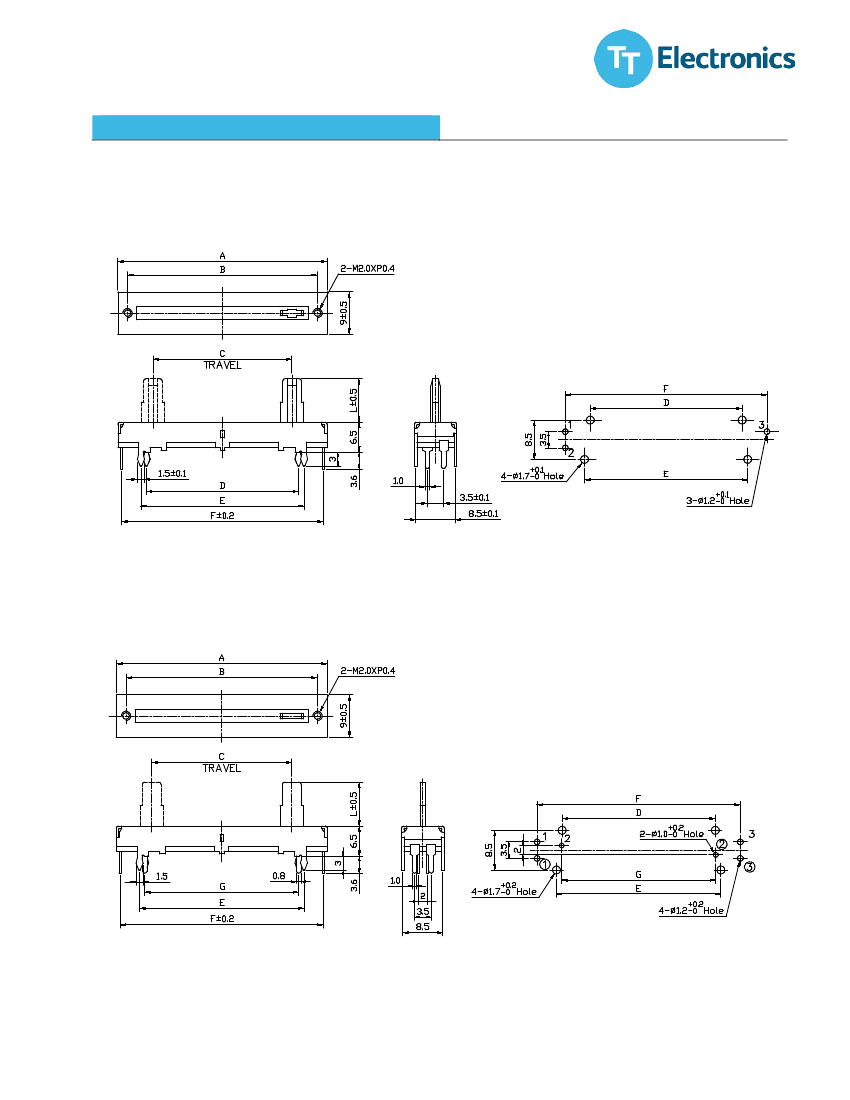

OUTLINE DRAWING
PSxx-1 Single Gang
PSxx-2 Dual Gang
General Note
TT Electronics reserves the right to make changes in product specification without notice or
liability. All information is subject to TT Electronics’ own data and is considered accurate
at time of going to print.
© TT electronics plc
BI Technologies Corporation
4200 Bonita Place, Fullerton, CA 92835 USA
T: +1 714 447 2345
www.ttelectronics.com
August 16, 2016
page3 of 4
Model PSxx
MODEL
PS15-1
PS15-2
PS20-1
PS20-2
PS30-1
PS30-2
PS45-1
PS45-2
PS60-1
PS60-2
A
30
30
35
35
45
45
60
60
75
75
B
26
26
31
31
41
41
56
56
71
71
C
15
15
20
20
30
30
45
45
60
60
D
17.8
17.8
22.8
22.8
32.8
32.8
47.8
47.8
62.8
62.8
E
20.2
20.2
25.2
25.2
35.2
35.2
50.2
50.2
65.2
65.2
F
28.8
28.8
33.8
33.8
43.8
43.8
58.8
58.8
73.8
73.8
G
---
18
---
23
---
33
---
48
---
63
CIRCUIT DIAGRAM
PSxx-1 Single Gang
PSxx-2 Dual Gang
