SBC6-6R8-662 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> SBC6-6R8-662

SBC6-6R8-662: DescriptionFIXED IND 6.8UH 6.6A 20 MOHM TH; CategoryPassive components inductor; File Size523KB，12 Pages; ManufacturerKEMET; Websitehttp://www.kemet.com; Environmental Compliance

Download Datasheet Parametric View All

SBC6-6R8-662 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	SBC6-6R8-662	-	-	View	Buy Now

SBC6-6R8-662 Overview

FIXED IND 6.8UH 6.6A 20 MOHM TH

SBC6-6R8-662 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
structure	Cylindrical
core material	Ferrite
DC Resistance	0.02 Ω
Nominal inductance(L)	6.8 µH
Inductor type	GENERAL PURPOSE INDUCTOR
Lead diameter	1 mm
Lead length	3.5 mm
lead spacing	8.5 mm
Maximum operating temperature	105 °C
Package diameter	12 mm
Package length	15 mm
Package form	Radial
method of packing	Bulk
Maximum rated current	6.6 A
Tolerance	20%
Base Number Matches	1

Preview

Download Datasheet

View All

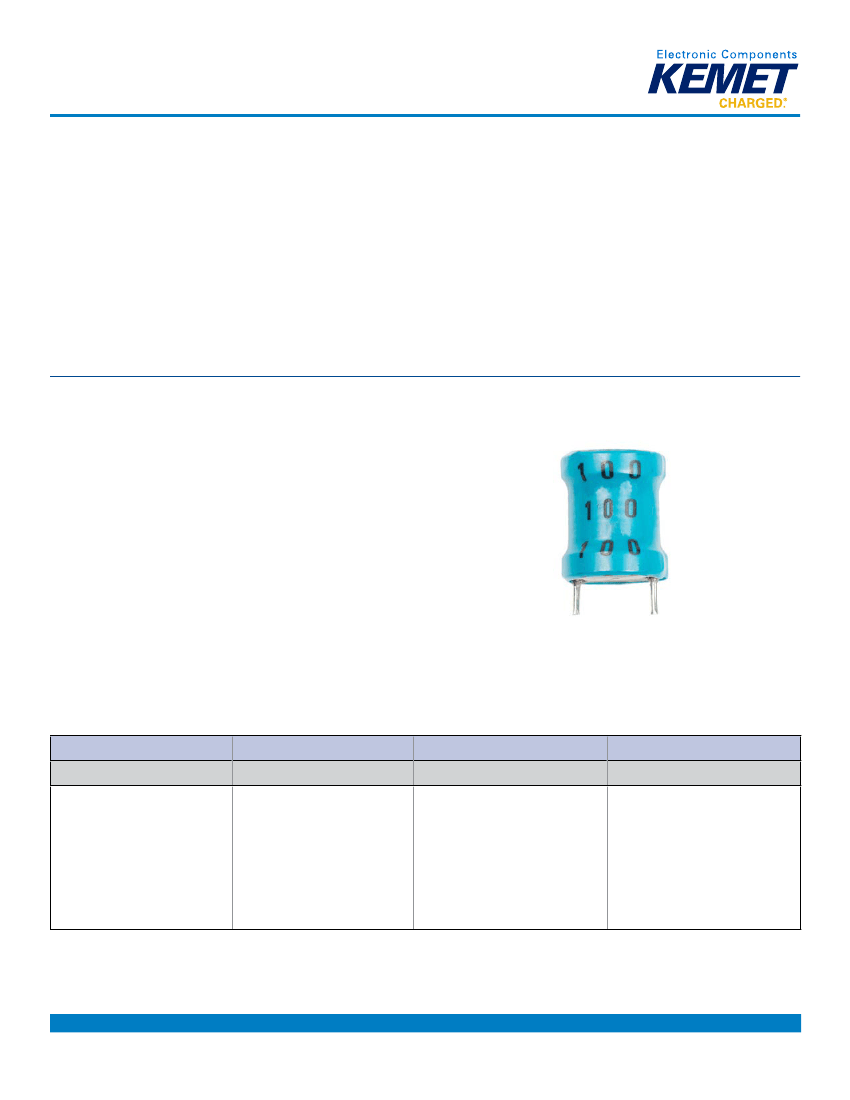

Through-Hole Inductors

Conformally Coated SBC Coils

Overview

Ferrite power inductors are useful in various fields and

suitable for DC/DC converters and noise filters.

Applications

Typical applications include LED lighting, xDSL modems,

copying machines, flat TVs, smart meters, and power

supplies.

Benefits

•

Drum core construction

Nickel-zinc (NiZn) ferrite core

Magnetic non-shield type

Operating temperature range of up to +105°C

RoHS compliant

Ordering Information

SBC

Series

SBC

1–

Core Size

Outer size x height

1 = Φ 4.5 × 6.5

2 = Φ 6.0 × 6.0

3 = Φ 8.0 × 7.0

4 = Φ 8.0 × 10.0

6 = Φ 11.0 × 13.0

7 = Φ 14.0 × 12.0

8 = Φ 14.0 × 17.0

9 = Φ 11.0 × 10.0

101−

Inductance Code (µH)

571

Rate Current Code (mA)

First two digits represent significant First two digits represent significant

figures. Third digit specifies number figures. Third digit specifies number

of zeros.

The presence of an external tube may not be indicated on the surface of sample products.

One world. One KEMET

Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com

L9007_SBC • 9/18/2018
