DV74LS175N datasheet, PDF - EEWORLD Datasheet

DV74LS175N: DescriptionD Flip-Flop, LS Series, 1-Func, Positive Edge Triggered, 4-Bit, Complementary Output, TTL, PDIP16, PLASTIC, DIP-16; Categorylogic; File Size351KB，2 Pages; ManufacturerAVG [AVG Semiconductors(HITEK)]

Download Datasheet Parametric Compare View All

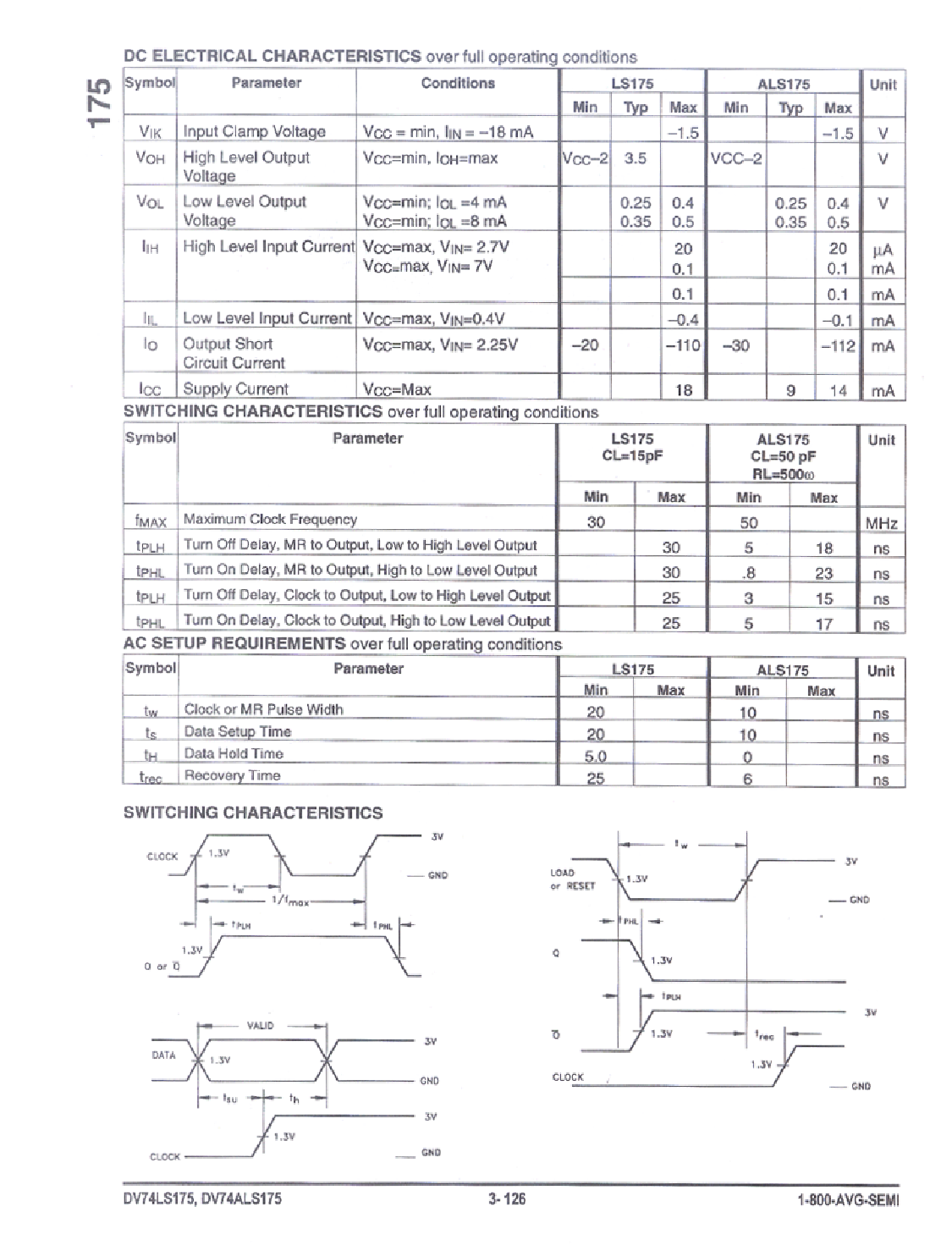

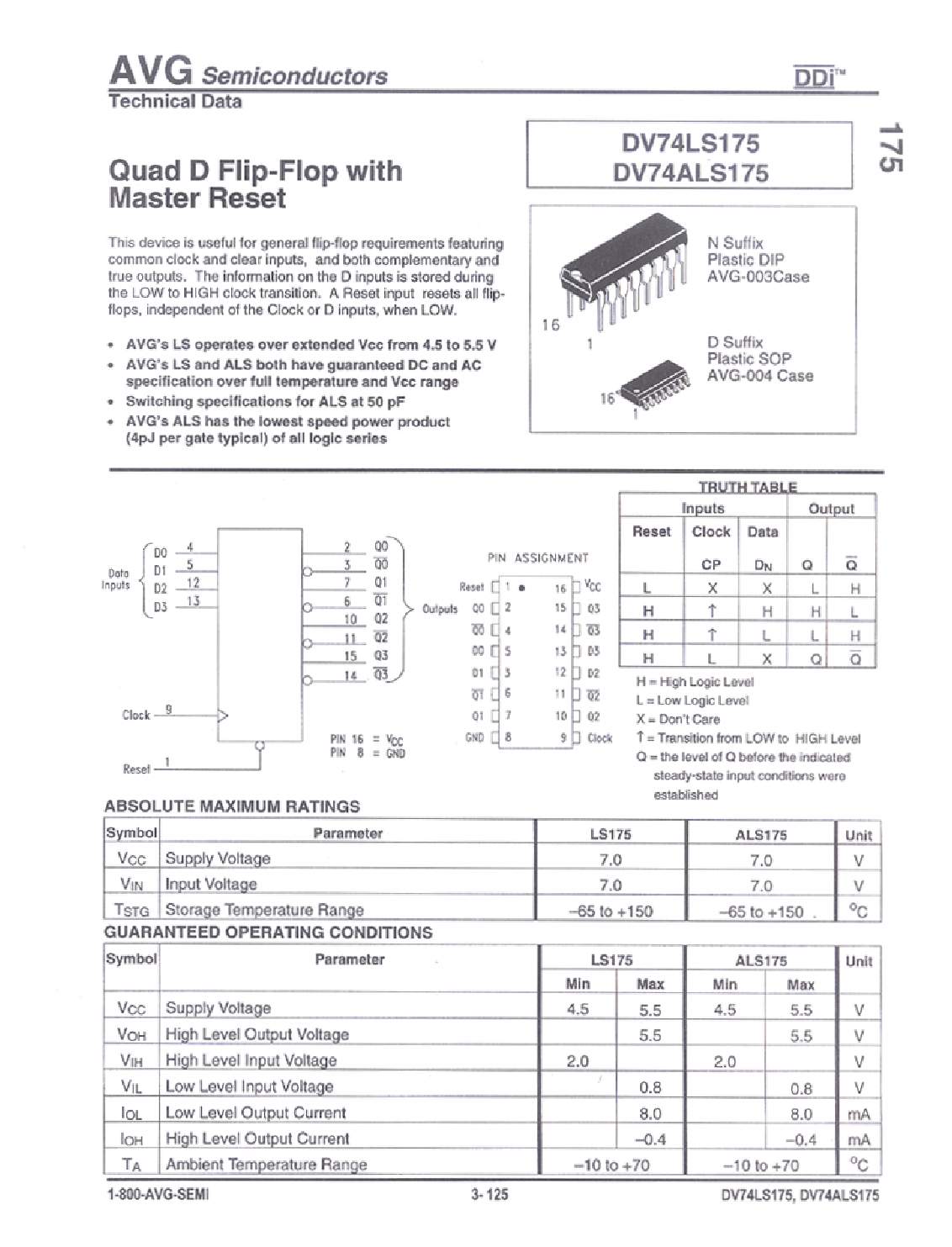

DV74LS175N Overview

D Flip-Flop, LS Series, 1-Func, Positive Edge Triggered, 4-Bit, Complementary Output, TTL, PDIP16, PLASTIC, DIP-16

Parameter Name	Attribute value
Maker	AVG [AVG Semiconductors(HITEK)]
Parts packaging code	DIP
package instruction	PLASTIC, DIP-16
Contacts	16
Reach Compliance Code	unknown
Is Samacsys	N
series	LS
JESD-30 code	R-PDIP-T16
length	19.175 mm
Load capacitance (CL)	15 pF
Logic integrated circuit type	D FLIP-FLOP
Number of digits	4
Number of functions	1
Number of terminals	16
Maximum operating temperature	70 °C
Minimum operating temperature	-10 °C
Output polarity	COMPLEMENTARY
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Maximum supply current (ICC)	18 mA
propagation delay (tpd)	25 ns
Certification status	Not Qualified
Maximum seat height	4.44 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	TTL
Temperature level	COMMERCIAL
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Trigger type	POSITIVE EDGE
width	7.62 mm
minfmax	30 MHz
Base Number Matches	1

	DV74LS175N	DV74ALS175N
Description	D Flip-Flop, LS Series, 1-Func, Positive Edge Triggered, 4-Bit, Complementary Output, TTL, PDIP16, PLASTIC, DIP-16	D Flip-Flop, ALS Series, 1-Func, Positive Edge Triggered, 4-Bit, Complementary Output, TTL, PDIP16, PLASTIC, DIP-16
Maker	AVG [AVG Semiconductors(HITEK)]	AVG [AVG Semiconductors(HITEK)]
Parts packaging code	DIP	DIP
package instruction	PLASTIC, DIP-16	DIP,
Contacts	16	16
Reach Compliance Code	unknown	unknown
series	LS	ALS
JESD-30 code	R-PDIP-T16	R-PDIP-T16
length	19.175 mm	19.175 mm
Load capacitance (CL)	15 pF	50 pF
Logic integrated circuit type	D FLIP-FLOP	D FLIP-FLOP
Number of digits	4	4
Number of functions	1	1
Number of terminals	16	16
Maximum operating temperature	70 °C	70 °C
Minimum operating temperature	-10 °C	-10 °C
Output polarity	COMPLEMENTARY	COMPLEMENTARY
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	DIP
Package shape	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE
Maximum supply current (ICC)	18 mA	14 mA
propagation delay (tpd)	25 ns	17 ns
Certification status	Not Qualified	Not Qualified
Maximum seat height	4.44 mm	4.44 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V
surface mount	NO	NO
technology	TTL	TTL
Temperature level	COMMERCIAL	COMMERCIAL
Terminal form	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL
Trigger type	POSITIVE EDGE	POSITIVE EDGE
width	7.62 mm	7.62 mm
minfmax	30 MHz	50 MHz
