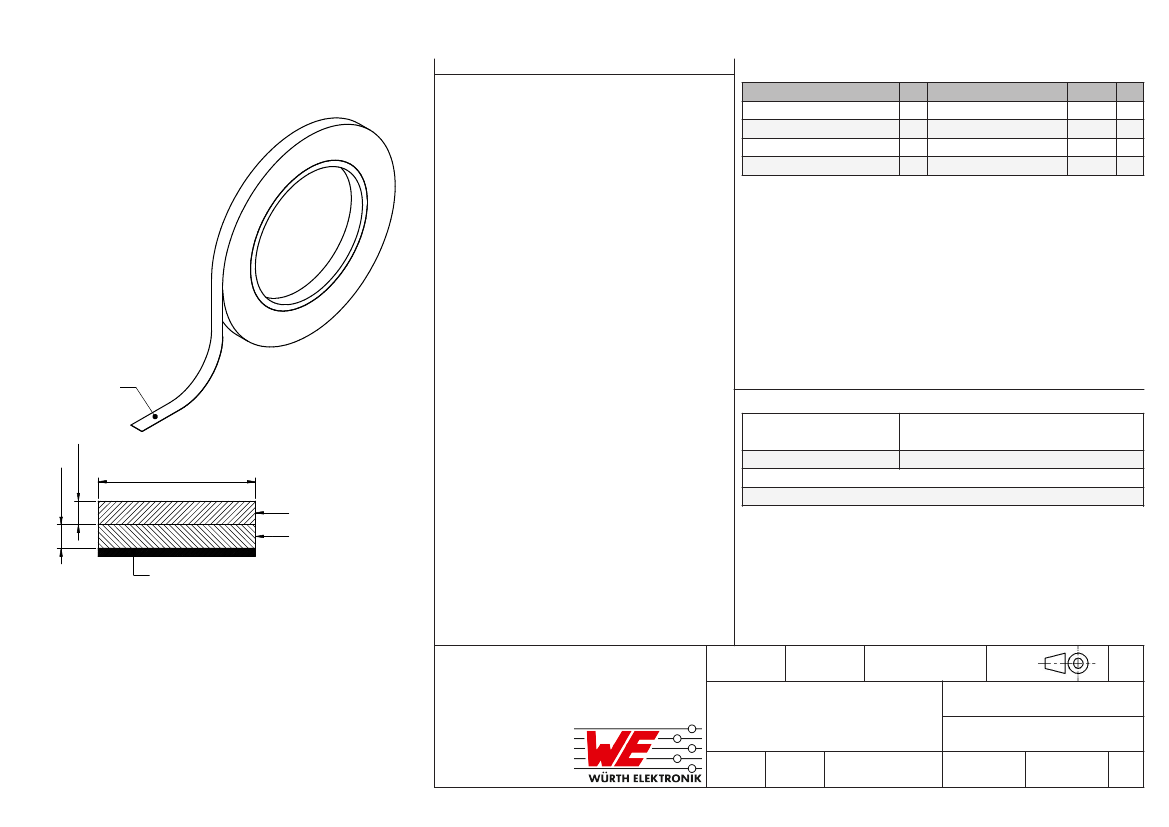

Dimensions: [mm]
Electrical Properties:
Properties
Surface Resistance
1)
Resistance through adhesive
Adhesive Thickness
Adhesive Strength
2)
1)
based on
2)
based on
Value
R
S
0.0005
0.003
0.03
4.5
Unit
Ω/ square
Ω
mm
N/ cm
Tol.
typ.
typ.
typ.
typ.
MIL-STD-202F
ASTM D1000-10
8 mm x 33 m
General Information:
Storage Temperature (in original
packaging)
-25 °C up to +80 °C
-25 °C up to +80 °C
0,04 ref.
Operating Temperature
8,0 ±0,05
flexible copper foil
acrylate glue, conducting
0,03 ref.
Flammability: No flame, no glowing. IEC 60695-2-11. Test severity 850°C
Test conditions of Electrical Properties: +20°C, 33% RH if not specified differently
release tape
Scale - 1:2
Würth Elektronik eiSos GmbH & Co. KG
EMC & Inductive Solutions
Max-Eyth-Str. 1
74638 Waldenburg
Germany
Tel. +49 (0) 79 42 945 - 0
www.we-online.com
eiSos@we-online.com
CREATED
CHECKED
GENERAL TOLERANCE
PROJECTION
METHOD
KaS
DESCRIPTION
JoV
DIN ISO 2768-1m
WE-CF EMI Shielding Sheet/EMI
Shielding Tape
REVISION
STATUS
ORDER CODE
3003308A
DATE (YYYY-MM-DD)
BUSINESS UNIT
PAGE
005.000
Valid
2016-12-30
eiSos
1/2
