5404 DM5404 DM7404 Hex Inverting Gates
June 1989
5404 DM5404 DM7404
Hex Inverting Gates
General Description
This device contains six independent gates each of which
performs the logic INVERT function
Features
Y
Alternate Military Aerospace device (5404) is available
Contact a National Semiconductor Sales Office Distrib-
utor for specifications
Connection Diagram
Dual-In-Line Package
TL F 6494 – 1
Order Number 5404DMQB 5404FMQB DM5404J DM5404W DM7404M or DM7404N
See NS Package Number J14A M14A N14A or W14B
Function Table
Y
e
A
Inputs
A
L
H
H
e
High Logic Level
L
e
Low Logic Level
Output
Y
H
L
C
1995 National Semiconductor Corporation
TL F 6494
RRD-B30M105 Printed in U S A
Absolute Maximum Ratings
(Note)
If Military Aerospace specified devices are required
please contact the National Semiconductor Sales
Office Distributors for availability and specifications
Supply Voltage
7V
Input Voltage
5 5V
Operating Free Air Temperature Range
b
55 C to
a
125 C
DM54 and 54
DM74
0 C to
a
70 C
Storage Temperature Range
b
65 C to
a
150 C
Note
The ‘‘Absolute Maximum Ratings’’ are those values
beyond which the safety of the device cannot be guaran-
teed The device should not be operated at these limits The
parametric values defined in the ‘‘Electrical Characteristics’’
table are not guaranteed at the absolute maximum ratings
The ‘‘Recommended Operating Conditions’’ table will define
the conditions for actual device operation
Recommended Operating Conditions
Symbol
V
CC
V
IH
V
IL
I
OH
I
OL
T
A
Parameter
Min
Supply Voltage
High Level Input Voltage
Low Level Input Voltage
High Level Output Current
Low Level Output Current
Free Air Operating Temperature
b
55
DM5404
Nom
5
Max
55
Min
4 75
2
08
b
0 4
DM7404
Nom
5
Max
5 25
Units
V
V
08
b
0 4
45
2
V
mA
mA
C
16
125
0
16
70
Electrical Characteristics
over recommended operating free air temperature range (unless otherwise noted)
Symbol
V
I
V
OH
V
OL
I
I
I
IH
I
IL
I
OS
Parameter
Input Clamp Voltage
High Level Output
Voltage
Low Level Output
Voltage
Input Current
Input Voltage
Max
Conditions
V
CC
e
Min I
I
e b
12 mA
V
CC
e
Min I
OH
e
Max
V
IL
e
Max
V
CC
e
Min I
OL
e
Max
V
IH
e
Min
V
CC
e
Max V
I
e
5 5V
V
CC
e
Max V
I
e
2 4V
V
CC
e
Max V
I
e
0 4V
V
CC
e
Max
(Note 2)
V
CC
e
Max
V
CC
e
Max
DM54
DM74
b
20
b
18
Min
Typ
(Note 1)
Max
b
1 5
Units
V
V
24
34
02
04
1
40
b
1 6
b
55
b
55
V
mA
mA
mA
mA
High Level Input Current
Low Level Input Current
Short Circuit
Output Current
Supply Current with
Outputs High
Supply Current with
Outputs Low
I
CCH
I
CCL
6
18
12
33
mA
mA
Switching Characteristics
at V
CC
e
5V and T
A
e
25 C (See Section 1 for Test Waveforms and Output Load)
Symbol
t
PLH
t
PHL
Parameter
Propagation Delay Time
Low to High Level Output
Propagation Delay Time
High to Low Level Output
Conditions
C
L
e
15 pF
R
L
e
400X
Min
Max
22
15
Units
ns
ns
Note 1
All typicals are at V
CC
e
5V T
A
e
25 C
Note 2
Not more than one output should be shorted at a time
2

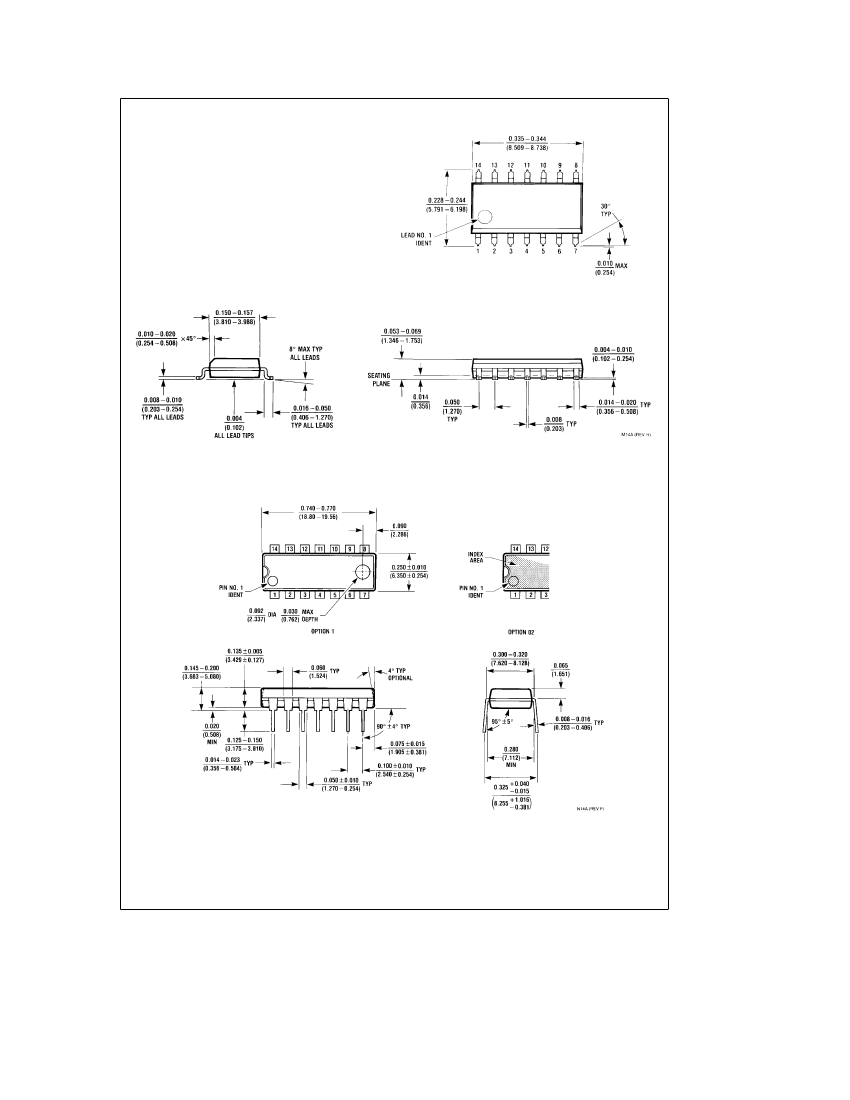

Physical Dimensions
inches (millimeters) (Continued)
14-Lead Small Outline Molded Package (M)
Order Number DM7404M
NS Package Number M14A
14-Lead Molded Dual-In-Line Package (N)
Order Number DM7404N
NS Package Number N14A
