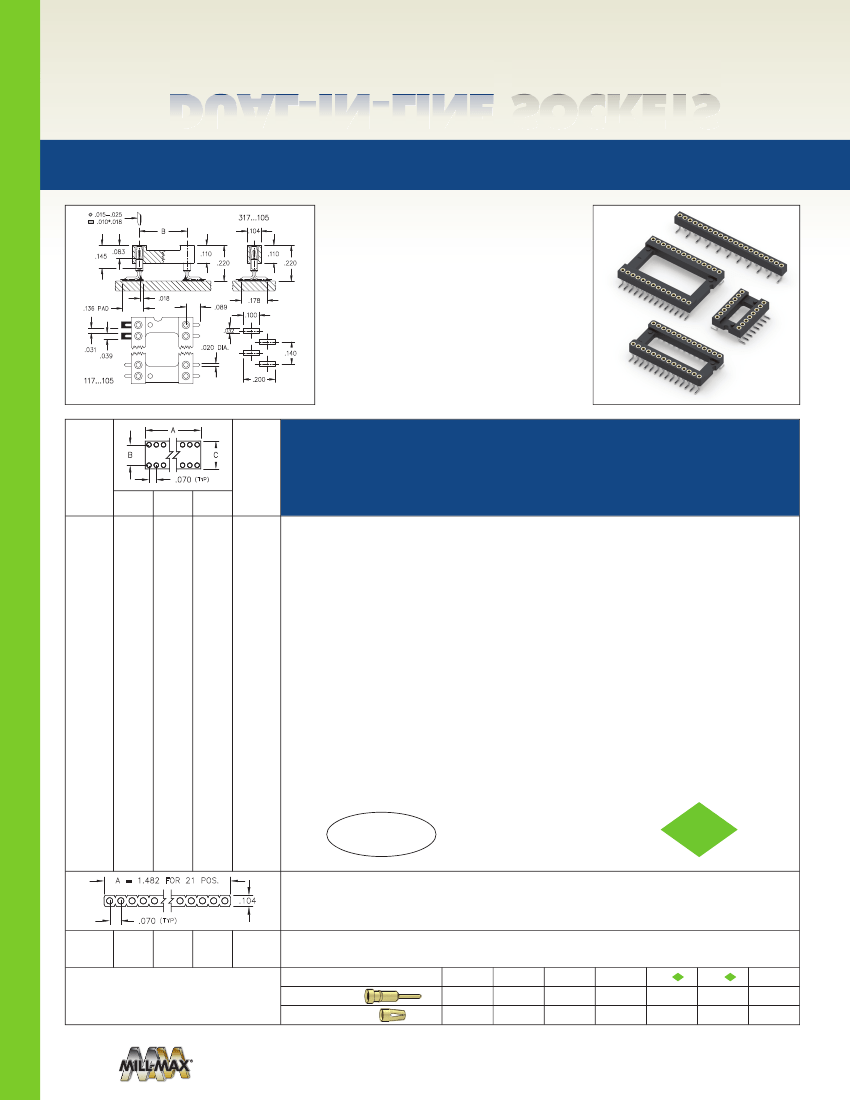

DUAL-IN-LINE
SOCKETS
SERIES 117, 317 • GULL WING SHRINK DIP SOCKETS & STRIPS, SMT SOLDER TAIL
.015-.025
.010*.018
317...105
B
.104
•
Surface mount Gull Wing DIP & strip sockets
•
.220
.145
.083
.110
.220
.110
.018
.136 PAD
.089
.178
.100
•
•
.140
.032
.031
.020 DIA.
.039
•
•
117...105
.200
See page 132 for Insulator Details
for devices featuring .070” lead spacing
Gull wing terminals provide maximum
strength and permit easy visual inspection of
solder joints
Hi-Rel, 4- nger BeCu #30 contact is rated at
3 amps. See page 253 for details
Series 117 and 317 use MM #1802 pins. See
page 169 for details
Insulators are high temperature thermoplastic,
suitable for all soldering operations
For Electrical, Mechanical and Environmental
Data, see page 264 for details
Total number
of pins
A
B
.070
C
Quantity
per tube
ORDERING INFORMATION
A
0.572
0.992
1.062
1.692
0.712
0.992
1.412
1.482
1.692
1.832
1.972
2.252
2.392
2.252
B
0.3
0.4
0.4
0.4
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.75
C
0.39
0.49
0.49
0.49
0.69
0.69
0.69
0.69
0.69
0.69
0.69
0.69
0.69
0.84
16
28
30
48
20
28
40
42
48
52
56
64
68
64
35
20
18
12
28
20
14
13
12
11
10
9
8
8
117-XX-316-41-105000
117-XX-428-41-105000
117-XX-430-41-105000
117-XX-448-41-105000
117-XX-620-41-105000
117-XX-628-41-105000
117-XX-640-41-105000
117-XX-642-41-105000
117-XX-648-41-105000
117-XX-652-41-105000
117-XX-656-41-105000
117-XX-664-41-105000
117-XX-668-41-105000
117-XX-764-41-105000
RoHS - 2
PAGE 126 | IC SOCKETS / TO SOCKETS
XX=Plating Code
See Below
A = 1.482 FOR 21 POS.
.104
.070
2011/65/EU
If desired, we will supply any length up to 21 pins.
317-XX-121-41-105000
SPECIFY PLATING CODE XX=
Sleeve (Pin)
Contact (Clip)
91
200
µ”
Sn/Pb
10
µ”
Au
SINGLE ROW STRIP SOCKET
21
1.482
---
.104
-
See page 264 for coplanarity
information
41
200
µ”
Sn
10
µ”
Au
43
200
µ”
Sn
30
µ”
Au
