QBDS200R datasheet, PDF - EEWORLD Datasheet

QBDS200R: DescriptionDISPLAY SMD 0.20" DUAL RED CA; CategoryLED optoelectronic/LED; File Size594KB，11 Pages; ManufacturerQT Brightek (QTB); Environmental Compliance

Download Datasheet Parametric Compare View All

QBDS200R Overview

DISPLAY SMD 0.20" DUAL RED CA

Parameter Name	Attribute value
Number of characters	2
size/dimensions	0.394" high x 0.567" wide x 0.118" diameter (10.00mm x 14.40mm x 3.00mm)
Number/letter size	0.20"（5.08mm）
display type	7 segment display
Common pins	common anode
color	red
Voltage - Forward (Vf) (Typical)	2V
Current - Test	20mA
millicandela level	20mcd
Wavelength - Peak	625nm
Power dissipation (maximum)	70mW
Package/casing	20-SMD, no leads

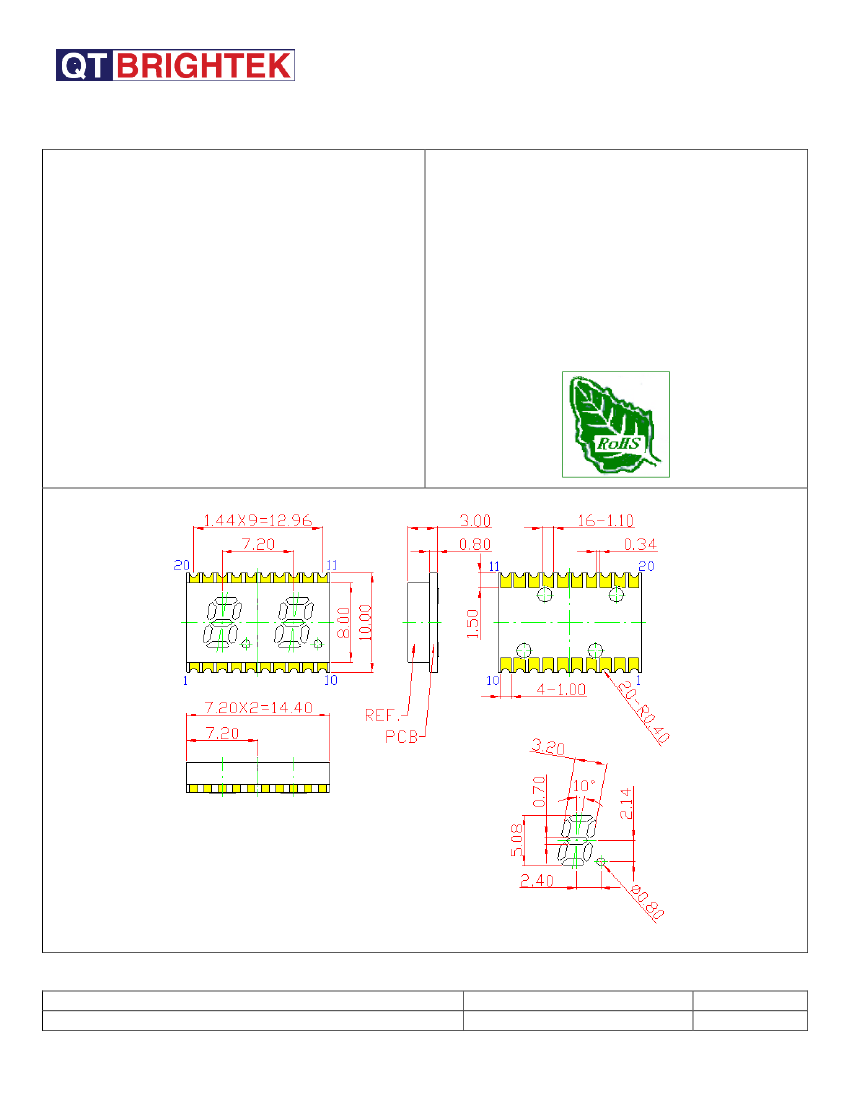

0.20” Dual Digit SMD

Display

---------------------------------------------------------------------------------------------------------------------------------------

QBDS20ZXX

QT-Brightek SMD Display Series

0.20” Dual Digit SMD Display

Part No.: QBDS20ZXX

XX= Color

Z= 1: Common Cathode

Z = 0: Common Anode

Product: QBDS20ZXX

Date: October 27, 2015

Version# 1.1

Page 1 of 11

	QBDS200R	QBDS200AG
Description	DISPLAY SMD 0.20" DUAL RED CA	DISPLAY SMD 0.20" DUAL YW/GN CA
Number of characters	2	2
size/dimensions	0.394" high x 0.567" wide x 0.118" diameter (10.00mm x 14.40mm x 3.00mm)	0.394" high x 0.567" wide x 0.118" diameter (10.00mm x 14.40mm x 3.00mm)
Number/letter size	0.20"（5.08mm）	0.20"（5.08mm）
display type	7 segment display	7 segment display
Common pins	common anode	common anode
color	red	Yellow green
Voltage - Forward (Vf) (Typical)	2V	2V
Current - Test	20mA	20mA
millicandela level	20mcd	7mcd
Wavelength - Peak	625nm	570nm
Power dissipation (maximum)	70mW	70mW
Package/casing	20-SMD, no leads	20-SMD, no leads
