200HXC390MEFCSN25X25 datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> 200HXC390MEFCSN25X25

200HXC390MEFCSN25X25: DescriptionCAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 200V, 390uF, THROUGH HOLE MOUNT, CAN, ROHS COMPLIANT; CategoryPassive components capacitor; File Size77KB，2 Pages; Manufacturerrubycon; Websitehttp://www.rubycon.co.jp/cn/; Environmental Compliance

Download Datasheet Parametric View All

200HXC390MEFCSN25X25 Overview

CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 200V, 390uF, THROUGH HOLE MOUNT, CAN, ROHS COMPLIANT

200HXC390MEFCSN25X25 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1770349144
package instruction	,
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	0
capacitance	390 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
dielectric materials	ALUMINUM (WET)
JESD-609 code	e3
leakage current	0.83785 mA
Installation features	THROUGH HOLE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-25 °C
Package shape	CYLINDRICAL PACKAGE
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	200 V
ripple current	1990 mA
surface mount	NO
Delta tangent	0.15
Terminal surface	Tin (Sn)
Terminal shape	SNAP-IN

Preview

Download Datasheet

View All

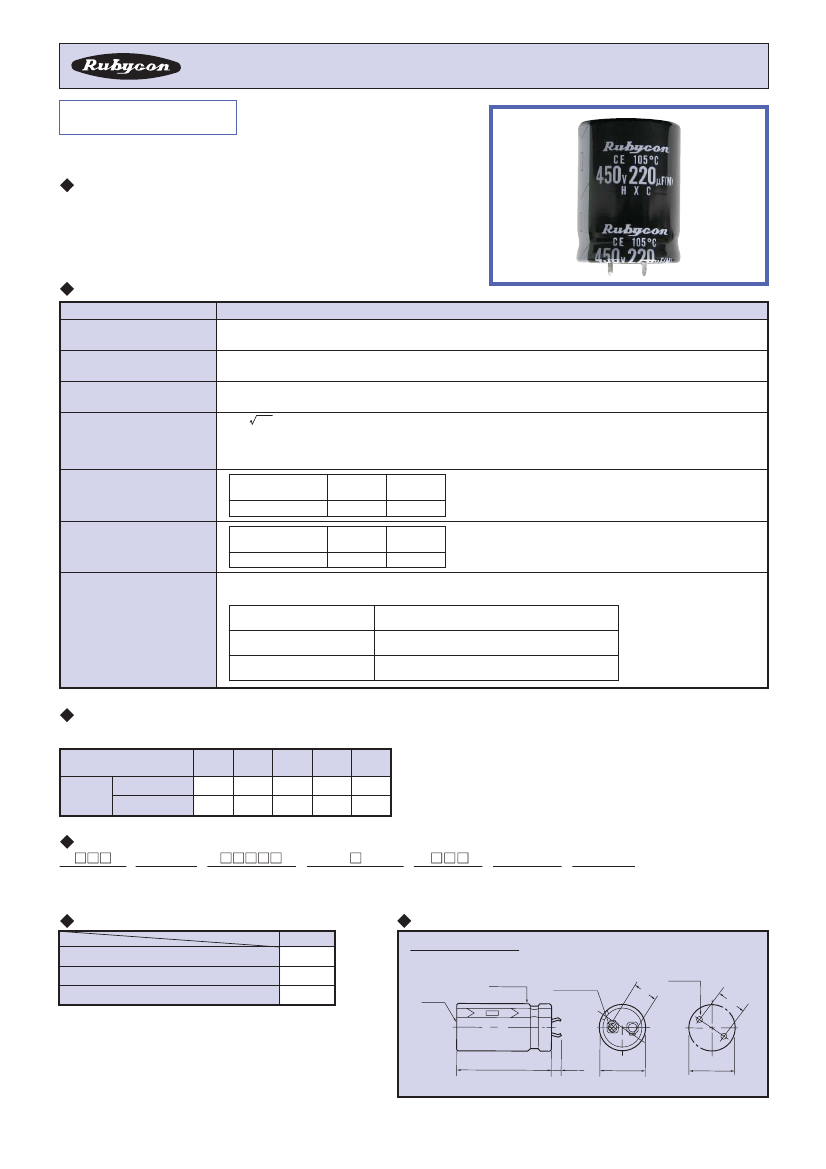

LARGE CAN TYPE ALUMINUM ELECTROLYTIC CAPACITORS

HXC

SERIES

105

C High Ripple, Snap-in Terminal Type

FEATURES

•

Load Life : 105

2000 hours.

•

Higher ripple current endurance than MXC series.

•

RoHS compliance.

SPECIFICATIONS

Items

Category Temperature Range

Rated Voltage Range

Capacitance Tolerance

3 CV

Leakage Current(MAX)

Characteristics

-25∼ +105

200, 400, 450V.DC

20%(20

C,120Hz)

(After 5 minutes application of rated voltage)

(µA)

Leakage Current

Dissipation Factor(MAX)

(V)

Rated Voltage

tanδ

(V)

Rated Voltage

C)/Z(20

V= (V)

Rated Voltage

200

∼

400

0.15

200

C= (µF)

Rated Capacitance

450

0.20

400

∼

450

(20℃,120Hz)

(tan

)

Impedance Ratio(MAX)

(120Hz)

www.BDTIC.com/Rubycon

Capacitance Change

Endurance

Dissipation Factor

Leakage Current

After applying rated voltage with rated ripple current for 2000hrs at 105

C, the capacitors shall meet the following requirements.

Within

20% of the initial value.

Not more than 200% of the specified value.

Not more than the specified value.

MULTIPLIER FOR RIPPLE CURRENT

Frequency coefficient

Frequency

Coefficient

(Hz)

60(50) 120

0.80

1.00

500

1.20

1.30

1.25

10k <

1.50

1.40

200WV

400∼ 450WV

PART NUMBER

HXC

Rated Voltage

Series

Rated Capacitance

Capacitance Tolerance

Option

Terminal Code

Case Size

Option

Code

PET Sleeve without plate

PVC Sleeve without plate

PVC Sleeve with plate

DIMENSIONS

［4(3.5)mm½terminal type

(mm)

EFC

OOE

Blank

VENT

SLEEVE

NEGATIVE

0.1

∗

0.5

∗

For

35, 3.5

0.5

MOUNTING HOLES
