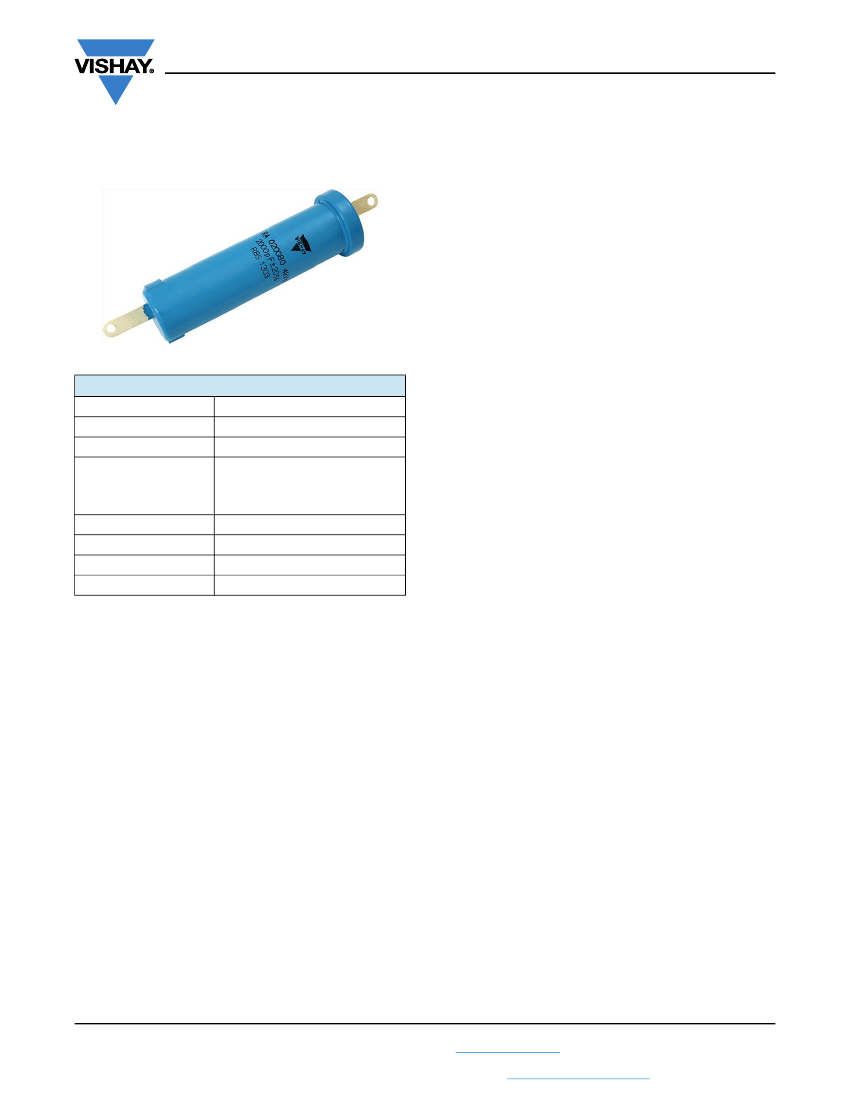

RF Power Tubular Capacitors
with Mounting Tags, Class 1 Ceramic
FEATURES
• Small size
• High reliability
• Wide range of capacitance values
APPLICATIONS
• Induction and dielectric heating
• Antenna units
• Filter, bypass, and coupling circuits
QUICK REFERENCE DATA
DESCRIPTION
Ceramic Class
Ceramic Dielectric
VALUE
1
R7, R42, R85
RA 020080
RB 020080
RC 020080
RE 020080
4000
60
2000
Screw terminal
CAPACITANCE RANGE
60 pF to 2.0 nF
CAPACITANCE TOLERANCE
± 20 %; ± 10 %; ± 5 %
Type
CERAMIC DIELECTRICS
• R7 (TCC + 100 ppm/K)
• R42 (TCC - 250 ppm/K)
• R85 (TCC - 750 ppm/K)
Voltage (V
p
)
Min. Capacitance (pF)
Max. Capacitance (pF)
Mounting
RATED VOLTAGE
4.0 kV
p
MATERIAL
Capacitor elements made from class 1 ceramic dielectric
with noble metal electrodes.
Connection terminals:
made from copper / brass, silver plated.
DIELECTRIC STRENGTH TEST
200 % of rated AC voltage (50 Hz, 5 minutes)
DISSIPATION FACTOR
R7:
R42, R85:
max. 0.07 %
max. 0.05 %
FINISH
Capacitor body completely protective lacquered.
The contoured insulating rim and the ceramic base are
additionally glazed.
Measuring frequencies:
1 MHz (< 1 nF); 300 kHz or 100 kHz ( 1 nF)
INSULATION RESISTANCE
Min. 100 000 M (at 25 °C)
MARKING
Type designator, capacitance value and tolerance, rated
peak voltage, ceramic material code, production date code,
manufacturer logo.
OPERATING TEMPERATURE RANGE
-55 °C to +100 °C
Revision: 04-Sep-15
Document Number: 22116
1
For technical questions, contact:
powcap@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
R. 020080
www.vishay.com
Vishay Draloric
CAP.
VALUES
(pF)
60
80
RATED
VOLTAGE
(kV
p
)
RATED
POWER
(1)
(kvar)
RATED
CURRENT
(A
RMS
)
SAP PART NUMBER AND ELECTRICAL DATA
PART NUMBER
R#020080BD600##BF1
R#020080BD800##BF1
R#020080BD101##BF1
R#020080BD121##BF1
R#020080BD161##BF1
R#020080BD201##BH1
R#020080BD251##BH1
R#020080BD301##BH1
R#020080BD401##BH1
R#020080BD501##BH1
R#020080BD601##BH1
R#020080BD801##BH1
R#020080BD102##BJ1
R#020080BD122##BJ1
R85
R#020080BD162##BJ1
R#020080BD202##BJ1
1600
2000
R42
R7
CERAMIC
100
120
160
200
250
300
4.0
400
500
600
800
1000
1200
8.0
6.0
10.5
Notes
• # 2
nd
digit: code letter of the terminal version A, B, C, E
• ## 14
th
to 15
th
digit: capacitance tolerance code ± 20 % = 38, ± 10 % = 36, ± 5 % = 33
(1)
The surface temperature during operation must not exceed +100 °C
DIMENSIONS
in millimeters (inches)
RA
6.0 x 0.4
(0.236 x 0.016)
3.0 ± 0.2
(0.118 ± 0.008)
18 ± 1
(0.71 ± 0.04)
RB
0.5
40 ± 1
(0.020)
(1.57 ± 0.04)
Ø 25
(0.98 Dia.)
80 (3.15)
40
(1.57)
32.0 ± 0.3
(1.260 ± 0.012)
18 ± 1
(0.71 ± 0.04)
4.3 ± 0.2
(0.169 ± 0.008)
Ø 20
(0.79 Dia.)
Revision: 04-Sep-15
Document Number: 22116
2
For technical questions, contact:
powcap@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
