Signal conditioner - MINI MCR-SL-I-U-4-SP - 2813567
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
MCR 3-way isolating amplifier, for electrical isolation of analog signals, with spring-cage connection, input signal:
4 mA ... 20 mA, output signal: 0 V ... 10 V

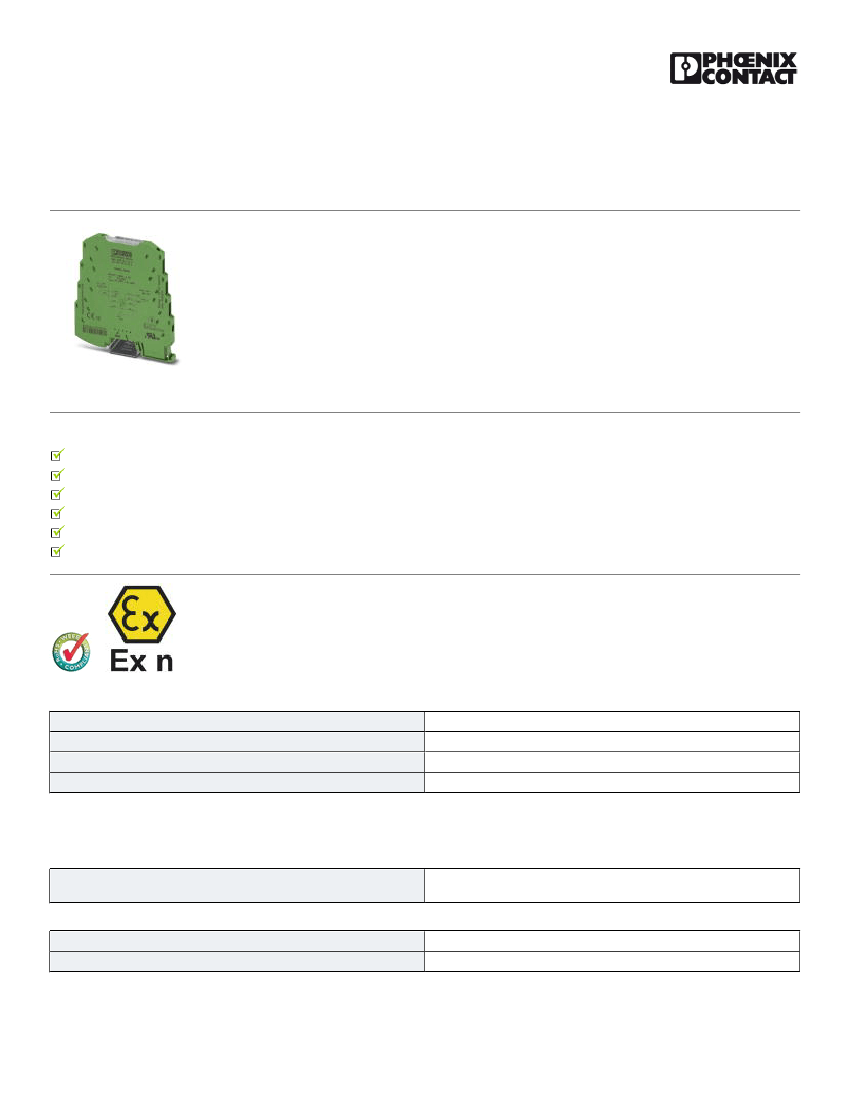

The figure shows a version with a
screw connection
Product Features
Power supply possible via the foot element (TBUS)
Entry-level alternative to configurable signal conditioners
Low power consumption
3-way isolation
Highly-compact isolating amplifier for electrical isolation, conversion, amplification, and filtering of standard analog signals
Fixed signal combinations
Packing unit
1 pc
65.0 GRM
85437090
Germany
Key commercial data
Weight per Piece (excluding packing)
Custom tariff number
Country of origin
Technical data
Note
Utilization restriction
EMC: class A product, see manufacturer's declaration in the download
area
Dimensions
Width
Height
6.2 mm
93.1 mm
10/17/2014 Page 1 / 5
https://www.phoenixcontact.com/us/products/2813567
Signal conditioner - MINI MCR-SL-I-U-4-SP - 2813567
Technical data
Dimensions
Depth
102.5 mm
Ambient conditions
Ambient temperature (operation)
Ambient temperature (storage/transport)
Degree of protection
-20 °C ... 65 °C
-40 °C ... 85 °C
IP20
Input data
Configurable/programmable
Current input signal
Max. input current
Input resistance current input
no
4 mA ... 20 mA
50 mA
approx. 50 Ω
Output data
Configurable/programmable
Voltage output signal
Max. output voltage
Short-circuit current
Load/output load voltage output
no
0 V ... 10 V
12.5 V
approx. 2 mA
≥ 10 kΩ
Power supply
Nominal supply voltage
Supply voltage range
Max. current consumption
Power consumption
24 V DC
19.2 V DC ... 30 V DC (The DIN rail bus connector (ME 6,2 TBUS-2
1,5/5-ST-3,81 GN, Order No. 2869728) can be used to bridge the supply
voltage. It can be snapped onto a 35 mm DIN rail according to EN 60715))
< 9 mA
< 200 mW
Connection data
Connection method
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section AWG/kcmil min.
Conductor cross section AWG/kcmil max
Conductor cross section stranded min.
Conductor cross section stranded max.
Stripping length
Spring-cage connection
0.2 mm²
2.5 mm²
24
12
0.2 mm²
2.5 mm²
8 mm
General
Maximum transmission error
Maximum temperature coefficient
≤ 0.1 % (of final value)
< 0.01 %/K
10/17/2014 Page 2 / 5
https://www.phoenixcontact.com/us/products/2813567
Signal conditioner - MINI MCR-SL-I-U-4-SP - 2813567
Technical data
General
Temperature coefficient, typical
Limit frequency (3 dB)
Step response (10-90%)
Electrical isolation
Surge voltage category
Pollution degree
Rated insulation voltage
Test voltage, input/output/supply
Electromagnetic compatibility
Noise emission
Noise immunity
Color
Housing material
Mounting position
Assembly instructions
Conformance
ATEX
UL, USA / Canada
GL
< 0.002 %/K
approx. 100 Hz
approx. 3.5 ms
Basic insulation according to EN 61010
II
2
50 V AC/DC
1.5 kV (50 Hz, 1 min.)
Conformance with EMC Directive 2004/108/EC
EN 61000-6-4
EN 61000-6-2 When being exposed to interference, there may be minimal
deviations.
green
PBT
any
The T connector can be used to bridge the supply voltage. It can be
snapped onto a 35 mm DIN rail according to EN 60715.
CE-compliant
II 3 G Ex nA IIC T4 Gc X
UL 508 Recognized
Class I, Div. 2, Groups A, B, C, D T5 applied for
GL EMC 2 D
EMC data
Designation
Standards/regulations
Typical deviation from the measuring range final value
Designation
Standards/regulations
Typical deviation from the measuring range final value
Designation
Standards/regulations
Typical deviation from the measuring range final value
Electromagnetic RF field
EN 61000-4-3
5%
Fast transients (burst)
EN 61000-4-4
5%
Conducted interferences
EN 61000-4-6
5%
Classifications
eCl@ss
eCl@ss 4.0
27210120
10/17/2014 Page 3 / 5
https://www.phoenixcontact.com/us/products/2813567
Signal conditioner - MINI MCR-SL-I-U-4-SP - 2813567
Classifications
eCl@ss
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
eCl@ss 8.0
27210120
27210120
27210120
27210120
27210120
27210120
ETIM
ETIM 2.0
ETIM 3.0
ETIM 4.0
ETIM 5.0
EC001485
EC001485
EC001485
EC001485
UNSPSC
UNSPSC 6.01
UNSPSC 7.0901
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
30211506
39121008
39121008
39121008
39121008
Approvals
Approvals
Approvals
UL Recognized / cUL Recognized / GL / cULus Recognized
Ex Approvals
ATEX
Approvals submitted
Approval details
10/17/2014 Page 4 / 5
https://www.phoenixcontact.com/us/products/2813567
Signal conditioner - MINI MCR-SL-I-U-4-SP - 2813567
Approvals
UL Recognized
cUL Recognized
GL
cULus Recognized
Drawings
Dimensioned drawing
93,1
6,2
Phoenix Contact 2014 © - all rights reserved
http://www.phoenixcontact.com
102,5
