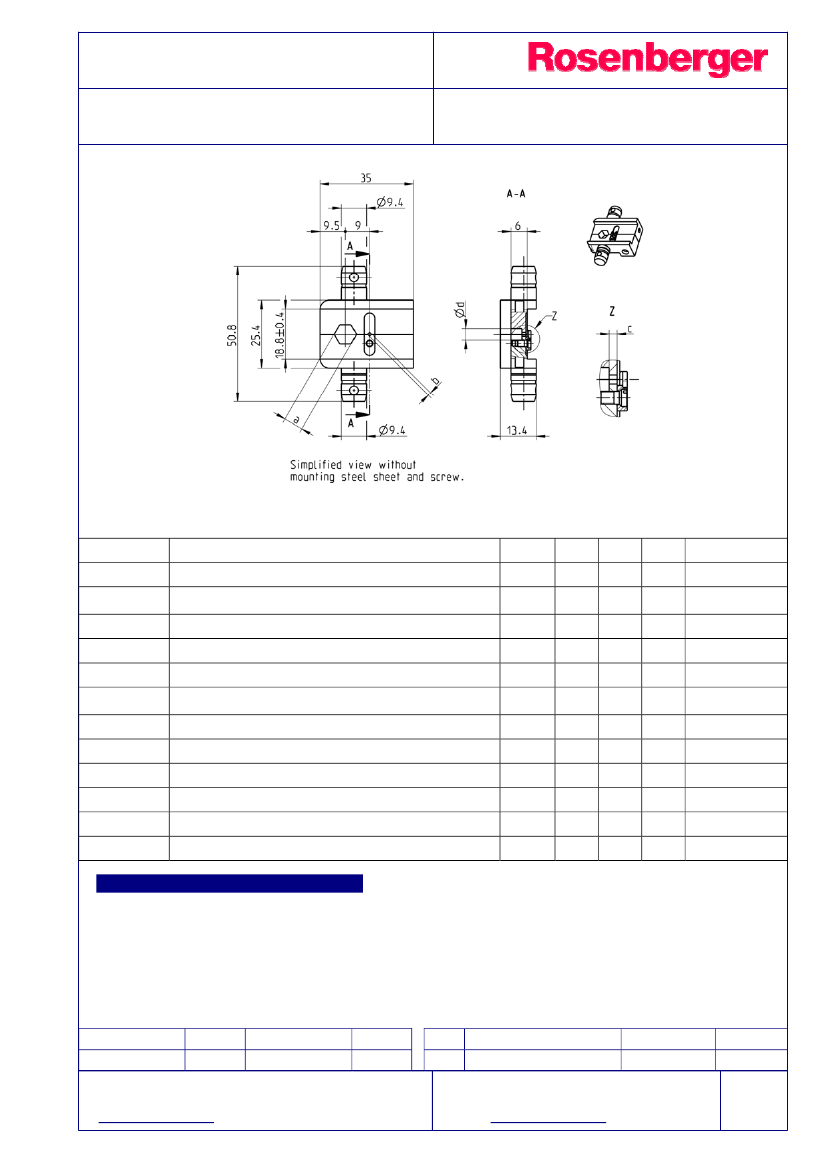

TECHNICAL DATA SHEET
CRIMP INSERT
11W150-5XX
All dimensions are in mm; tolerances according to ISO 2768 m-H
Order-No.
11W150-502
11W150-503
11W150-504
11W150-506
11W150-508
11W150-509
11W150-511
11W150-550
11W150-5S4
Cable type
RG 316 /U, RG 174 A/U, RG 188 A/U, RG 179 B/U, RG 187 A/U
RG 316 /U-d, K02252d, RG 179 B/U-d, 2XCCX 0.45/1.5,
06YC(St)06Y 0.4/1.6
RG 180 B/U, 2YCY 0.4/2.5, RG 195 A/U, TZC 75024
RG 141 A/U, RG 58 C/U, 2YCCY 0.4/2.5, 2YC(ms)CY 0.4/2.5
RG 223 /U, RG 400 /U, RG 142 B/U
RG 59 B/U, RG 62 A/U, 2YC(ms)CY 0.5/3.0, 2YCY 0.7/4.4,
TZC 75005, Flex 6
RG 71 B/U, BT 2003
BT 2001, Flex 3-75, 02Y(St)CY 0.45/2.0
ST 212
a
3.30
3.63
4.30
5.35
5.50
6.50
7.05
4.55
3.80
b
1.20
1.20
1.10
1.10
1.10
1.20
1.20
1.20
1.20
c
1.5
1.5
1.5
1.5
1.5
1.5
1.5
1.5
1.5
d
3.0
4.0
4.5
4.5
4.5
4.5
4.5
4.5
4.0
Weight (g/pce)
64.8
64.7
64.2
63.8
63.5
63.2
63.1
64.0
64.6
Tooling
Crimping tool
11W150-000
