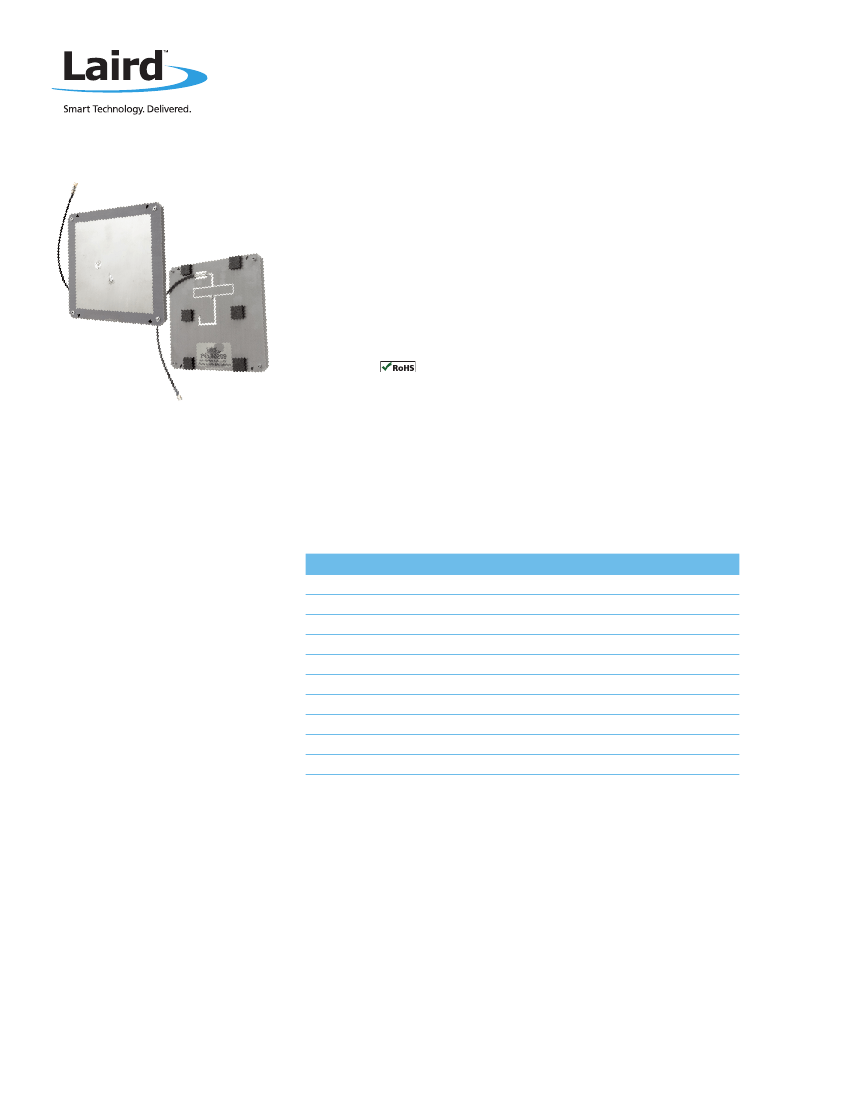

Circularly Polarized RFID
Panel Antenna
PEL90206
902 TO 928 MHz RFID PANEL ANTENNA
The Laird Technologies’ PEL90206 antenna is a circularly polarized panel antenna that provides reception
and transmission of signals in the 902 – 928 MHz (US frequency band) . Laird Technologies’ industry
renowned design methodology achieves maximum efficiency and performance across the entire frequency
band. Both VSWR and axial ratios are both excellent and allow the user to achieve the maximum
performance for an antenna of this type. This embedded antenna comes with a wide range of connector
and cable options.
FEATURES
• Extremely low VSWR and axial ratio
• US band and Europe band available
• Wide range of connector and cable options
MARKETS
•
•
•
•
•
Warehouse
Distribution center
Airports and hospitals
Transit terminals
Conveyer belt
SPECIFICATIONS
PARAMETER
Frequency
Gain
VSWR
Polarization
Beamwidth 3dB, Horizontal
Beamwidth 3dB, Elevation
Axial Ration dB
Mounting Style
Dimensions (mm)
Connector
902 to 928 MHz
6 dBic
1.5:1
LH CP
90°
90°
1
Standoff
120 x 120 x 7
Pigtail with Multiple Choices
Americas: +1.847 839.6907
IAS-AmericasEastSales@lairdtech.com
Europe: +44.1628.858941
IAS-EUSales@lairdtech.com
Asia: ++86.21.5855.0827.127
IAS-AsiaSales@lairdtech.com
www.lairdtech.com
Circularly Polarized RFID
Panel Antenna
PEL90206

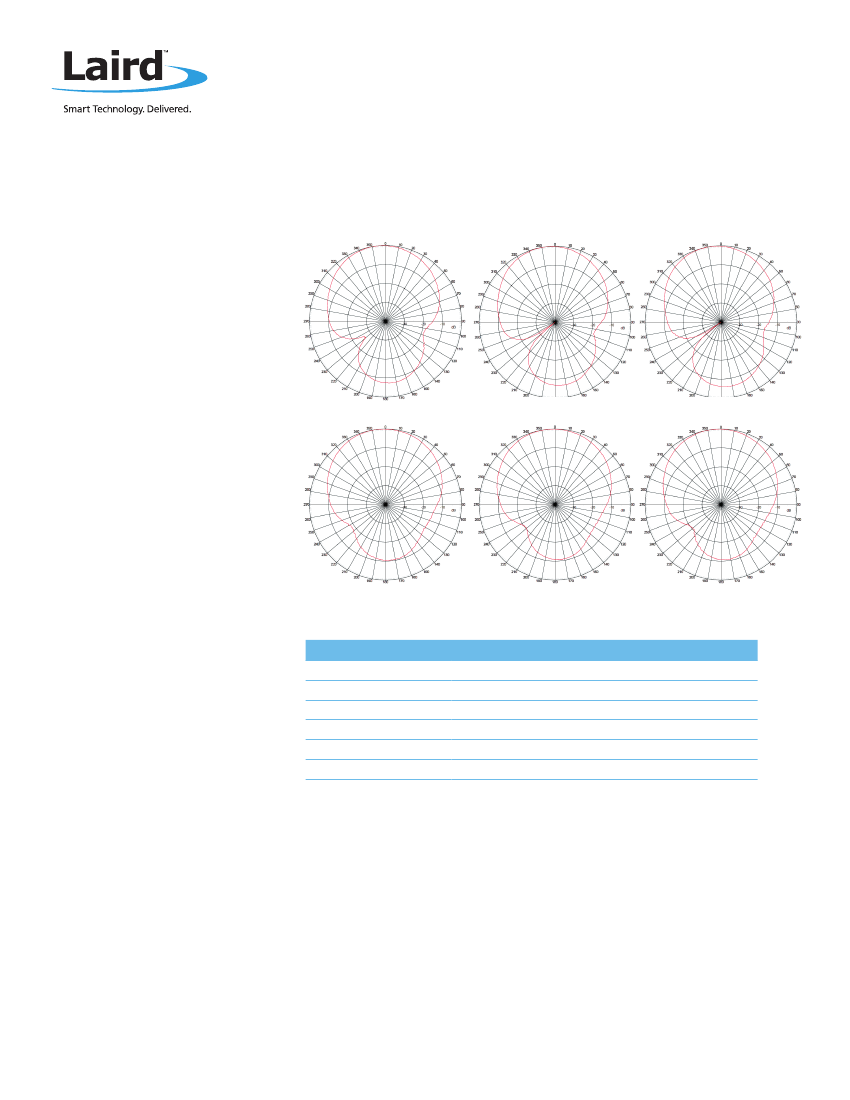

PATTERNS
902 MHz
915 MHz
928 MHz
Linear A
Linear A
Linear A
Linear B
Linear B
Linear B
ORDERING GUIDE
Part Number
PEL90206-61SMAM
PEL90206-15RAMP
PEL90206-15SMAF
PEL90206-20RAMP
PEL90206-61RTN
PEL90206-61SMAFB
Specifications
902-928 MHz panel, LHCP, 6dBic, EMBD, 61 cm, SMAM
902-928 MHz panel, LHCP, 6 dBic, EMBD, 15 cm, MMCXP
902-928 MHz panel, LHCP, 6 dBic, EMBD, 15 cm, SMAF
902-928 MHz panel, LHCP, 6 dBic, EMBD, 20 cm, MMCXP
902-928 MHz panel, LHCP, 6 dBic, EMBD, 61 cm, RTNM
902-928 MHz panel, LHCP, 6 dBic, EMBD, 61 cm, SMAFB
ANT-DS-PEL90206 0314
