CD4017BPWG4: DescriptionRing Counter, 4000/14000/40000 Series, Synchronous, Positive Edge Triggered, 10-Bit, Up Direction, CMOS, PDSO16, GREEN, PLASTIC, TSSOP-16; Categorylogic; File Size1MB，20 Pages; ManufacturerRochester Electronics; Websitehttps://www.rocelec.com/

Download Datasheet Parametric Compare View All

CD4017BPWG4 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	CD4017BPWG4	-	-	View	Buy Now

CD4017BPWG4 Overview

Ring Counter, 4000/14000/40000 Series, Synchronous, Positive Edge Triggered, 10-Bit, Up Direction, CMOS, PDSO16, GREEN, PLASTIC, TSSOP-16

CD4017BPWG4 Parametric

Parameter Name	Attribute value
Maker	Rochester Electronics
package instruction	GREEN, PLASTIC, TSSOP-16
Reach Compliance Code	unknown
Is Samacsys	N
Other features	JOHNSON COUNTER WITH 10 DECODED OUTPUTS
Counting direction	UP
series	4000/14000/40000
JESD-30 code	R-PDSO-G16
length	5 mm
Load/preset input	YES
Logic integrated circuit type	RING COUNTER
Operating mode	SYNCHRONOUS
Number of digits	10
Number of functions	1
Number of terminals	16
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	PLASTIC/EPOXY
encapsulated code	TSSOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
propagation delay (tpd)	650 ns
Maximum seat height	1.2 mm
Maximum supply voltage (Vsup)	18 V
Minimum supply voltage (Vsup)	3 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal form	GULL WING
Terminal pitch	0.65 mm
Terminal location	DUAL
Trigger type	POSITIVE EDGE
width	4.4 mm
minfmax	5.5 MHz
Base Number Matches	1

Preview

Download Datasheet

View All

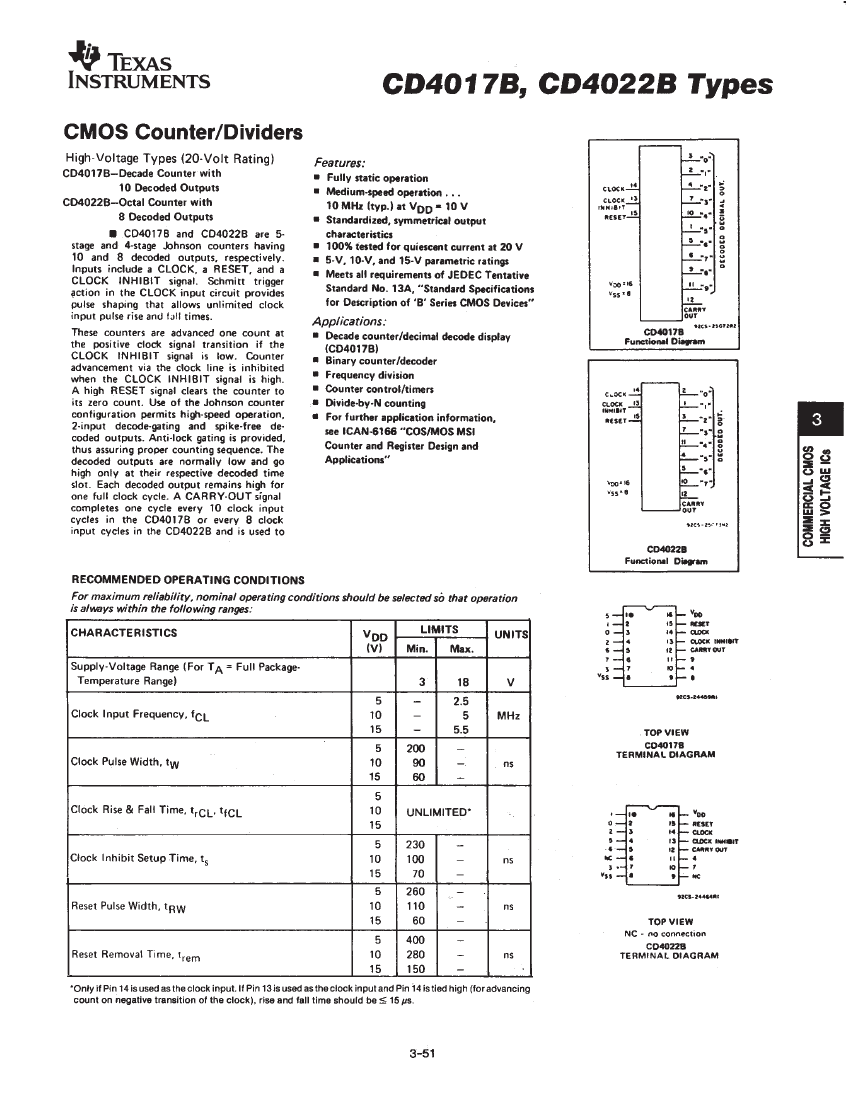

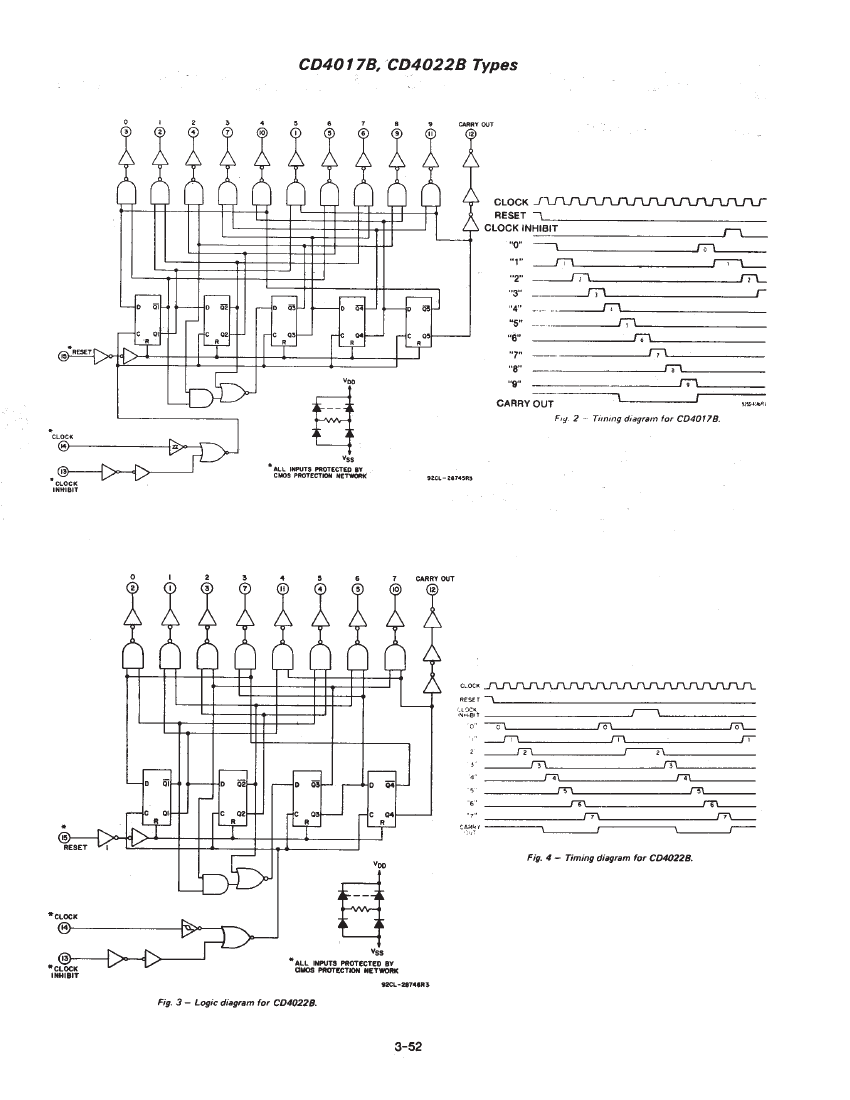

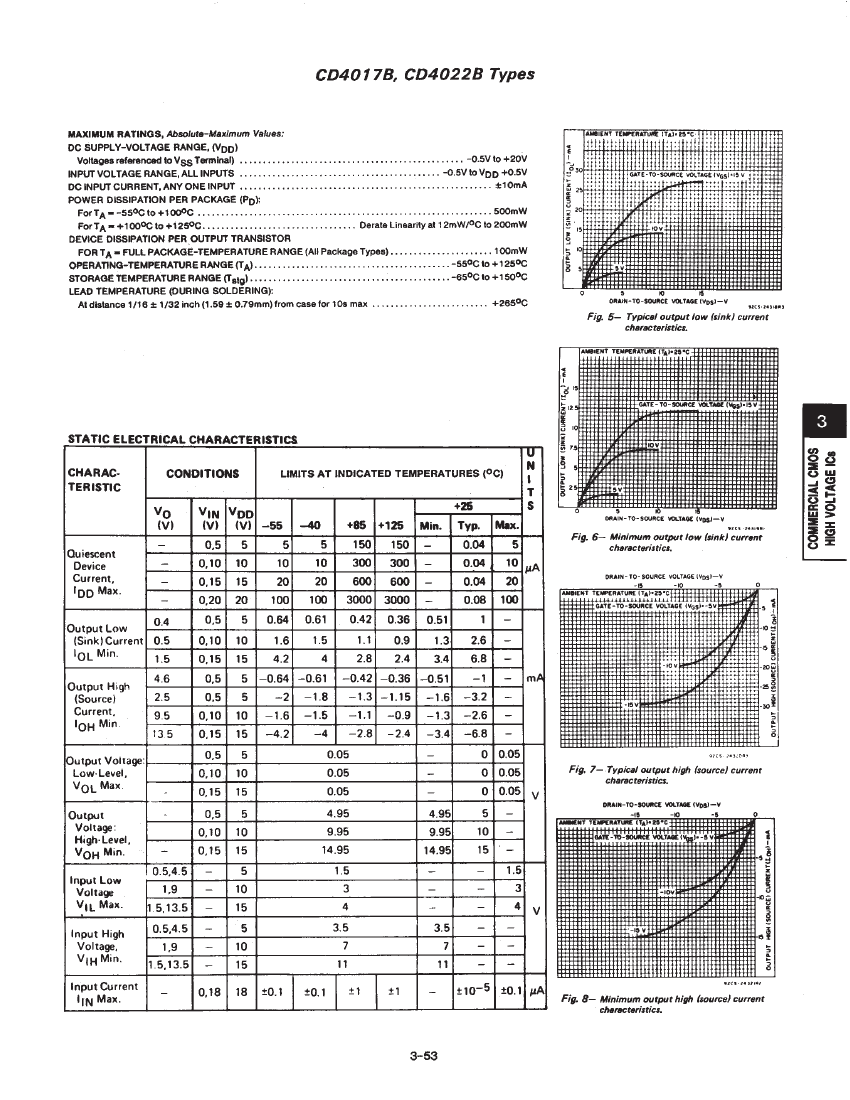

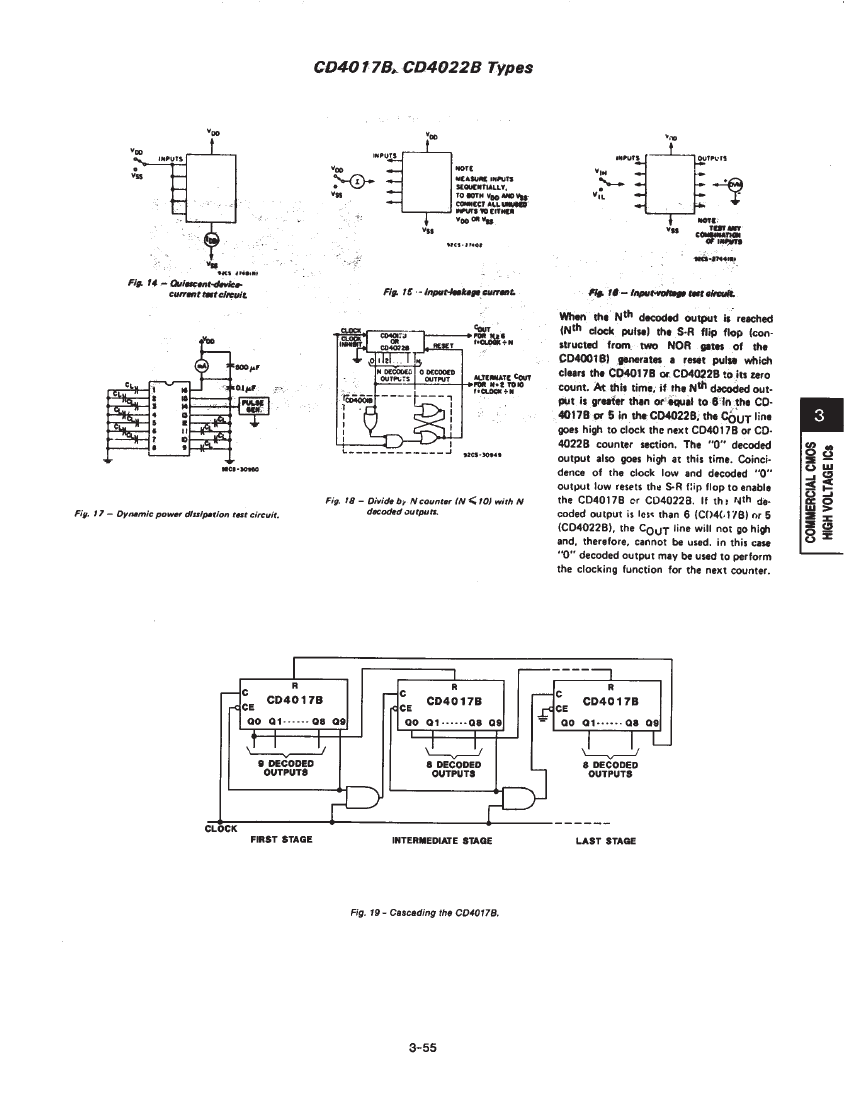

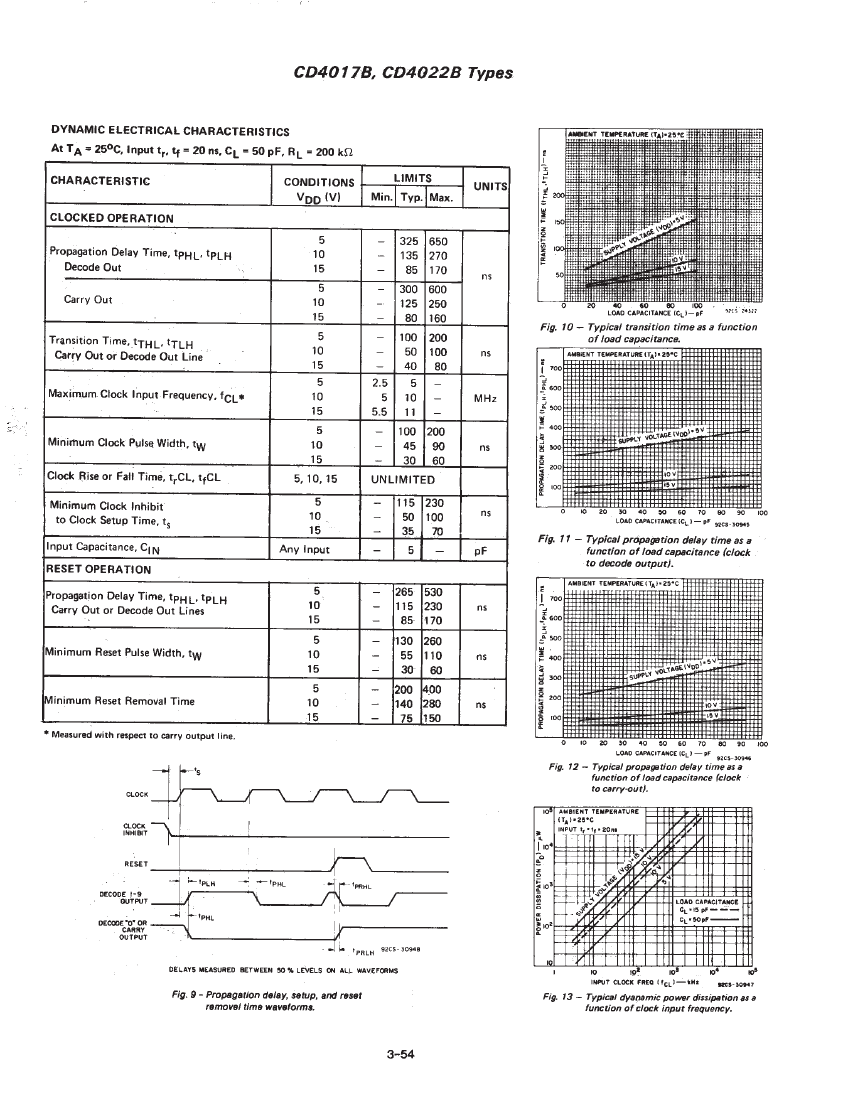

Data sheet acquired from Harris Semiconductor

SCHS027C

−

Revised February 2004

ripple-clock the succeeding device in a

multi-device counting chain.

The CD4017B and CD4022B types are supplied in

16-lead hermetic dual-in-line ceramic packages

(F3A suffix), 16-lead dual-in-line plastic package

(E suffix), 16-lead small-outline packages (NSR suffix),

and 16-lead thin shrink small-outline packages (PW and

PWR suffixes). The CD4017B types also are supplied in

16-lead small-outline packages (M and M96 suffixes).

Copyright

©

2004, Texas Instruments Incorporated

CD4017BPWG4 Related Products

	CD4017BPWG4	CD4017BM96E4	CD4017BPWE4	CD4022BNSRG4	CD4022BPWG4	CD4017BNSRE4
Description	Ring Counter, 4000/14000/40000 Series, Synchronous, Positive Edge Triggered, 10-Bit, Up Direction, CMOS, PDSO16, GREEN, PLASTIC, TSSOP-16	Ring Counter, 4000/14000/40000 Series, Synchronous, Positive Edge Triggered, 10-Bit, Up Direction, CMOS, PDSO16, GREEN, PLASTIC, MS-012AC, SOIC-16	Ring Counter, 4000/14000/40000 Series, Synchronous, Positive Edge Triggered, 10-Bit, Up Direction, CMOS, PDSO16, GREEN, PLASTIC, TSSOP-16	Ring Counter, 4000/14000/40000 Series, Synchronous, Positive Edge Triggered, 8-Bit, Up Direction, CMOS, PDSO16, GREEN, PLASTIC, SOP-16	Ring Counter, 4000/14000/40000 Series, Synchronous, Positive Edge Triggered, 8-Bit, Up Direction, CMOS, PDSO16, GREEN, PLASTIC, TSSOP-16	Ring Counter, 4000/14000/40000 Series, Synchronous, Positive Edge Triggered, 10-Bit, Up Direction, CMOS, PDSO16, GREEN, PLASTIC, SOP-16
Maker	Rochester Electronics	Rochester Electronics	Rochester Electronics	Rochester Electronics	Rochester Electronics	Rochester Electronics
package instruction	GREEN, PLASTIC, TSSOP-16	SOP,	TSSOP,	SOP,	TSSOP,	SOP,
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknow
Other features	JOHNSON COUNTER WITH 10 DECODED OUTPUTS	JOHNSON COUNTER WITH 10 DECODED OUTPUTS	JOHNSON COUNTER WITH 10 DECODED OUTPUTS	JOHNSON COUNTER WITH 8 DECODED OUTPUTS	JOHNSON COUNTER WITH 8 DECODED OUTPUTS	JOHNSON COUNTER WITH 10 DECODED OUTPUTS
Counting direction	UP	UP	UP	UP	UP	UP
series	4000/14000/40000	4000/14000/40000	4000/14000/40000	4000/14000/40000	4000/14000/40000	4000/14000/40000
JESD-30 code	R-PDSO-G16	R-PDSO-G16	R-PDSO-G16	R-PDSO-G16	R-PDSO-G16	R-PDSO-G16
length	5 mm	9.9 mm	5 mm	10.2 mm	5 mm	10.2 mm
Load/preset input	YES	YES	YES	YES	YES	YES
Logic integrated circuit type	RING COUNTER	RING COUNTER	RING COUNTER	RING COUNTER	RING COUNTER	RING COUNTER
Operating mode	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS
Number of digits	10	10	10	8	8	10
Number of functions	1	1	1	1	1	1
Number of terminals	16	16	16	16	16	16
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	TSSOP	SOP	TSSOP	SOP	TSSOP	SOP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMALL OUTLINE	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMALL OUTLINE	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMALL OUTLINE
propagation delay (tpd)	650 ns	650 ns	650 ns	650 ns	650 ns	650 ns
Maximum seat height	1.2 mm	1.75 mm	1.2 mm	2 mm	1.2 mm	2 mm
Maximum supply voltage (Vsup)	18 V	18 V	18 V	18 V	18 V	18 V
Minimum supply voltage (Vsup)	3 V	3 V	3 V	3 V	3 V	3 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	0.65 mm	1.27 mm	0.65 mm	1.27 mm	0.65 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Trigger type	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE
width	4.4 mm	3.9 mm	4.4 mm	5.3 mm	4.4 mm	5.3 mm
minfmax	5.5 MHz	5.5 MHz	5.5 MHz	5.5 MHz	5.5 MHz	5.5 MHz
