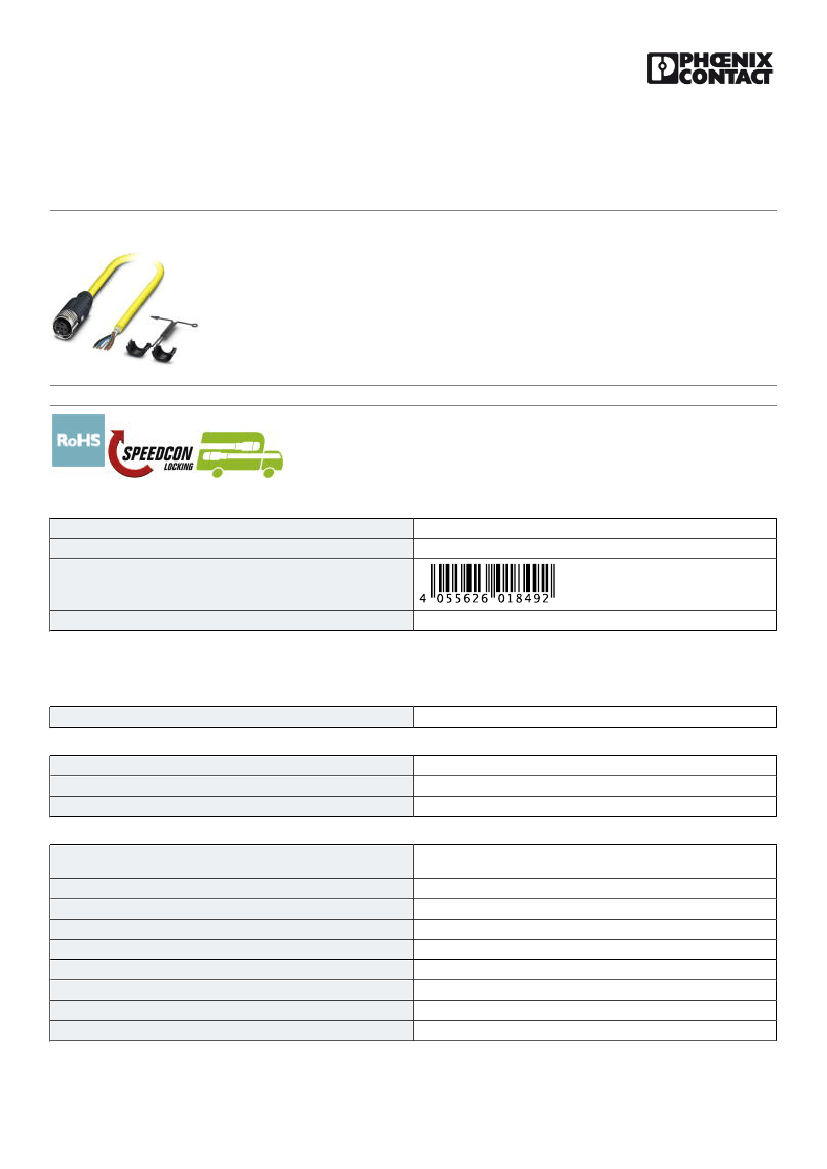

Sensor/actuator cable - SAC-HZ-5P-5,0-542/FS SH SCO BK - 1409593
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Sensor/actuator cable, 5-position, PVC, yellow, shielded, free cable end, on Socket straight M12 SPEEDCON,
A-coded, cable length: 5 m
Key Commercial Data
Packing unit
Minimum order quantity
GTIN
GTIN
4055626018492
1 pc
10 pc
Technical data
Dimensions
Length of cable
5m
Ambient conditions
Ambient temperature (operation)
Degree of protection
-25 °C ... 90 °C (Plug / socket)
IP65
IP67
General
Note
Rated current at 40°C
Rated voltage
Number of positions
Insulation resistance
Coding
Standards/regulations
Status display
These cable assemblies are UL/cUL listed for use in Class I, Division 2
(CID2) hazardous locations.
4A
48 V AC
60 V DC
5
≥ 100 MΩ
A - standard
M12 connector IEC 61076-2-101
No
10/01/2018 Page 1 / 4
https://www.phoenixcontact.com/pi/products/1409593
Sensor/actuator cable - SAC-HZ-5P-5,0-542/FS SH SCO BK - 1409593
Technical data
General
Protective circuit/component
Overvoltage category
Degree of pollution
Torque
Unwired
II
3
0.4 Nm (M12 connector)
Material
Flammability rating according to UL 94
Contact material
Contact surface material
Contact carrier material
Material of grip body
Material, knurls
Sealing material
HB
CuSn
Ni/Au
TPU GF
TPU, hardly inflammable, self-extinguishing
Zinc die-cast, nickel-plated
NBR
Standards and Regulations
Standard designation
Standards/regulations
Flammability rating according to UL 94
UL, USA/Canada
M12 connector
IEC 61076-2-101
HB
Class I, Div. 2, Groups A, B, C, D
Cable
Cable type
Cable type (abbreviation)
UL AWM style
AWG signal line
Conductor structure signal line
Core diameter including insulation
Wire colors
Overall twist
Shielding
Optical shield covering
External sheath, color
External cable diameter D
Minimum bending radius, flexible installation
Cable weight
Outer sheath, material
Material, filler
Material conductor insulation
Conductor material
Insulation resistance
Conductor resistance
Nominal voltage, cable
PVC yellow 105 °C
542
2517 (105 °C / 300 V)
22
30x 1.30 mm
1.27 mm ±0.03 mm
Brown, blue, black, white, gray
5 wires around filler to the core
Tinned copper braided shield
85 %
yellow
5.9 mm ±0.2 mm
12 x D
57 kg/km
PVC
PP
PVC
Tin-plated Cu litz wires
≥ (550 M Ohms/m @ 500V)
max. 50.5 Ω/km (20 °C)
300 V
10/01/2018 Page 2 / 4
https://www.phoenixcontact.com/pi/products/1409593
Sensor/actuator cable - SAC-HZ-5P-5,0-542/FS SH SCO BK - 1409593
Technical data
Cable
Special properties
Flame resistance
Other resistance
Ambient temperature (operation)
UL standards PLTC and ITC
FT4
UV resistant
-30 °C ... 105 °C (cable, fixed installation)
-5 °C ... 105 °C (cable, flexible installation)
Environmental Product Compliance
China RoHS
Environmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”,
Category “Manufacturer's declaration”

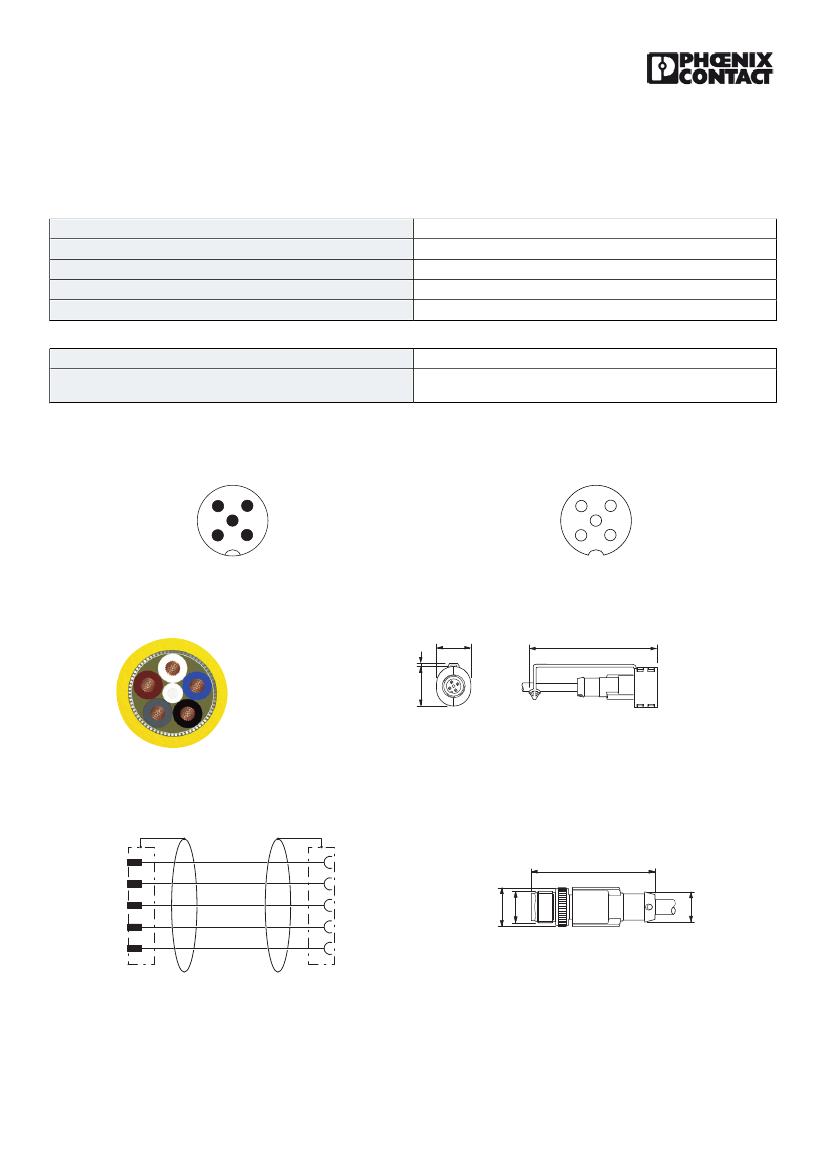

Drawings
Schematic diagram
4
5
3
Schematic diagram
3
5
4
1
2
2
1
Pin assignment M12 male connector, 5-pos., A-coded, male side
Pin assignment M12 socket, 5-pos., A-coded, socket side view
Cable cross section
1,6
19
Dimensional drawing
71,3
EXCLIP mounted plug
PVC yellow 105 °C [542]
Circuit diagram
22
Dimensional drawing
1
2
4
3
5
1
2
Ø14,8
M12
47,3
4
3
5
Plug, M12 x 1, straight, shielded
Contact assignment of the M12 plug and the M12 socket
10/01/2018 Page 3 / 4
Ø12
https://www.phoenixcontact.com/pi/products/1409593
Sensor/actuator cable - SAC-HZ-5P-5,0-542/FS SH SCO BK - 1409593
Dimensional drawing
1
Dimensional drawing
27,25
22
44,5
Ø14,8
M12
Ø12
22
EXCLIP socket
Phoenix Contact 2018 © - all rights reserved
http://www.phoenixcontact.com
PHOENIX CONTACT GmbH & Co. KG
Flachsmarktstr. 8
32825 Blomberg
Germany
Tel. +49 5235 300
Fax +49 5235 3 41200
http://www.phoenixcontact.com
10/01/2018 Page 4 / 4
