MCS19 PI
Order number:
Digi-Key Corporation
3-109-664
NBO 300026273
Article number customer:
N/A
SCHURTER Base-Product:
1241.2831 (green point illumination)
Customer specific product specification:
Housing material:
Actuator material:
Housing & Actuator colour:
Point illumination light guide material:
Accessories:
Nut material:
O-ring material:
Stainless steel 1.4305
Stainless steel 1.4301
Black (PVD treated)
Polyamide
O-ring & hex-nut (packed separately and enclosed)
Polyamide
NBR 70 Shore

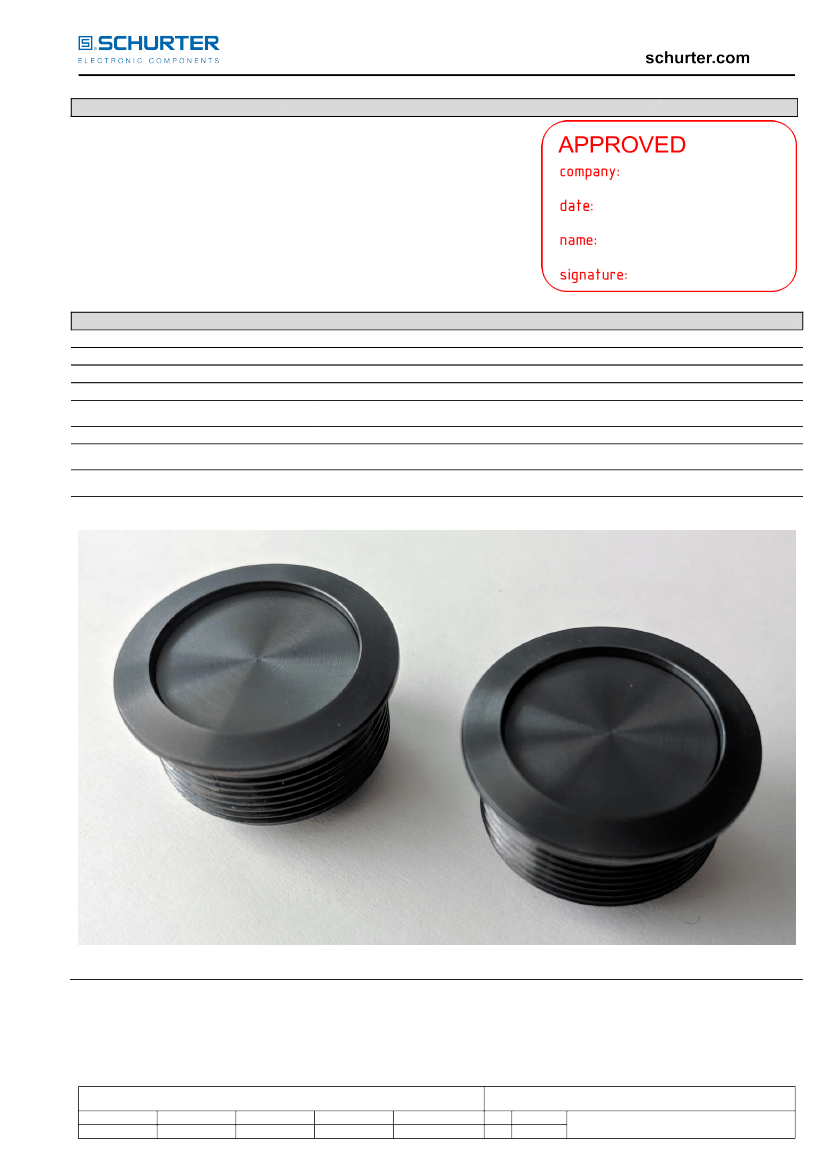

Appearance Stainless Steel with black PVD treatment:
Note: These samples are not MCS19, but show the same surface colour appearance as MCS19 would.
Product Documentation
owner
franklo
creation date
15.06.2018
release date
15.06.2018
released by
franklo
change order no
2015618
Specification for custom switch MCS19 PI
rev
A
page
1 of 2
D10-026-238
Illumination:
Switching function:
Electrical scheme:
Point illumination ; green; without resistors
NO
Comment
Terminal
A/B
Pins with soldering aid
No polarity
C
+Pole
Anode LED
D
-Pole
Cathode LED
