AIR QUALITY 3 CLICK

MIKROE-2953 Parametric

Parameter Name	Attribute value
sensor type	gas
Sensing range	-
interface	I²C
Sensitivity	-
Voltage - Power	3.3V
Embedded	yes
What's included	plate
IC/parts used	CCS811

Preview

Download Datasheet

View All

Air quality 3 click

PID:

MIKROE-2953

Weight:

24 g

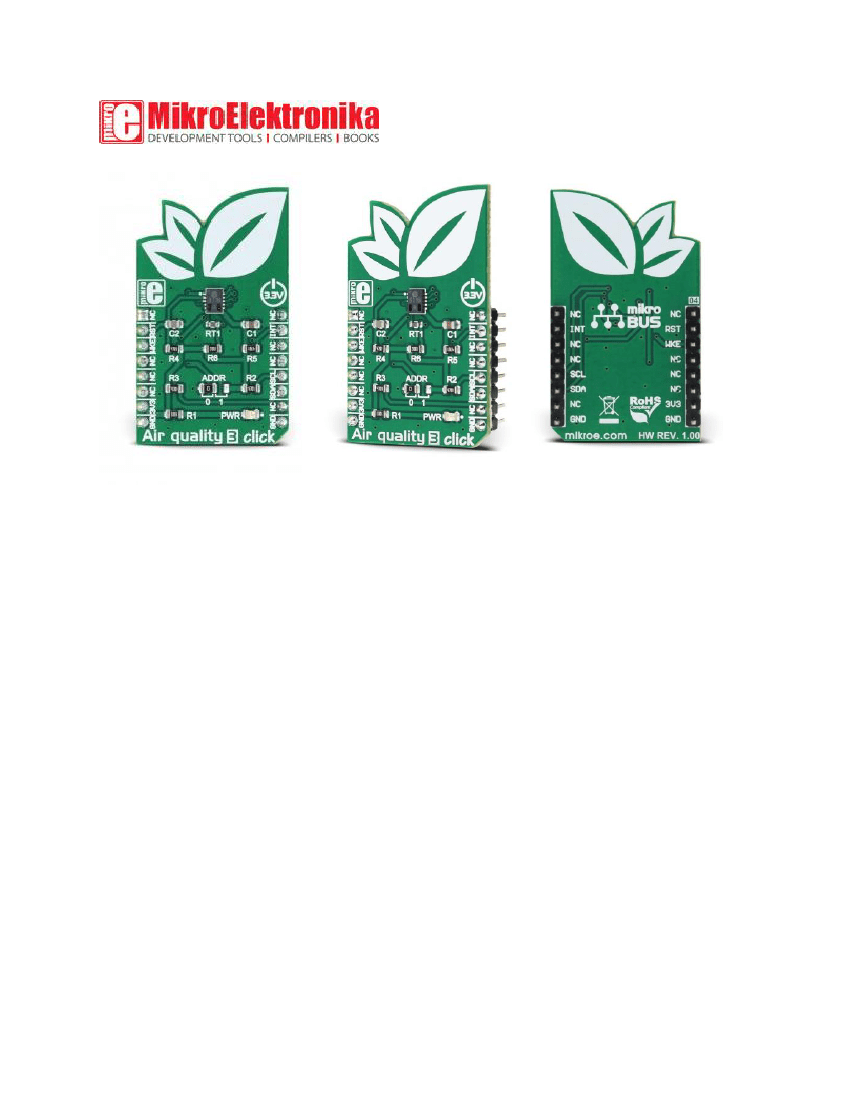

Air quality 3 click

is the air quality measurement device, which is able to output both

equivalent CO2 levels and total volatile organic compounds (TVOC) concentration in the

indoor environment. The Click board™ is equipped with the state-of-the-art

air quality

sensor IC, which has an integrated MCU and a specially designed metal oxide (MOX) gas

sensor microplate, allowing for high reliability, fast cycle times and a significant reduction

in the power consumption, compared to other MOX sensor-based

devices. The Click board™

is also equipped with a temperature compensating element, which allows for increased

measurement accuracy.

This Click board™ outputs processed values for the equivalent CO2 levels (parts per million

- ppm) and TVOC (parts per billion - ppb), based on raw gas readings, processed by the

internal MCU. The values can be directly accessed via the I2C bus, which saves the software

development time, allowing faster time to market. These features make Air quality 3 click a

perfect solution for a wide range of both portable and stationary applications for

measuring and monitoring the air quality in offices, storage areas, for home and building

air conditioning automation and similar applications that require a reliable, low power

eCO2 and TVOC level measurements.

How does it work?

Air quality 3 click is equipped with the CCS811, an advanced ultra-low power digital gas

sensor for monitoring the indoor air quality (IAQ), from ams. This IC consists of an analog

section consisting of a MOX gas sensor, based on ams unique micro-hotplate technology

which allows high reliability, fast cycle times and very low power consumption; and the

digital section, which consists of an embedded microcontroller (MCU) and an analog to

digital converter (ADC). The CCS811 sensor IC employs advanced algorithms to calculate

the raw sensor data and output the equivalent CO2 and TVOC values. It utilizes the internal

MCU for this purpose, reducing the payload on the host MCU.

Because of the nature of the MOX sensors, the CCS811 sensitivity will change over the time,

especially in early life use. The internal sensor resistance will change the most for the first 48 hours

of operation. So, to achieve a proper operation of this sensor, it has to be calibrated during several

different phases of its lifecycle. Since this step is important for achieving accurate IAQ results, it is

strongly advised to be carefully studied from the CCS811 datasheet.

There are five operating modes available for the Air quality 3 click:

1. Mode 0 (idle mode), which uses the least power of all modes. The sensor stays dormant and no

readings are made in this mode

2. Mode 1 (constant power mode) the IAQ measurement is performed every second

3. Mode 2 (pulse heating mode) the IAQ measurement is performed every 10 seconds

4. Mode 3 (low power pulse heating mode) the IAQ measurement is performed every 60 seconds

5. Mode 4 (constant power mode) the IAQ measurement is performed every 250ms

These modes affect the power consumption of the Air Quality 3 click, as well as the

frequency of the data sampling. Depending on the given conditions, the device can be set to

be operated in any of these modes. However, it should be noted that the device should be

set to idle mode for at least 10 minutes, before switching from higher frequency

measurement mode, to a lower frequency measurement mode. The TVOC and eCO2 values

are calculated for modes 1, 2 and 3, while Mode 4 is intended to be used when external data

processing is required, giving only raw value readings.

The Click

board™ communicates with the host MCU via the I2C bus. SCL and SDA pins of the

CCS811 IC are routed to the corresponding mikroBUS™ pins, allowing easy and secure

connection with the development system. There is yet another pin used with the I2C

communication, that is not the part of the standard I2C bus: the #WAKE pin has to be set to

a LOW logic level before the communication is attempted. This pin is routed to the CS pin of

the mikroBUS™. The I2C bus lines are equipped with the pull-up

resistors, so a

communication

can be established as soon as the click board is installed on the mikroBUS™.

The least significant bit of the I2C address is routed to the external pin of the CCS811 IC and

it can be set to either HIGH or a LOW logic level. This can be done by an onboard SMD

jumper, labeled as ADDR. It is useful when more than one device is used on the same I2C

bus.

The #RESET pin is used to reset the device and it has to be pulled to a LOW logic level for at

least 20μs. It is pulled to a HIGH logic level by the

onboard resistor and filtered by a

capacitor, to prevent random reset of the device. The #RESET of the CCS811 sensor IC is

routed to the mikroBUS RST pin.

The #INT pin allows another powerful feature of the Air Quality 3 click to be used - a

programmable interrupt request. This pin can be driven to a LOW state when there is data

ready to be read via the I2C. It can also be programmed to be driven when the eCO2

measurement data exceeds the programmed threshold by the hysteresis value. This can be

extremely useful for making an early CO2 warning system. Interrupts, in general, are very

useful to avoid constant polling by the MCU, saving resources and energy that way. The

#INT of the CCS811 sensor IC is routed to the mikroBUS INT pin.

Provided Click board

™

library contains functions which can be used to read and configure

the Air quality 3 click in a simple and comprehensive way. The provided example

application demonstrates how to use these functions properly and can be used for a future

development.

Specifications

Type

Gas

A perfect solution for various air conditioning systems, ventilation

systems and other IoT applications where accurate, detailed and

reliable air quality readings are required.

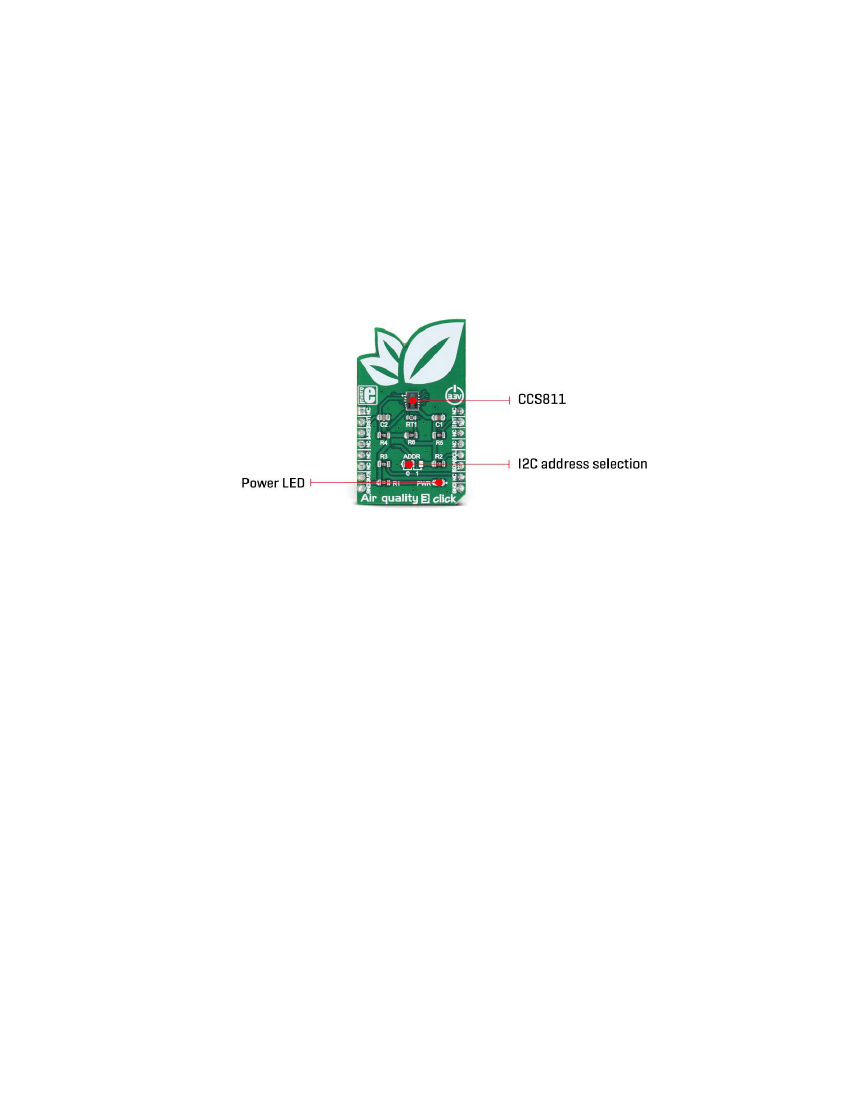

CCS811, an advanced ultra-low power digital gas sensor for

Applications

On-board
