Datasheet> All Categories > Topical application> Mechanical and electrical/engineering/automation> PF380D25R

Preview

PF380D25R: DescriptionRELAY SSR DC 25A 380VAC PCB; CategoryTopical application Mechanical and electrical/engineering/automation; File Size61KB，1 Pages; ManufacturerSensata; Environmental Compliance

Download Datasheet Parametric View All

PF380D25R Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	PF380D25R	-	-	View	Buy Now

PF380D25R Overview

RELAY SSR DC 25A 380VAC PCB

PF380D25R Parametric

Parameter Name	Attribute value
Installation type	Through hole
circuit	SPST-NO（1 Form A）
Output type	AC
Voltage - input	4 ~ 15VDC
Voltage - Load	48V ~ 530V
Load current	25A
Terminal type	PC pin
Package/casing	4-SIP
Supplier device packaging	4-SIP

Preview

Download Datasheet

View All

www.crydom.com

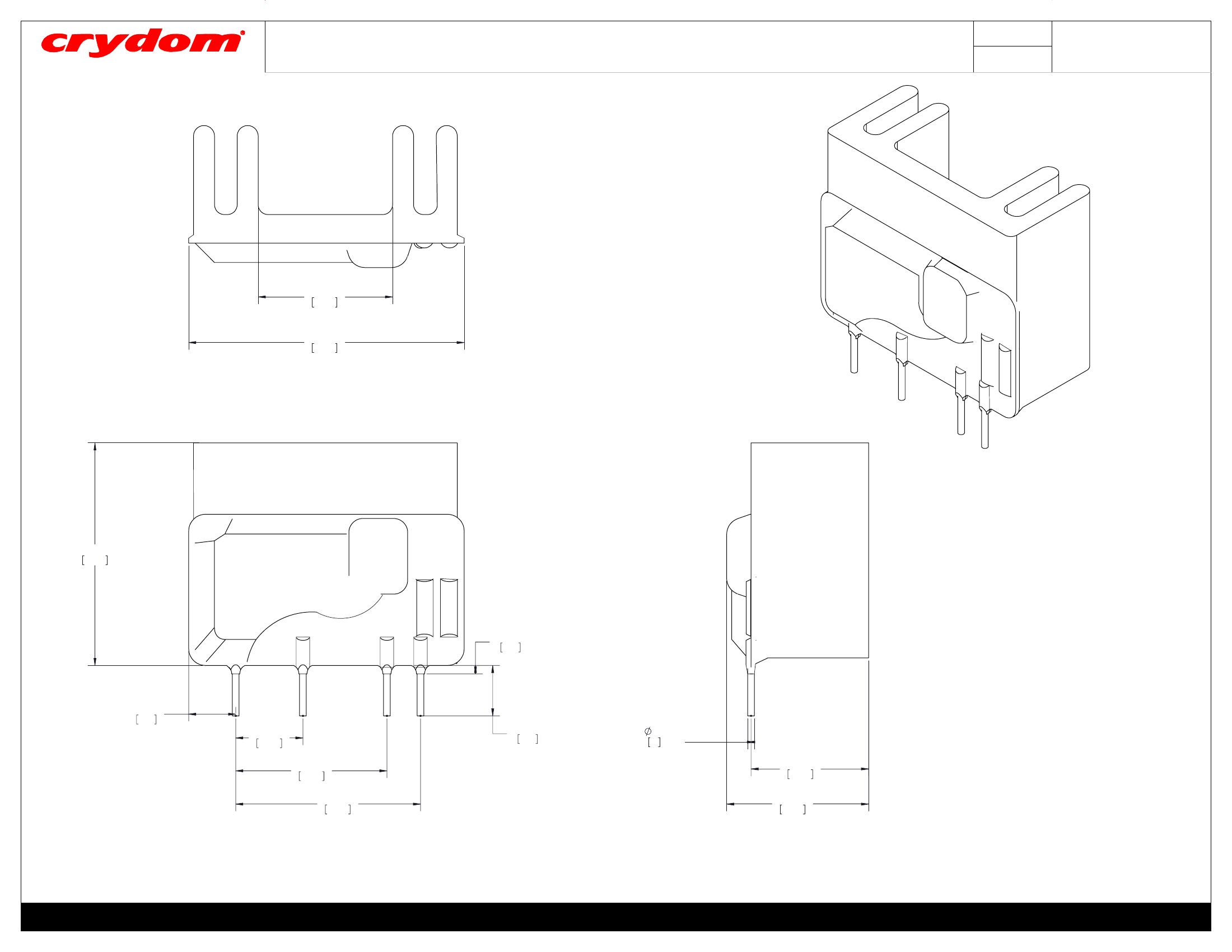

PF SERIES SIP SSR

REV. DATE

11/06/10

support@crydom.com

support-europe@crydom.com

For Technical Support:

.80

20.3

1.64

41.7

1.33

33.7

.05

1.3

.28

7.1

.40

10.2

.90

22.9

1.10

27.9

.30

7.6

.04

1

(4 PLACES)

.70

17.8

.85

21.5

Tolerances: ± 0.02 in / 0.5 mm. All dimensions are in: inches [millimeters]

U N L E S S O T H E R W I S E S P E C I F I E D, D I M E N S I O N S A R E I N “i n [m m]” I N F O R M A T I O N I N T H I S D R A W I N G I S P R O V I D E D F O R R E F E R E N C E O N L Y A N D I S S U B J E C T T O C H A N G E.
