Sensor/actuator cable - SAC-HZ-3P-MS/1,5-542/FRSHSCOBK - 1409512
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Sensor/actuator cable, 3-position, PVC, yellow, shielded, Plug straight M12 SPEEDCON, A-coded, on Socket
angled M12 SPEEDCON, A-coded, cable length: 1.5 m
Key Commercial Data
Packing unit
Minimum order quantity
GTIN
GTIN
4055626017662
1 pc
10 pc
Technical data
Dimensions
Length of cable
1.5 m
Ambient conditions
Ambient temperature (operation)
Degree of protection
-25 °C ... 90 °C (Plug / socket)
IP65
IP67
General
Note
Rated current at 40°C
Rated voltage
Number of positions
Insulation resistance
Coding
Standards/regulations
Status display
These cable assemblies are UL/cUL listed for use in Class I, Division 2
(CID2) hazardous locations.
4A
250 V AC
250 V DC
3
≥ 100 MΩ
A - standard
M12 connector IEC 61076-2-101
No
09/30/2018 Page 1 / 4
https://www.phoenixcontact.com/pi/products/1409512
Sensor/actuator cable - SAC-HZ-3P-MS/1,5-542/FRSHSCOBK - 1409512
Technical data
General
Protective circuit/component
Overvoltage category
Degree of pollution
Torque
Unwired
II
3
0.4 Nm (M12 connector)
Material
Flammability rating according to UL 94
Contact material
Contact surface material
Contact carrier material
Material of grip body
Material, knurls
Sealing material
HB
CuSn
Ni/Au
TPU GF
TPU, hardly inflammable, self-extinguishing
Zinc die-cast, nickel-plated
NBR
Standards and Regulations
Standard designation
Standards/regulations
Flammability rating according to UL 94
UL, USA/Canada
M12 connector
IEC 61076-2-101
HB
Class I, Div. 2, Groups A, B, C, D
Cable
Cable type
Cable type (abbreviation)
UL AWM style
AWG signal line
Conductor structure signal line
Core diameter including insulation
Wire colors
Overall twist
Shielding
Optical shield covering
External sheath, color
External cable diameter D
Minimum bending radius, flexible installation
Cable weight
Outer sheath, material
Material conductor insulation
Conductor material
Insulation resistance
Conductor resistance
Nominal voltage, cable
Special properties
PVC yellow 105 °C
542
2517 (105 °C / 300 V)
22
30x 1.30 mm
1.27 mm ±0.03 mm
brown, blue, black
3 wires, twisted
Tinned copper braided shield
85 %
yellow
5.2 mm ±0.2 mm
12 x D
40 kg/km
PVC
PVC
Tin-plated Cu litz wires
≥ (550 M Ohms/m @ 500V)
max. 50.5 Ω/km (20 °C)
300 V
UL standards PLTC and ITC
09/30/2018 Page 2 / 4
https://www.phoenixcontact.com/pi/products/1409512
Sensor/actuator cable - SAC-HZ-3P-MS/1,5-542/FRSHSCOBK - 1409512
Technical data
Cable
Flame resistance
Other resistance
Ambient temperature (operation)
FT4
UV resistant
-30 °C ... 105 °C (cable, fixed installation)
-5 °C ... 105 °C (cable, flexible installation)
Environmental Product Compliance
China RoHS
Environmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”,
Category “Manufacturer's declaration”

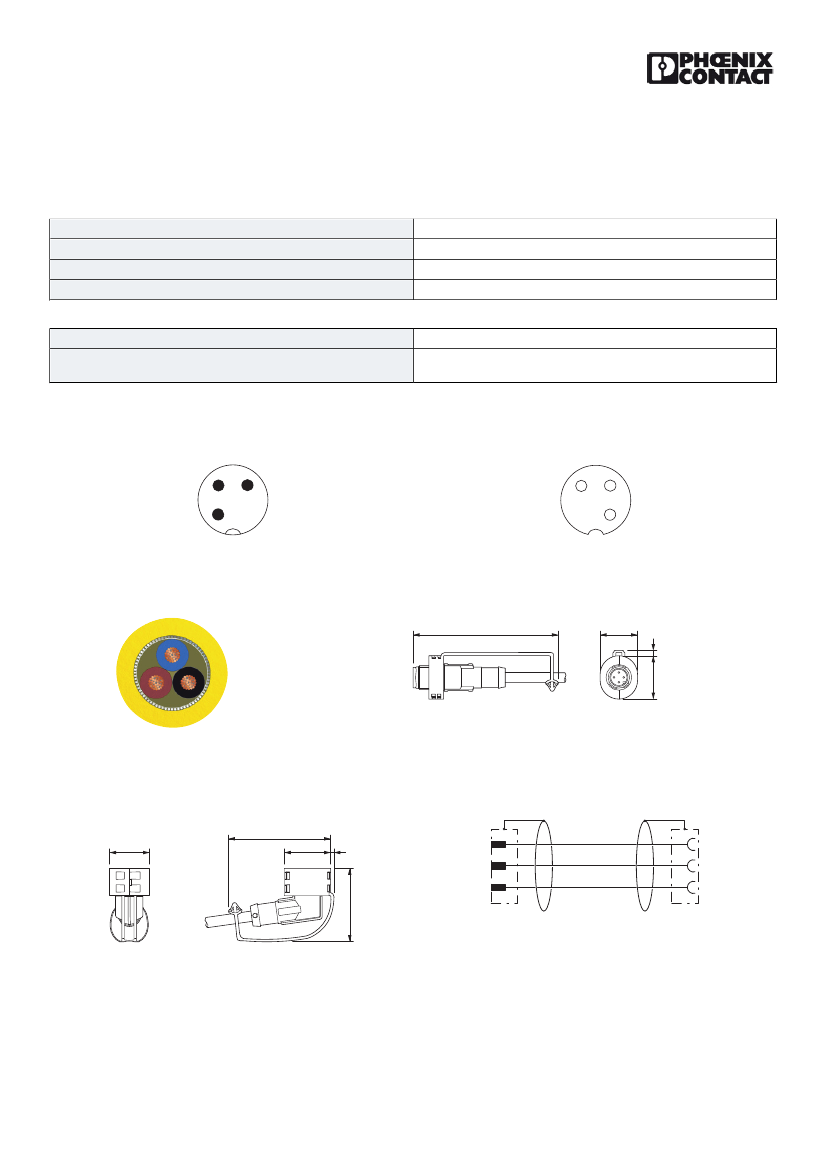

Drawings
Schematic diagram
4
3
Schematic diagram
3
4
1
1
Pin assignment M12 plug, 3-pos., A-coded, view male side
Pin assignment M12 socket, 3-pos., A-coded, view female side
Cable cross section
Dimensional drawing
1,6
22
73,8
19
EXCLIP mounted plug
PVC yellow 105 °C [542]
Dimensional drawing
Circuit diagram
48,4
19
22
1,6
1
4
3
1
4
3
35
Contact assignment of M8 plugs / M12 sockets
EXCLIP mounted plug
09/30/2018 Page 3 / 4
https://www.phoenixcontact.com/pi/products/1409512
Sensor/actuator cable - SAC-HZ-3P-MS/1,5-542/FRSHSCOBK - 1409512
Dimensional drawing
Ø14,8
M12
Dimensional drawing
Ø14,8
M12
30,9
Ø12
Ø12
36,3
36,3
M12 x 1 male plug, angled, shielded
M12 x 1 socket, angled, shielded
Dimensional drawing
1
27,25
22
1
Dimensional drawing
27,25
22
62,5
7,5
2,5
9,5
2,5
22
13
22
EXCLIP plug
EXCLIP socket
