Made in the
United States of America
MODE 1
MODE 2
MODE 3
MODE 1:
Continuity tester for unpowered circuits. 0-10 ohms; uses the
Menda
35121
lamp and two AAA batteries (not supplied).
MODE 2:
Voltage tester for 60-600 volts AC or DC; uses the neon
cartridge and no batteries.
MODE 3:
Voltage tester for 0-60 volts AC or DC; uses the Menda
35121
lamp and no batteries.

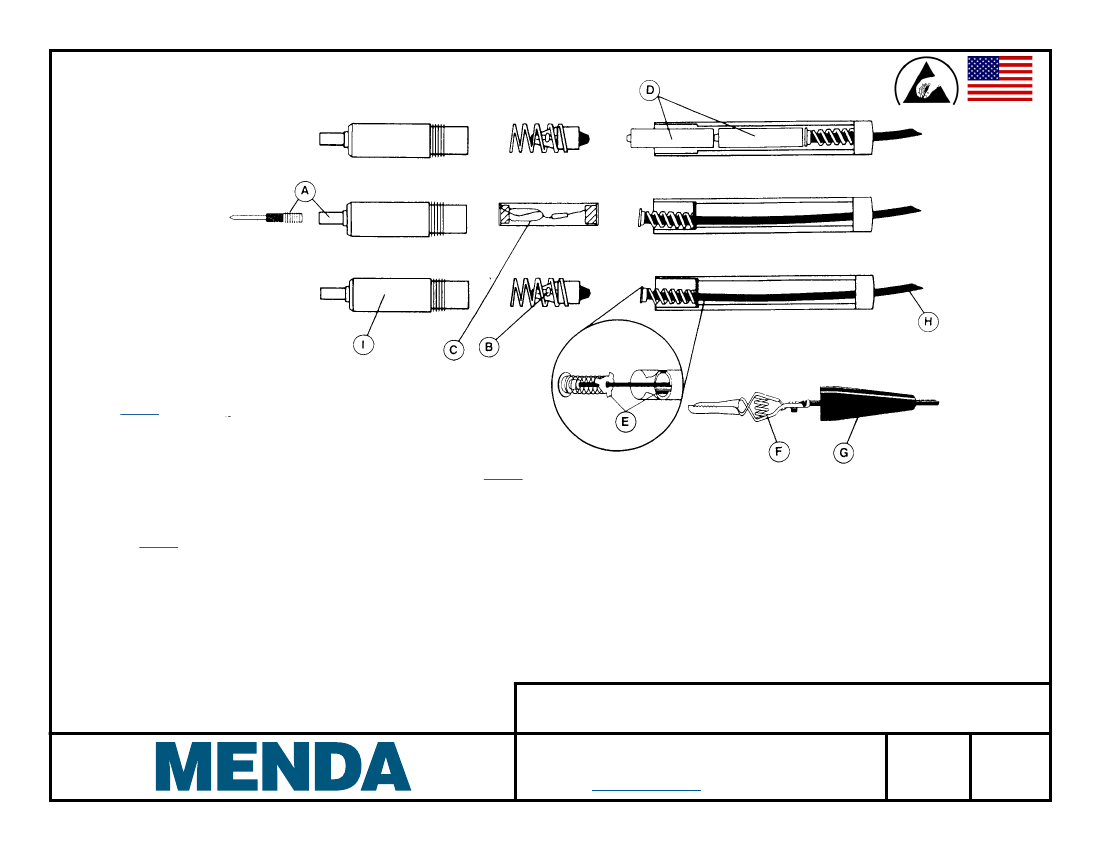

A.
B.
C.
D.
E.
F.
G.
H.
I.
Probe tip (included)
Menda
35121
(included) - For use in Modes 1 and 3. Operates from 2 to 3 volts in Mode 3.
Neon Cartridge (included) - For use in Mode 2.
Two AAA batteries (not included) - For use in Mode 1
Three point washer rides on internal steps in handle. Slides to lower position for Mode 1; upper position for Modes 2 and 3.
The other end of the 3 ft wire lead is terminated with a #85 Mueller ground clip.
Black insulator over clip for high voltage applications.
Wire is 0.1" high flex 105 strand copper with black PVC insulated jacket; 3' length
Clear butyrate window provides a 360º view of the indicator light
Specifications and procedures subject to change without notice.
CIRCUITRACER® CONTINUITY AND VOLTAGE TESTER
3651 WALNUT AVENUE, CHINO, CA 91710
PHONE: (909) 627-2453 FAX: (909) 627-7449
WEBSITE:
MendaPump.com
DRAWING
NUMBER
35100
DATE
October
2017
© 2017 DESCO INDUSTRIES INC.
