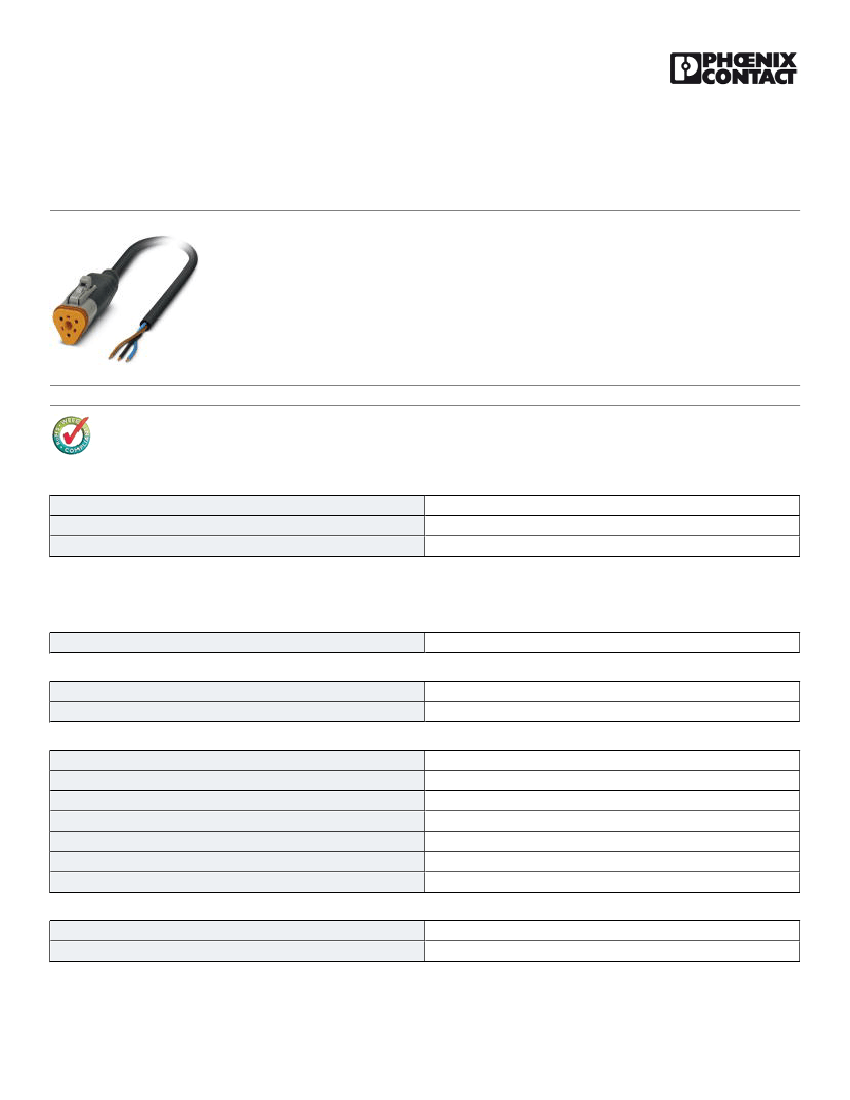

Sensor/Actuator cable - SAC-3P- 3,0-PUR/DTFS - 1414996
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Sensor/Actuator cable, 3-position, PUR halogen-free, black-gray RAL 7021, free cable end, on Socket straight
DEUTSCH DT06-3S Clip locking, Cable length: 3 m
Key Commercial Data
Packing unit
Custom tariff number
Country of origin
1 pc
85444290
Poland
Technical data
Dimensions
Length of cable
3m
Ambient conditions
Ambient temperature (operation)
Degree of protection
-20 °C ... 80 °C (Plug / socket)
IP67
General
Rated current at 40°C
Rated voltage
Number of positions
Insulation resistance
Coding
Status display
Protective circuit/component
8A
48 V
3
≥ 100 MΩ
A - standard
No
Unwired
Material
Flammability rating according to UL 94
Contact material
V2
Cu alloy
10/28/2015 Page 1 / 4
https://www.phoenixcontact.com/us/products/1414996
Sensor/Actuator cable - SAC-3P- 3,0-PUR/DTFS - 1414996
Technical data
Material
Contact surface material
Contact carrier material
Material of grip body
Material, knurls
Sealing material
Nickel-plated
PA 66
PA
not available
Silicon
Cable
Cable type
Cable type (abbreviation)
Cable abbreviation
UL AWM style
Conductor cross section
AWG signal line
Conductor structure signal line
Core diameter including insulation
Thickness, insulation
Wire colors
Overall twist
External sheath, color
Outer sheath thickness
External cable diameter D
Minimum bending radius, fixed installation
Minimum bending radius, flexible installation
Number of bending cycles
Bending radius
Traversing path
Traversing rate
Acceleration
Cable weight
Outer sheath, material
Material conductor insulation
Conductor material
Insulation resistance
Conductor resistance
Nominal voltage, cable
Test voltage, cable
Special properties
PUR halogen-free black
PUR
Li9Y11Y
20549 / 10152 (80°C/300 V)
3x 0.75 mm² (signal line)
18
42x 0.15 mm
1.69 mm ±0.05 mm (signal line)
≥ 0.21 mm
brown, blue, black
3 wires, twisted
black-gray RAL 7021
≥ 0.38 mm
5.2 mm ±0.15 mm
5xD
10 x D
4000000
48 mm
10 m
3 m/s
10 m/s²
42 kg/km
PUR
PP
Bare Cu litz wires
≥ 1 GΩ*km (at 20 °C)
≤ 26 Ω/km (at 20 °C)
≤ 300 V AC
≥ 3000 V AC (Spark test)
Flexible
Flexible cable conduit capable
10/28/2015 Page 2 / 4
https://www.phoenixcontact.com/us/products/1414996
Sensor/Actuator cable - SAC-3P- 3,0-PUR/DTFS - 1414996
Technical data
Cable
Flame resistance
according to UL 758/1581 (horizontal)
in accordance with UL 758/1581 FT2
according to DIN EN 60332-2-2
Halogen-free
Resistance to oil
Other resistance
in accordance with DIN VDE 0472 part 815
in accordance with DIN EN 50267-2-1
According to DIN EN 60811-2-1, 168 h at 100°C
According to UL 758, 168 h at 60°C
hydrolysis and microbe resistant
partly UV-resistant in accordance with DIN EN ISO 4892-2-A
Low adhesion
abrasion-resistant
Ambient temperature (operation)
-40 °C ... 80 °C (cable, fixed installation)
-25 °C ... 80 °C (cable, flexible installation)
Classifications
eCl@ss
eCl@ss 5.1
eCl@ss 6.0
27061801
27061801
ETIM
ETIM 5.0
EC001855

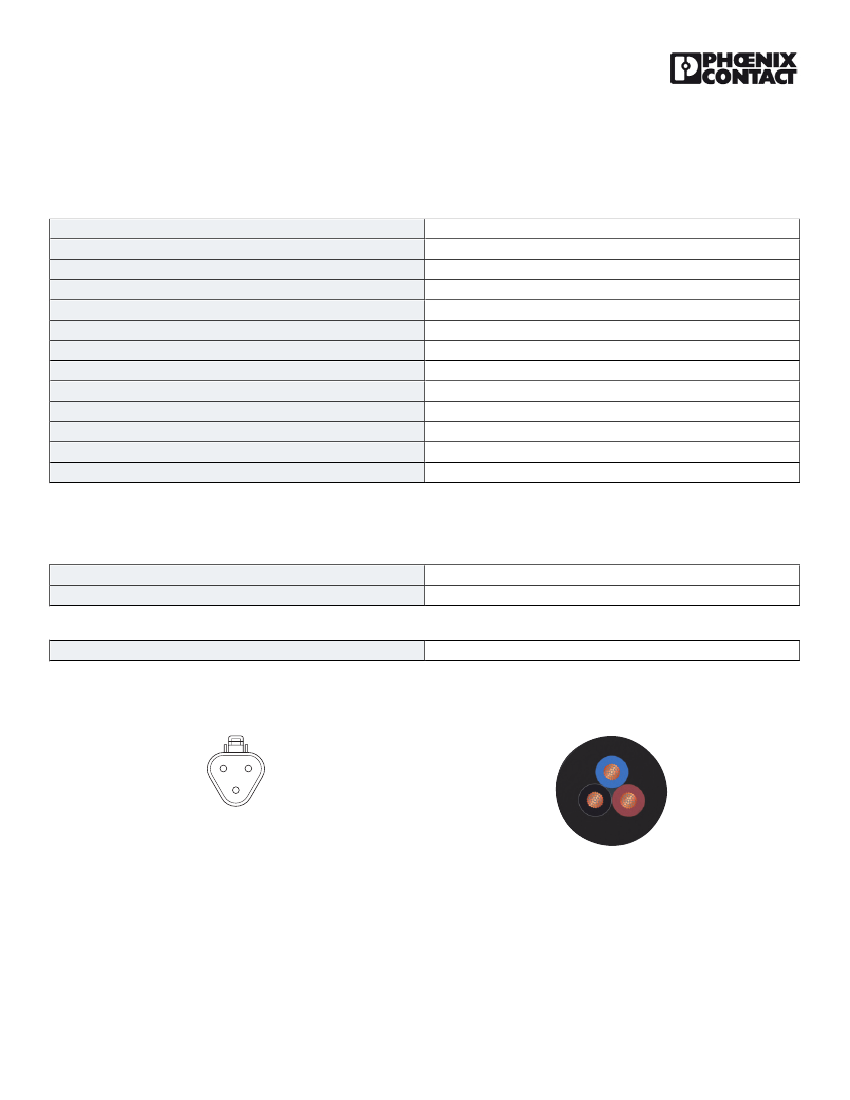

Drawings
Schematic diagram
Cable cross section
DEUTSCH DT06-3S pin assignment
PUR halogen-free black [PUR]
10/28/2015 Page 3 / 4
https://www.phoenixcontact.com/us/products/1414996
Sensor/Actuator cable - SAC-3P- 3,0-PUR/DTFS - 1414996
Dimensional drawing
59
1
2
BN
BU
BK
Circuit diagram
18
24
3
Contact assignment of the DEUTSCH DT06-3S
21
DEUTSCH DT06-3S, top view and side view
Phoenix Contact 2015 © - all rights reserved
http://www.phoenixcontact.com
10/28/2015 Page 4 / 4
