Connection terminal block - AKG 35 GN - 3062993
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Connection terminal block, Connection method Screw connection, Load current : 125 A, Cross section: 2.5
mm² - 35 mm², Width: 14.3 mm, Color: green

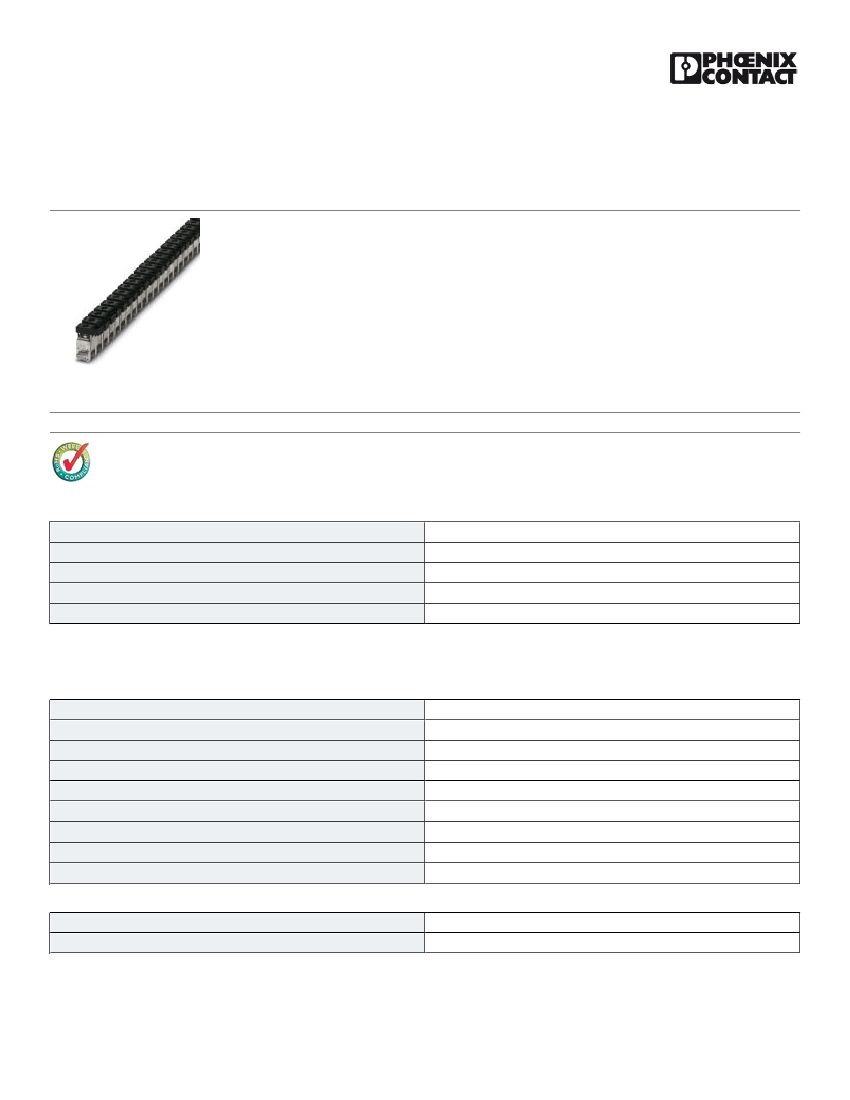

The figure shows a version of the
article
Key Commercial Data
Packing unit
Minimum order quantity
Weight per Piece (excluding packing)
Custom tariff number
Country of origin
1 pc
50 pc
20.0 g
85369010
Poland
Technical data
General
Color
Insulating material
Nominal cross section
Flammability rating according to UL 94
Maximum load current
Connection in acc. with standard
Nominal current I
N
Maximum load current
Nominal voltage U
N
green
PA
35 mm²
V2
125 A (with 35 mm² conductor cross section)
IEC / EN
125 A
125 A (with 35 mm² conductor cross section)
300 V

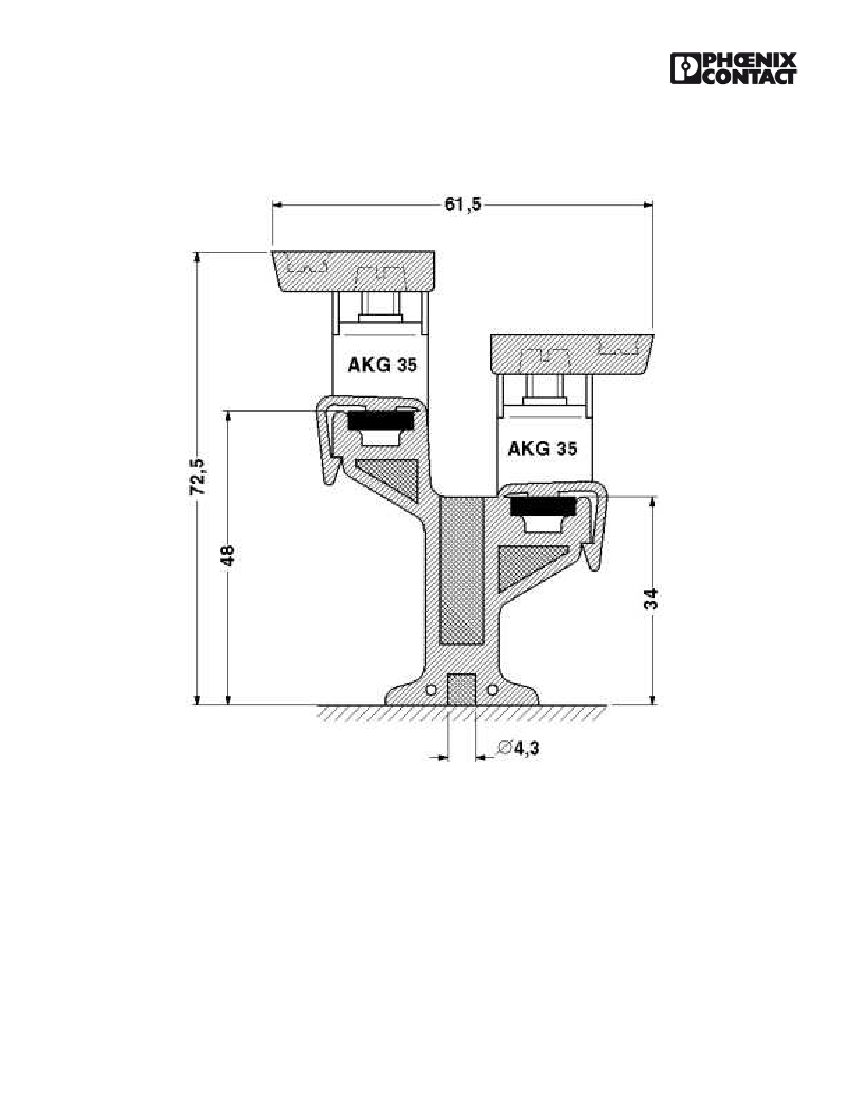

Dimensions
Length
Width
27 mm
14.3 mm
04/27/2016 Page 1 / 6
https://www.phoenixcontact.com/us/products/3062993
Connection terminal block - AKG 35 GN - 3062993
Technical data
Connection data
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section flexible min.
Conductor cross section flexible max.
Conductor cross section AWG min.
Conductor cross section AWG max.
Conductor cross section flexible, with ferrule without plastic sleeve min.
Conductor cross section flexible, with ferrule without plastic sleeve max.
Conductor cross section flexible, with ferrule with plastic sleeve min.
Conductor cross section flexible, with ferrule with plastic sleeve max.
2 conductors with same cross section, solid min.
2 conductors with same cross section, solid max.
2 conductors with same cross section, stranded min.
2 conductors with same cross section, stranded max.
2 conductors with same cross section, stranded, ferrules without plastic
sleeve, min.
2 conductors with same cross section, stranded, ferrules without plastic
sleeve, max.
2.5 mm²
35 mm²
2.5 mm²
35 mm²
14
2
2.5 mm²
35 mm²
2.5 mm²
35 mm²
1.5 mm²
16 mm²
1.5 mm²
16 mm²
1.5 mm²
16 mm²
2 conductors with same cross section, stranded, TWIN ferrules with plastic
1.5 mm²
sleeve, min.
2 conductors with same cross section, stranded, TWIN ferrules with plastic
10 mm²
sleeve, max.
Connection method
Stripping length
Screw thread
Tightening torque, min
Tightening torque max
Screw connection
16 mm
M6
3.2 Nm
3.7 Nm
Standards and Regulations
Connection in acc. with standard
Flammability rating according to UL 94
CSA
IEC / EN
V2
Classifications
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
27141111
27141111
27141145
04/27/2016 Page 2 / 6
