1N4001FF

Description
1 A, SILICON, SIGNAL DIODE
CategoryDiscrete semiconductor    diode
File Size96KB,7 Pages
ManufacturerON Semiconductor
Websitehttp://www.onsemi.cn
Environmental Compliance
Download Datasheet Parametric Compare View All

1N4001FF Overview

1 A, SILICON, SIGNAL DIODE

1N4001FF Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerON Semiconductor
Parts packaging codeDO-41
package instructionO-PALF-W2
Contacts2
Manufacturer packaging codeCASE 59-10
Reach Compliance Codenot_compliant
ECCN codeEAR99
Is SamacsysN
Shell connectionISOLATED
ConfigurationSINGLE
Diode component materialsSILICON
Diode typeRECTIFIER DIODE
Maximum forward voltage (VF)1.1 V
JEDEC-95 codeDO-41
JESD-30 codeO-PALF-W2
JESD-609 codee3
Maximum non-repetitive peak forward current30 A
Number of components1
Number of terminals2
Maximum operating temperature175 °C
Maximum output current1 A
Package body materialPLASTIC/EPOXY
Package shapeROUND
Package formLONG FORM
Peak Reflow Temperature (Celsius)260
Certification statusNot Qualified
Maximum repetitive peak reverse voltage50 V
surface mountNO
Terminal surfaceTin (Sn)
Terminal formWIRE
Terminal locationAXIAL
Maximum time at peak reflow temperature40
Base Number Matches1

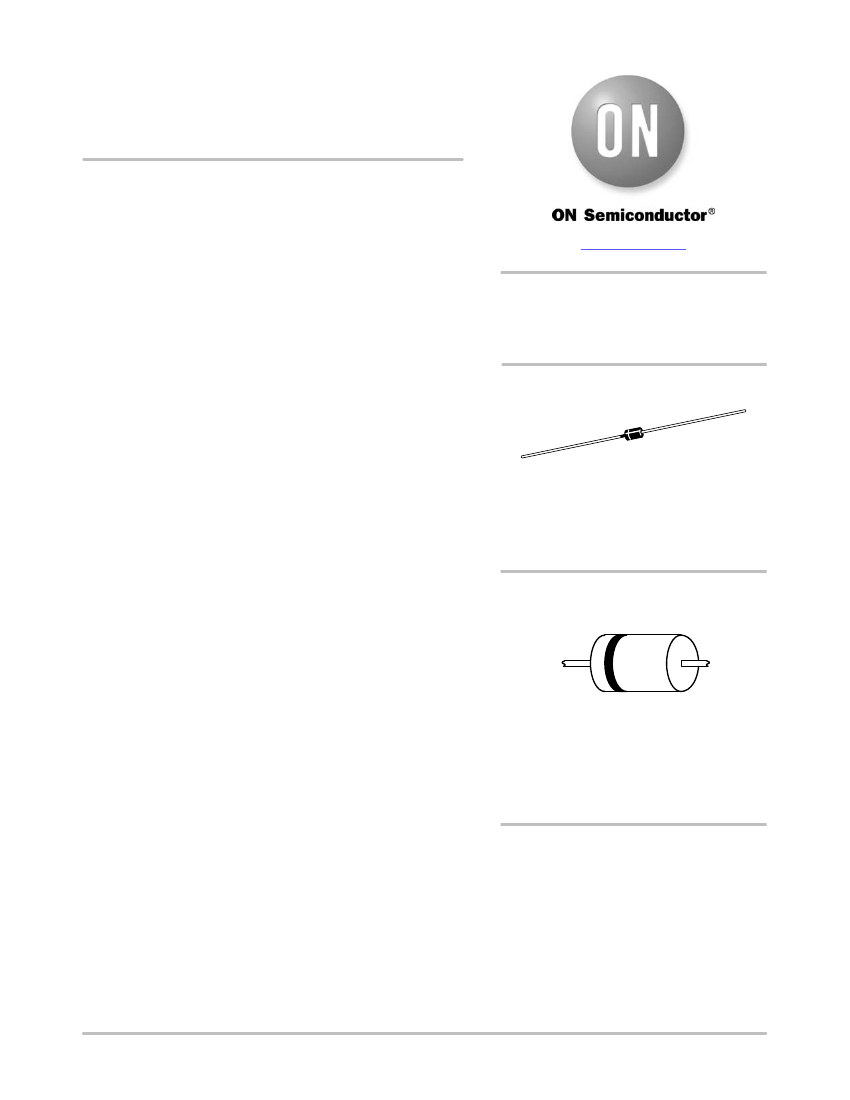

1N4001, 1N4002, 1N4003,
1N4004, 1N4005, 1N4006,
1N4007
Axial-Lead Glass
Passivated Standard
Recovery Rectifiers
This data sheet provides information on subminiature size, axial
lead mounted rectifiers for general−purpose low−power applications.
Features
www.onsemi.com
Shipped in Plastic Bags, 1000 per bag
Available Tape and Reeled, 5000 per reel, by adding a “RL” suffix to
the part number
Available in Fan−Fold Packaging, 3000 per box, by adding a “FF”
suffix to the part number
Pb−Free Packages are Available
Mechanical Characteristics
LEAD MOUNTED RECTIFIERS
50−1000 VOLTS
DIFFUSED JUNCTION
Case: Epoxy, Molded
Weight: 0.4 gram (approximately)
Finish: All External Surfaces Corrosion Resistant and Terminal
CASE 59−10
AXIAL LEAD
PLASTIC
Leads are Readily Solderable
Lead and Mounting Surface Temperature for Soldering Purposes:
260°C Max. for 10 Seconds, 1/16 in. from case
Polarity: Cathode Indicated by Polarity Band
*For additional information on our Pb−Free strategy and soldering details, please
download the ON Semiconductor Soldering and Mounting Techniques
Reference Manual, SOLDERRM/D.
MARKING DIAGRAM
A
1N400x
YYWWG
G
A
= Assembly Location
1N400x = Device Number
x
= 1, 2, 3, 4, 5, 6 or 7
YY
= Year
WW
= Work Week
G
= Pb−Free Package
(Note: Microdot may be in either location)
ORDERING INFORMATION
See detailed ordering and shipping information on page 5 of
this data sheet.
©
Semiconductor Components Industries, LLC, 2012
June, 2018
Rev. 14
1
Publication Order Number:
1N4001/D
