Printed Circuit Board
Terminal Blocks & Connectors
AEI offers single and dual level terminal blocks
for printed circuit boards on 3.5mm, 5.0mm, .08mm,
7.5mm and 7.62mm in modular 2 or 3 pole designs.
Connectors are offered from 3.50mm, 3.81mm,
5.00mm and 5.08mm versions in 90° and 180°
configuration up to 24 poles.
274
Printed Circuit Board
terminal blocks

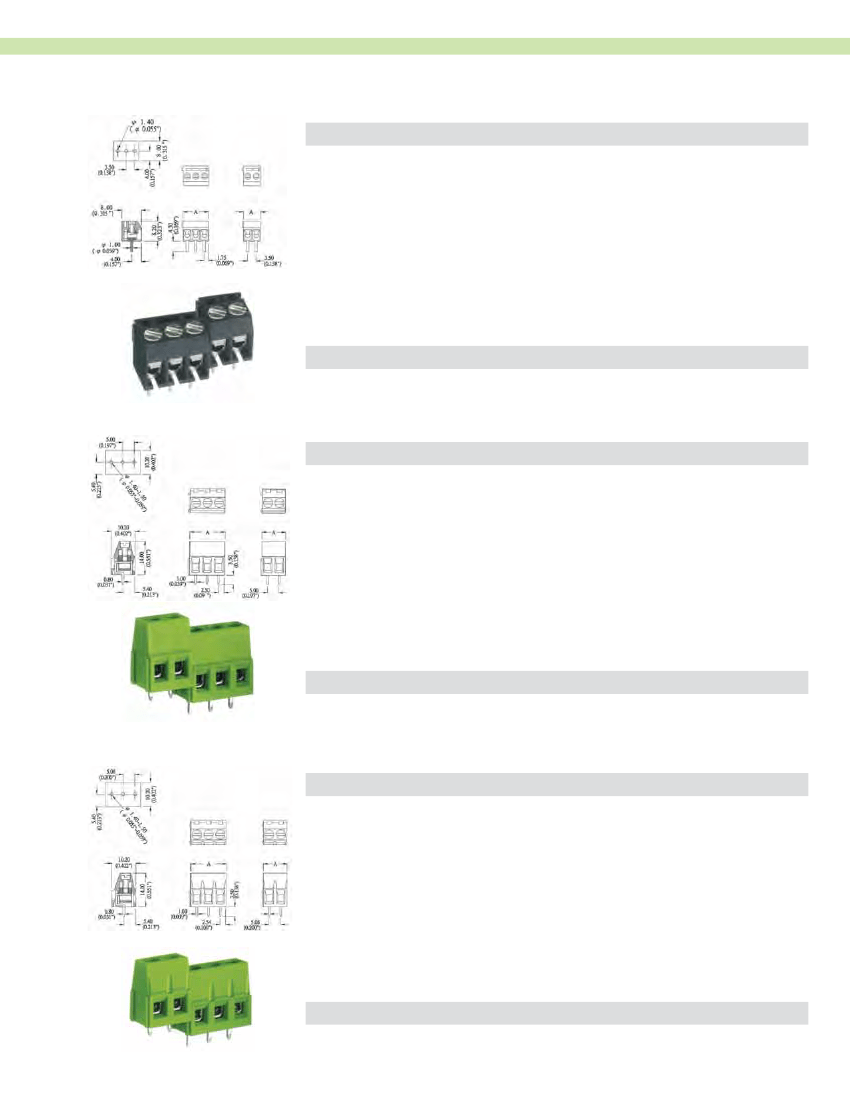

Single Level • 90° • Pitch: 3.50 mm
Technical
Terminal:
Wire protector:
Insulating Body:
Screw:
Color:
Operation temperature:
Short-time Temperature:
Current rating:
Insulation withstanding volt:
Insulation resistance:
PCB hole Diameter:
Wire strip length:
Wire range:
Screws torque:
Brass, Tin plated
Stainless strip steel
Polyester
M2.0, steel, Chromatized
Black
-33°C to +105°C
Up to 200°C (+392°F)
6 amp AC300V
AC1500V min
>5000Ω at DC500V
ϕ
1.4 mm
4mm - 5mm
16 - 26 AWG
2.5 lb-inch
Item No.
T-212-350M2
T-212-350M3
Poles
2
3
A (mm)
7.00
10.50
A (inch)
0.276
0.413
Single Level • 90° • Pitch: 5.00 mm
Technical
Cage clamp:
Terminal:
Insulating Body:
Screw:
Color:
Operation temperature:
Short-time Temperature:
Current rating:
Insulation withstanding volt:
Insulation resistance:
PCB hole Diameter:
Wire strip length:
Wire range:
Screws torque:
Brass, Ni plated
Brass, Tin plated, 0.8t
Polyamide66 (UL94V-0)
M2.6, steel, Ni plated
Green
-55°C to +105°C
Up to 250°C (+482°F)
16 amp AC300V
AC2000V min
>5000Ω at DC500V
ϕ
1.4 mm -
ϕ
1.5 mm
4mm - 5mm
14 - 24 AWG
5.0 lb-inch
Item No.
T-312-500M2
T-312-500M3
Poles
2
3
A (mm)
10.00
15.00
A (inch)
0.394
0.591

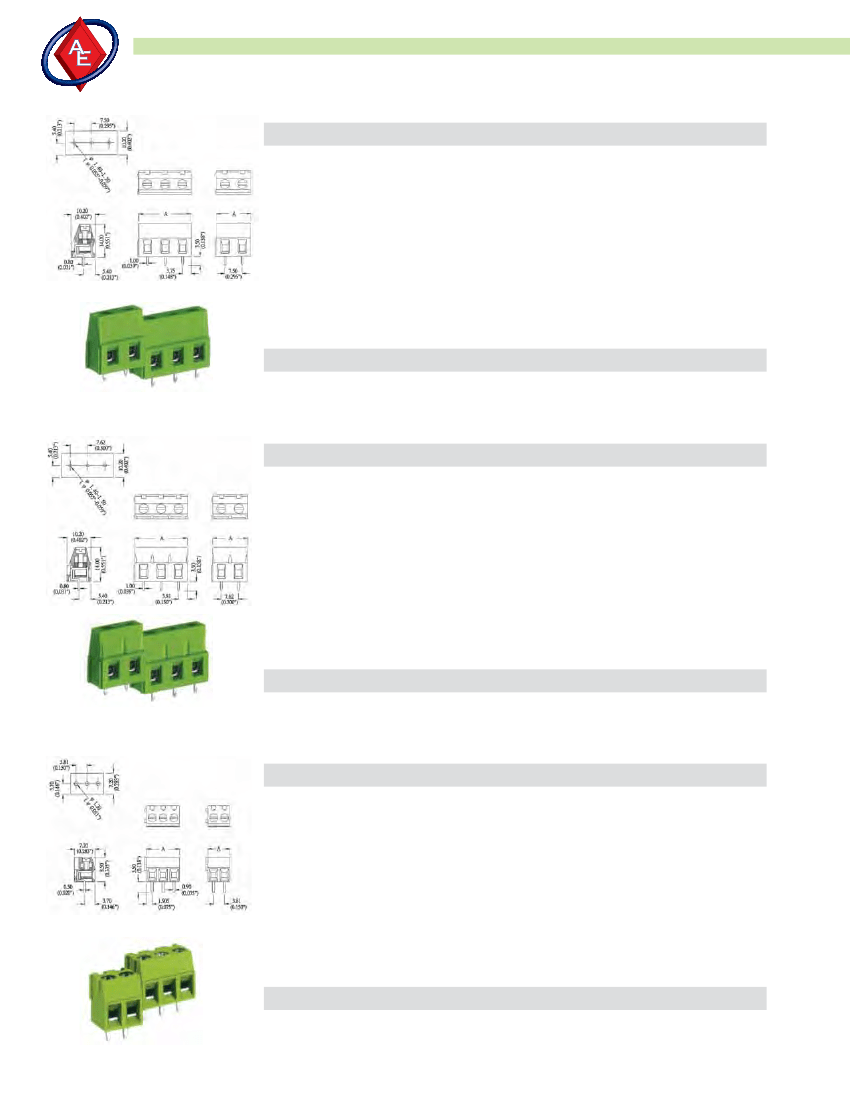

Single Level • 90° • Pitch: 5.08 mm
Technical
Terminal:
Wire protector:
Insulating Body:
Screw:
Color:
Operation temperature:
Short-time Temperature:
Current rating:
Insulation withstanding volt:
Insulation resistance:
PCB hole Diameter:
Wire strip length:
Wire range:
Screws torque:
Brass, Ni plated
Brass, Tin plated, 0.8t
Polyamide66 (UL94V-0)
M2.6, steel, Ni plated
Green
-55°C to +105°C
Up to 250°C (+482°F)
16 amp AC300V
AC2000V min
>5000Ω at DC500V
ϕ
1.4 mm -
ϕ
1.5 mm
4mm - 5mm
14 - 24 AWG
5.0 lb-inch
Item No.
T-312-508M2
T-312-508M3
Poles
2
3
A (mm)
10.16
15.24
A (inch)
0.400
0.600
American Electrical • 456 Southlake Blvd. • Richmond, VA 23236 • 804.379.2899 • fax: 804.379.8935 • www.americanelectrical.com
275
Printed Circuit Board
terminal blocks
Single Level • 90° • Pitch: 7.50 mm
Technical
Cage clamp:
Terminal:
Insulating Body:
Screw:
Color:
Operation temperature:
Short-time Temperature:
Current rating:
Insulation withstanding volt:
Insulation resistance:
PCB hole Diameter:
Wire strip length:
Wire range:
Screws torque:
Brass, Ni plated
Brass, Tin plated, 0.8t
Polyamide66 (UL94V-0)
M2.6, steel, Ni plated
Green
-55°C to +105°C
Up to 250°C (+482°F)
16 amp AC300V
AC2000V min
>5000Ω at DC500V
ϕ
1.4 mm -
ϕ
1.5 mm
4mm - 5mm
14 - 24 AWG
5.0 lb-inch
Item No.
T-312-750M2
T-312-750M3
Poles
2
3
A (mm)
15.00
22.50
A (inch)
0.591
0.886
Single Level • 90° • Pitch: 7.62 mm
Technical
Cage clamp:
Terminal:
Insulating Body:
Screw:
Color:
Operation temperature:
Short-time Temperature:
Current rating:
Insulation withstanding volt:
Insulation resistance:
PCB hole Diameter:
Wire strip length:
Wire range:
Screws torque:
Brass, Ni plated
Brass, Tin plated, 0.8t
Polyamide66 (UL94V-0)
M2.6, steel, Ni plated
Green
-55°C to +105°C
Up to 250°C (+482°F)
16 amp AC300V
AC2000V min
>5000Ω at DC500V
ϕ
1.4 mm -
ϕ
1.5 mm
4mm - 5mm
14 - 24 AWG
5.0 lb-inch
Item No.
T-312-762M2
T-312-762M3
Poles
2
3
A (mm)
15.24
22.86
A (inch)
0.600
0.900
Single Level • 90° • Pitch: 3.81 mm
Technical
Cage clamp:
Terminal:
Insulating Body:
Screw:
Color:
Operation temperature:
Short-time Temperature:
Current rating:
Insulation withstanding volt:
Insulation resistance:
PCB hole Diameter:
Wire strip length:
Wire range:
Screws torque:
Brass, Ni plated
Brass, Tin plated, 0.5t
Polyamide66 (UL94V-0)
M2.0, steel, Ni plated
Green
-55°C to +105°C
Up to 200°C (+392°F)
8 amp AC300V
AC2000V min
>5000Ω at DC500V
ϕ
1.3
4mm - 5mm
16 - 26 AWG
2.5 lb-inch
Item No.
T-332-381M2
T-332-381M3
Poles
2
3
A (mm)
7.62
11.43
A (inch)
0.300
0.450
276
American Electrical • 456 Southlake Blvd. • Richmond, VA 23236 • 804.379.2899 • fax: 804.379.8935 • www.americanelectrical.com
Printed Circuit Board
terminal blocks

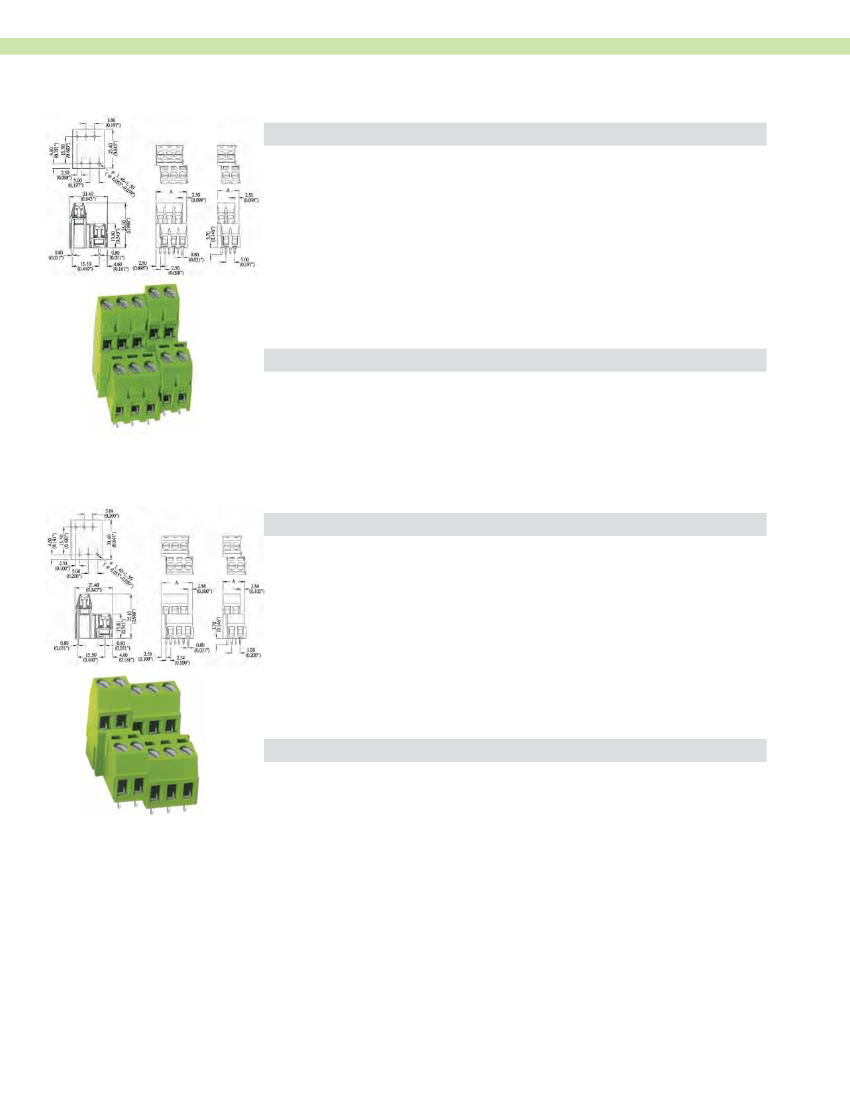

Double Level • 90° • Pitch: 5.00 mm
Technical
Cage clamp:
Terminal:
Insulating
Screw:
Color:
Operation temperature:
Short-time Temperature:
Current rating:
Insulation withstanding volt:
Insulation resistance:
PCB hole Diameter:
Wire strip length:
Wire range:
Screws torque:
Brass, Ni plated
Brass, Tin plated, 0.8t
Body: Polyamide66 (UL94V-0)
M2.6, steel, Ni plated
Green
-55°C to +105°C
Up to 250°C (+482°F)
16 amp AC300V
AC2000V min
>5000Ω at DC500V
ϕ
1.4 mm -
ϕ
1.5 mm
4mm - 5mm
14 - 24 AWG
4.5 lb-inch
Item No.
T-362-500M2
T-362-500M3
Poles
2
3
A (mm)
12.50
17.50
A (inch)
0.492
0.689
Double Level • 90° • Pitch: 5.08 mm
Technical
Cage clamp:
Terminal:
Insulating Body:
Screw:
Color:
Operation temperature:
Short-time Temperature:
Current rating:
Insulation withstanding volt:
Insulation resistance:
PCB hole Diameter:
Wire strip length:
Wire range:
Screws torque:
Brass, Ni plated
Brass, Tin plated, 0.8t
Polyamide66 (UL94V-0)
M2.6, steel, Ni plated
Green
-55°C to +105°C
Up to 250°C (+482°F)
16 amp AC300V
AC2000V min
>5000Ω at DC500V
ϕ
1.4 mm -
ϕ
1.5 mm
4mm - 5mm
14 - 24 AWG
4.5 lb-inch
Item No.
T-362-508M2
T-362-508M3
Poles
2
3
A (mm)
12.70
17.78
A (inch)
0.500
0.700
American Electrical • 456 Southlake Blvd. • Richmond, VA 23236 • 804.379.2899 • fax: 804.379.8935 • www.americanelectrical.com
277
Printed Circuit Board
Plugs
Plugs • 180°
Technical
Cage clamp:
Contact:
Insulating Body:
Screw:
Color:
Operation temperature:
Short-time temperature:
Current rating:
Insulation withstanding volt:
Insulation resistance:
Wire strip length:
Wire range:
Screws torque:
Brass, Ni plated
Phosphor bronze, Tin plated, 0.4t
Polyamide66 (UL94V-0)
M3.0, steel, Zinc plated
Green
-55°C to +105°C
Up to 250°C (+482°F)
16 amp AC300V
AC2000V min
>5000Ω at DC500V
4 mm - 5 mm
14 - 24 AWG
4.5 lb-inch
Pitch: 5.00 mm
Item No.
P-100-50002
P-100-50003
P-100-50004
P-100-50005
P-100-50006
P-100-50007
P-100-50008
Poles
2
3
4
5
6
7
8
A (mm)
10.00
15.00
20.00
25.00
30.00
35.00
40.00
A (inch)
0.394
0.591
0.787
0.984
1.181
1.378
1.575
Item No.
P-100-50009
P-100-50010
P-100-50011
P-100-50012
P-100-50024
Poles
9
10
11
12
24
A (mm)
45.00
50.00
55.00
60.00
120.00
A (inch)
1.772
1.969
2.165
2.362
4.724
Pitch: 5.08 mm
Item No.
P-100-50802
P-100-50803
P-100-50804
P-100-50805
P-100-50806
P-100-50807
P-100-50808
Poles
2
3
4
5
6
7
8
A (mm)
10.16
15.24
20.32
25.40
30.48
35.56
40.64
A (inch)
0.400
0.600
0.800
1.000
1.200
1.400
1.600
Item No.
P-100-50809
P-100-50810
P-100-50811
P-100-50812
P-100-50824
Poles
9
10
11
12
24
A (mm)
45.72
50.80
55.88
60.96
121.92
A (inch)
1.800
2.000
2.200
2.400
4.800

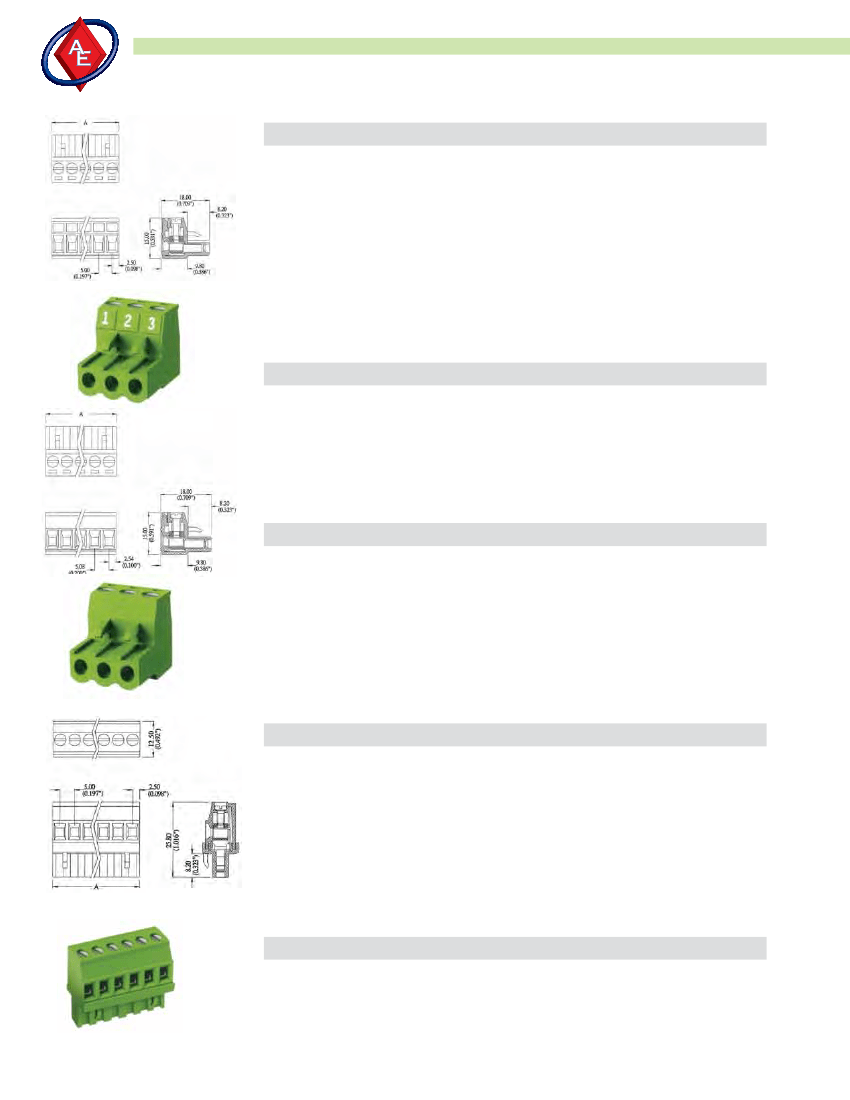

Plugs • 90° • Pitch: 5.00 mm
Technical
Cage clamp:
Contact:
Insulating Body:
Screw:
Color:
Operation temperature:
Short-time temperature:
Current rating:
Insulation withstanding volt:
Insulation resistance:
Wire strip length:
Wire range:
Screws torque:
Brass, Ni plated
Phosphor bronze, Tin plated, 0.4t
Polyamide66 (UL94V-0)
M2.6, steel, Zinc plated
Green
-55°C to +105°C
Up to 250°C (+482°F)
16 amp AC300V
AC2000V min
>5000Ω at DC500V
7 mm
14 - 24 AWG
4.5 lb-inch
Item No.
P-200-50002
P-200-50003
P-200-50004
P-200-50005
P-200-50006
P-200-50007
P-200-50008
Poles
2
3
4
5
6
7
8
A (mm)
10.00
15.00
20.00
25.00
30.00
35.00
40.00
A (inch)
0.394
0.591
0.787
0.984
1.181
1.378
1.575
Item No.
P-200-50009
P-200-50010
P-200-50011
P-200-50012
P-200-50024
Poles
9
10
11
12
24
A (mm)
45.00
50.00
55.00
60.00
120.00
A (inch)
1.772
1.969
2.165
2.362
4.724
278
