1N4001 - 1N4007
1.0A RECTIFIER
Features
Diffused Junction
High Current Capability and Low Forward Voltage Drop
Surge Overload Rating to 30A Peak
Low Reverse Leakage Current
Lead Free Finish, RoHS Compliant (Note 3)
Mechanical Data
Case: DO-41
Case Material: Molded Plastic. UL Flammability Classification
Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020D
Terminals: Finish - Bright Tin. Plated Leads Solderable per
MIL-STD-202, Method 208
Polarity: Cathode Band
Ordering Information: See Page 2
Marking: Type Number
Weight: 0.30 grams (Approximate)

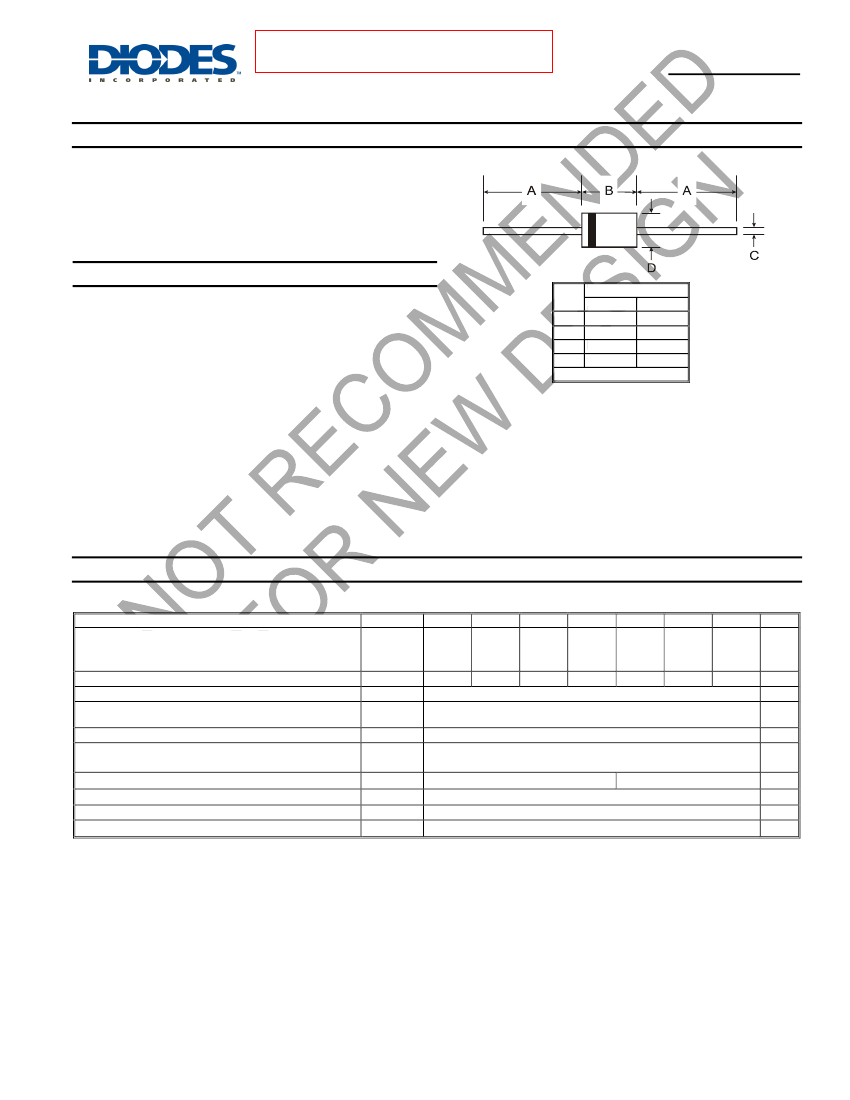

Dim
DO-41 Plastic
Min
Max
A
25.40
B
4.06
5.21
C
0.71
0.864
D
2.00
2.72
All Dimensions in mm
Maximum Ratings and Electrical Characteristics
(@T
A
= +25°C unless otherwise specified.)
Single phase, half wave, 60Hz, resistive or inductive load.
For capacitive load, derate current by 20%.
Characteristic
Symbol
V
RRM
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
V
RWM
DC Blocking Voltage
V
R
RMS Reverse Voltage
V
R(RMS)
Average Rectified Output Current (Note 1) @ T
A
=+75C
I
O
Non-Repetitive Peak Forward Surge Current 8.3ms
I
FSM
Single Half Sine-Wave Superimposed on Rated Load
Forward Voltage @ I
F
= 1.0A
V
FM
Peak Reverse Current @T
A
= +25C
I
RM
at Rated DC Blocking Voltage @ T
A
= +100C
Typical Junction Capacitance (Note 2)
C
j
Typical Thermal Resistance Junction to Ambient
R
JA
Maximum DC Blocking Voltage Temperature
T
A
Operating and Storage Temperature Range
T
J
,
T
STG
Notes:
1N4001 1N4002 1N4003 1N4004 1N4005 1N4006 1N4007
50
35
100
70
200
140
400
280
1.0
30
1.0
5.0
50
15
100
+150
-65 to +150
8
600
420
800
560
1000
700
Unit
V
V
A
A
V
A
pF
K/W
C
C
1. Leads maintained at ambient temperature at a distance of 9.5mm from the case.
2. Measured at 1.0 MHz and applied reverse voltage of 4.0V DC.
3. EU Directive 2002/95/EC (RoHS). All applicable RoHS exemptions applied, see EU Directive 2002/95/EC Annex Notes.
1N4001-1N4007
Document number: DS28002 Rev. 9 - 3
1 of 3
www.diodes.com
September 2014
© Diodes Incorporated
NOT RECOMMENDED FOR NEW DESIGN
USE S1A-S1M series
I
(AV)
, AVERAGE FORWARD RECTIFIED CURRENT (A)
1.0
I
F
, INSTANTANEOUS FORWARD CURRENT (A)
10
0.8
1.0
0.6
0.4
0.1
0.2
T
j
, = 25
o
C
Pulse Width = 300
s
2% Duty Cycle
0
40
60
80
100
120
140
160
180
T
A
, AMBIENT TEMPERATURE (ºC)

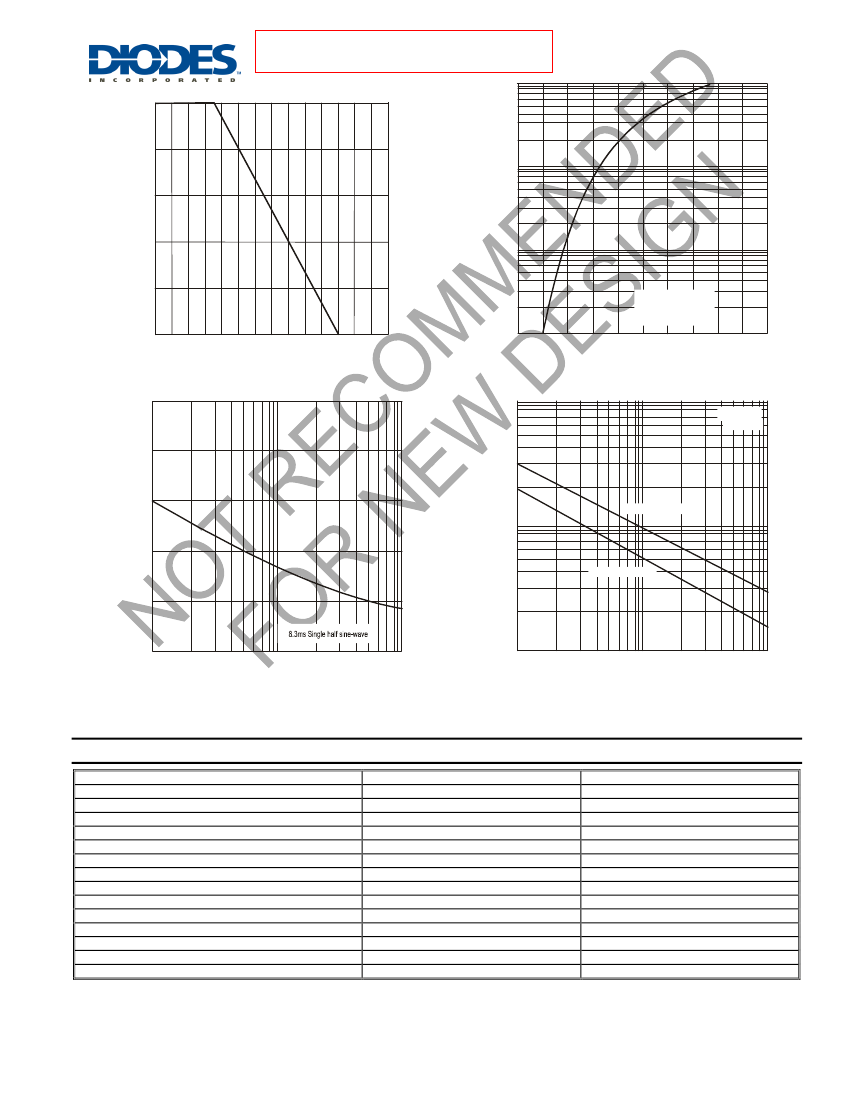

Fig. 1 Forward Current Derating Curve
0.01
0.6
0.8
1.0
1.2
1.4
1.6
V
F
, INSTANTANEOUS FORWARD VOLTAGE (V)
Fig. 2 Typical Forward Characteristics
100
T
j
= 25ºC
f = 1MHz
50
I
FSM
, PEAK FORWARD SURGE CURRENT (A)
40
30
C
j
, CAPACITANCE (pF)
1N4001 - 1N4004
10
20
1N4005 - 1N4007
10
0
1.0
10
100
NUMBER OF CYCLES AT 60 Hz
Fig. 3 Max Non-Repetitive Peak Fwd Surge Current
1.0
1.0
10
V
R
, REVERSE VOLTAGE (V)
Fig. 4 Typical Junction Capacitance
100
Ordering Information
(Note 4)
Device
1N4001-B
1N4001-T
1N4002-B
1N4002-T
1N4003-B
1N4003-T
1N4004-B
1N4004-T
1N4005-B
1N4005-T
1N4006-B
1N4006-T
1N4007-B
1N4007-T
Note:
Packaging
DO-41 Plastic
DO-41 Plastic
DO-41 Plastic
DO-41 Plastic
DO-41 Plastic
DO-41 Plastic
DO-41 Plastic
DO-41 Plastic
DO-41 Plastic
DO-41 Plastic
DO-41 Plastic
DO-41 Plastic
DO-41 Plastic
DO-41 Plastic
Shipping
1K/Bulk
5K/Tape & Reel, 13-inch
1K/Bulk
5K/Tape & Reel, 13-inch
1K/Bulk
5K/Tape & Reel, 13-inch
1K/Bulk
5K/Tape & Reel, 13-inch
1K/Bulk
5K/Tape & Reel, 13-inch
1K/Bulk
5K/Tape & Reel, 13-inch
1K/Bulk
5K/Tape & Reel, 13-inch
4. For packaging details, visit our website at http://www.diodes.com/datasheets/ap02008.pdf.
1N4001-1N4007
Document number: DS28002 Rev. 9 - 3
2 of 3
www.diodes.com
September 2014
© Diodes Incorporated
NOT RECOMMENDED FOR NEW DESIGN
USE S1A-S1M series
