F-218 (Rev
10OCT17)
HLE–130–02–F–DV
HLE–110–02–L–DV
(2.54 mm) .100"
HLE–116–02–L–DV–K

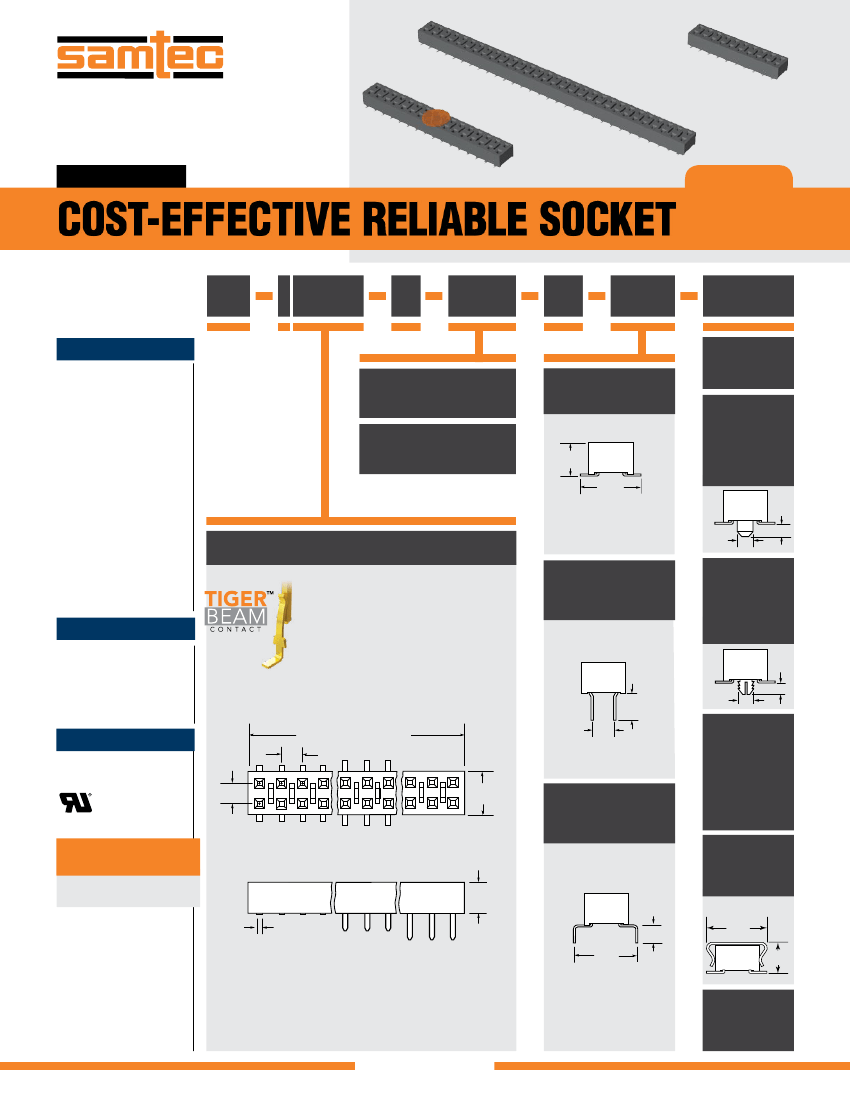

HLE SERIES
COST-EFFECTIVE RELIABLE SOCKET
Mates With:
TSW, MTSW, DW,
EW, ZW, TLW, TSM,
MTLW, HW
HLE
NO.
1
PER PINS
ROW
02
PLATING
OPTION
DV
TAIL
OPTION
OTHER
OPTION
SPECIFICATIONS
For complete specifications
and recommended PCB layouts
see www.samtec.com?HLE
Insulator Material:
Black Liquid Crystal Polymer
Contact Material:
BeCu
Plating:
Au or Sn over
50 µ" (1.27 µm) Ni
Current Rating (HLE/TSM):
4.1 A per pin
(2 pins powered)
Voltage Rating:
400 VAC
Operating Temp Range:
-55 °C to +125 °C
Insertion Depth:
(1.78 mm) .070" to
(3.43 mm) .135", pass-through,
or (2.59 mm) .102" min
plus board thickness for
bottom entry
RoHS Compliant:
Yes
= Gold flash on contact,
Matte Tin on tail
–F
–L
Leave blank for
Surface Mount
= Bottom Entry
(N/A with –TE)
–BE
–A
= 10 µ" (0.25 µm) Gold on contact,
Matte Tin on tail
(3.66)
.144
(6.60)
.260
(Requires –BE for Bottom Entry)
= Alignment Pin
(4 positions min.)
Metal or plastic at
Samtec discretion
(N/A with -TE,
-PE & -LC)
(1.27)
.050
02 thru 50
= Through-hole
Top Entry
(1.60)
.063
DIA
–TE
PROCESSING
Lead–Free Solderable:
Yes
SMT Lead Coplanarity:
(0.10 mm) .004" max (02-20)
(0.15 mm) .006" max (21-50)*
*(.004" stencil solution
may be available; contact
IPG@samtec.com)
= Locking Clip
(2 positions min.)
(N/A with -A)
(Manual placement
required)
(1.27)
.050
(1.42)
.056
–LC
(3.05)
.120
No. of Positions x (2.54) .100
(2.54)
.100
(2.54)
.100
01
02
RECOGNITIONS
For complete scope
of recognitions see
www.samtec.com/quality
(2.54)
.100
(5.08)
.200
FILE NO. E111594
= Through-hole
Pass-through Entry
–PE
= (6.50 mm) .256"
DIA Polyimide
Film Pick &
Place Pad
(3 positions min.)
Not available
with –TE or
–PE tail option
–K
ALSO AVAILABLE
(MOQ Required)
• Other platings
Contact Samtec.
(0.51)
.020
(3.51)
.138
= Metal Pick &
Place Pad
(3 positions min.)
(7.11) .280
x
(5.71) .225
(3.86)
.152
–P
–PE
–TE
(2.30)
.090
(7.62)
.300
(Requires –BE for Bottom Entry)
Note:
Some lengths, styles and
options are non-standard,
non-returnable.
= Tape & Reel
Packaging
(29 positions max.)
Due to technical progress, all designs, specifications and components are subject to change without notice.
–TR
All parts within this catalog are built to Samtec’s specifications.
Customer specific requirements must be approved by Samtec and identified in a Samtec customer-specific drawing to apply.
