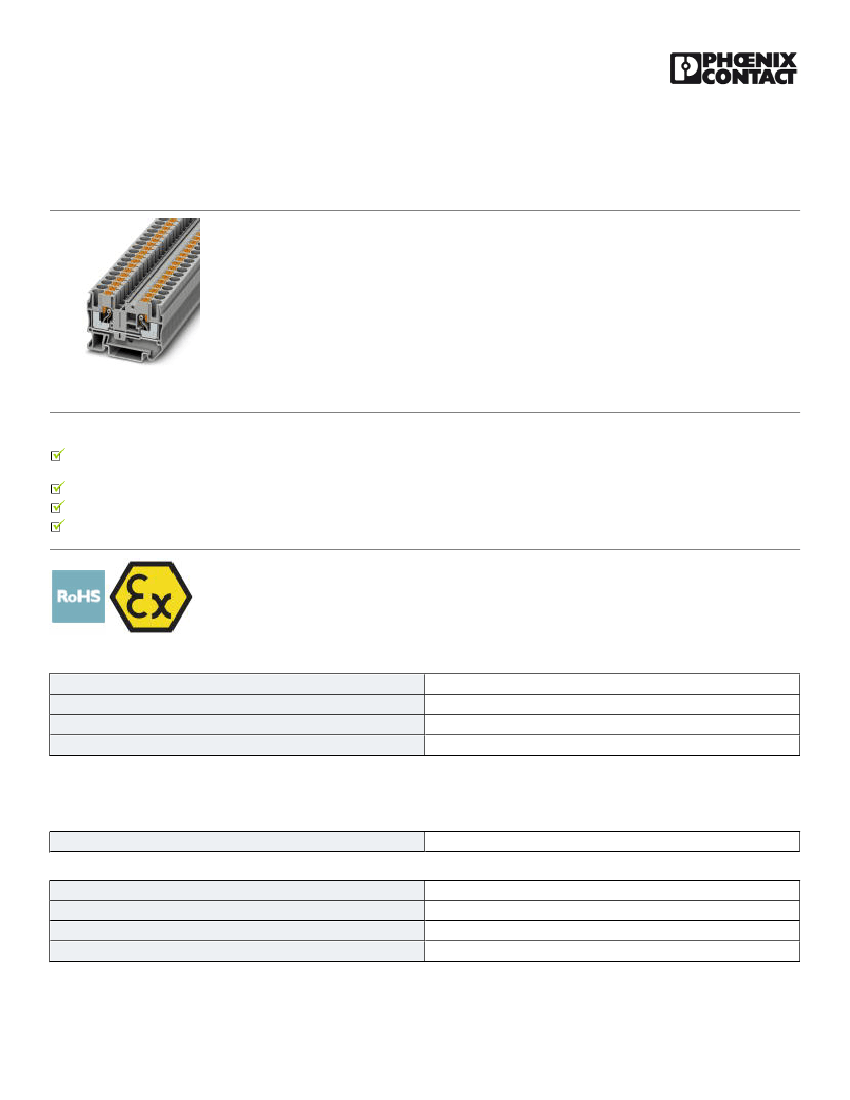

Feed-through terminal block - PT 6 OG - 3211820
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Feed-through terminal block, Connection method: Push-in connection, Cross section: 0.5 mm² - 10 mm²,
AWG: 20 - 8, Width: 8.2 mm, Height: 42.2 mm, Color: orange, Mounting type: NS 35/7,5, NS 35/15
The illustration shows the version in
gray
Why buy this product
The Push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system and by easy and tool-free wiring
of conductors with ferrules or solid conductors
The compact design and front connection enable wiring in a confined space
In addition to the testing facility in the double function shaft, all terminal blocks provide an additional test connection
Tested for railway applications
Key Commercial Data
Packing unit
Minimum order quantity
Custom tariff number
Country of origin
1 STK
50 STK
85369010
China
Technical data
Environmental Product Compliance
China RoHS
No hazardous substances above threshold values
General
Number of levels
Number of connections
Potentials
Nominal cross section
1
2
1
6 mm²
09/06/2016 Page 1 / 28
https://www.phoenixcontact.com/us/products/3211820
Feed-through terminal block - PT 6 OG - 3211820
Technical data
General
Color
Insulating material
Flammability rating according to UL 94
Rated surge voltage
Degree of pollution
Overvoltage category
Insulating material group
Maximum load current
Nominal current I
N
Nominal voltage U
N
Open side panel
orange
PA
V0
8 kV
3
III
I
52 A (with 10 mm² conductor cross section)
41 A
1000 V
Yes
Dimensions
Width
End cover width
Length
Height
Height NS 35/7,5
Height NS 35/15
8.2 mm
2.2 mm
57.7 mm
42.2 mm
43.5 mm
51 mm
Connection data
Connection method
Connection in acc. with standard
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section AWG min.
Conductor cross section AWG max.
Conductor cross section flexible min.
Conductor cross section flexible max.
Min. AWG conductor cross section, flexible
Max. AWG conductor cross section, flexible
Conductor cross section flexible, with ferrule without plastic sleeve min.
Conductor cross section flexible, with ferrule without plastic sleeve max.
Conductor cross section flexible, with ferrule with plastic sleeve min.
Conductor cross section flexible, with ferrule with plastic sleeve max.
Push-in connection
IEC 60947-7-1
0.5 mm²
10 mm²
20
8
0.5 mm²
6 mm²
20
10
0.5 mm²
6 mm²
0.5 mm²
6 mm²
2 conductors with same cross section, stranded, TWIN ferrules with plastic
0.5 mm²
sleeve, min.
2 conductors with same cross section, stranded, TWIN ferrules with plastic
1.5 mm²
sleeve, max.
09/06/2016 Page 2 / 28
https://www.phoenixcontact.com/us/products/3211820
Feed-through terminal block - PT 6 OG - 3211820
Technical data
Connection data
Stripping length
Internal cylindrical gage
12 mm
A5
Standards and Regulations
Connection in acc. with standard
Flammability rating according to UL 94
CSA
IEC 60947-7-1
V0
Drawings
Circuit diagram
Classifications
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
eCl@ss 8.0
eCl@ss 9.0
27141120
27141120
27141120
27141120
27141120
27141120
27141120
27141120
ETIM
ETIM 4.0
ETIM 5.0
EC000897
EC000897
UNSPSC
UNSPSC 6.01
UNSPSC 7.0901
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
30211811
39121410
39121410
39121410
39121410
Approvals
Approvals
09/06/2016 Page 3 / 28
https://www.phoenixcontact.com/us/products/3211820
Feed-through terminal block - PT 6 OG - 3211820
Approvals
Approvals
CSA / UL Recognized / cUL Recognized / VDE Zeichengenehmigung / IECEE CB Scheme / BV / EAC / NK / ABS / PRS / cULus Recognized
Ex Approvals
IECEx / ATEX / EAC Ex
Approval details
CSA
http://www.csagroup.org/us/en/services/testing-and-certification/certified-product-listing 13631
B
20-8
40 A
600 V
C
20-8
40 A
600 V
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
UL Recognized
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm FILE E 60425
B
20-8
40 A
600 V
C
20-8
40 A
600 V
cUL Recognized
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm FILE E 60425
B
20-8
40 A
600 V
C
20-8
40 A
600 V
VDE Zeichengenehmigung
mm²/AWG/kcmil
http://www.vde.de 40035239
0.5-6
09/06/2016 Page 4 / 28
https://www.phoenixcontact.com/us/products/3211820
Feed-through terminal block - PT 6 OG - 3211820
Approvals
Nominal current IN
Nominal voltage UN
41 A
1000 V
IECEE CB Scheme
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
http://www.iecee.org/ DE1-57203
0.5-6
41 A
1000 V
BV http://www.veristar.com/wps/portal/!ut/p/_s.7_0_A/7_0_RIM 37796/A2 BV
EAC EAC-Zulassung
NK http://www.classnk.or.jp/hp/en 14ME0913
ABS http://www.eagle.org/eagleExternalPortalWEB/ 15-GD1355195-PDA
PRS http://www.prs.pl/ TE/2107/880590/16
cULus Recognized
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm
Accessories
Accessories
DIN rail
DIN rail perforated - NS 35/ 7,5 PERF 2000MM - 0801733
DIN rail, material: steel galvanized and passivated with a thick layer, perforated, height 7.5 mm, width 35 mm, length:
2000 mm
