Data Sheet
C
omlinear
CLC2601, CLC3601, CLC4601
®
Dual, Triple, and Quad 550MHz Amplifiers
FEATURES
n
0.1dB gain flatness to 120MHz
n
0.01%/0.06˚ differential gain/
phase error
n
335MHz -3dB bandwidth at G = 2
n
550MHz -3dB bandwidth at G = 1
n
1,500V/μs slew rate
n
52mA output current (sufficient for
driving two video loads)
n
5.2mA supply current
n
Fully specified at ±5V supplies
n
CLC2601: Pb-free SOIC-8
n
CLC3601, CLC4601: Pb-free SOIC-14
APPLICATIONS
n
Video line drivers
n
S-Video driver
n
Video switchers and routers
n
ADC buffer
n
Active filters
n
Cable drivers
n
Twisted pair driver/receiver
C
omlinear
CLC2601, CLC3601, CLC4601
Dual, Triple, and Quad 550MHz Amplifiers
General Description
The
Comlinear
CLC2601 (dual), CLC3601 (triple), and CLC4601 (quad) are
high-performance, current feedback amplifiers. These amplifiers provide
550MHz unity gain bandwidth, ±0.1dB gain flatness to 120MHz, and 1,500V/μs
slew rate, exceeding the requirements of high-definition television (HDTV)
and other multimedia applications. These
Comlinear
high-performance ampli-
fiers also provide ample output current to drive multiple video loads.
The
Comlinear
CLC2601, CLC3601, and CLC4601 are designed to operate
from ±5V supplies. They consume only 5.2mA of supply current per channel.
The combination of high-speed, low-power, and excellent video performance
make these amplifiers well suited for use in many general purpose, high-
speed applications including standard definition and high definition video.
Typical Application - Driving Dual Video Loads
+Vs
75Ω
Cable
Input
75Ω
Rf
Rg
75Ω
-Vs
75Ω
75Ω
Cable
Output A
75Ω
75Ω
Cable
Output B
75Ω
Ordering Information
Part Number
CLC2601ISO8X
CLC3601ISO14X
CLC4601ISO14X
Package
SOIC-8
SOIC-14
SOIC-14
Pb-Free
Yes
Yes
Yes
RoHS Compliant
Yes
Yes
Yes
Operating Temperature Range
-40°C to +85°C
-40°C to +85°C
-40°C to +85°C
Packaging Method
Reel
Reel
Reel
Rev 1E
Moisture sensitivity level for all parts is MSL-1.
Exar Corporation
48720 Kato Road, Fremont CA 94538, USA
www.exar.com
Tel. +1 510 668-7000 - Fax. +1 510 668-7001
Data Sheet
CLC2601 Pin Configuration
OUT1
-IN1
+IN1
-V
S
1
2
3
4
8
7
6
5
CLC2601 Pin Assignments
Pin No.
1
2
3
4
5
6
7
8
Pin Name
OUT1
-IN1
+IN1
-V
S
+IN2
-IN2
OUT2
+V
S
Description
Output, channel 1
Negative input, channel 1
Positive input, channel 1
Negative supply
Positive input, channel 2
Negative input, channel 2
Output, channel 2
Positive supply
+V
S
OUT2
-IN2
+IN2
C
omlinear
CLC2601, CLC3601, CLC4601
Dual, Triple, and Quad 550MHz Amplifiers
CLC3601 Pin Configuration
NC
NC
NC
+VS
+IN1
-IN1
OUT1
1
2
3
4
5
6
7
14
13
12
11
10
9
8
CLC3601 Pin Assignments
OUT2
-IN2
+IN2
-VS
+IN3
-IN3
OUT3
Pin No.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
Pin Name
NC
NC
NC
+V
S
+IN1
-IN1
OUT1
OUT3
-IN3
+IN3
-V
S
+IN2
-IN2
OUT2
Description
No Connect
No Connect
No Connect
Positive supply
Positive input, channel 1
Negative input, channel 1
Output, channel 1
Output, channel 3
Negative input, channel 3
Positive input, channel 3
Negative supply
Positive input, channel 2
Negative input, channel 2
Output, channel 2
CLC4601 Pin Configuration
OUT1
-IN1
+IN1
+VS
+IN2
-IN2
OUT2
1
2
3
4
5
6
7
14
13
12
11
10
9
8
CLC4601 Pin Assignments
OUT4
-IN4
+IN4
-VS
+IN3
-IN3
OUT3
Pin No.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
Pin Name
OUT1
-IN1
+IN1
+V
S
+IN2
-IN2
OUT2
OUT3
-IN3
+IN3
-V
S
+IN4
-IN4
OUT4
Description
Output, channel 1
Negative input, channel 1
Positive input, channel 1
Positive supply
Positive input, channel 2
Negative input, channel 2
Output, channel 2
Output, channel 3
Negative input, channel 3
Positive input, channel 3
Negative supply
Positive input, channel 4
Negative input, channel 4
Output, channel 4
Rev 1E
©2007-2013 Exar Corporation
2/15
Rev 1E
Data Sheet
Absolute Maximum Ratings
The safety of the device is not guaranteed when it is operated above the “Absolute Maximum Ratings”. The device should
not be operated at these “absolute” limits. Adhere to the “Recommended Operating Conditions” for proper device func-
tion. The information contained in the Electrical Characteristics tables and Typical Performance plots reflect the operating
conditions noted on the tables and plots.
C
omlinear
CLC2601, CLC3601, CLC4601
Dual, Triple, and Quad 550MHz Amplifiers
Parameter
Supply Voltage
Input Voltage Range
Min
0
-V
s
-0.5V
Max
+14 or ±7
+V
s
+0.5V
Unit
V
V
Reliability Information
Parameter
Junction Temperature
Storage Temperature Range
Lead Temperature (Soldering, 10s)
Package Thermal Resistance
8-Lead SOIC
14-Lead SOIC
Notes:
Package thermal resistance (q
JA
), JDEC standard, multi-layer test boards, still air.
Min
-65
Typ
Max
150
150
260
Unit
°C
°C
°C
°C/W
°C/W
100
88
ESD Protection
Product
Human Body Model (HBM)
Charged Device Model (CDM)
SOIC-8
2.5kV
2kV
SOIC-14
2.5kV
2kV
Recommended Operating Conditions
Parameter
Operating Temperature Range
Supply Voltage Range
Min
-40
±4
Typ
Max
+85
±6
Unit
°C
V
Rev 1E
©2007-2013 Exar Corporation
3/15
Rev 1E
Data Sheet
Electrical Characteristics
T
A
= 25°C, V
s
= ±5V, R
f
= 510Ω, R
L
= 100Ω to GND, G = 2; unless otherwise noted.
Symbol
UGBW
BW
SS
BW
LS
BW
0.1dBSS
BW
0.1dBLS
t
R
, t
F
t
S
OS
SR
HD2
HD3
THD
D
G
D
P
e
n
i
n+
i
n-
X
TALK
V
IO
dV
IO
I
bn
dI
bn
I
bi
dI
bni
PSRR
Z
OL
I
S
Parameter
-3dB Bandwidth
-3dB Bandwidth
Large Signal Bandwidth
0.1dB Gain Flatness
0.1dB Gain Flatness
Rise and Fall Time
Settling Time to 0.1%
Overshoot
Slew Rate
2nd Harmonic Distortion
3rd Harmonic Distortion
Total Harmonic Distortion
Differential Gain
Differential Phase
Input Voltage Noise
Input Current Noise (+)
Input Current Noise (-)
Crosstalk
Input Offset Voltage
(1)
Average Drift
Input Bias Current
Average Drift
Input Bias Current Inverting
(1)
Average Drift
Power Supply Rejection Ratio
(1)
Open-Loop Transimpedance
Supply Current
(1)
Non-inverting
(1)
Conditions
G = +1, V
OUT
= 0.2V
pp
, R
f
= 1kΩ
G = +2, V
OUT
= 0.2V
pp
G = +2, V
OUT
= 4V
pp
G = +2, V
OUT
= 0.2V
pp
(R
f
=453Ω for CLC4601)
G = +2, V
OUT
= 4V
pp
V
OUT
= 2V step; (10% to 90%)
V
OUT
= 2V step
V
OUT
= 0.2V step
V
OUT
= 4V step
2V
pp
, 1MHz
2V
pp
, 1MHz
2V
pp
, 1MHz
NTSC (3.58MHz), DC-coupled, R
L
= 150Ω
NTSC (3.58MHz), DC-coupled, R
L
= 150Ω
> 1MHz
> 1MHz
> 1MHz
Channel-to-channel 5MHz
Min
Typ
550
335
200
120
55
1.4
20
1.5
1500
-82
-83
-80
0.01
0.06
7
1.3
11
-56
Max
Units
MHz
Frequency Domain Response
C
omlinear
CLC2601, CLC3601, CLC4601
Dual, Triple, and Quad 550MHz Amplifiers
MHz
MHz
MHz
MHz
ns
ns
%
V/µs
dBc
dBc
dB
%
°
nV/√Hz
pA/√Hz
pA/√Hz
dB
+7.5
7.0
30
mV
µV/°C
µA
nA/°C
µA
nA/°C
dB
kΩ
14
28
28
mA
mA
mA
MΩ
pF
V
dB
mΩ
2.6
V
V
mA
mA
Time Domain Response
Distortion/Noise Response
DC Performance
-7.5
-7.0
-30
DC
V
OUT
= V
S
/ 2
CLC2601 Total
CLC3601 Total
CLC4601 Total
57
2.7
15
2.6
6
7.4
15
61
420
10.4
20.8
20.8
8
1
±2.3
DC
Closed Loop, DC
R
L
= 100Ω
(1)
R
L
= 1kΩ
V
OUT
= V
S
/ 2
-2.6
50
54
90
±2.95
±3.35
52
65
Ratio
(1)
Input Characteristics
R
IN
C
IN
CMIR
CMRR
R
O
V
OUT
I
OUT
I
SC
Notes:
1. 100% tested at 25°C
Input Resistance
Input Capacitance
Common Mode Input Range
Common Mode Rejection
Output Resistance
Output Voltage Swing
Output Current
Short-Circuit Output Current
Non-inverting
Output Characteristics
Rev 1E
©2007-2013 Exar Corporation
4/15
Rev 1E
Data Sheet
Typical Performance Characteristics
T
A
= 25°C, V
s
= ±5V, R
f
= 510Ω, R
L
= 100Ω, G = 2; unless otherwise noted.

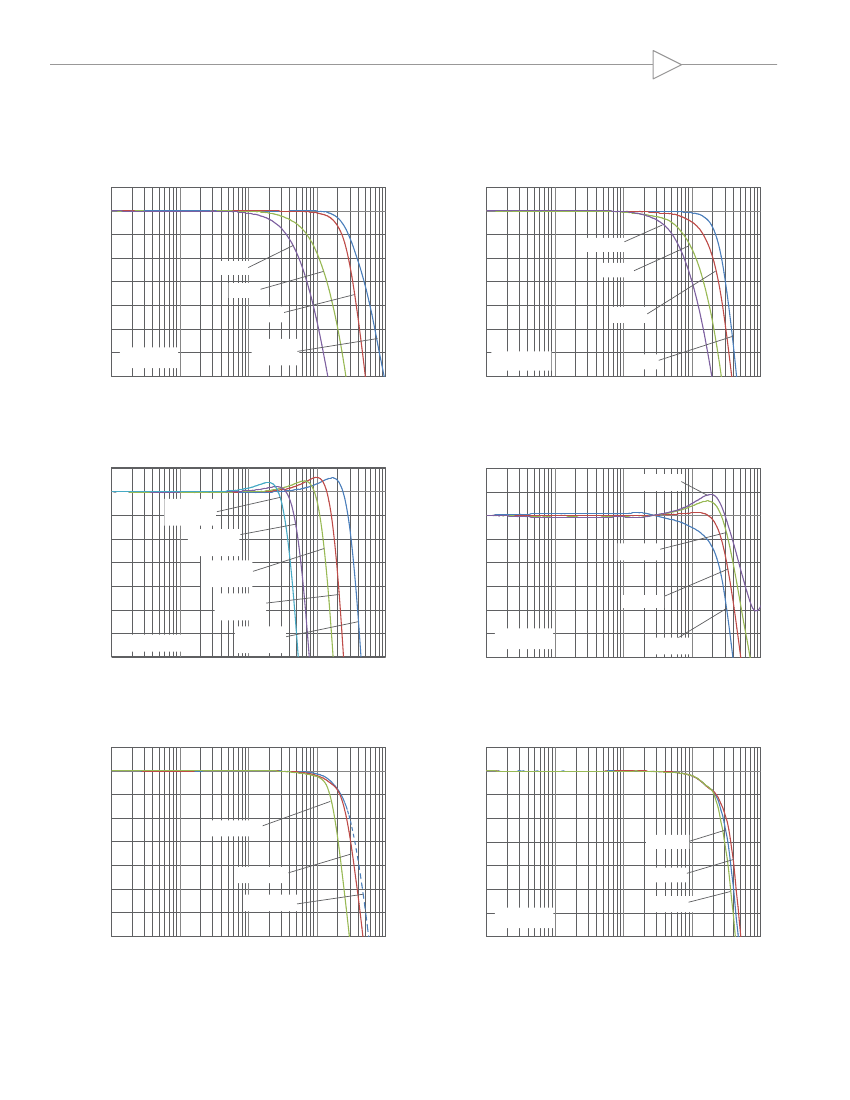

Non-Inverting Frequency Response
1
0
Inverting Frequency Response
1
0
C
omlinear
CLC2601, CLC3601, CLC4601
Dual, Triple, and Quad 550MHz Amplifiers
Normalized Gain (dB)
Normalized Gain (dB)
-1
-2
-3
-4
-5
-6
-7
0.1
1
10
100
1000
V
OUT
= 0.2V
pp
G=1
R
f
= 1kΩ
-1
-2
G = -10
G = -5
G = 10
G=5
G=2
-3
-4
-5
-6
-7
0.1
1
10
100
1000
V
OUT
= 0.2V
pp
G = -2
G = -1
Frequency (MHz)
Frequency (MHz)
Frequency Response vs. C
L
1
0
Frequency Response vs. R
L
2
1
R
L
= 2.5KΩ
Normalized Gain (dB)
-2
-3
-4
-5
-6
-7
0.1
1
V
OUT
= 0.2V
pp
C
L
= 500pF
R
s
= 7Ω
C
L
= 100pF
R
s
= 15Ω
C
L
= 50pF
R
s
= 20Ω
C
L
= 10pF
R
s
= 40Ω
10
100
1000
Normalized Gain (dB)
-1
C
L
= 1000pF
R
s
= 5Ω
0
-1
-2
-3
-4
-5
-6
0.1
1
10
100
1000
V
OUT
= 0.2V
pp
R
L
= 150Ω
R
L
= 1KΩ
R
L
= 50Ω
Frequency (MHz)
Frequency (MHz)
Frequency Response vs. V
OUT
1
0
Frequency Response vs. Temperature
1
0
-1
-2
-3
-4
-5
-6
-7
+ 85degC
V
OUT
= 2V
pp
+ 25degC
Normalized Gain (dB)
-2
-3
-4
-5
-6
-7
0.1
1
V
OUT
= 4V
pp
V
OUT
= 2V
pp
V
OUT
= 1V
pp
Normalized Gain (dB)
-1
- 40degC
Rev 1E
10
100
1000
0.1
1
10
100
1000
Frequency (MHz)
Frequency (MHz)
©2007-2013 Exar Corporation
5/15
Rev 1E
