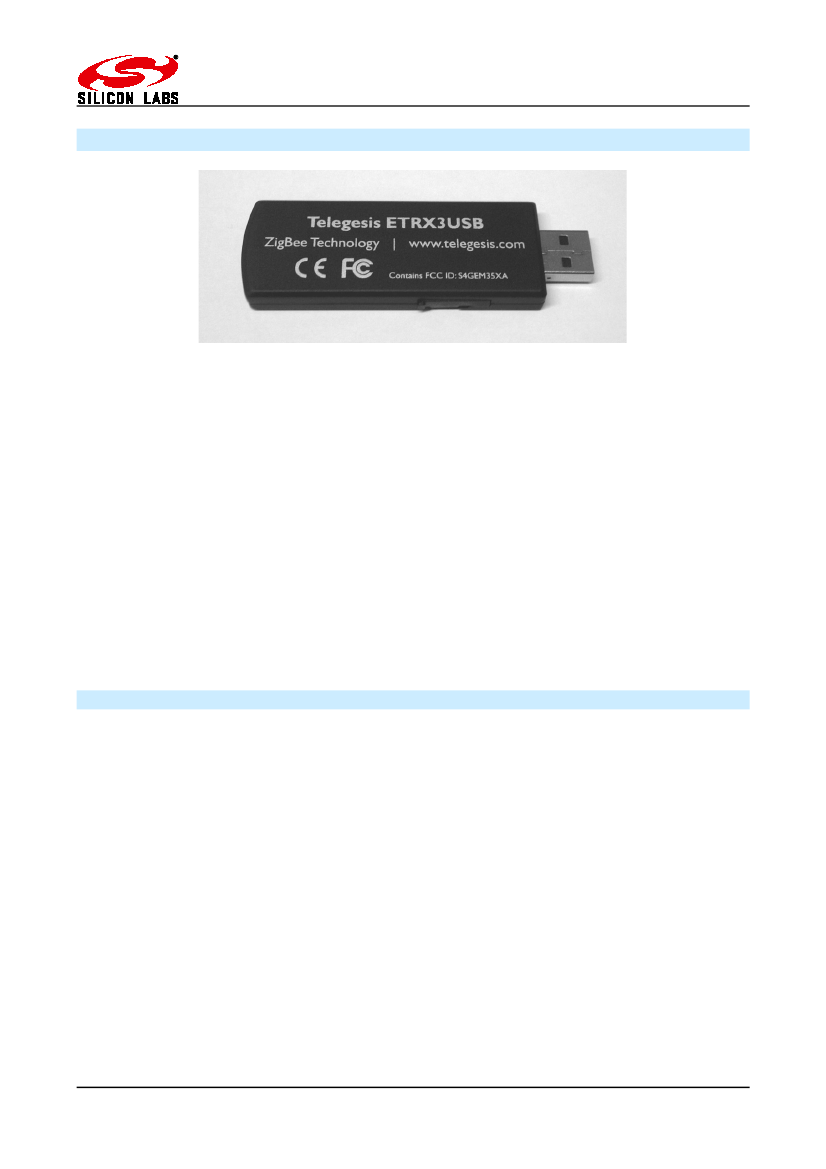

1 Introduction
The ETRX3USB ZigBee USB Stick is effectively an RS232 to USB bridge connected to an ETRX3
Series ZigBee module. This allows connectivity to a computer’s USB port.
The ETRX3USB+8M and ETRX3USB-LRS+8M include an 8Mbit flash memory chip which can be
accessed by the firmware in the EM357 ZigBee chip inside the USB stick.
The ETRX3USB-LRS and ETRX3USB-LRS+8M have an ETRX357-LRS module in place of the
ETRX357 for longer range. The LRS variant has higher output power and better receiver sensitivity;
consult the ETRX357 and ETRX357-LRS Product Manuals for the full details.
The supplied Windows drivers create a virtual COM Port, so that the command line of the ETRX3
series module can be accessed via any terminal software application.
When using Windows
®
the Telegesis Terminal application can be used as described in the ETRX357
Development Kit manual.
1.1
Supported Operating Systems
Windows 98SE
Windows XP/Vista/7
Windows 2000
Windows CE *
MAC OS-9
MAC OS-X *
Linux *
* drivers for these systems are available from Silicon Labs though most Linux distributions now
include a suitable driver. The bridge chip is a CP2102 with Vendor ID 0x10C4 and Product ID
0x8293.
©2015 Silicon Labs
-3-
ETRX3USB Product Manual (r4)
ETRX3USB
2 Absolute Maximum Ratings
Parameter
Supply Voltage Vdd
Voltage on any pin
Storage Temperature range
Min.
-0.3
-0.3
-40
Max.
5.5
V
dd
+0.3, max 5.8
150
Units
V
V
°C
Condition
Table 1: Absolute Maximum Ratings
The absolute maximum ratings given above should under no circumstances be violated. Exceeding
one or more of the limiting values may cause permanent damage to the device.
3 8Mb flash memory
3.1
Connections
The +8M devices in the USB stick family contain a Winbond W25Q80DV 8Mb serial flash memory
chip with SPI interface to the EM357. The pin connections to the EM357 are shown in Figure 1.
PA3
PA1
VCC
GND
/CS
DO
/WP
GND
VCC
/HOLD
CLK
DI
VCC
VCC
PA2
PA0
W25Q80DV
Figure 1. Flash memory connections to EM357
At the time of writing the datasheet for the Winbond W25Q80DV flash memory chip is available at:
www.winbond.com/hq/product/code-storage-flash-memory/serial-nor-
flash/?__locale=en&partNo=W25Q80DV
©2015 Silicon Labs
-4-
ETRX3USB Product Manual (r4)
ETRX3USB
3.2
Firmware
The Telegesis R3xx firmware does not have any capability of driving the SPI connection to the
memory chip. Users will have to write or commission custom firmware to make use of this external
memory.
©2015 Silicon Labs
-5-
ETRX3USB Product Manual (r4)
