323-50120 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Wire/cable> 323-50120

Preview

323-50120: DescriptionHEATSHRINK 4:1 12MMX1M 1=6/PKG; CategoryWire/cable; File Size370KB，3 Pages; ManufacturerHellermannTyton; Environmental Compliance

Download Datasheet Parametric Compare View All

323-50120 Overview

HEATSHRINK 4:1 12MMX1M 1=6/PKG

323-50120 Parametric

Parameter Name	Attribute value
type	Casing, semi-flexible
Shrinkage	4 to 1
length	3.28'（1.00m）
Inner diameter (factory)	0.472"（11.99mm）
Inner diameter - after recovery	0.118"（2.99mm）
Wall thickness after restoration	0.079"（2.01mm）
Material	Polyolefin (PO), radiation treated, halogen-free
characteristic	Adhesive lining, acid, corrosion, moisture and solvent resistant
color	black
Operating temperature	-55°C ~ 110°C
Shrinkage temperature	120°C

Preview

Download Datasheet

View All

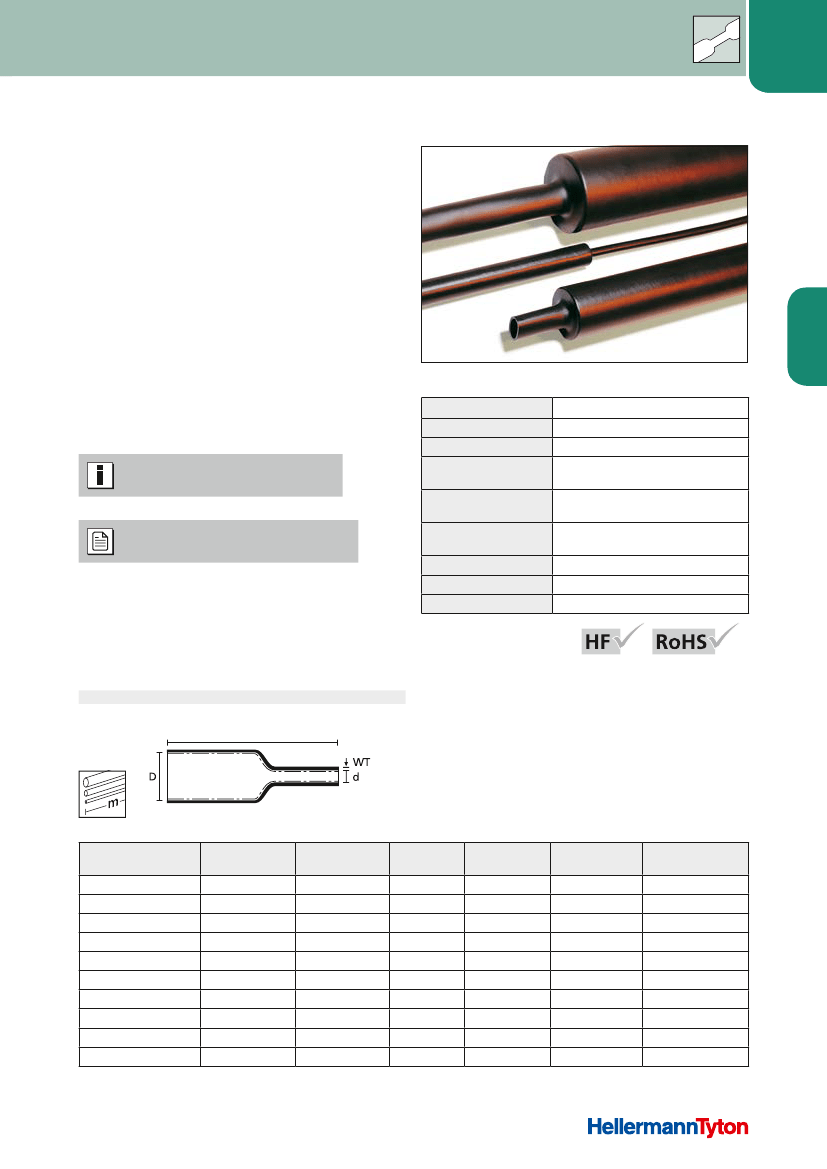

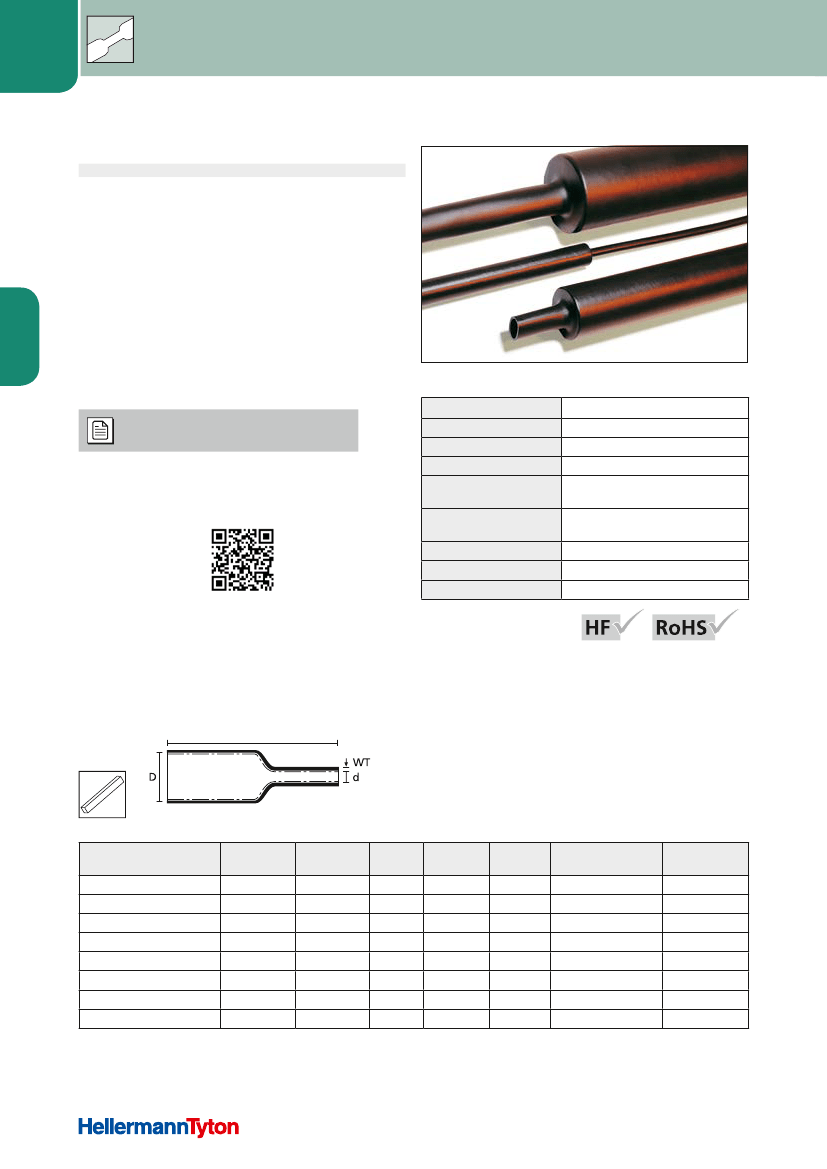

2.1

Insulation

Heat Shrinkable Tubing

Heat Shrinkable Tubing up to 4:1 - 1 m lengths

TREDUX MA47 medium wall - with adhesive liner

Suitable for insulation and protection of low voltage cable joints and

terminations.

Features and Benefits

• Medium walled heat shrink tubing

• Securely packed in display boxes for use in smaller quantities

• Supplied in lengths of 1 m

• Thermoplastic adhesive liner for protection from moisture

and weathering

MA47 and MU47 medium wall tubing - lined and unlined.

Detailed Information about

Heatguns please refer to page 529.

MATERIAL

Shrink Ratio

Operating Temperature

Softening Point Adhesive

Minimum Shrink

Temperature

Longitudinal change

after shrinkage

Dielectric Strength

Flammability

Insulation Class

Polyolefin, cross-linked (PO-X)

up to 4:1

-55 °C to +110 °C

+85 °C

+120 °C

-10 % max.

20 kV/mm

not flame retarded

A (VDE 0530)

One Step to the Web!

L

Heat Shrinkable Tubing 4:1 with adhesive

TYPE

TREDUX-MA47-12/3

TREDUX-MA47-19/6

TREDUX-MA47-30/8

TREDUX-MA47-40/12

TREDUX-MA47-50/16

TREDUX-MA47-63/19

TREDUX-MA47-75/22

TREDUX-MA47-95/30

Supplied

Ø D min.

12.0

19.0

30.0

40.0

50.0

63.0

75.0

95.0

Recov.

Ø d max.

3.0

6.0

8.0

12.0

16.0

19.0

22.0

30.0

Wall

(WT)

2.00

2.50

2.70

2.80

3.00

Length

(L)

1.0 m

Pack

Cont.

6 pcs.

10 pcs.

6 pcs.

4 pcs.

2 pcs.

1 pcs.

Colour

Black (BK)

Article-No.

323-50120

323-50190

323-50300

323-50400

323-50500

323-50750

323-50950

Date of issue: October 2015

323-50630

All dimensions in mm. Subject to technical changes.

Minimum Order Quantity (MOQ) may differ from package content.

226

Further information at

www.HellermannTyton.com/insulation

323-50120 Related Products

	323-50120	323-50300	323-50400	323-50500	323-50750	323-50950	323-50630
Description	HEATSHRINK 4:1 12MMX1M 1=6/PKG	HEATSHRINK 4:1 30MMX1M 1=6/PKG	HEATSHRINK 4:1 40MMX1M 1=4/PKG	HEATSHRINK 4:1 50MMX1M 1=2/PKG	HEATSHRINK 4:1 75MMX1M 1=2/PKG	HEATSHRINK 4:1 95MMX1M 1=1/PKG	HEATSHRINK 4:1 63MMX1M 1=2/PKG
type	Casing, semi-flexible	Casing, semi-flexible	Casing, semi-flexible	Casing, semi-flexible	Casing, semi-flexible	Casing, semi-flexible	Casing, semi-flexible
Shrinkage	4 to 1	4 to 1	4 to 1	4 to 1	4 to 1	4 to 1	4 to 1
length	3.28'（1.00m）	3.28'（1.00m）	3.28'（1.00m）	3.28'（1.00m）	3.28'（1.00m）	3.28'（1.00m）	3.28'（1.00m）
Inner diameter (factory)	0.472"（11.99mm）	1.181"（30.00mm）	1.575"（40.01mm）	1.969"（50.00mm）	2.953"（75.01mm）	3.740"（95.00mm）	2.480"（62.99mm）
Inner diameter - after recovery	0.118"（2.99mm）	0.315"（8.00mm）	0.472"（12.00mm）	0.630"（16.00mm）	0.866"（22.00mm）	1.181"（30.00mm）	0.750"（19.05mm）
Wall thickness after restoration	0.079"（2.01mm）	0.098"（2.49mm）	0.098"（2.49mm）	0.106"（2.70mm）	0.118"（3.00mm）	0.118"（3.00mm）	0.111"（2.80mm）
Material	Polyolefin (PO), radiation treated, halogen-free	Polyolefin (PO), radiation treated, halogen-free	Polyolefin (PO), radiation treated, halogen-free	Polyolefin (PO), radiation treated, halogen-free	Polyolefin (PO), radiation treated, halogen-free	Polyolefin (PO), radiation treated, halogen-free	Polyolefin (PO), radiation treated, halogen-free
characteristic	Adhesive lining, acid, corrosion, moisture and solvent resistant	Adhesive lining, acid, corrosion, moisture and solvent resistant	Adhesive lining, acid, corrosion, moisture and solvent resistant	Adhesive lining, acid, corrosion, moisture and solvent resistant	Adhesive lining, acid, corrosion, moisture and solvent resistant	Adhesive lining, acid, corrosion, moisture and solvent resistant	Adhesive lining, acid, corrosion, moisture and solvent resistant
color	black	black	black	black	black	black	black
Operating temperature	-55°C ~ 110°C	-55°C ~ 110°C	-55°C ~ 110°C	-55°C ~ 110°C	-55°C ~ 110°C	-55°C ~ 110°C	-55°C ~ 110°C
Shrinkage temperature	120°C	120°C	120°C	120°C	120°C	120°C	120°C
