15KP22 thru 15KP280CA, e3
15,000 W TRANSIENT VOLTAGE
SUPPRESSOR
SCOTTSDALE DIVISION
DESCRIPTION
These Microsemi 15 kW Transient Voltage Suppressors (TVSs) are
designed for applications requiring protection of voltage-sensitive electronic
devices that may be damaged by harsh or severe voltage transients
including lightning per IEC61000-4-5 and class levels with various source
impedances described herein. This series is generally available in 22 to
280 volt standoff voltages (V
WM
) in both unidirectional and bi-directional
offered in two different package designs for axial and radial configurations.
Consult factory for availability of the 17 and 18 Volt devices on a special
order basis. Microsemi also offers numerous other TVS products to meet
higher or lower power demands and special applications.
IMPORTANT:
For the most current data, consult
MICROSEMI’s
website:
http://www.microsemi.com
APPEARANCE
CASE 5A
(DO-204AR)
CASE 5R
WWW .
Microsemi
.C
OM
FEATURES
•
Available in both Unidirectional and Bidirectional
construction (Bidirectional with C or CA suffix)
•
Available in both axial-leaded and radial packages
(include R prefix in part number for radial package option
shown in figure as “case 5R,” e.g. R15KP22A)
•
Selections for 22 to 280 volt standoff voltages (V
WM
)
•

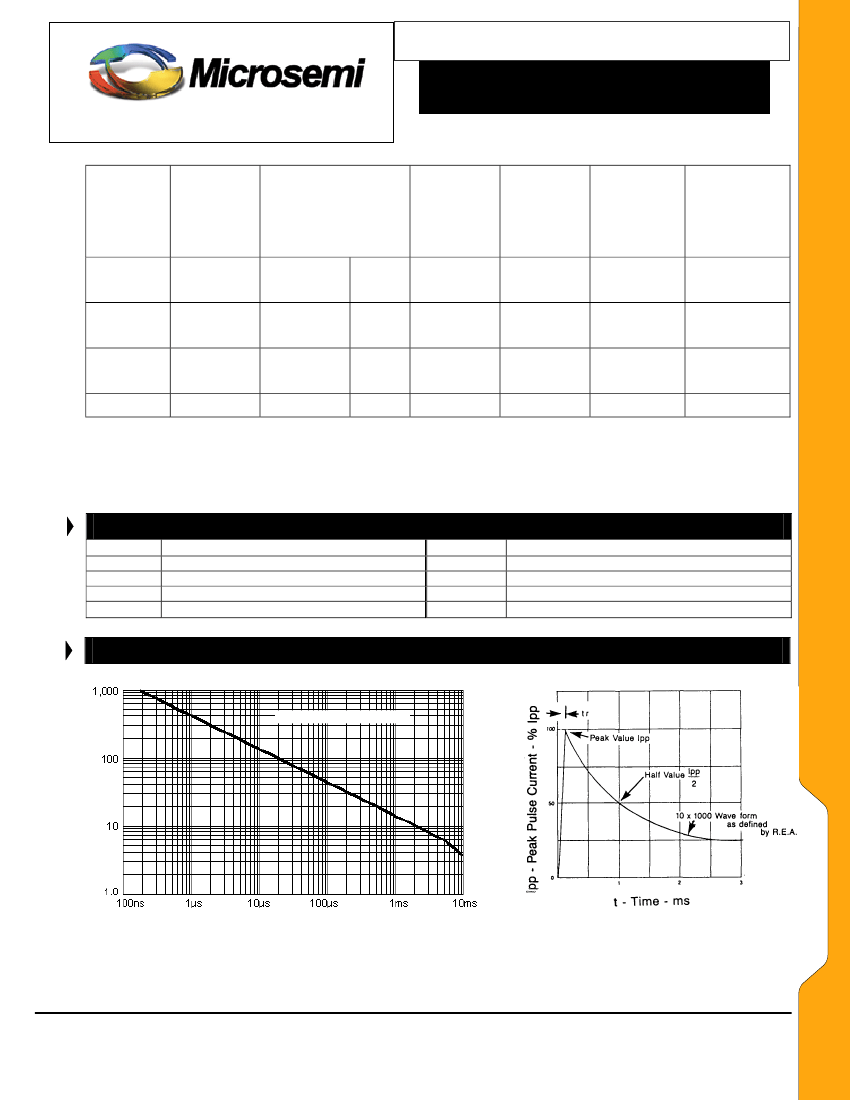

Suppresses transients up to 15 kW @ 10/1000 µs and
100 kW @ 8/20 µs (see Figure 1)
•
Optional 100%
screening for avionics grade
is available
by adding MA prefix to part number for added 100%
o
o
temperature cycle -55 C to +125 C (10X) as well as surge
(3X) and 24 hours HTRB with post test V
BR
& I
D
(in the
operating direction for unidirectional or both directions for
bidirectional)
•
Options for screening in accordance with MIL-PRF-19500
for JANTX are available by adding MX prefix respectively
to the part numbers.
•
Moisture classification is Level 1 with no dry pack required
per IPC/JEDEC J-STD-020B
•
RoHS Compliant devices available by adding “e3” suffix
APPLICATIONS / BENEFITS
•
Protection from switching transients and induced RF
•
Fast response
•
Protection from ESD, and EFT per IEC 61000-4-2 and
IEC 61000-4-4
•
Secondary lightning protection per IEC61000-4-5 with
42 Ohms source impedance:
Class 1,2,3,4: 15KP22A - 15KP280A or CA
Class 5: 15KP22A - 15KP280A or CA (short distance)
Class 5: 15KP22A - 15KP110A or CA (long distance)
•
Secondary lightning protection per IEC61000-4-5 with
12 Ohms source impedance:
Class 1 & 2: 15KP22A to 15KP280A or CA
Class 3: 15KP22A to 15KP240A or CA
Class 4: 15KP22A to 15KP120A or CA
•
Secondary lightning protection per IEC61000-4-5 with
2 Ohms source impedance:
Class 2: 15KP22A to 15KP220A or CA
Class 3: 15KP22A to 15KP110A or CA
Class 4: 15KP22A to 15KP54A or CA
MAXIMUM RATINGS
•
Peak Pulse Power dissipation at 25
º
C: 15,000 watts at
10/1000
μs
(also see Figures 1 and 2)
•
Impulse repetition rate (duty factor): 0.05%
•
t
clamping
(0 volts to V
(BR)
min.): < 100 ps theoretical for
unidirectional and < 5 ns for bidirectional
•
Operating and Storage temperature: -65
º
C to +150
º
C
•
Thermal resistance: 20
º
C/W junction to lead, or 80
º
C/W
junction to ambient when mounted on FR4 PC board with
4 mm
2
copper pads (1oz) and track width 1 mm, length
25 mm
o
•
Steady-State Power dissipation: 6 watts at T
L
= 30 C, or
º
1.56 watts at T
A
= 25 C when mounted on FR4 PC board
described for thermal resistance
•
Forward Surge: 200 Amps 8.3 ms half-sine wave for
unidirectional devices only
•
Solder temperatures: 260
º
C for 10 s (maximum)
Copyright
©
2009
9-25-2009 rev. L, SD4A
MECHANICAL AND PACKAGING
•
•
CASE: Void-free transfer molded thermosetting
epoxy body meeting UL94V-0
FINISH: Tin-Lead or RoHS compliant annealed
matte-Tin plating readily solderable per MIL-STD-
750, method 2026
MARKING: Body marked with part number
POLARITY: Band denotes cathode for the axial-
leaded package and a dot denotes cathode terminal
for the radial package. Bidirectional not marked for
polarity
WEIGHT: 1.5 grams (approximate)
TAPE & REEL option: Standard per EIA-296 for
axial package (add “TR” suffix to part number)

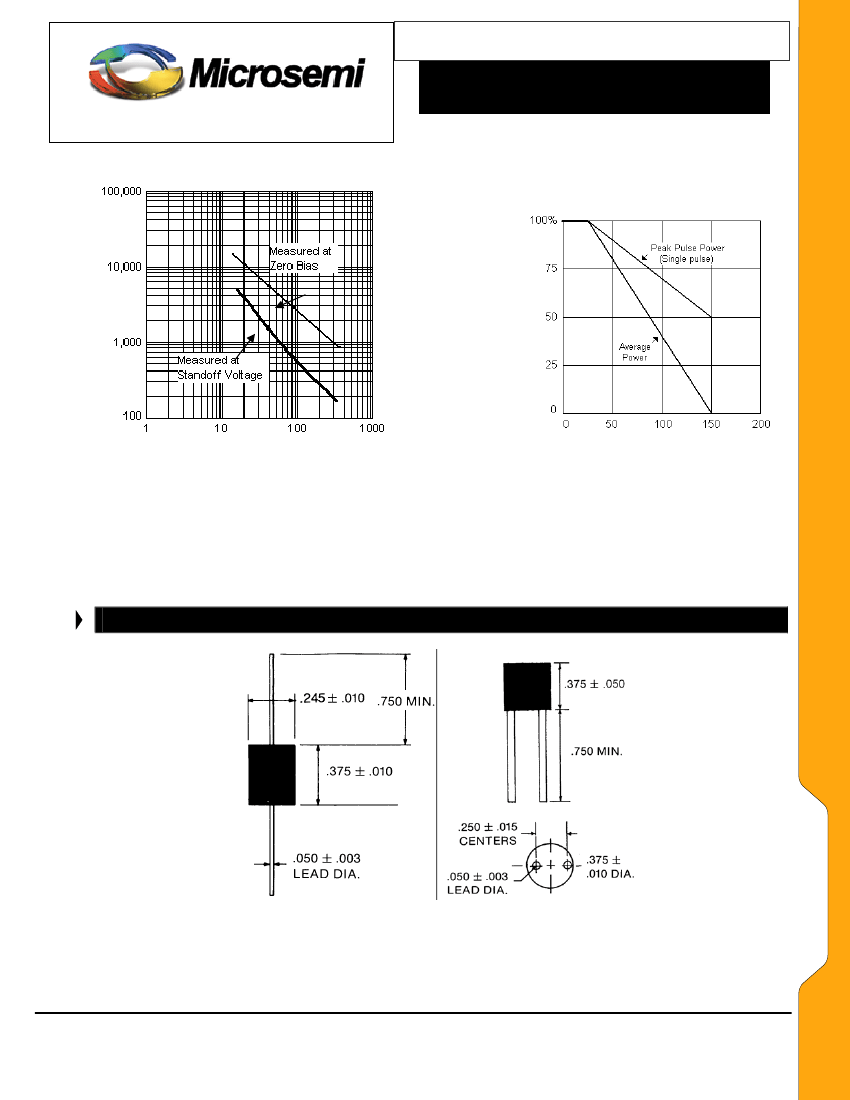

See package dimension on last page
15KP22-15KP280CA, e3
•
•
•
•
•
Microsemi
Scottsdale Division
8700 E. Thomas Rd. PO Box 1390, Scottsdale, AZ 85252 USA, (480) 941-6300, Fax: (480) 947-1503
Page 1
